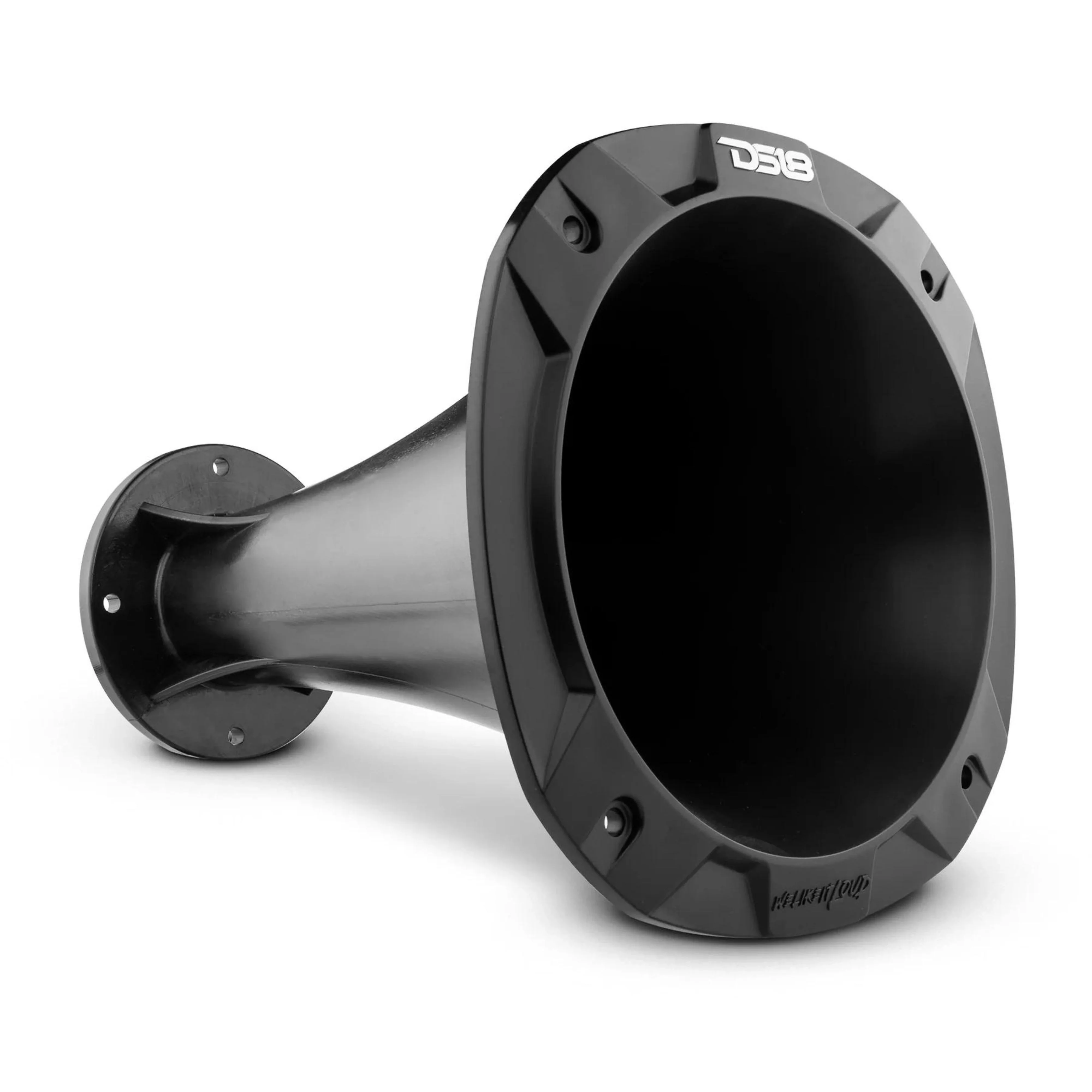

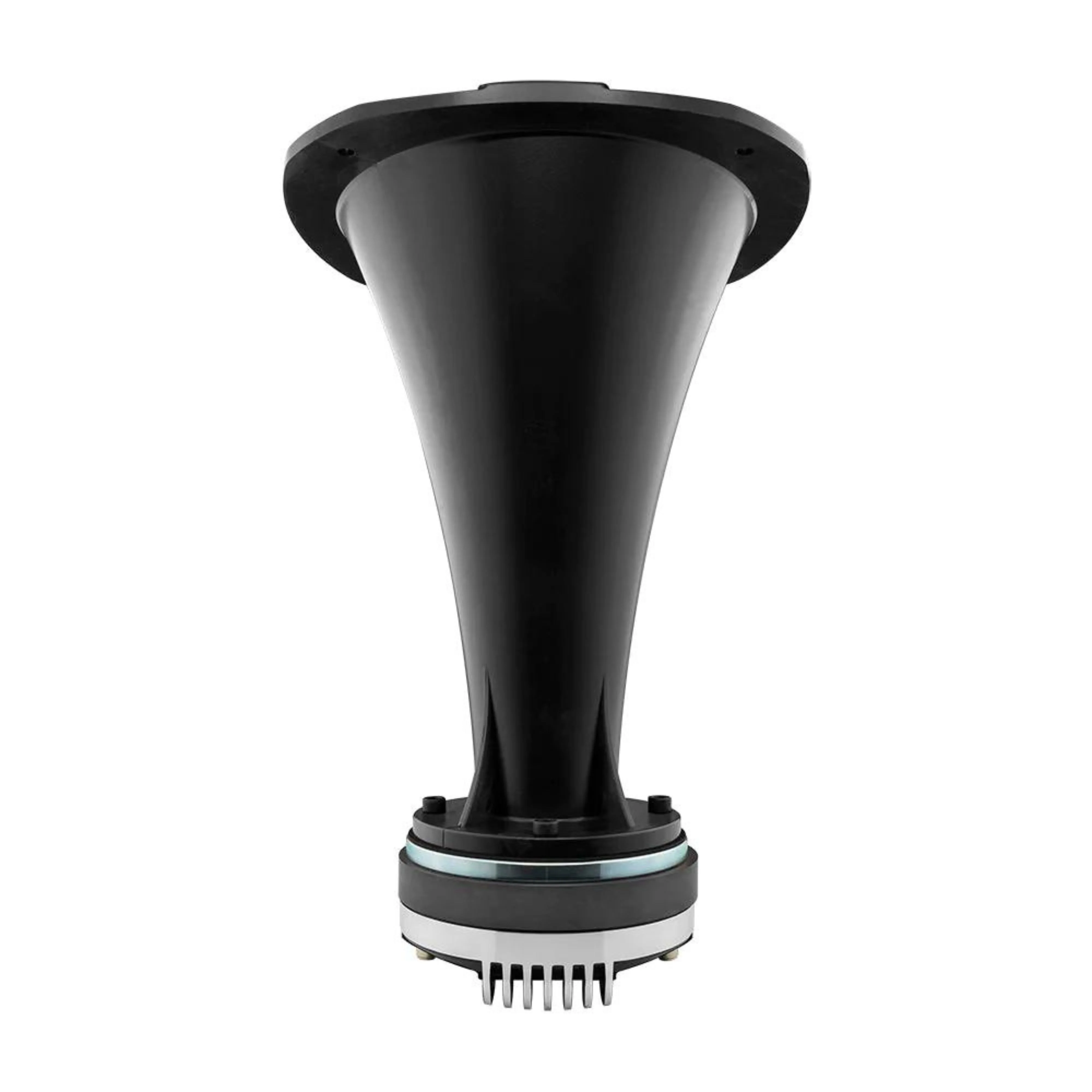

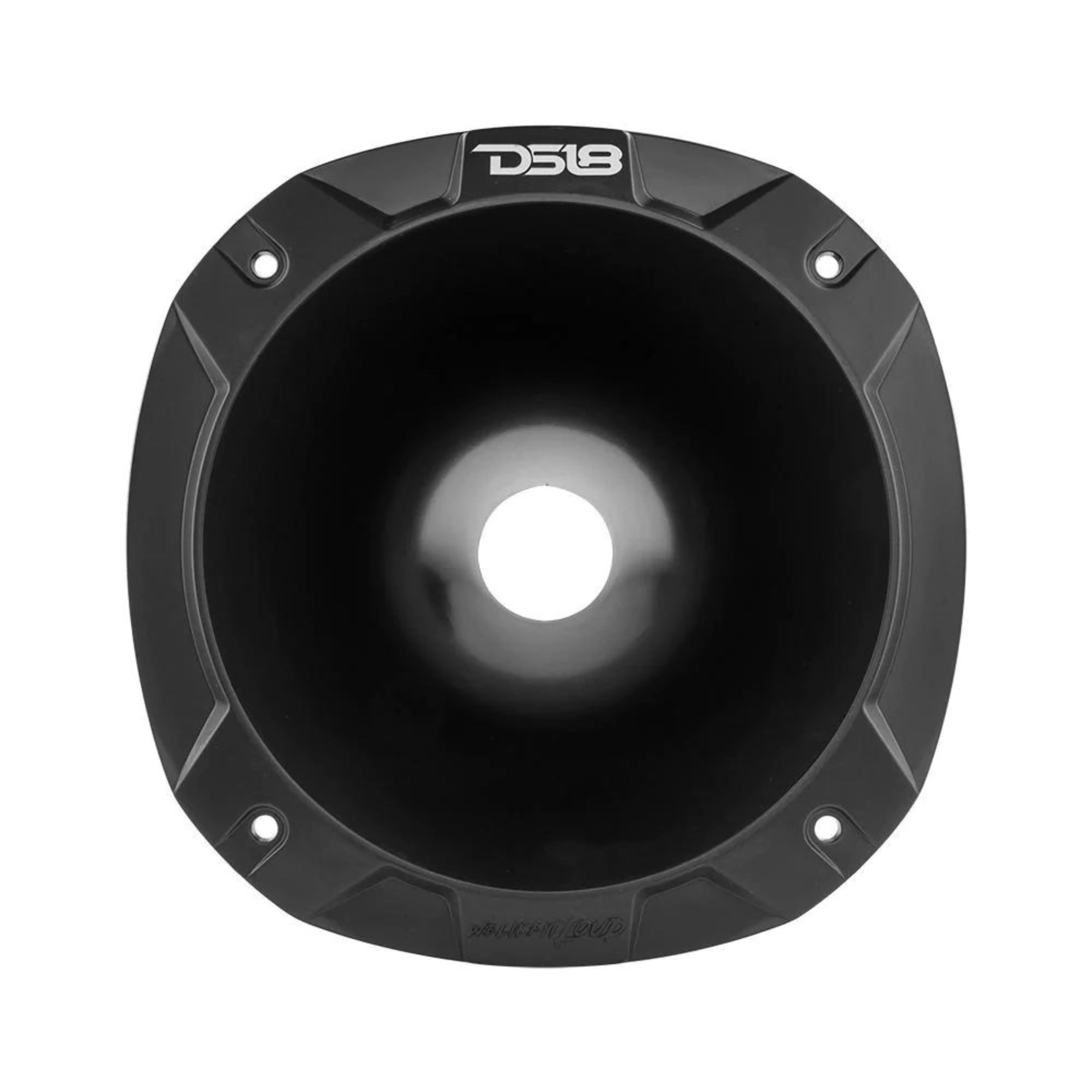

DS18 PRO-HP202 Bolt On 2" Throat 27 Degrees 10.84 Inch Depth Plastic Horn

This Listing Includes:

(1) Plastic Horn (Only)

DS18's PRO-HP202 is our latest and greatest in throated horns! This horn has a mounting depth of 10.84" and a throat diameter of 2" expanding your directional sound! This horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage! To give your system a more polished look, DS18 is offering the PRO-HP202 in four glossy finished colors: Blue, Gold, Red and Red with White Inside.  This bolt on throat horn requires a 4-bolt pattern on your driver to be installed correctly.

Specifications:

Installation Type Bolt-on

Throat Diameter: 2" / 50.8mm

Nominal Horn Diameter: 8"

Sound Coverage: 27 Rounded

Measurements:

Overall Diameter: 9.69" / 246mm

Overall Depth: 11.25" / 286mm

Mounting Depth: 10.84" / 275.336mm

Driver Bolt Pattern: 4"/ 102mm x 4-0.26" / 6.8mm

Mounting Bolt Pattern: 8.58" / 218mm x 4- 0.21" / 5.5mm

Mounting Hole Diameter: 7.95" / 202mm
