• Powerful Mid-Range Sound: Experience 200W RMS of crisp and clear mid-range frequencies, bringing your music to life with rich, detailed sound.
• Compact Shallow Design: The shallow depth makes installation easy, even in tight spaces, without compromising on audio quality.
• 4-Ohm Impedance: Compatible with a wide variety of audio systems, offering flexibility and ease of integration into your setup.
• High-Quality Construction: Built with durable materials, this loudspeaker is designed to withstand the rigors of high-volume performance and extended use.
• Bullet Dust Cap: The distinctive bullet dust cap not only enhances the speaker's aesthetics but also contributes to its precise and powerful sound output.

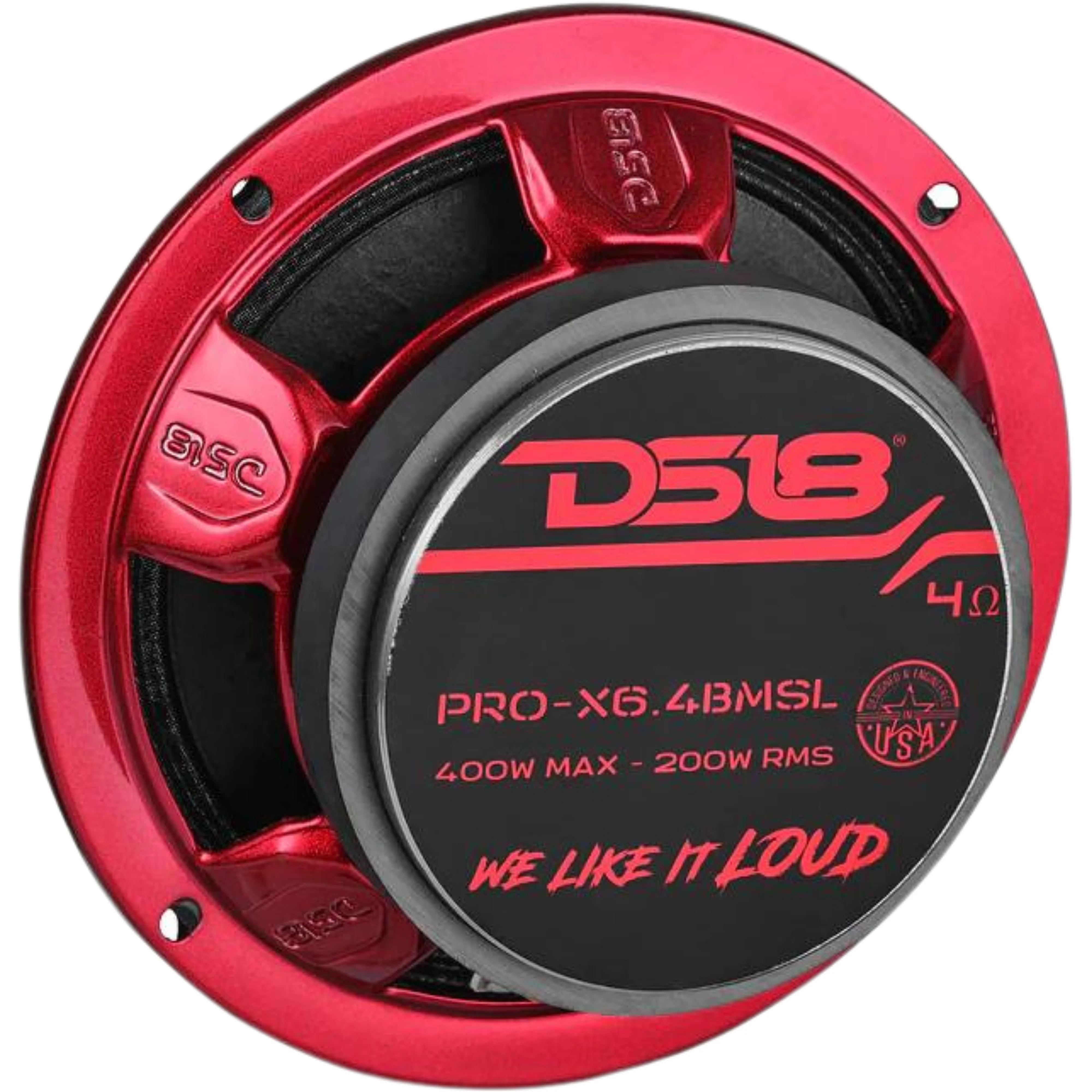

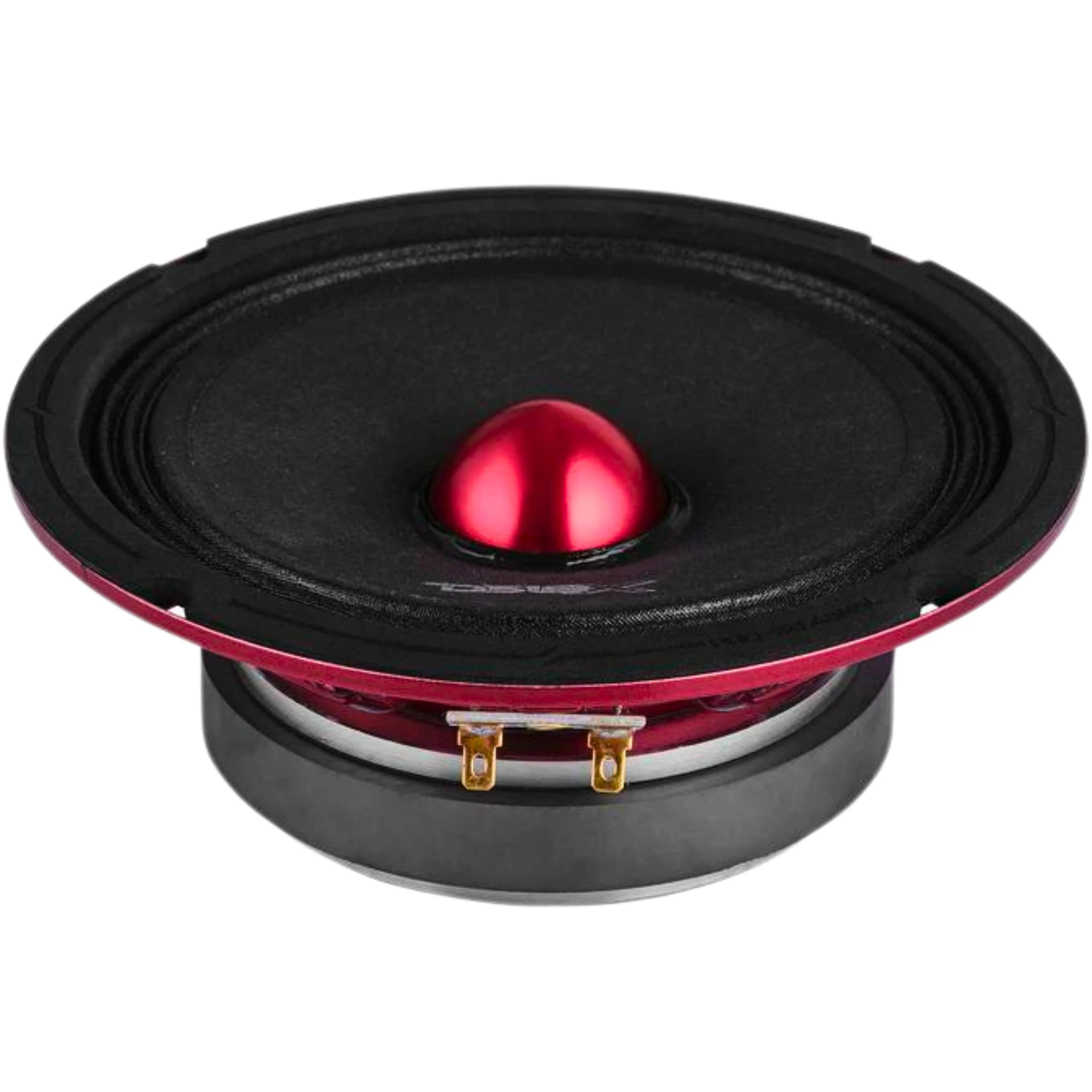

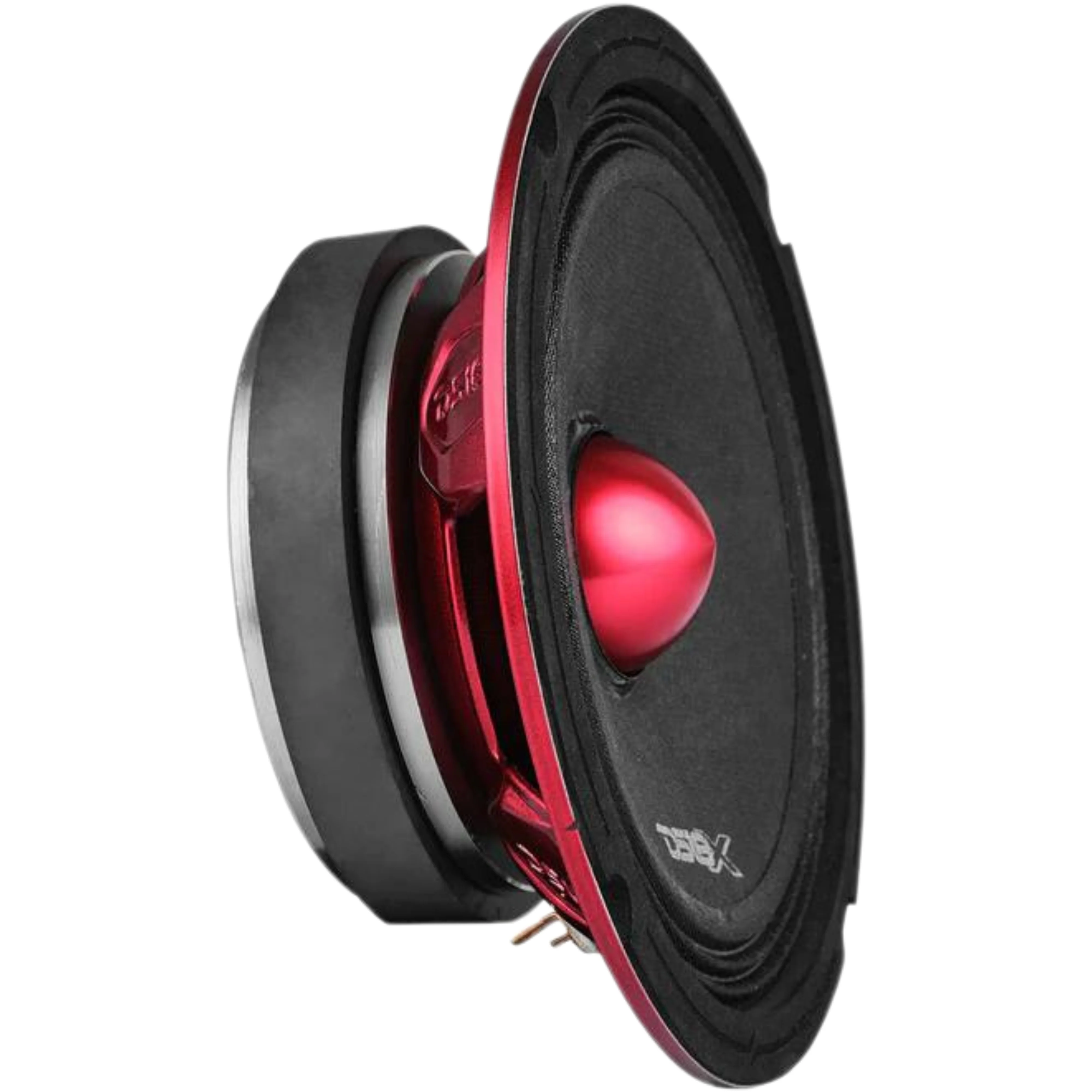

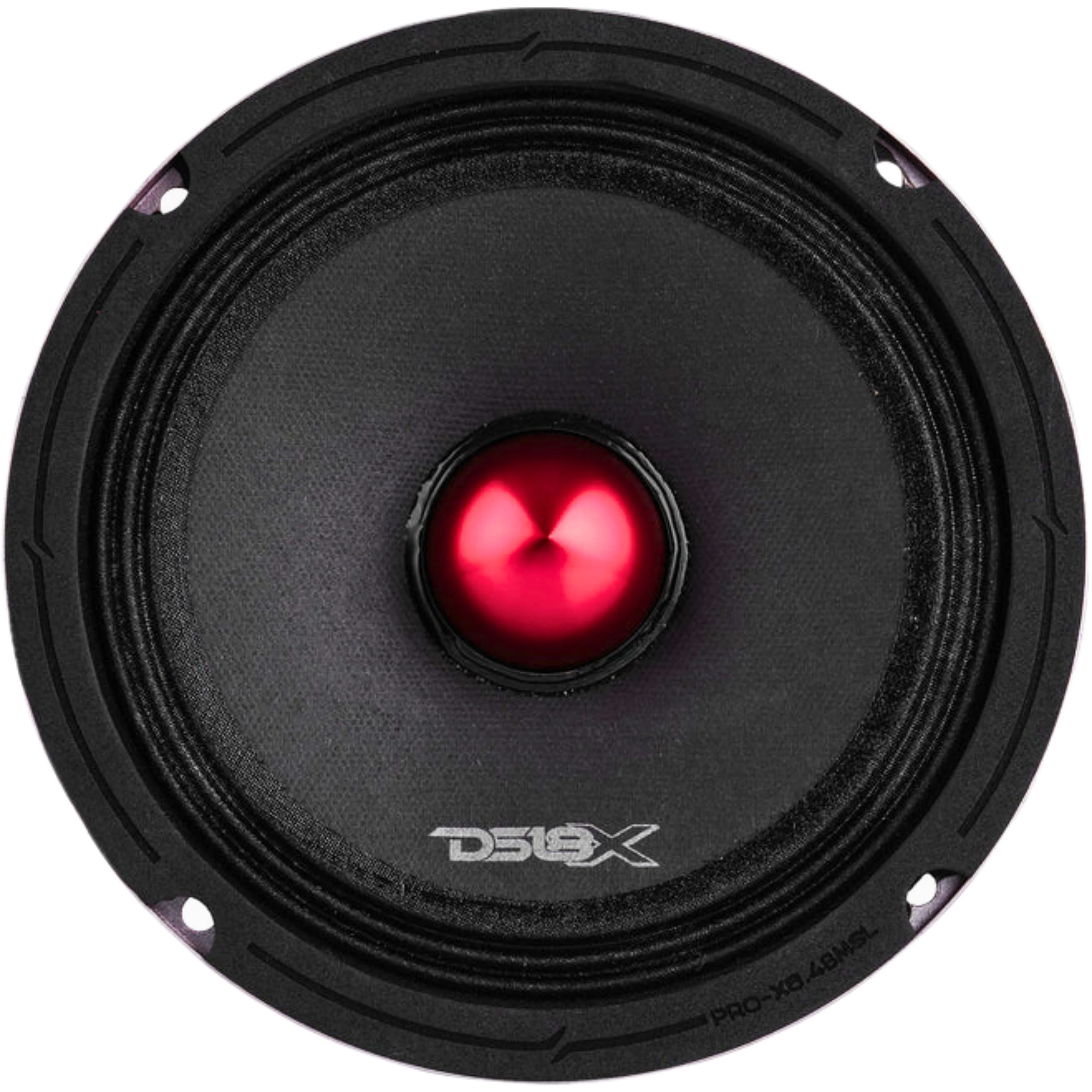

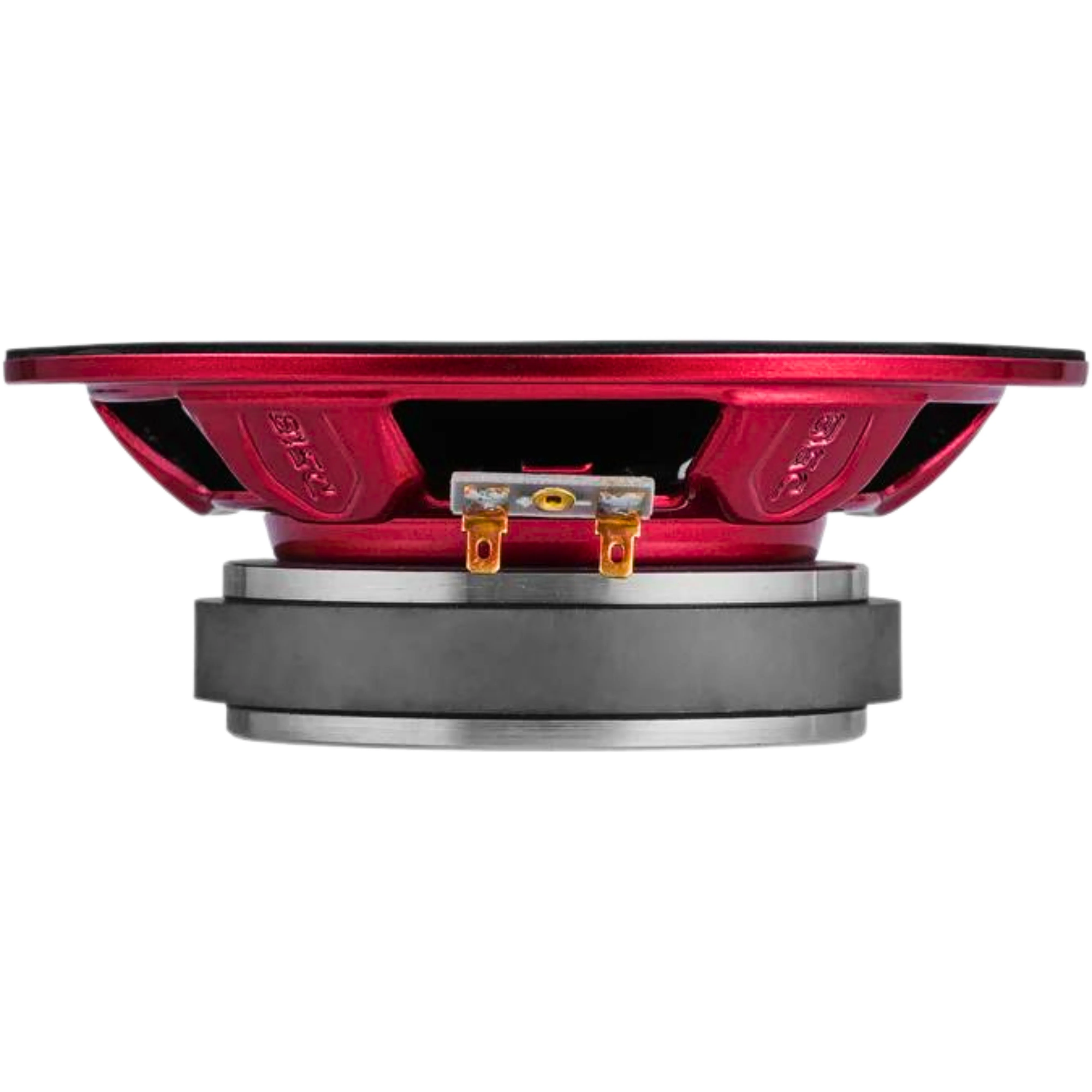

DS18 Pro-X 6.5" 200W RMS 4-Ohm Shallow Mid-Range Bullet Loudspeaker/PRO-X6.4BMSL

This Listing Includes:

• (1) PRO-X6.4BMSL Speaker

Description:

Unleash the true potential of your car audio system with the DS18 Pro-X 6.5" Shallow Mid-Range Bullet Loudspeaker. Engineered for high-performance sound, this loudspeaker delivers an impressive 200W RMS, providing powerful and clear mid-range frequencies. The 4-ohm impedance ensures compatibility with a wide range of audio systems, while the shallow design allows for easy installation in tight spaces. Built with durability in mind, the DS18 Pro-X is perfect for audiophiles seeking a superior audio experience without sacrificing space.

Features:

• 6.5" Shallow Mid-Range w/Bullet


• MAX Power: 400 Watts


• RMS Power: 200 Watts


• Impedance: 4-Ohm


• Ferrite Magnet


• 95dB

Specifications:

• Nominal Diameter: 6.5" / 165mm


• Nominal Impedance: 4 ohms


• RMS Power Handling: 200W


• MAX Power Handling: 400W


• Sensitivity (1w/1m): 95 db


• Frequency Response: 80 Hz - 5 KHz


• Recommended HI Pass Crossover: 130 Hz


• Sold by: Single


• Grill Included: No

Motor:

• Voice Coil Diameter: 1.5" / 38.1 mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Non-Pressed


• Bullet Material: Aluminum


• Bullet Color/Finish: Glossy Red


• Surround Material: Cloth


• Basket Material: Steel


• Basket Finish / Color: Glossy Red


• Magnet Material: Ferrite


• Magnet Weight: 21 Oz

Thiele & Small Parameters:

• Equivalent Volume Vas: 4.51L / 0.159ft3


• Excursion (one way) Xmax: 6.4 mm


• Free Air Resonance Fs: 140Hz


• Mechanical Factor Qms: 6.59


• Electrical Factor Qes: 0.81


• Total Factor Qts: 0.72


• Mechanical Mass Mms: 6.92 g


• Mechanical Compliance Cms: 0.19 mm/N


• BL Factor BL: 4.99


• Voice Coil Inductance Le: 0.03 mH


• Cone Area Sd: 130.7 Cm^2


• DC Resistance Re: 3.3 ohms

Measurements:

• Overall Diameter: 6.65" / 169 mm


• Overall Depth: 2.36" / 60 mm


• Front Mount Baffle Cutout: 5.63" / 143 mm


• Mounting Depth: 2.15" / 54.5 mm


• Motor Diameter: 4.3" / 110 mm
