• Sealed back design which allows you to put these in boxes that have high turbulence or pressure so you don't damage cones.
• Perfect for walls or cuchero boxes that have mid-bass or bass speakers in the ensure.
• High sensitivity and power ratings to make sure your midrange frequencies pierce through the bass and midrange for an amazing full sound.

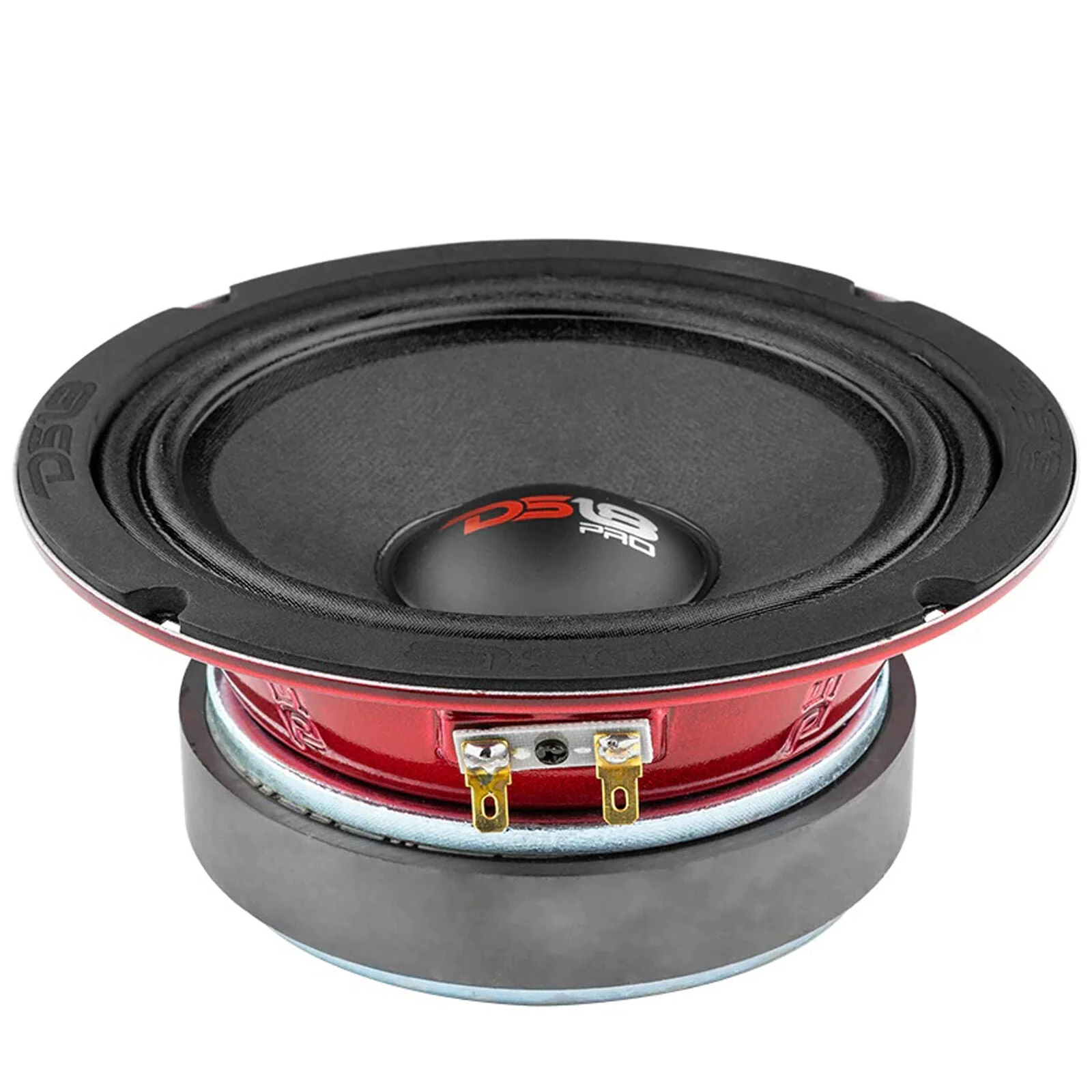

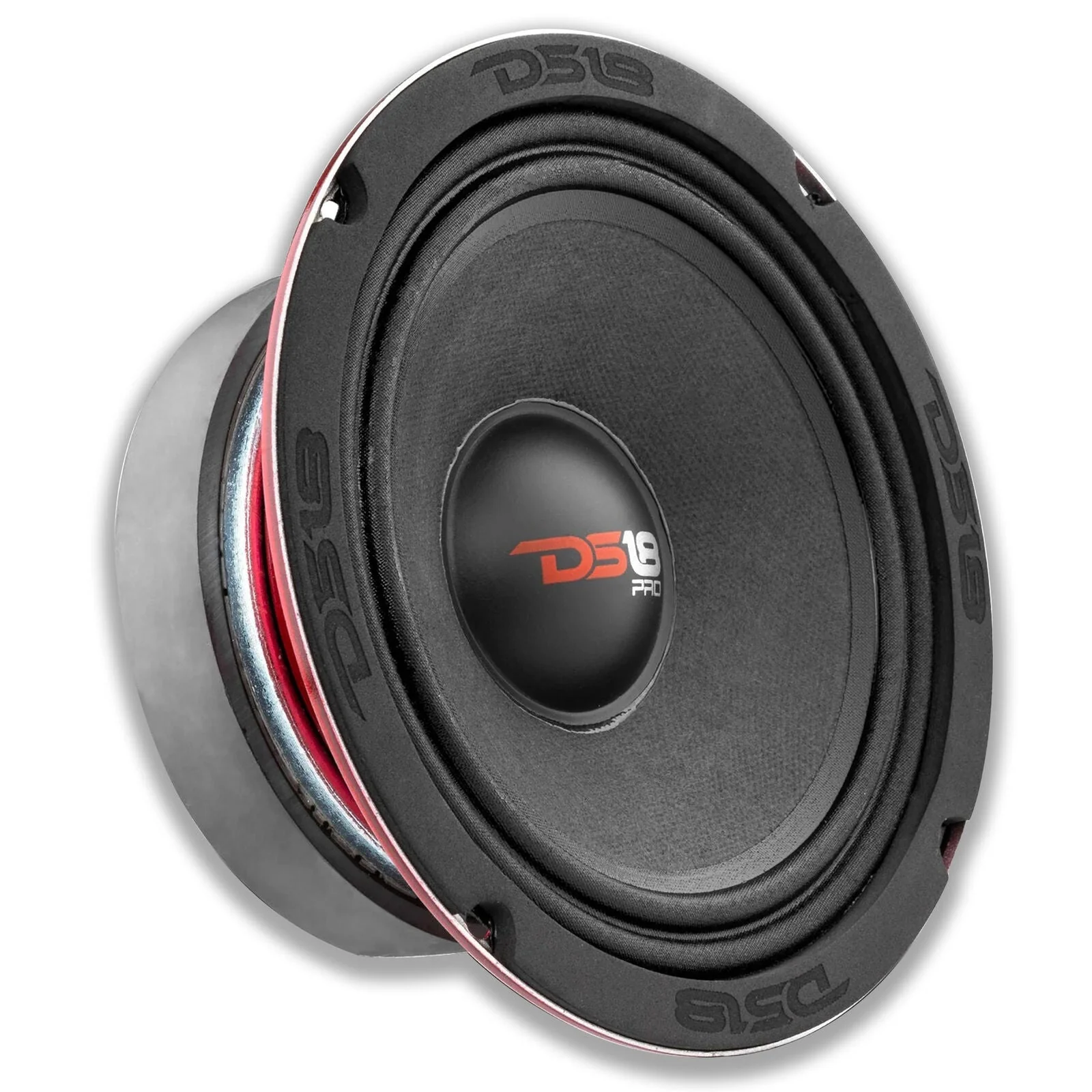

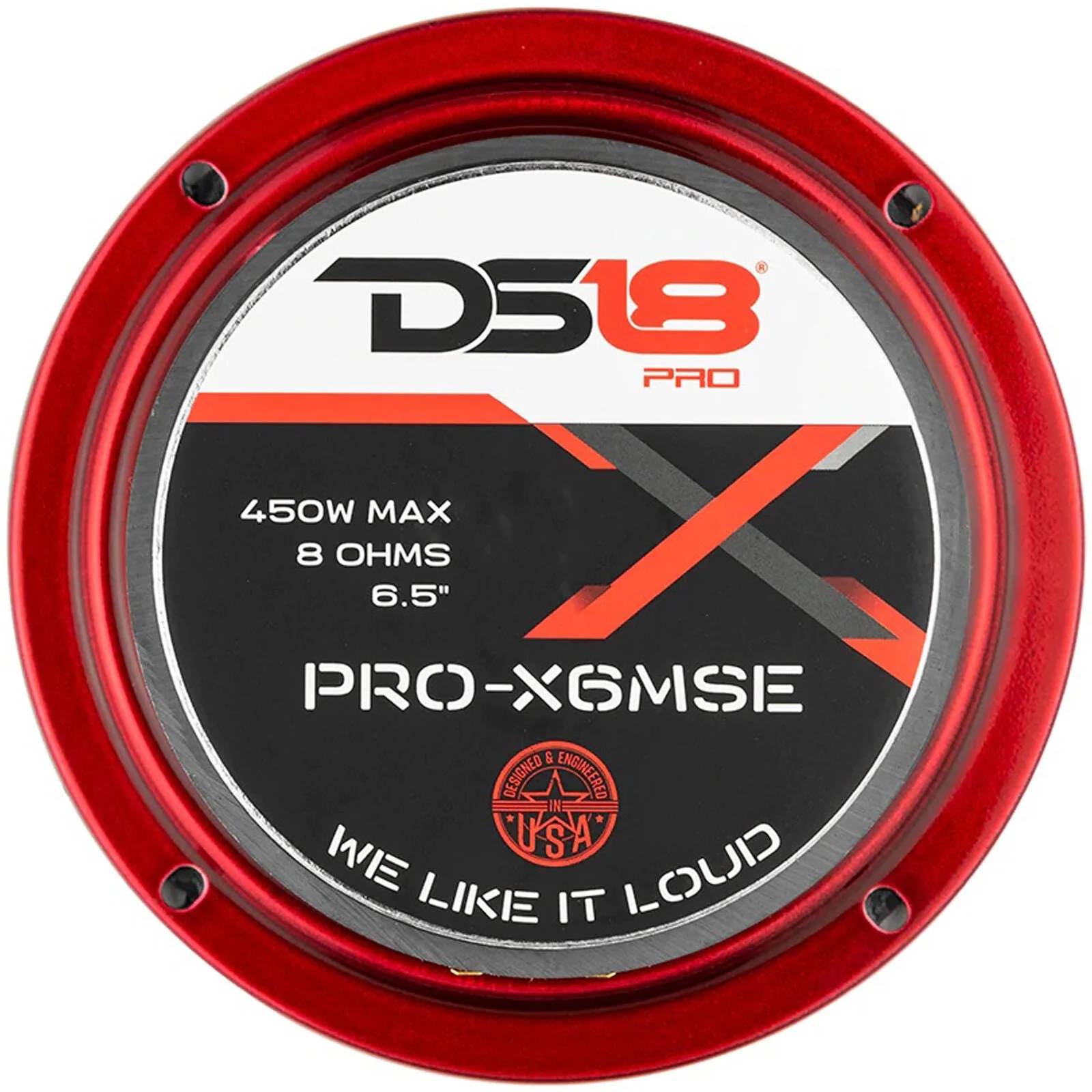

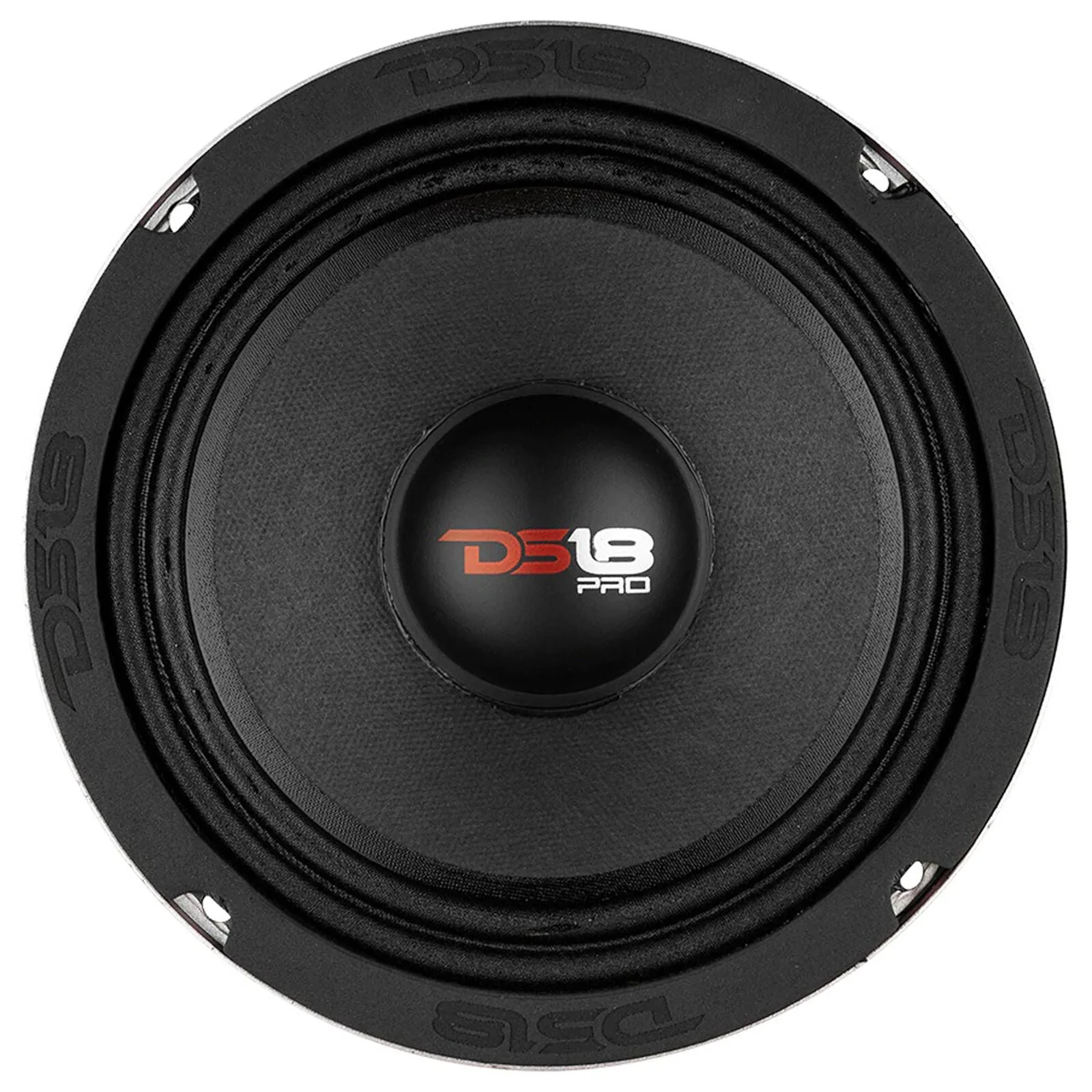

DS18 Car Audio 6.5" Midrange Loudspeaker Sealed Back 450 Watts 8 Ohm PRO-X6MSE

This Listing Includes:

(1) DS18 6.5" Midrange Loudspeaker PRO-X6MSE

During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you!

Highlights

- Sealed back design which allows you to put these in boxes that have high turbulence or pressure so you don't damage cones.

- Perfect for walls or cuchero boxes that have mid-bass or bass speakers in the ensure.

- High sensitivity and power ratings to make sure your midrange frequencies pierce through the bass and midrange for an amazing full sound.

FEATURES:

- 6.5" Midrange Sealed back Loudspeaker

- 33 Oz High Strength Ferrite Magnet

- Cloth Edge and Non-Pressed Paper Cone

- Red Color Steel Basket

- 1.5" KCCAW 2 Layer Voice Coil

SPECIFICATIONS:

Nominal Diameter: 6.5"

Nominal Impedance: 8 Ohms

Max Power Handling: 450 Watts

RMS Power Handling: 225 Watts

Sensitivity (1w/1m): 95 dB

Frequency Response: 315Hz ~ 8KHz

Recommended Hi Pass Crossover: 550 Hz

Voice Coil Diameter: 1.5" (38.6mm)

Voice Coil Former Material: KAPTON

Winding Material: CCA

Cone Material: Non-Pressed Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Steel

Magnet Material: Ferrite

Magnet Weight: 33 Oz

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 1.82L

Excursion: Xmax - 9mm

Free Air Resonance: Fs - 511 Hz

Mechanical Factor: Qms - 10.782

Electrical Factor: Qes - 3.249

Total Factor: Qts - 2.427

DC Resistance: Re - 5.1 Ohms

DIMENSIONS:

Overall Diameter: 6.6" (168mm)

Front Mount Baffle Cutout: 5.7" (144mm)

Mounting Depth: 2.63" (67mm)

Overall Depth: 2.83" (72mm)

Motor Diameter: 4.27" (120mm)
