DS18 Red 3000W 4 Channel Amp Two Pair of 3200W PRO-X8.4BM 8" Mid-Range

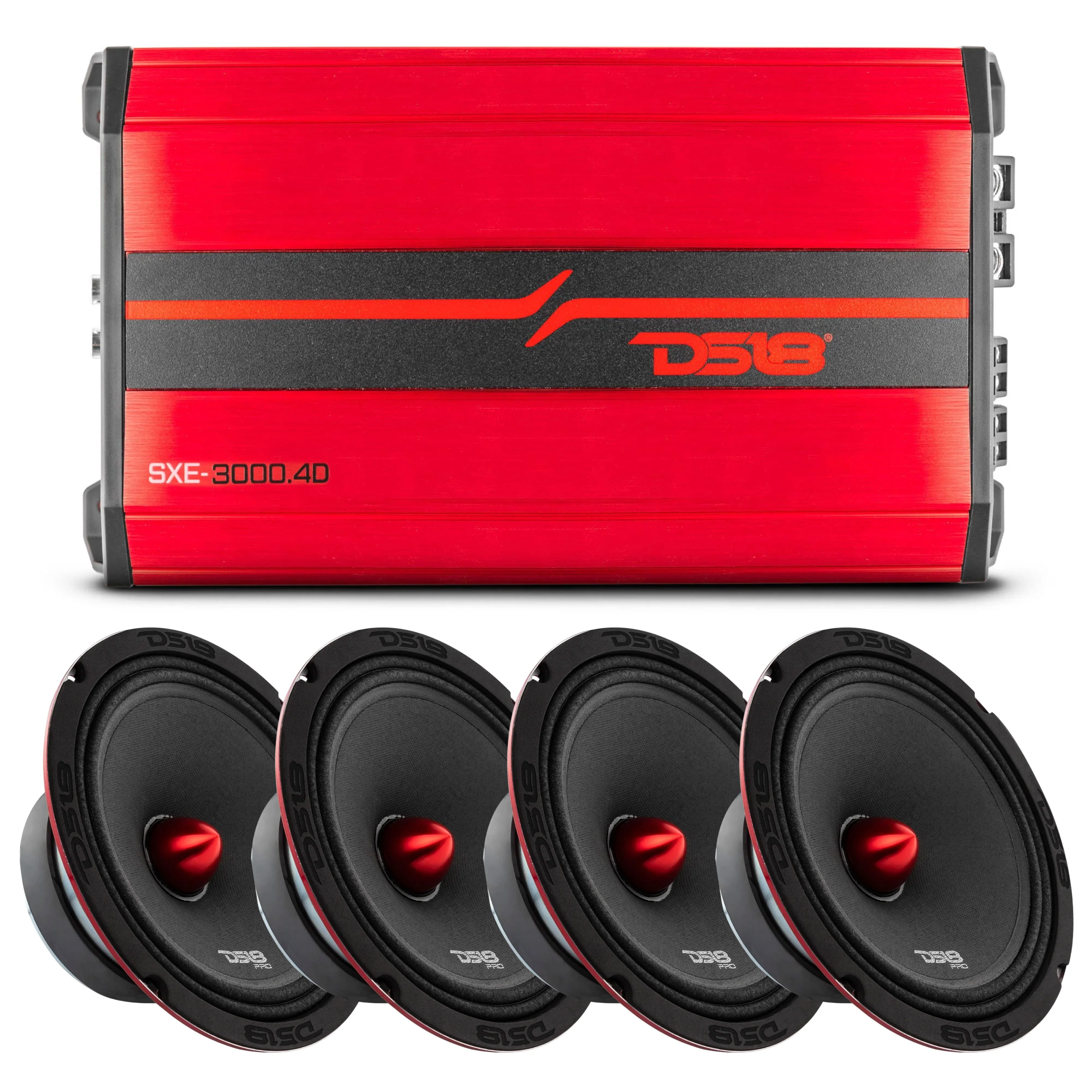

This listing includes:

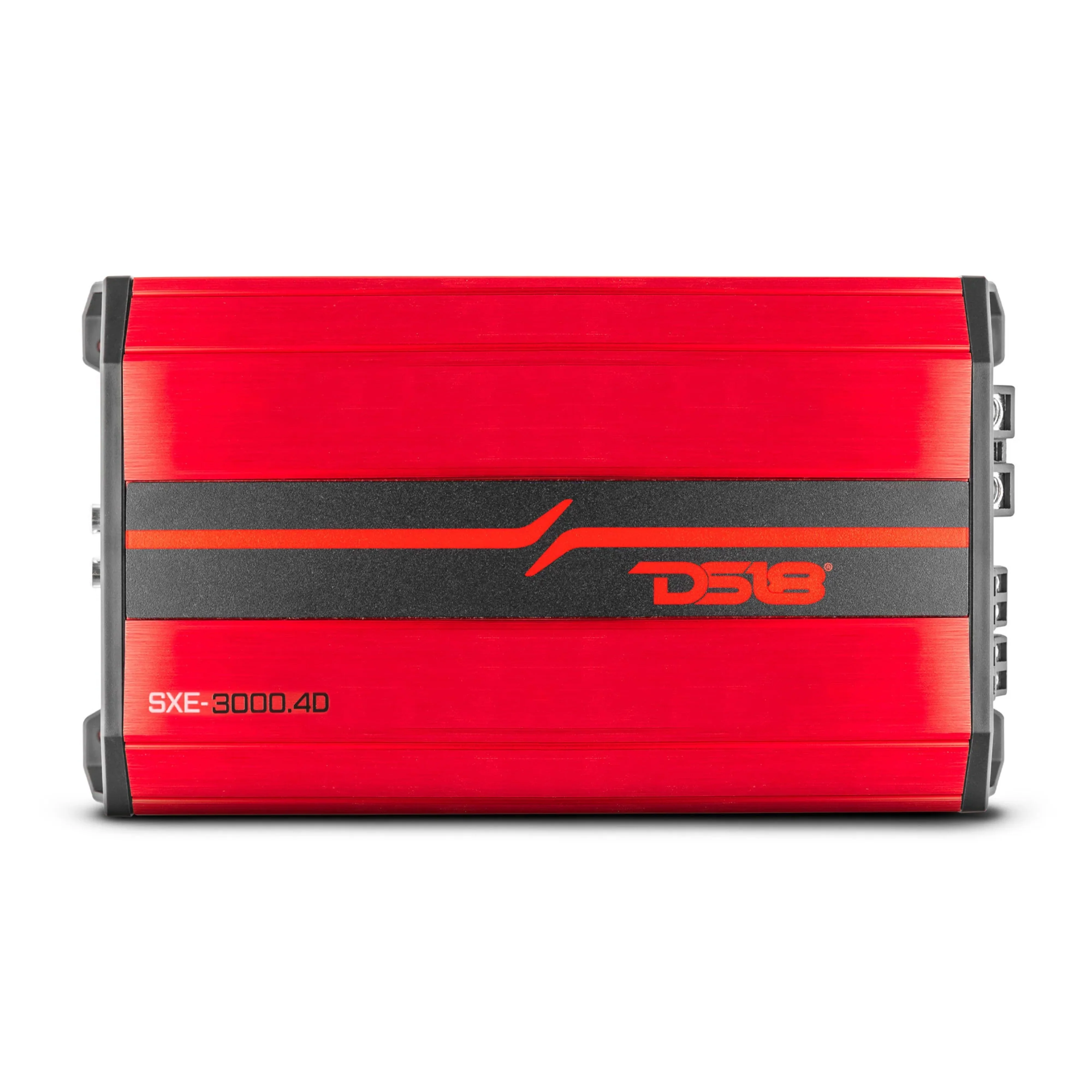

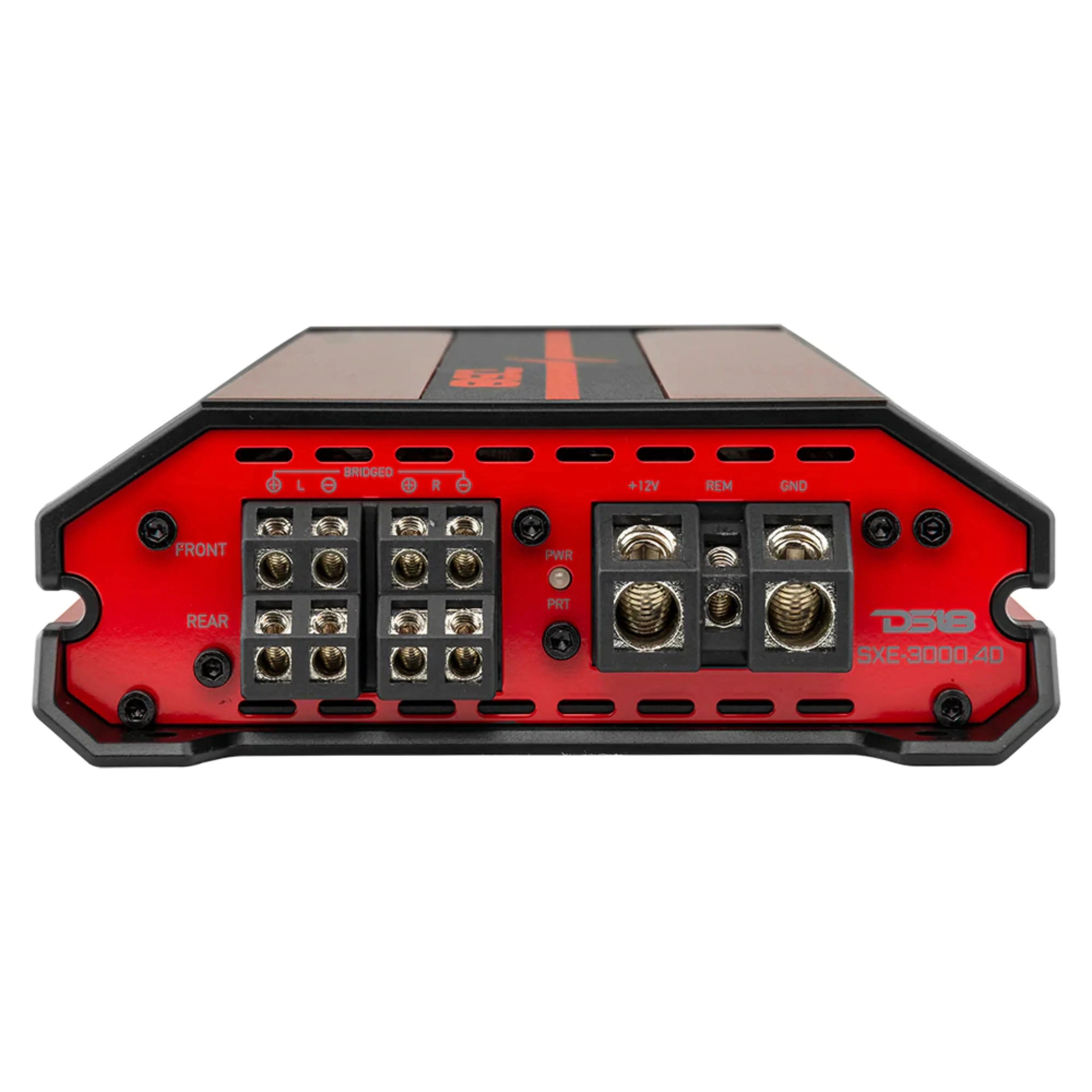

(1) SXE-3000.4D-RD 3000W 4 Channel Red Amplifier

(4) PRO-X8.4BM 800W 8" Mid-Range Speakers

DS18 SXE-3000.4D 3000W Four Channel Amplifier Specifications POWER SPECIFICATIONS:

• Total Watts (Peak): 3000W


• RMS Power @ 4 ohms: 4 x 200W


• RMS Power @ 2 ohms: 4 x 320W


• RMS Power @ 4 ohms Bridge: 2 x 500W

AUDIO SPECIFICATIONS:

• Frequency Response: 10Hz-20KHz


• Signal to Noise Ratio: 90dB


• Efficiency @ 4 ohms: 88%


• Damping Factor: 140


• Input Impedance: 20k


• Channel Separation: 45dB


• Total Harmonic Distortion (THD): 0.05%


• Low Level Input Range: 200mV-5V

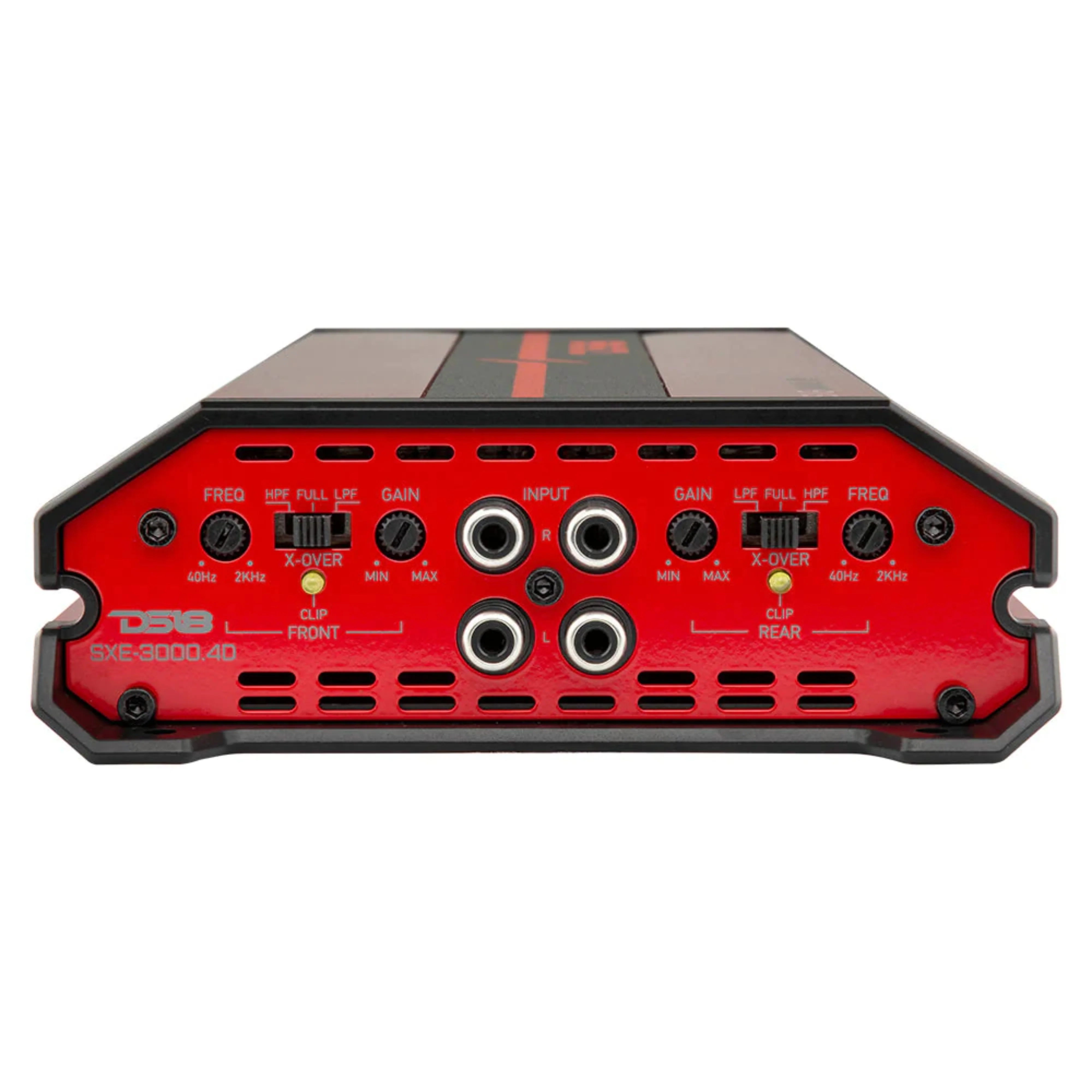

• Selectable X-Over: HPF/FULL/LPF


• X-Over Filter Range: 40Hz-2KHz

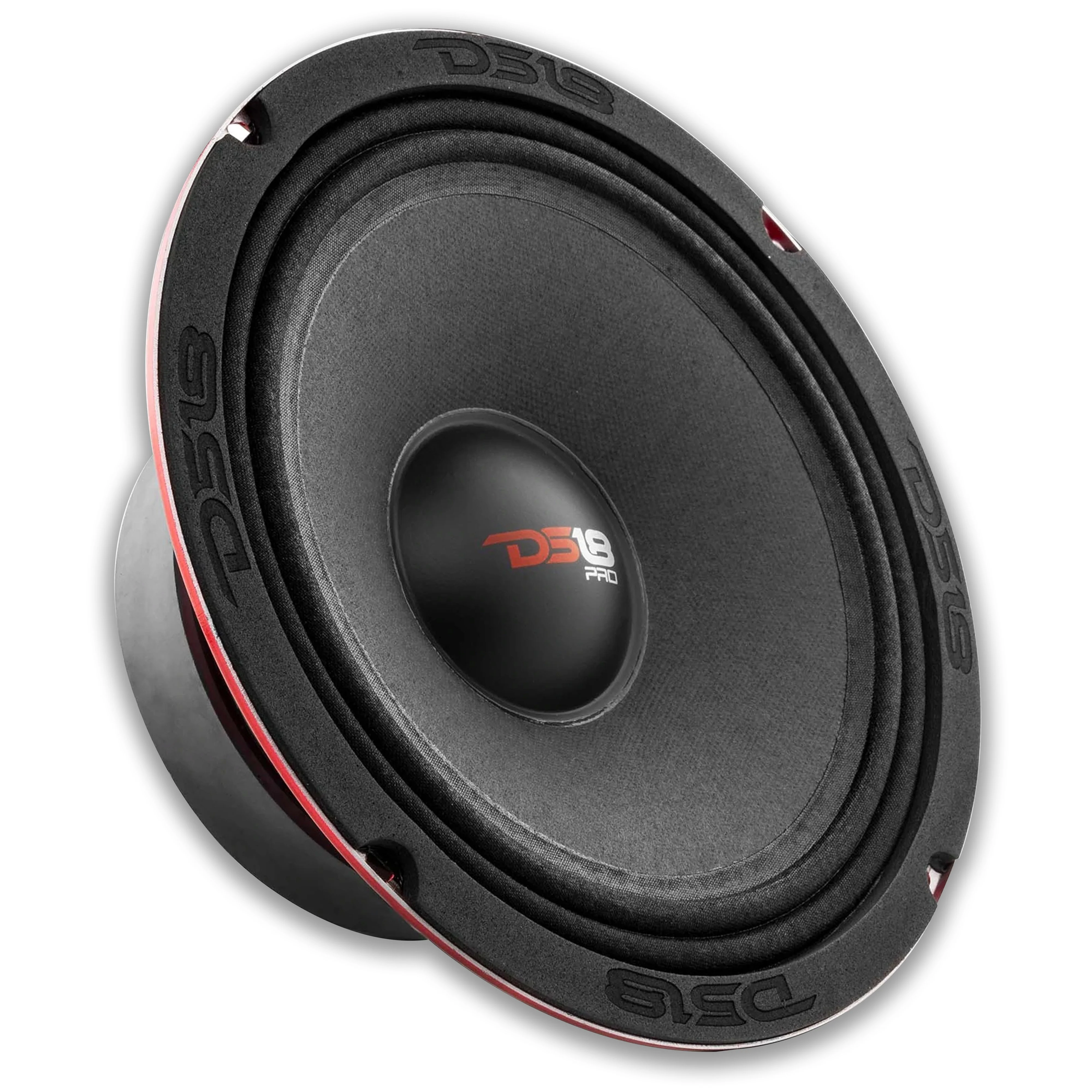

DS18 PRO-X8.4BM 800W 8" Mid range Full Range Loudspeaker Specifications

• Red Color Steel Basket


• 30 Oz. High Strength Ferrite Magnet


• Cloth Edge and Non-Pressed Paper Cone


• 1.5" High Temperature CCAR Voice Coil


• Red Aluminum Bullet


• 275 Watts RMS Power Per Speaker


• 550 Watts Max Power Per Speaker


• Impedance: 4 Ohm


• Sensitivity: 99 dB


• Frequency Response: 93-16kHz

Amplifier Measurements:

• Overall Length: 9.8" / 249.3mm


• Overall Wide: 5.5" / 140mm


• Overall Height: 1.8" / 48mm


• Heatsink Length: 8.34" / 212mm


• Gross Single Unit Weight 1.86Kg

PRO-X8.4BM Measurements:

• Overall Diameter: 8.22 (209mm)


• Front Mount Baffle Cutout: 7.17 (182mm)


• Mounting Depth: 3.11 (79mm)


• Overall Depth: 3.39 (86mm)


• Motor Diameter: 4.72 (120mm)
