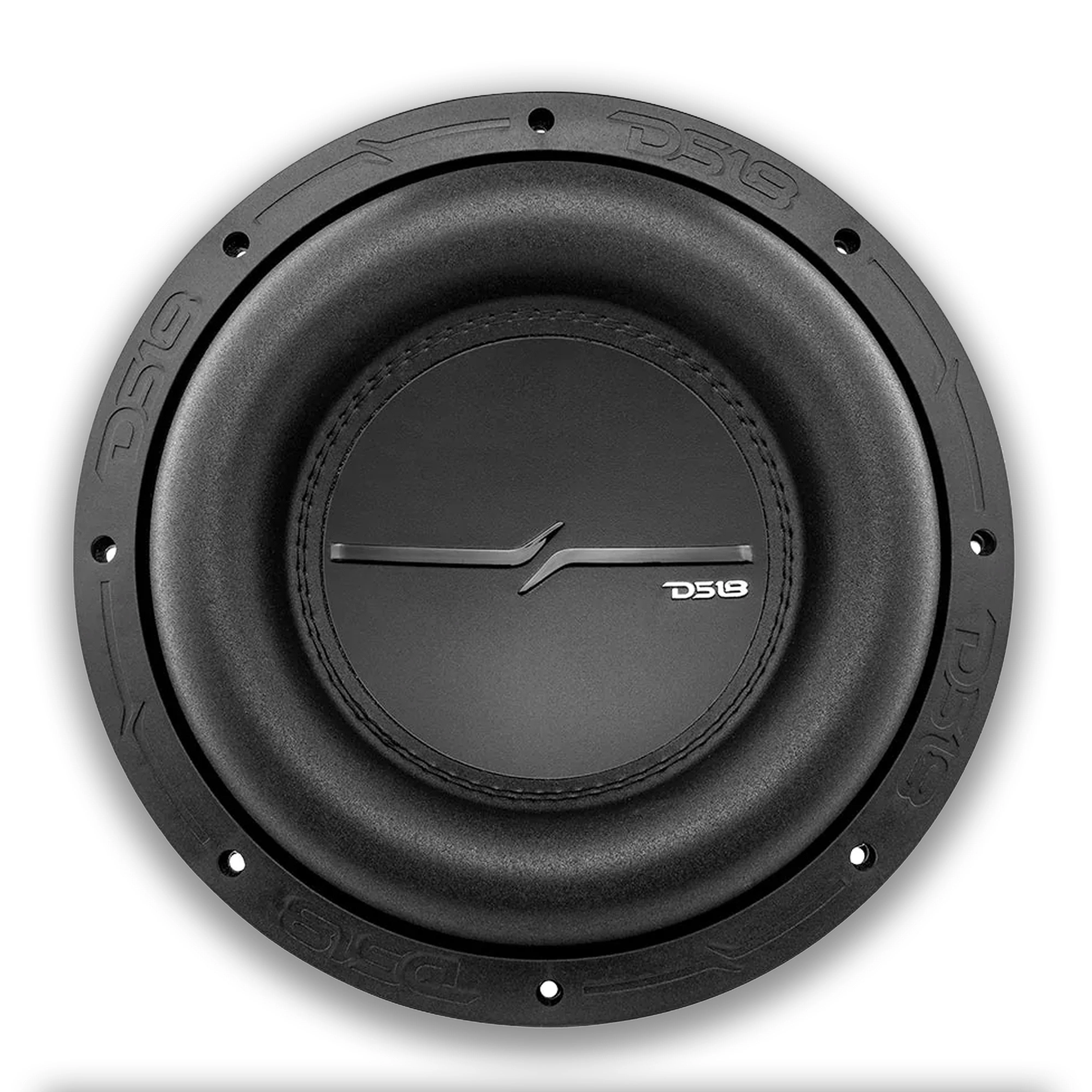

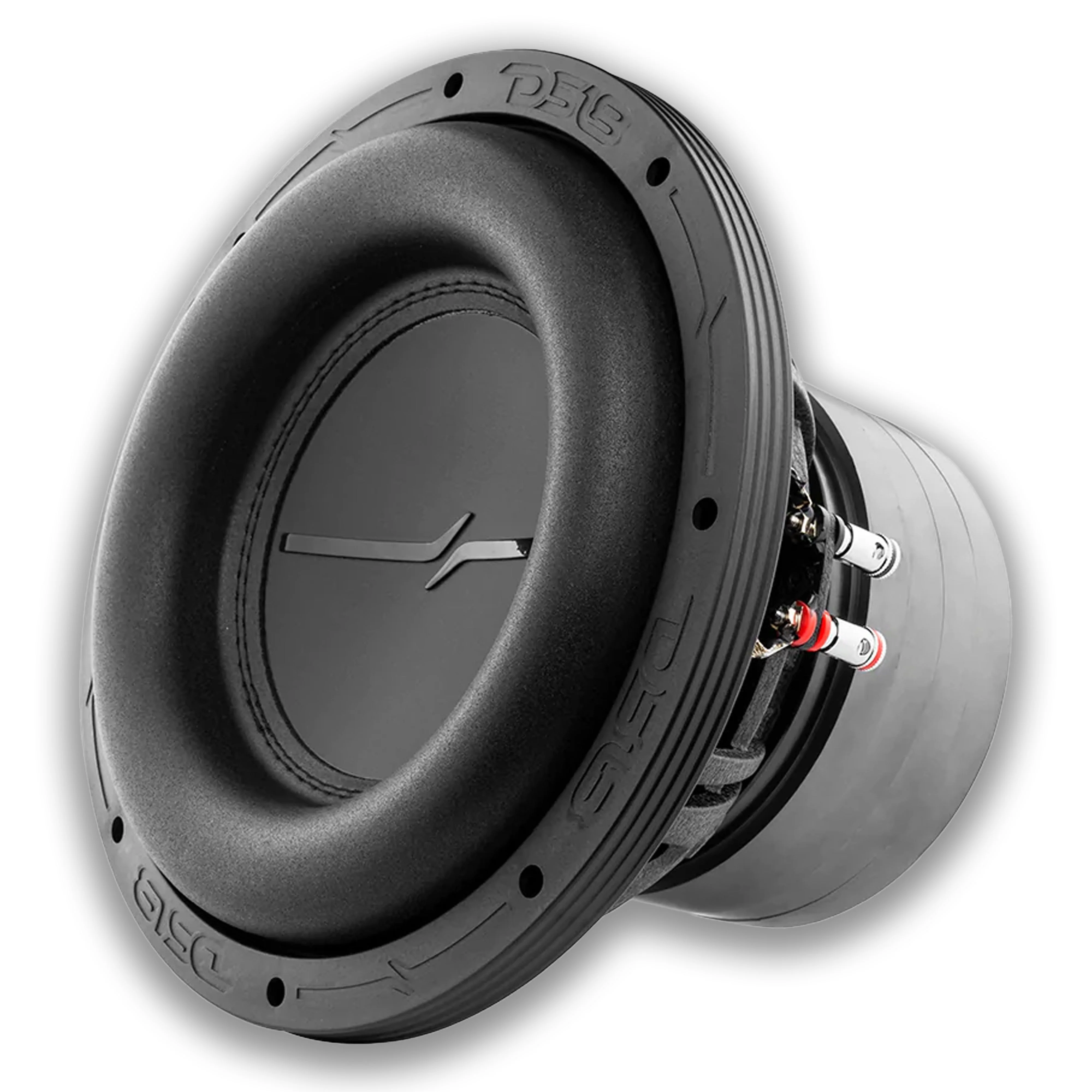

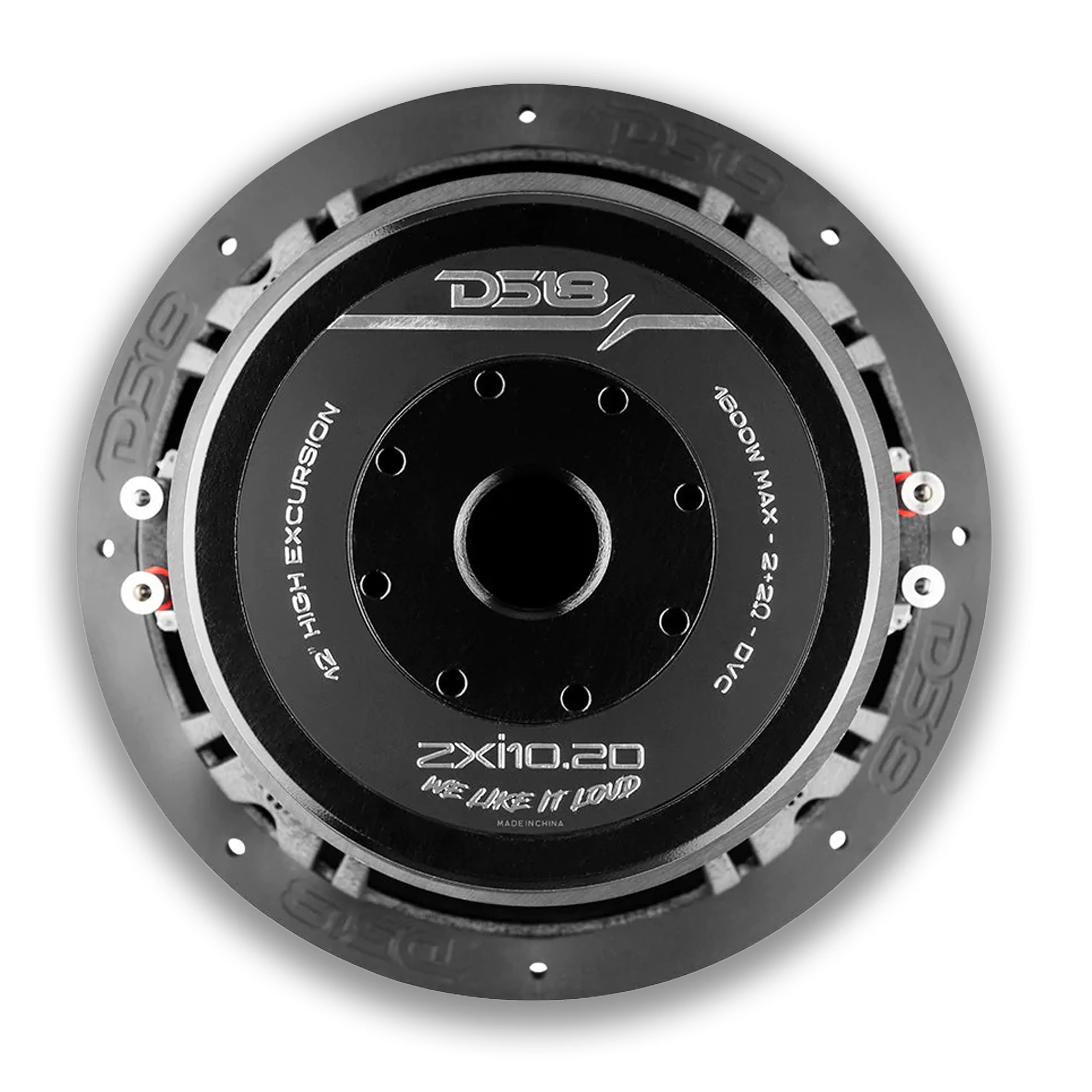

DS18 10" Woofer Dual 2 ohm 1600 Watt Max Power Car Subwoofer ZXI10.2D

More Power, More Bass!

Designed to provide thumping power that shakes everyones mirrors, the ZXI10.2D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 2.5-inch voice coil thats made to withstand high amounts of power with unparalleled efficiency while producing thunderous bass thats free from distortion. Dont get it twisted, this sub is versatile enough to play higher frequencies under 900Hz down to 20Hz with incredible clarity and accuracy!

This listing includes:

(1) DS18 10 Subwoofer ZXI10.2D

SPECIFICATIONS PER SUBWOOFER:

Nominal Diameter: 10" / 254mm

Nominal Impedance:2 + 2 ohms

MAX Power Handling: 1600w

RMS Power Handling: 800w

Sensitivity (1w/1m):86dB

Frequency Response: 20Hz-900Hz

Recommended Lo Pass Crossover: 90Hz

MOTOR:

Voice Coil Diameter: 2.5" / 63.5mm

Voice Coil Former Material: Black Aluminum

Winding Material: CCAW

Cone Material: Non-Pressed Paper

Dust Cap Material: PPI

Surround Material: Foam

Basket Material: Aluminum

Basket Color: Sandblasted Black

Magnet Material: Ferrite

Magnet Weight: 196 Oz (4 x 49 oz)

Displacement Volume: 2.23L / 0.078ft3

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 18.25L / 0.644ft3

Excursion: X-max - 28.5mm

Free Air Resonance: Fs - 29Hz

Mechanical Factor: Qms - 6.825

Electrical Factor: Qes - 0.493

Total Factor: Qts - 0.457

DC Resistance: Re - 2.0+2.0 ohms

Moving Mass: Mms - 265.089g

Compliance: Cms - .0.142mm/N

Force Factor: BL - 25.146

Voice Coil Inductance: Le -51.23 mH

Diaphragm Area: Sd - 330.06cm

Efficiency Bandwidth Product: EBP - 58.8

RECOMMENDED ENCLOSURES:

Sealing Internal Volume: 14.2L / 0.5ft3

Sealed Box Output Response: F3 - 41.5Hz

Ported Internal Volume: 35.4L / 1.25ft3

Port Size (WxHxL): 1.16"x10.31x24.49" / 29.5 x 262 x 622.1mm

Port Tunning Frequency: Fb - 30Hz

Ported Box Output Response: F3 -24Hz

DIMENSIONS PER SPEAKER:

Overall Diameter: 10.96" / 278.5mm

Front Mount Baffle Cutout: 9.36" / 237.7mm

Mounting Depth: 6.91" / 175.5mm

Overall Depth: 8.34" / 212mm

Motor Diameter: 6.69" / 170mm
