• Dual 8 inch midrange drivers and dual 3.78 inch bullet tweeters deliver loud, clear street style vocals
• Full range FRP 1.2K4 amplifier included for a complete plug and play voceteo setup
• Side ported 15mm MDF enclosure wrapped in black carpet for durability and strong output
• Comes with a 12 foot OFC 4 conductor Speakon cable for fast, clean installation
• Wide 80Hz to 20kHz response with a 4 ohm parallel load for high efficiency and sharp performance

Dual 8 inch 275W RMS Voceteo Enclosure w Tweeters, Amplifier & Speakon Cable

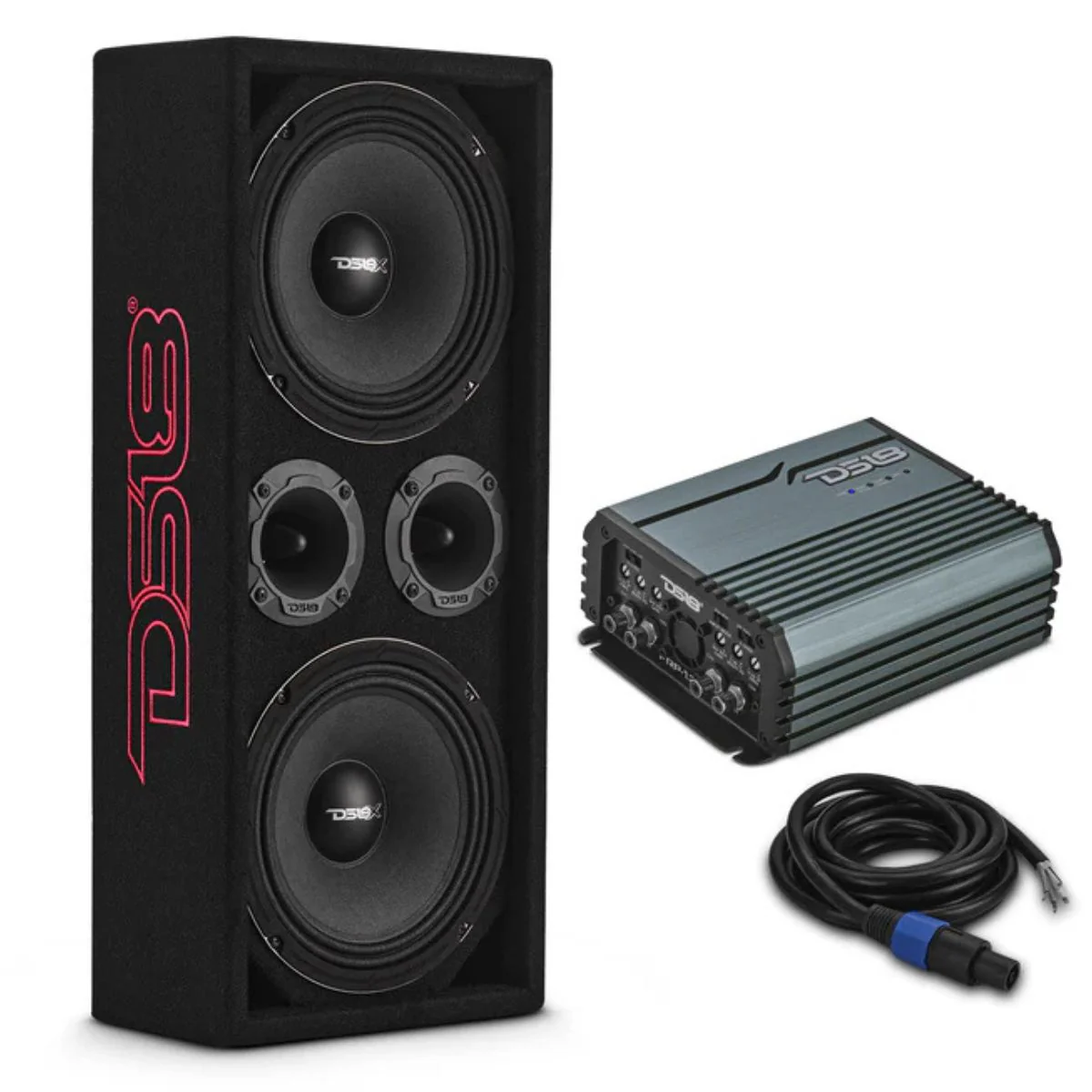

This Listing Includes:

• (1) Loaded Voceteo Enclosure with Dual 8 inch Midrange Speakers


• (2) 3.78 inch PRO TWX2 Bullet Tweeters


• (1) FRP 1.2K4 Full Range Amplifier


• (1) 12 ft OFC 4 conductor Speakon Cable

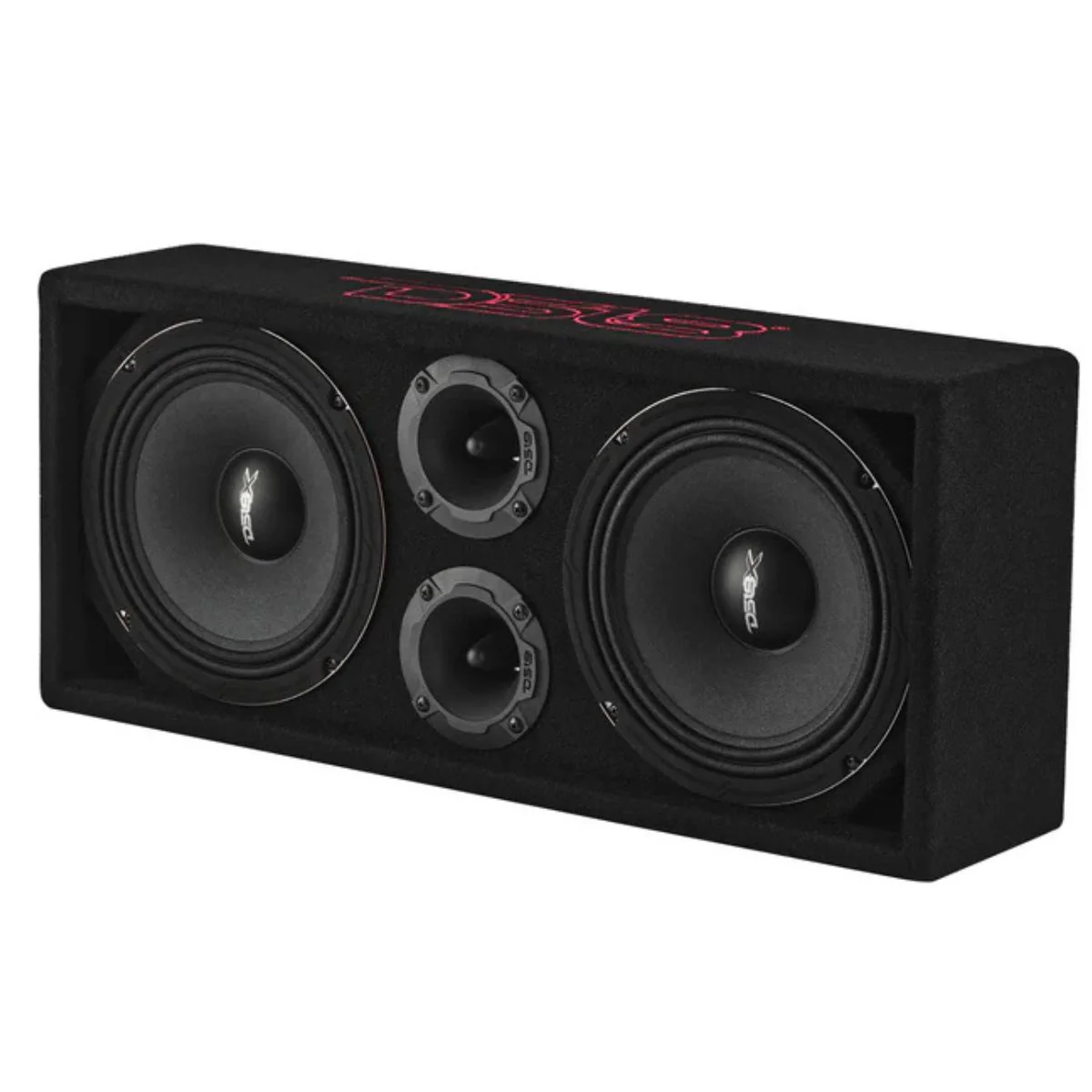

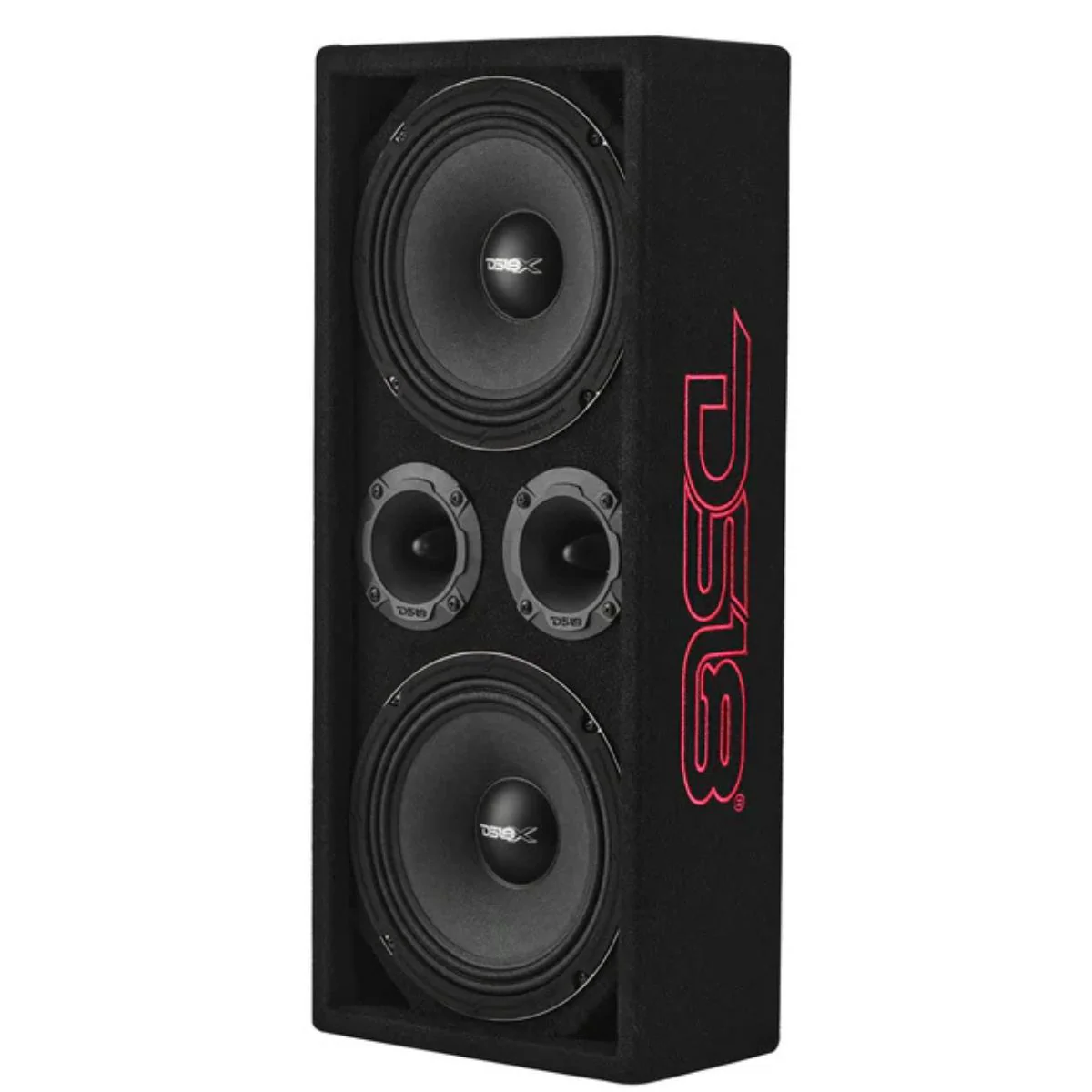

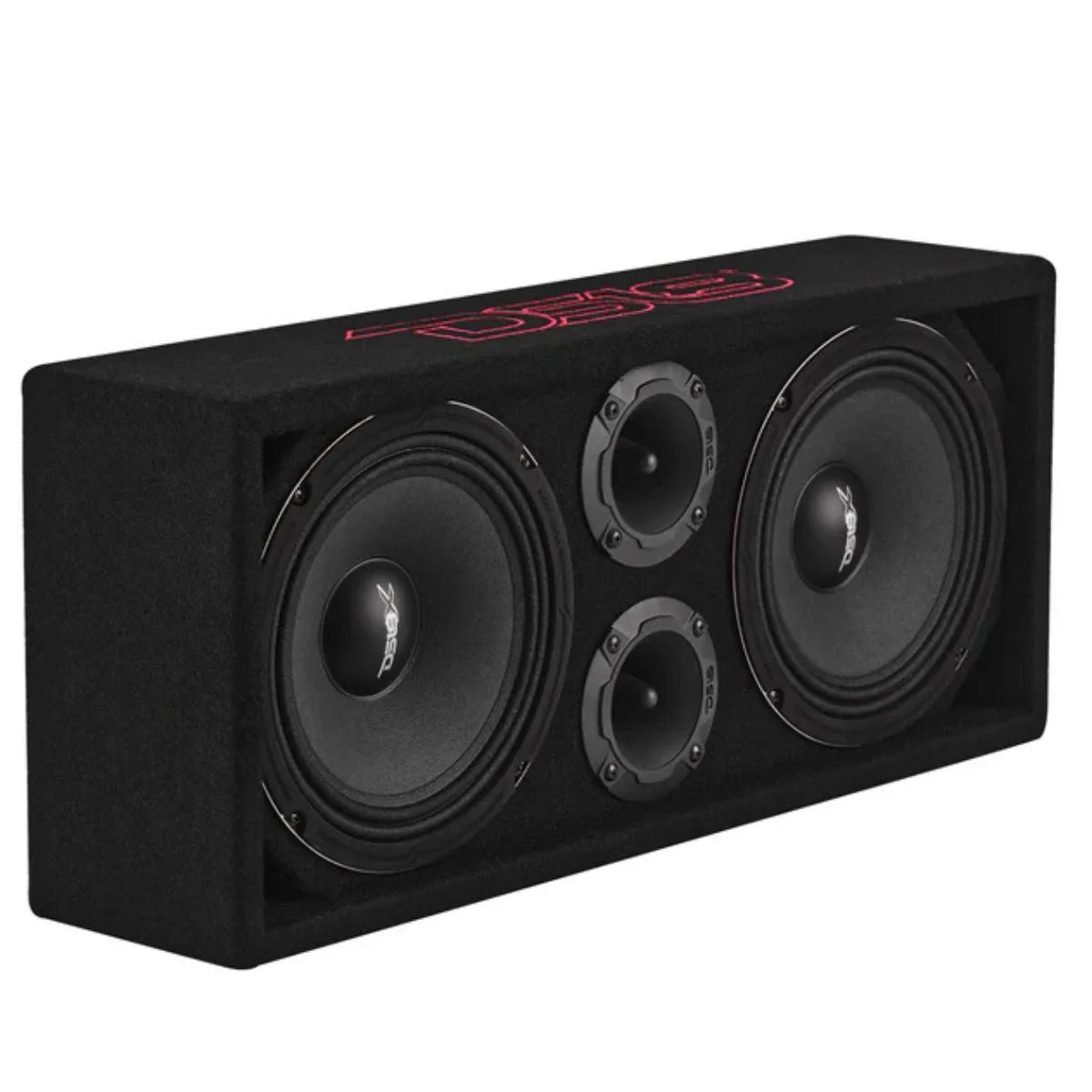

The VOC8LD PK is your plug and play voceteo setup built to get loud right out of the box. You get two 8 inch PRO X8M midrange speakers, two PRO TWX2 bullet tweeters, a matched full range FRP 1.2K4 amplifier, and a 12 foot Speakon cable that keeps the install clean and fast. The enclosure is side ported, made from half inch MDF, and wrapped in black carpet for a solid and durable finish. With 550 watts of midrange power, 240 watts of tweeter power, and a 4 ohm parallel load, this box cuts through traffic and open air with sharp vocals and strong mid punch. The amplifier gives you HPF, LPF, or full range options along with bass boost and flexible tuning so you can dial it in exactly how you like. If you want a street ready voceteo system with maximum output and zero guesswork, this package gets it done.

Specifications:

• Speaker Configuration: Dual 8 inch Midrange (PRO X8M) + Dual 3.78 inch Tweeters (PRO TWX2)


• Total Impedance: 4 Ohm


• Total RMS Power: 275W


• Total MAX Power: 550W


• Sensitivity: 97 dB


• Frequency Response: 80Hz to 20kHz


• Recommended High Pass: 120Hz

Enclosure Type: Side Ported

• Material: 15mm MDF


• Internal Volume: 11.6L / 0.41 ft3


• Port Tune: 120Hz


• Finish: Black Carpet


• Load Configuration: Parallel


• F3: 80Hz

Amplifier FRP 1.2K4 RMS Power:

• 4 Ohm: 4 x 120W


• 2 Ohm: 4 x 200W


• 1 Ohm: 4 x 300W


• Bridged 4 Ohm: 2 x 350W


• Bridged 2 Ohm: 2 x 500W

Amplifier Audio Specs:

• Frequency Response: 10Hz to 20kHz


• Signal to Noise Ratio: 90 dB


• Efficiency: 97 percent at 4 Ohm


• Input Impedance: 10k


• THD: 0.5 percent


• Low Level Input: 400mV to 6V


• Selectable X Over: HPF, FULL, LPF


• Filter Range: 10Hz to 2kHz


• Bass Boost Frequency: 50Hz


• Bass Boost Range: 0 to 12 dB


• Channel Separation: 50 dB

Speakon Cable:

• Length: 12 ft


• Material: OFC Copper


• Conductors: 4


• Gauge: 14 AWG


• Outer Diameter: 8 mm


• Construction: Stranded Multi Twist


• Shield: PVC Black

Dimensions:

• Height: 22.25 in


• Width: 9.5 in


• Depth: 5.25 in

This voceteo kit is designed for high volume street performance, so use proper wiring and tuning to protect your equipment and get the best results.
