• Maximum Power: DS18 Gen-X1800.1D delivers an impressive 1800W for a powerful and efficient audio experience.
• Compact and Durable: Lightweight design with high durability and efficient heat sink for versatile installation options.

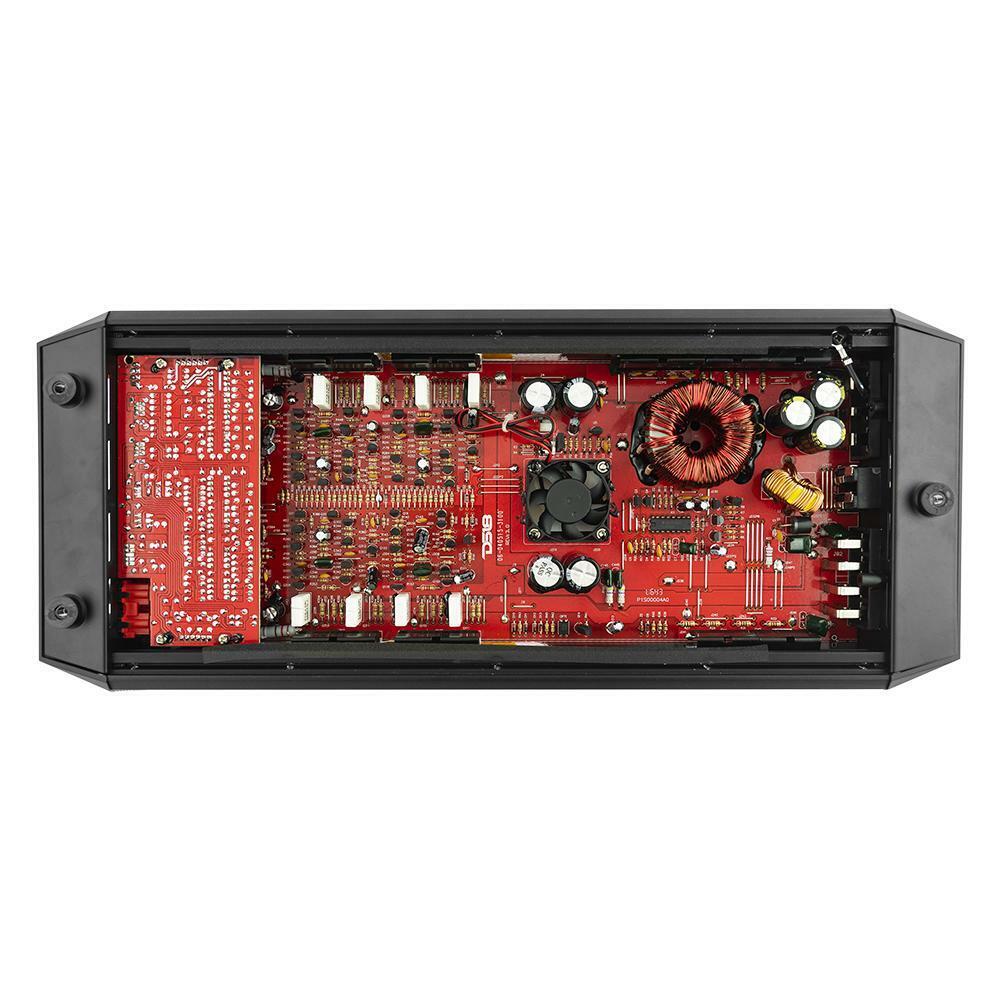

• Top-notch Components: High-quality circuit board ensures maximum power output with high efficiency.
• Versatile Controls: Fully adjustable crossover filters, selectable LPF, and bass boost for customization.

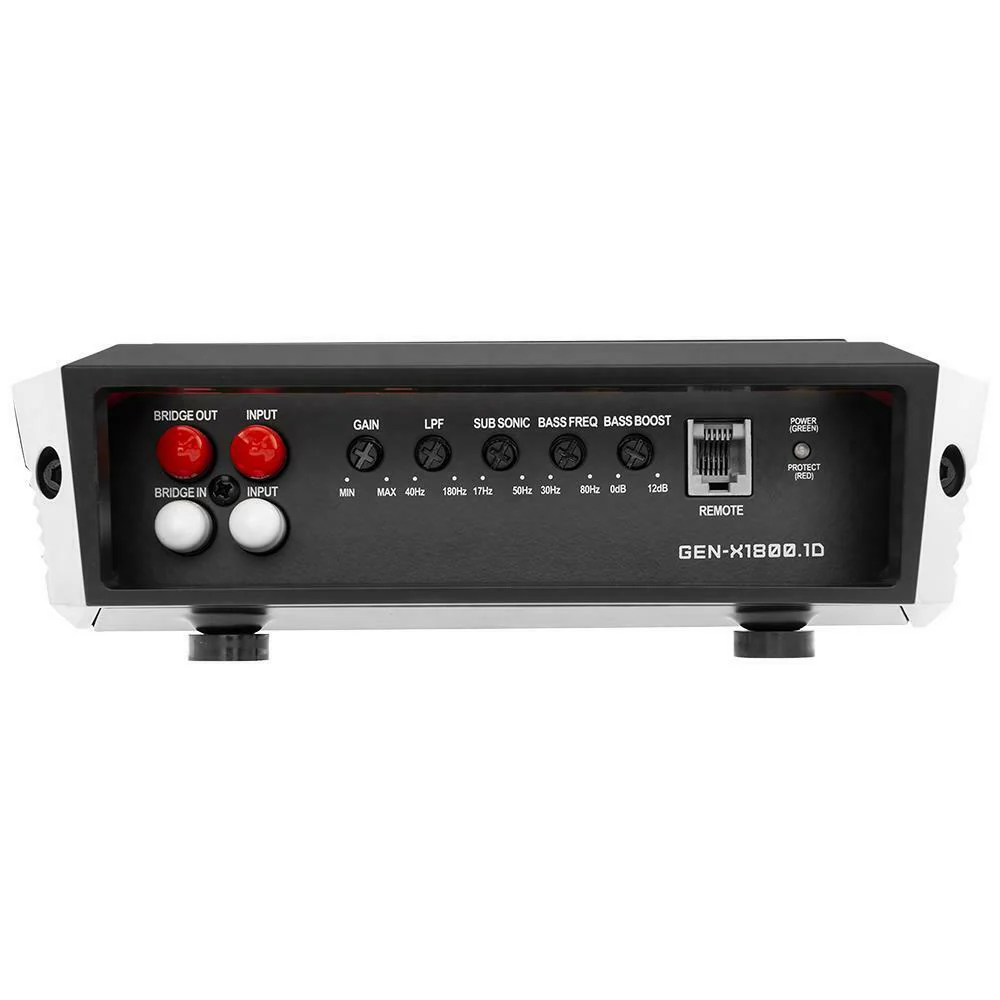

• User-Friendly Features: Light-up DS18 logo adds style, and remote gain control provides convenience.

DS18 GEN-X Class D Monoblock Class D Amplifier 1.8K Watts GEN-X1800.1D

This Listing Includes:

• (1) 1800 Watts Monoblock class D Amplifier


• (1) Bass Knob


• (2) 35A Fuses ( Pre-Installed )

Experience powerful and efficient audio with the DS18 GEN-X1800.1D Class D Monoblock Amplifier. With a maximum power of 1800W, this amplifier offers durability, efficiency, and versatility for your car audio setup. The lightweight design and high-quality circuit board make it suitable for various installations, while the adjustable crossover filters and bass boost allow for customization. The light-up DS18 logo adds style, and the remote gain control provides user-friendly convenience.

Features:

• 1800W Max Power Class D Monoblock Amplifier


• Lightweight design with high durability


• High-quality circuit board for maximum power output


• Fully adjustable crossover filters and selectable LPF


• Bass boost with adjustable frequency


• Light-up DS18 logo for added style


• Remote gain control for user-friendly adjustments

Technical Specifications:

• Number of Channels: 1


• Max Power: 1800W


• RMS Power (14.4V):


• 1 Ohm: 600W

  2 Ohm: 450W

  4 Ohm: 250W




• Speaker Impedance Range: 1-4 Ohm


• Input Sensitivity: 0.2V-+6V


• X-Over Filter Range: 40Hz - 180Hz


• Fuse Size: 2 x 35A


• Signal-to-Noise Ratio: 98dB


• THD: 0.08%


• Bass Boost Range: 0 - 12dB (40Hz - 80Hz)


• Frequency Response: 10Hz - 500Hz


• Input Impedance: 10k


• Channel Separation: 50 dB


• Remote Gain Control: 0.2 - 6V

Product Dimensions:

• Length: 13 inches


• Width: 2 inches


• Height: 7.5 inches
