• HD Backup Camera: Connect the CMOS-740HDLP to a compatible Kenwood receiver with an HD monitor for a high-definition reverse view.
• HDR Technology: Enhanced image clarity with HDR, providing better detail in both bright and dark areas, day or night.
• Resolution: Up to 720p with compatible HD monitor (not included)
• Complete Kit: Includes CMOS-740HD camera, CA-LPM10 license plate mounting bracket, and hardware.
• Waterproof and Rustproof: IP67 certified for reliable performance in various weather conditions.

Kenwood HD Rearview Wide Angle Backup Safety Camera with License Plate mount

This Listing Includes:

• (1) Kenwood 740HD Backup Camera


• (1) Kenwood License Plate Mounting Kit

Connect the CMOS-740HDLP backup cam to a compatible Kenwood receiver featuring an HD monitor (see compatibility list at bottom of description), and you'll enjoy an HD view when you shift into reverse. The camera's HDR (High Dynamic Range) technology reproduces bright and dark images more clearly, so you'll experience enhanced detail and smooth transitions whether it's day or night. You'll be confident when you pull out of a space in a busy lot or back into a tight spot on a city street.

At-A-Glance:

• HD backup camera


• Resolution up to 720p with compatible HD monitor (not included)


• HDR-enhanced


• IP67 rated for water and dust resistance


• 1.0 Lux for excellent night vision


• 180 horizontal/103 vertical viewing angles


• Composite video output


• License plate mounting bracket included

Features:

• The Kenwood CMOS-740HDLP camera kit includes a CMOS-740HD high-definition camera along with a CA-LPM10 license plate mounting bracket and hardware.

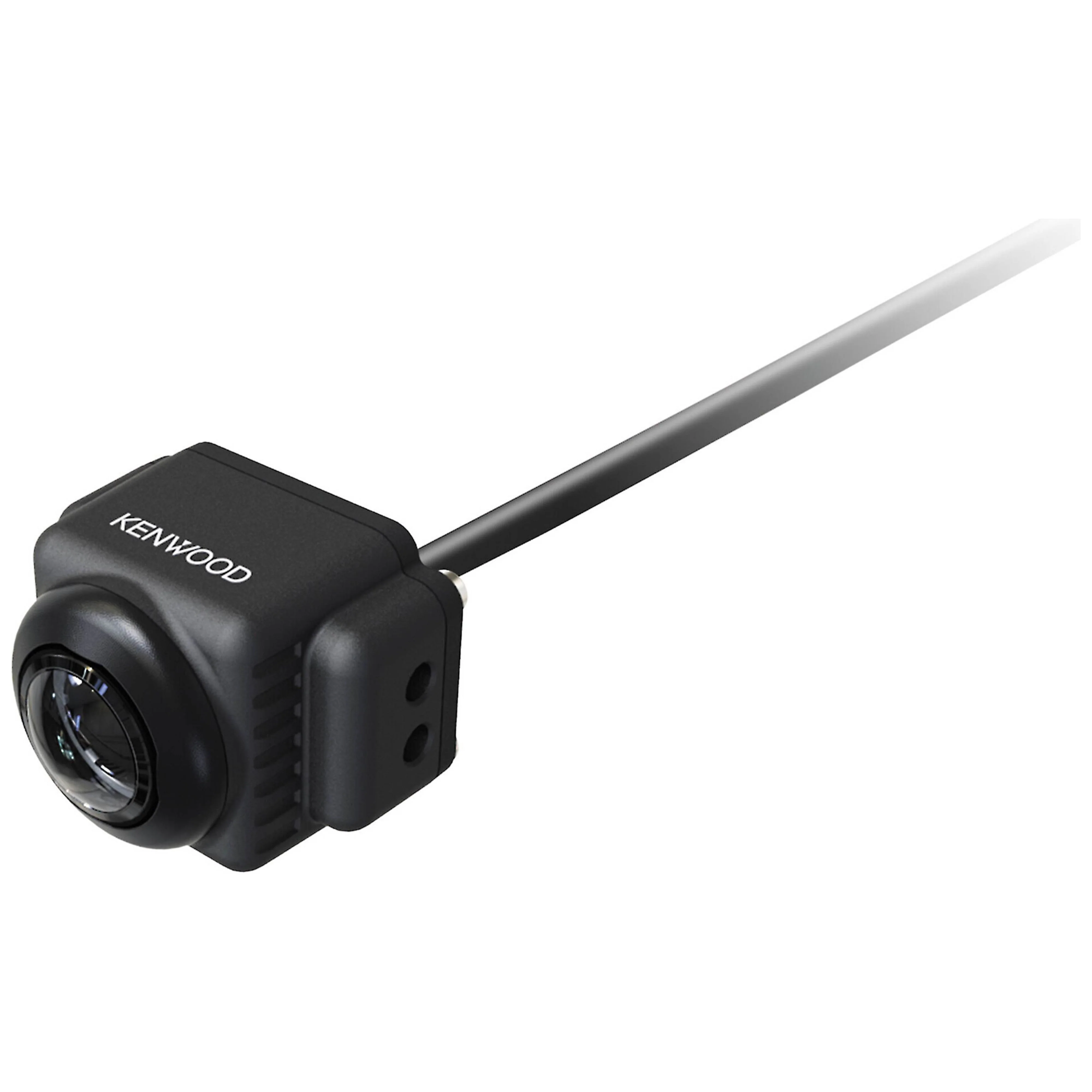

• CMOS Optics: The Kenwood CMOS-740HD rearview camera utilizes a 1/3.8" CMOS image sensor with approximately 1,300,000 pixels (1.3 Mega pixels). The camera gives you a brilliant mirror image of what's behind your vehicle for rearview confirmation.


• High Definition View: The CMOS-740HD camera will display an image in high definition (1280 x 720p) on a compatible Kenwood receiver with a high-definition composite video camera input and HD video screen. It's able to do this over a composite video cable using HD-TVI (High Definition Transport Video Interface) technology that allows a 720p video signal to be sent over a standard composite video cable. Both the CMOS740HD camera and compatible Kenwood receivers have this special technology onboard.


• HDR (High Dynamic Range): HDR (High Dynamic Range) technology reproduces bright and dark objects more clearly at the same time. HDR helps to reduce "blown out highlights" and "crushed blacks" and ensures clear images in challenging environments; including backlit scenes in daylight, streetlight scenes at night, and places where light-dark contrast is particularly severe.


• Wide Viewing Angle: The CMOS-740HD is equipped with a F2.0 wide-angle lens. The 180 (horizontal) x 103(vertical) angle lens allows you to check your rear right and left sides of your vehicle when backing up and parking. The CMOS-740HD provide an excellent near field view of practically anything behind you.


• Illumination Range: The Kenwood rearview camera provides an illumination range of approximately 1.0 to 100,000 lux. It offers less light distortion from nearby light sources.


• IP67 Certified: The Kenwood CMOS-740HD rearview camera is IP67 certified for waterproof and rustproof protection.

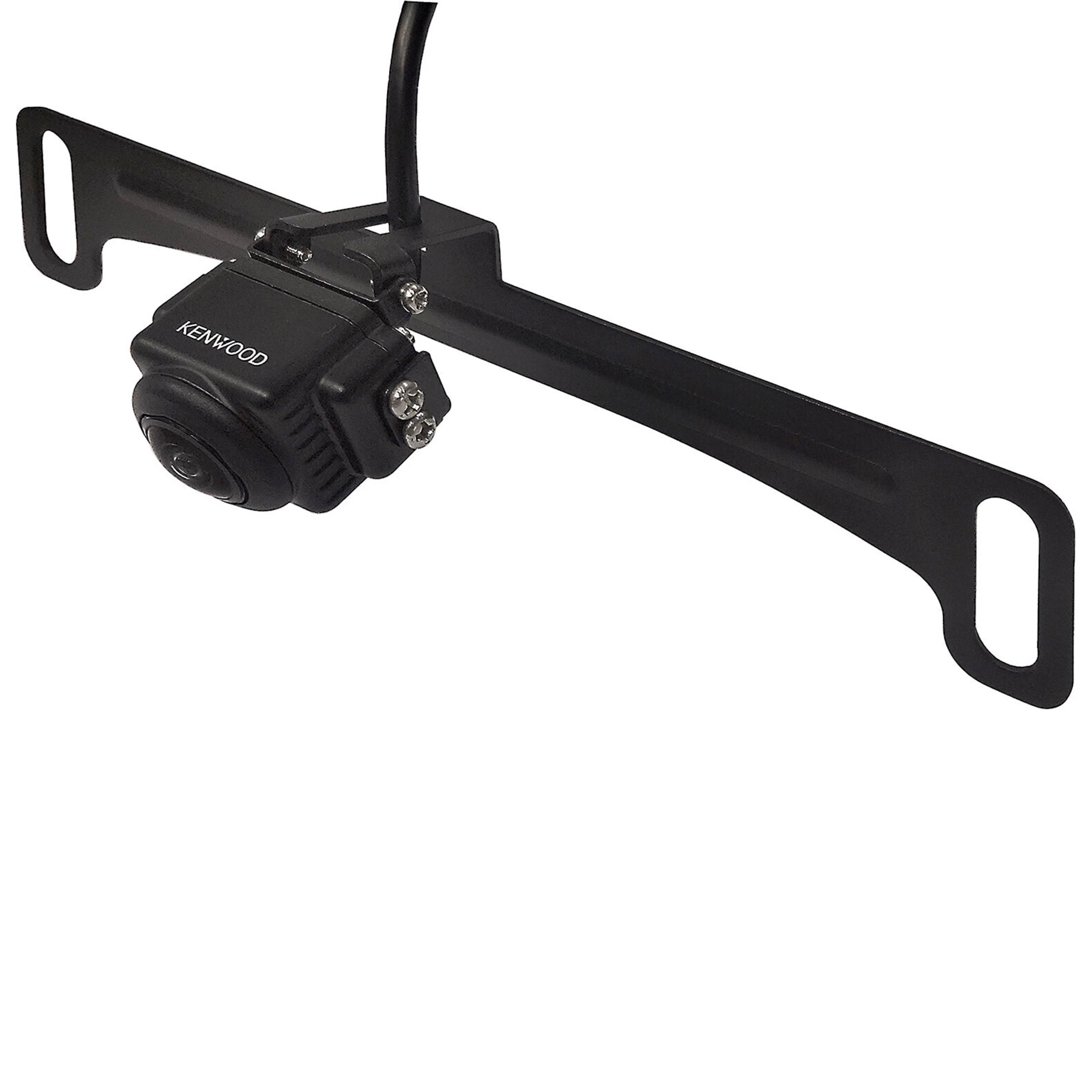

• Mounting: The included license plate bracket lets you mount the CMOS-740HD camera to any standard size license plate. The multi-view camera comes with a pre-installed metal mounting bracket that can be attached directly to your vehicle with its self-adhesive backing or included mounting screw. Once the camera is installed in the mounting bracket the camera's angle can be adjusted to work in your application.


• 12V/24V Compatible: The Kenwood CMOS-740HD is 12-volt and 24-volt compatible for installation in a variety of vehicle types. The power (red) & ground (black) wires of the camera will need to be hardwired. Power can be obtained from a +12V accessory wire (switched) in the vehicle or at the radio. The ground will need to be connected to your vehicle's metal chassis.

Note: Make sure the camera's "Kenwood" logo is facing up so the camera image displays properly; if the camera "Kenwood" logo is facing down, the image will be upside down.

Dimensions:

• Camera Dimensions (W,H,D): 1.25" x 0.938" x 1.375"


• Camera Dimensions (w/ license plate bracket) (W,H,D): 7.750" x 1.750" x 2.875"

Compatibility List:

• Kenwood DNX997XR


• Kenwood DDX9907XR


• Kenwood DMX957XR


• Kenwood DNR1007XR


• Kenwood DMX1037S


• Kenwood DMX1057XR
