• Seamlessly integrates with an already installed Smartphone Controlled Million Color or Million Color Wireless Underbody Lighting Kit
• Rings Feature 13’ of Wire with 6-Pin Connector
• Installs directly to the dust shield or hub assembly
• 144 Total SMD LEDs
• IP67 Rating

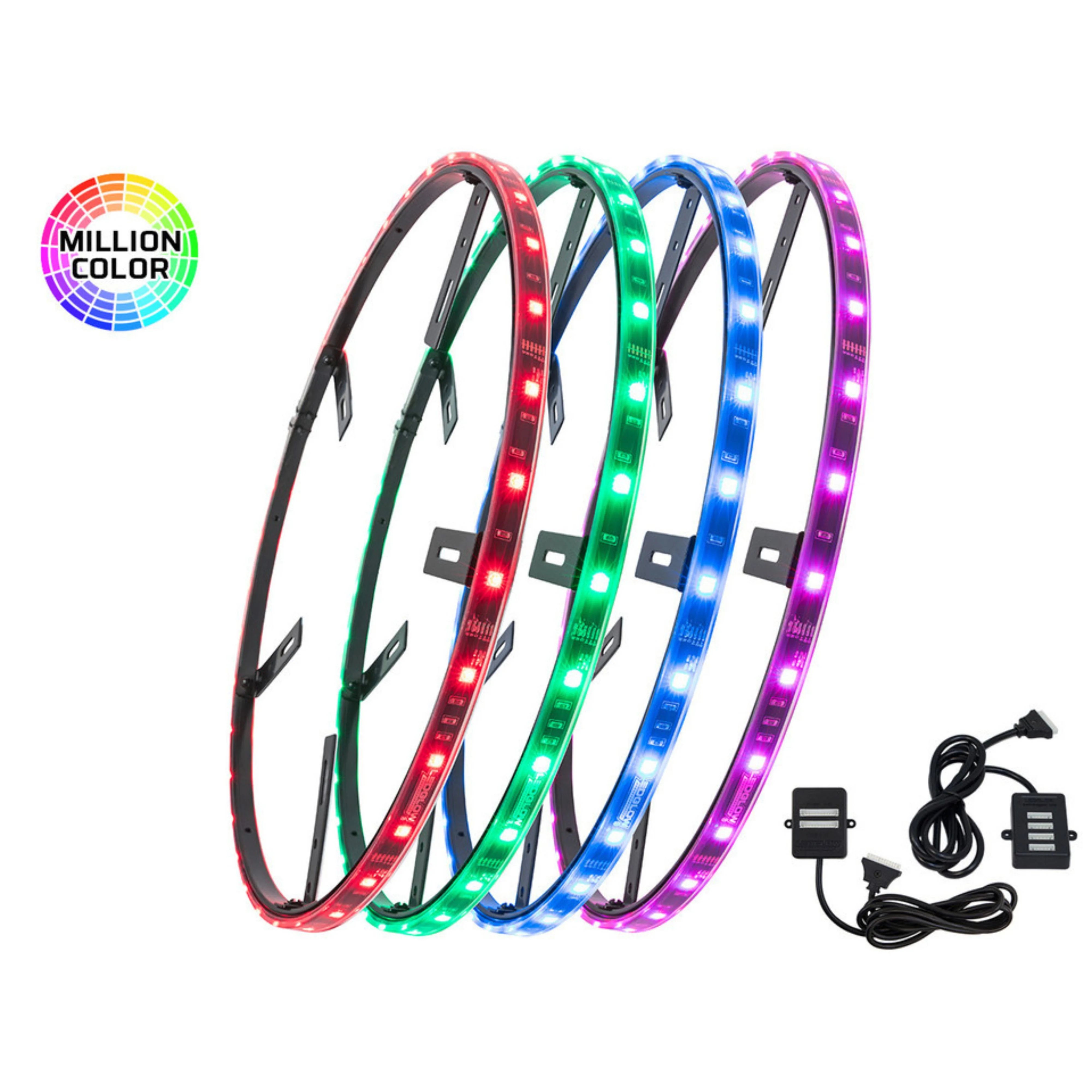

LEDGlow 4pc Million Color 15" Wheel Ring Lighting Add-On for Underbody Kits IP67

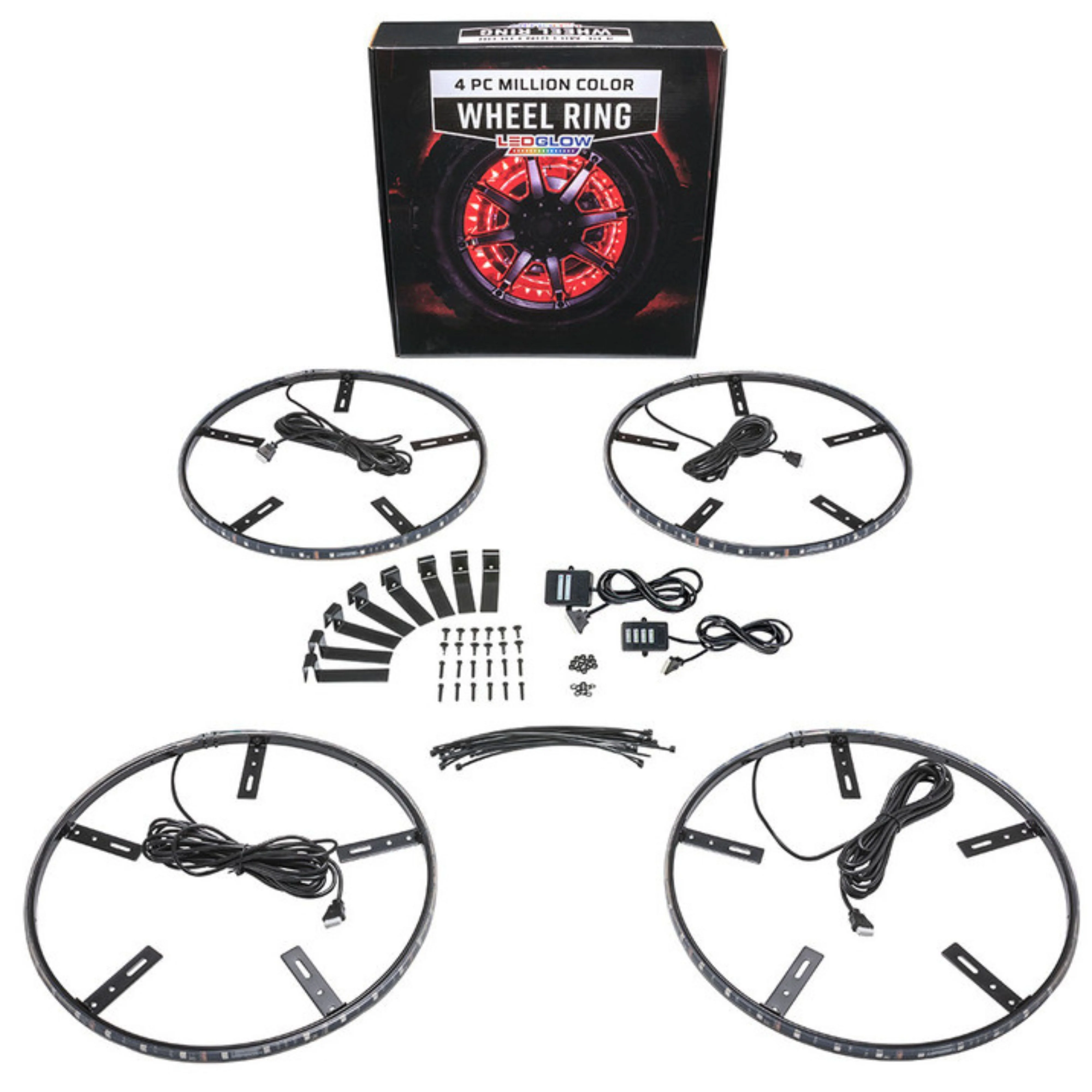

This Listing Includes:

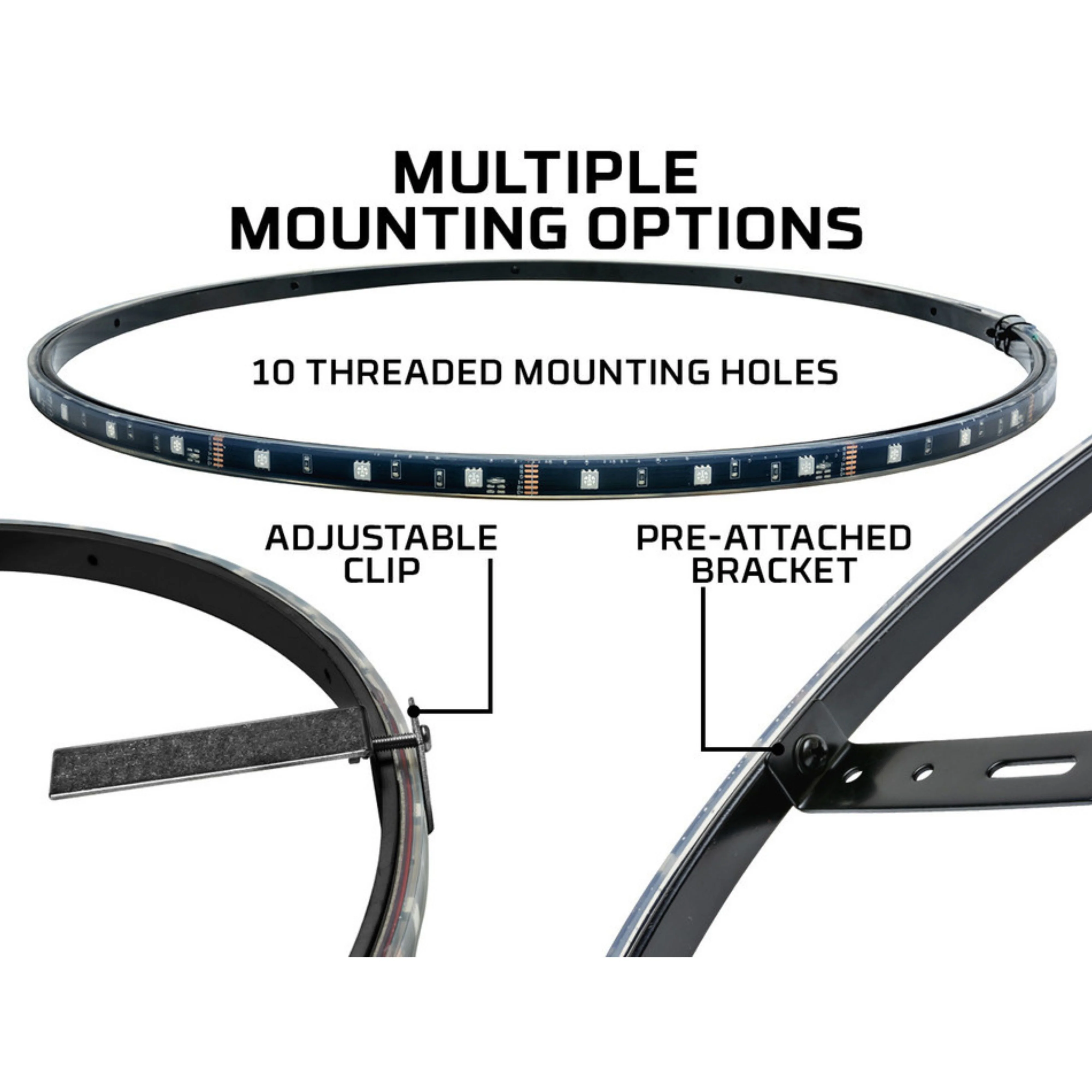

• (4) 15-1/2" Wheel Rings with Pre-Attached Waterproof LED Strip, 5 Brackets & 10 Pre-Drilled Holes


• 50-1/4" LED Strip - 36 SMD LEDs per Ring


• 144 Total SMD LEDs


• 4-Port Wheel Ring Distributor Cable


• 2-Port Underbody & Wheel Ring Distributor Cable


• 8 Adjustable Clip-On Brackets


• 16 Bolts, Nuts & Locking Washers


• 20 Zip-Ties


• Installation Instructions


• Free Lifetime Technical Support

This wheel ring light kit seamlessly integrates with an already installed Smartphone Controlled Million Color or Million Color Wireless Underbody Lighting Kit, and expands the multi-color aftermarket underglow lighting to the wheels of any car or truck. Each ring has a sleek black anodized finish and features a diameter of 15-1/2" for 20" or larger wheels with a maximum size of 15-1/2" diameter rotors. Each wheel ring add-on kit includes 4 rings with pre-attached waterproof LED light strips, a 4-port wheel ring distributor cable, 2-port underbody to wheel ring distributor cable, and the hardware you'll need for a complete installation. A 50-1/4" LED light strip with 36 SMD LEDs is pre-attached to each ring with double sided tape. The light strip features an IP67 waterproof rated housing that completely seals the LEDs and circuit board with silicone to protect against the elements, dirt and dust. Each light strip features 13' of wire with a 6-pin connector that plugs into the included distributor cable of your wheel ring light kit.

Compatibility List

• LU-UB-MBT40.2


• LU-UB-MBT60.2


• LU-UB-MW40.3


• LU-UB-MW60.3

Specifications:

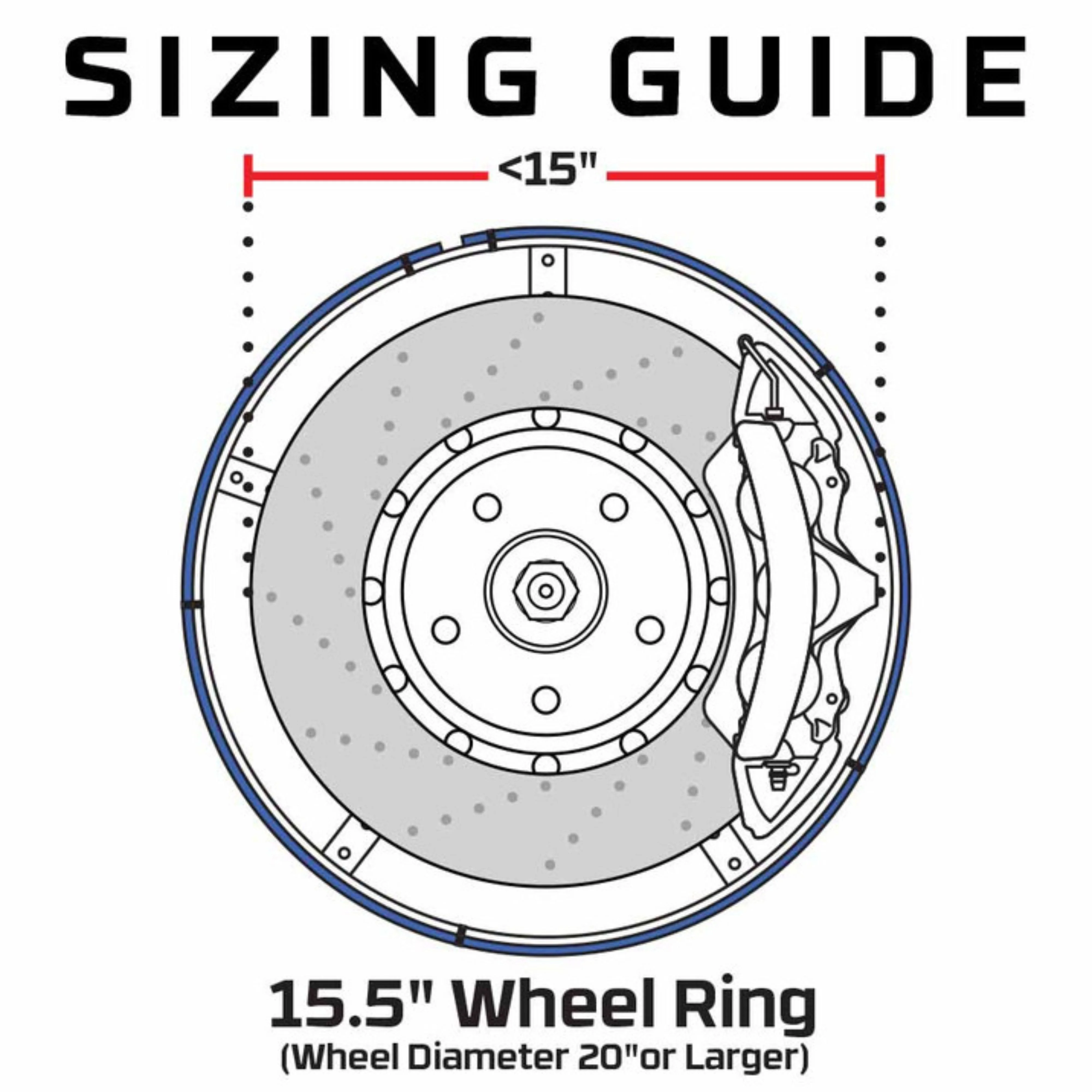

• Wheel Ring Size: 15.5" Ring


• LED Count: 36 LEDs per Ring - 144 Total LEDs


• Strip Length: 50.25" Waterproof Strip


• Brake Assembly Size: 15" Diameter or smaller


• Wheel Size: 20" Diameter or larger


• IP67 Rating


• Rings Feature 13' of Wire with 6-Pin Connector
