• Seamlessly integrates with an already installed Smartphone Controlled Million Color or Million Color Wireless Underbody Lighting Kit
• Rings Feature 13' of Wire with 6-Pin Connector
• Installs directly to the dust shield or hub assembly
• 156 Total SMD LEDs
• IP67 Rating

LEDGlow 4pc Million Color 17" Wheel Ring Lighting Add-On for Underbody Kits IP67

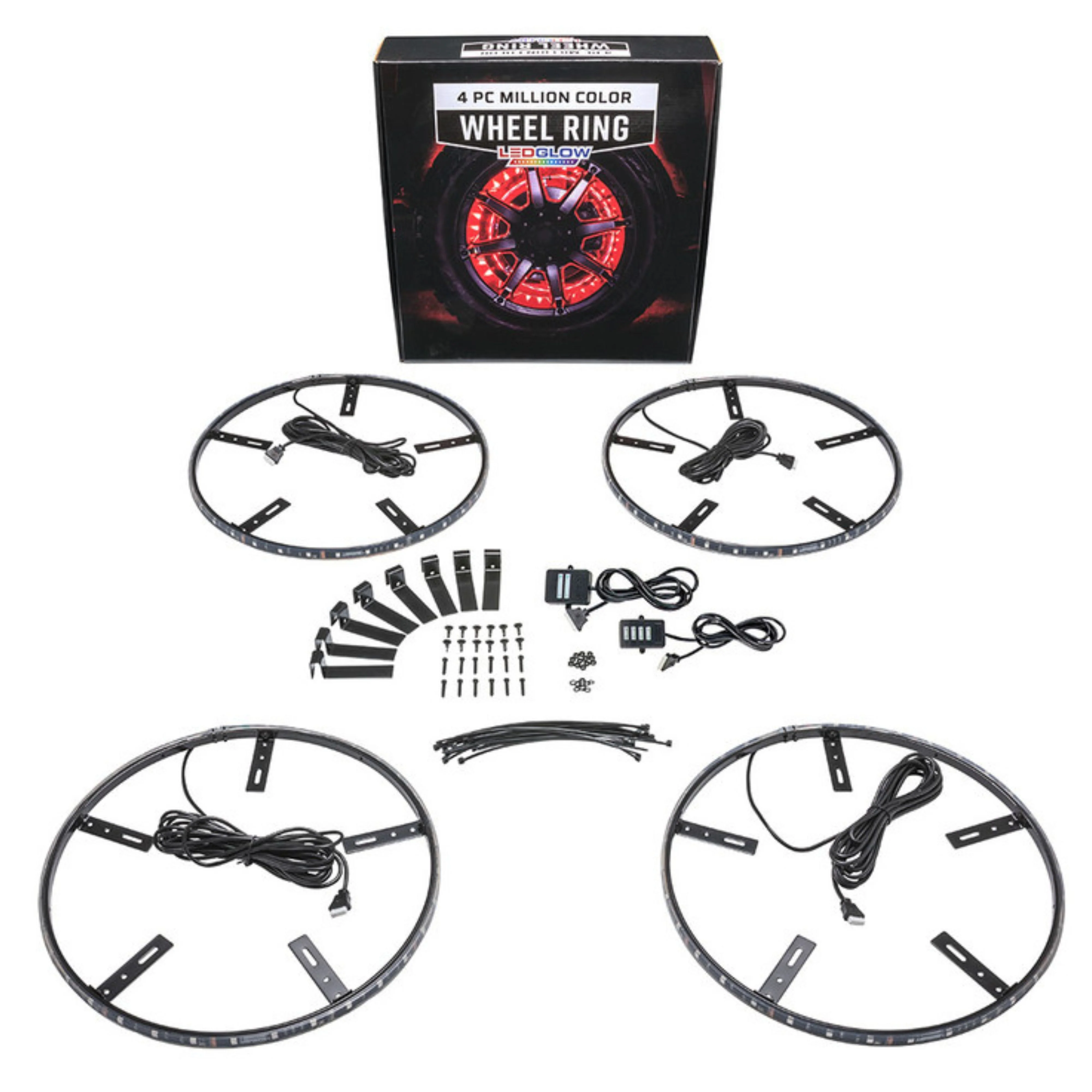

This Listing Includes:

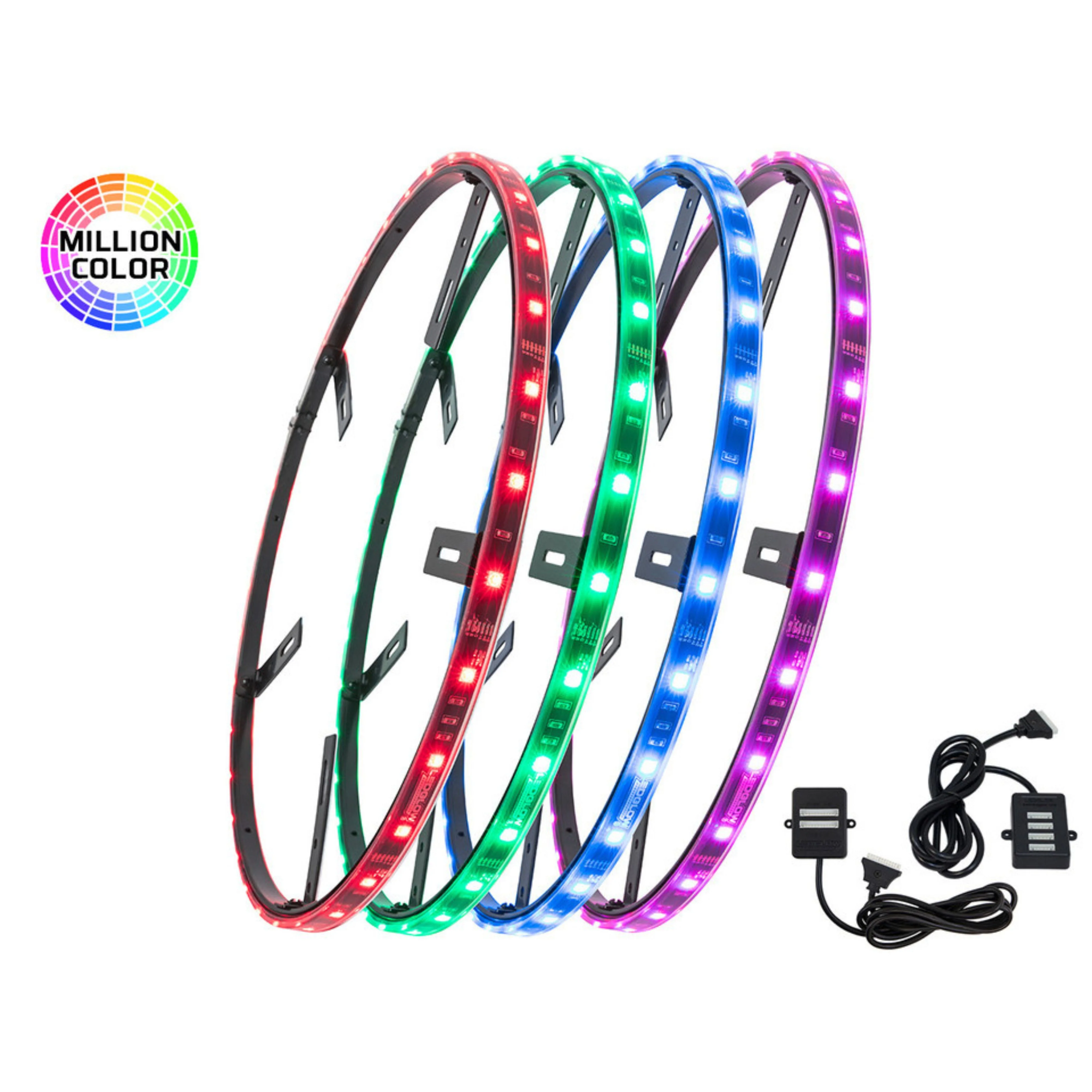

• (4) 17" Wheel Rings with Pre-Attached Waterproof LED Strip, 10 Pre-Drilled Holes


• 55" LED Strip - 39 SMD LEDs per Ring


• 156 Total SMD LEDs


• 4-Port Wheel Ring Distributor Cable


• 2-Port Underbody & Wheel Ring Distributor Cable

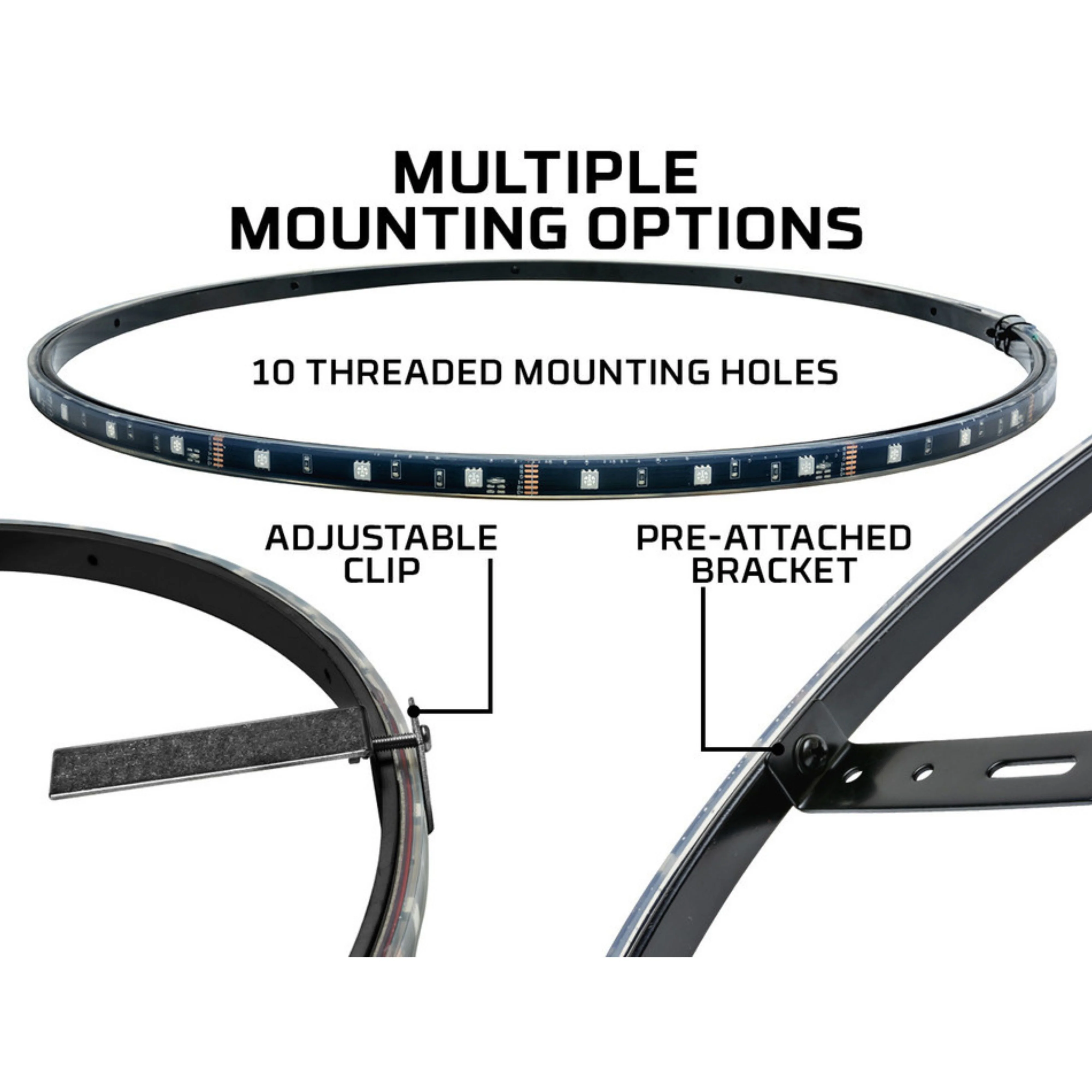

• 8 Adjustable Clip-On Brackets


• 16 Bolts, Nuts & Locking Washers


• 20 Zip-Ties


• Installation Instructions

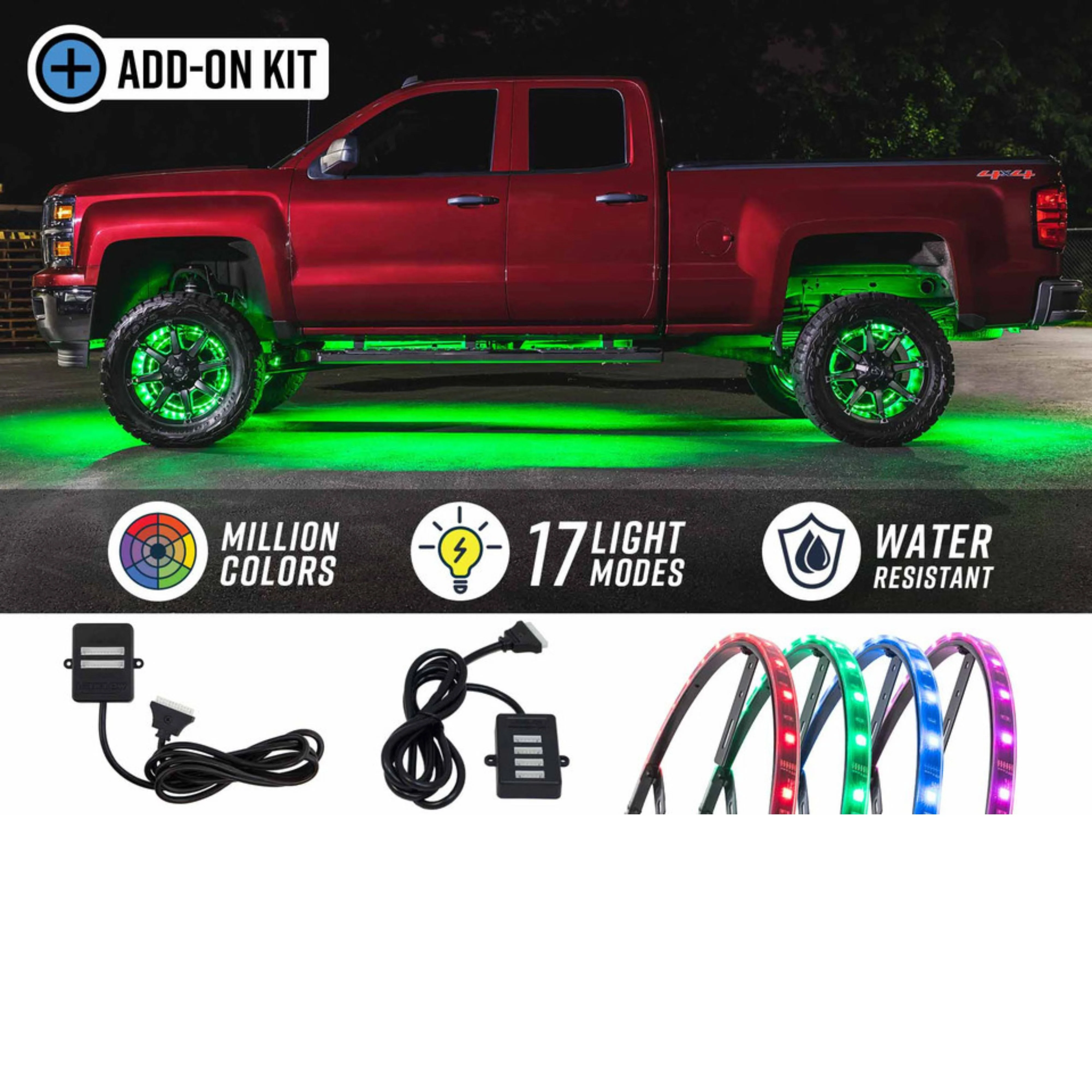

LEDGlow's 4pc 17" Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits installs directly to the dust shield or hub assembly and allows the LED lights to shine through the wheel for a custom look. This wheel ring light kit seamlessly integrates with an already installed Smartphone Controlled Million Color or Million Color Wireless Underbody Lighting Kit. It expands the multi-color aftermarket underglow lighting to the wheels of any car or truck. Each ring has a sleek black anodized finish and features a diameter of 17" for 21" or larger wheels with a maximum size of 16-1/2" diameter rotors. Included are 4 rings with Pre-Attached Waterproof LED Light Strips, a 4-Port Wheel Ring Distributor Cable, 2-Port Underbody-to-Wheel Ring Distributor Cable, and Hardware for installation.

Compatibility List

• LU-UB-MBT40.2


• LU-UB-MBT60.2


• LU-UB-MW40.3


• LU-UB-MW60.3

Specifications:

• Wheel Ring Size: 17" Ring


• LED Count: 39 LEDs per Ring - 156 Total LEDs


• Strip Length: 55" Waterproof Strip

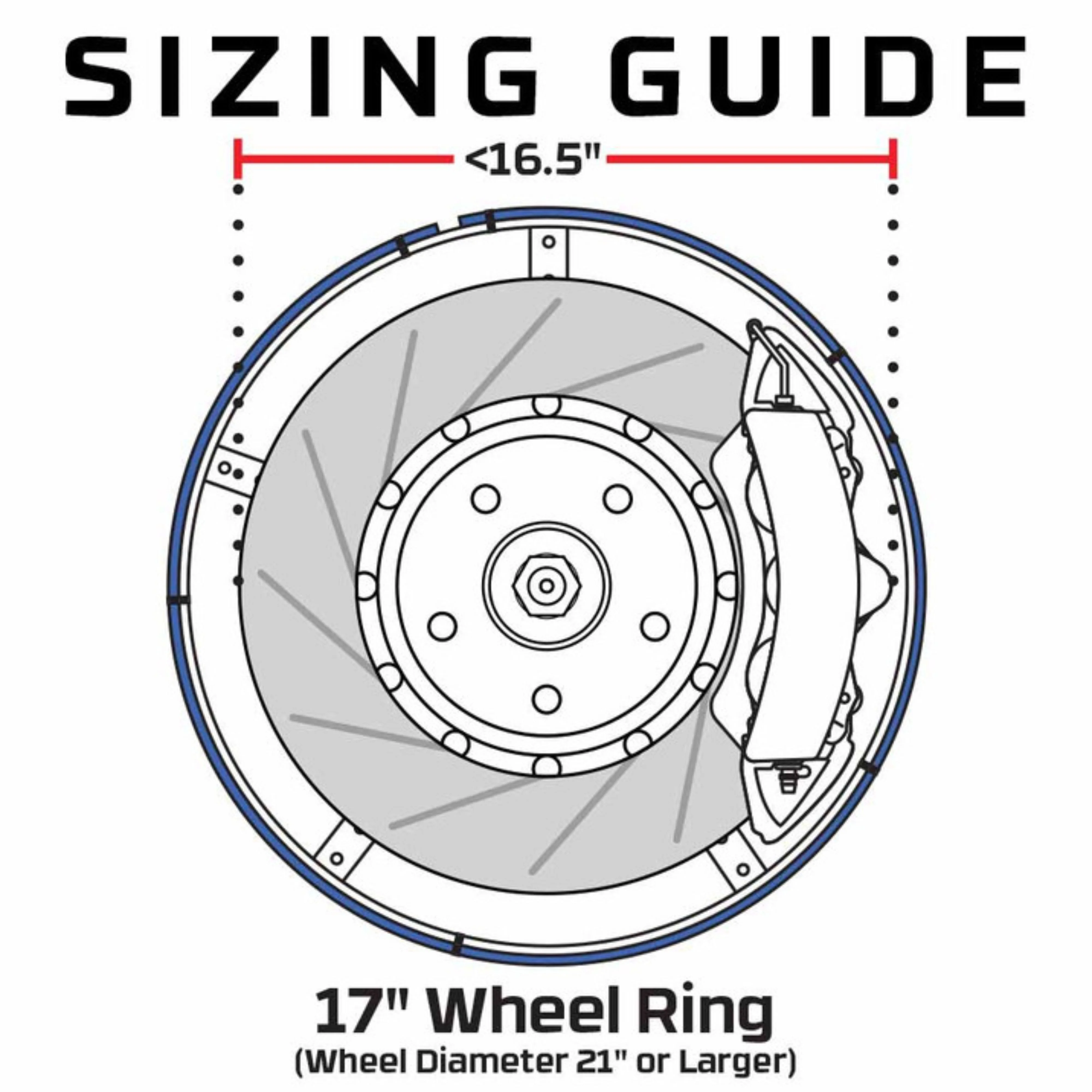

• Brake Assembly Size: 16-1/2" Diameter or smaller


• Wheel Size: 21" Diameter or larger


• IP67 Rating


• Rings Feature 13' of Wire with 6-Pin Connector
