• High Power Handling: 75W RMS / 350W Peak at 8 Ohm for clean, distortion-free performance in pro audio and car audio setups.
• Wide Frequency Response: Covers 800Hz – 20kHz with exceptional clarity, perfect for mids and highs.
• Premium Build: Titanium diaphragm, 44.4mm CCAW voice coil, ferro-fluid cooling, and ferrite magnet for durability and sound accuracy.
• Easy Installation: 1 3/8" screw-on throat with spring-loaded connectors for quick, secure setup.
• Efficient Cooling: Rear finned heat sink keeps the driver running cooler, extending performance and reliability.

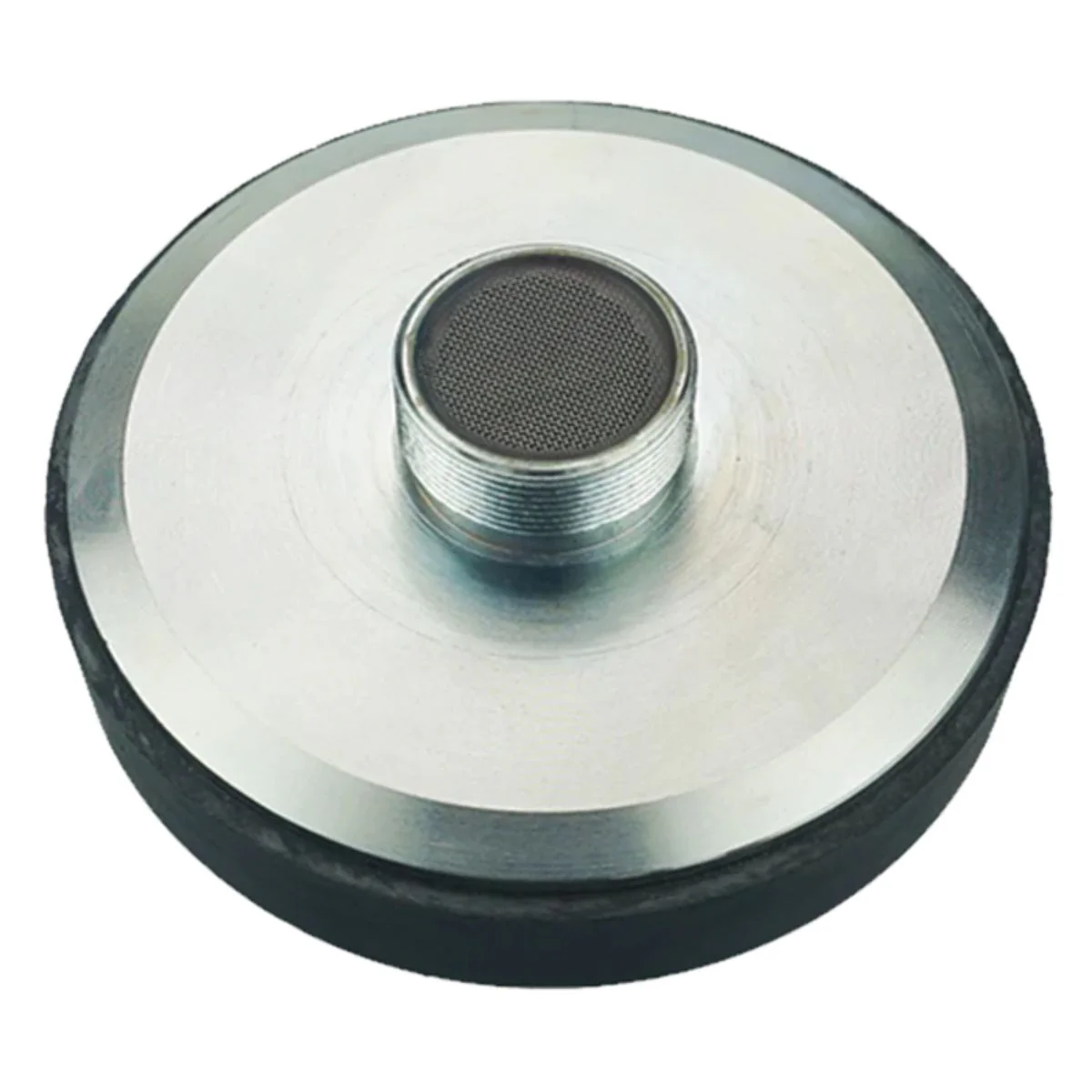

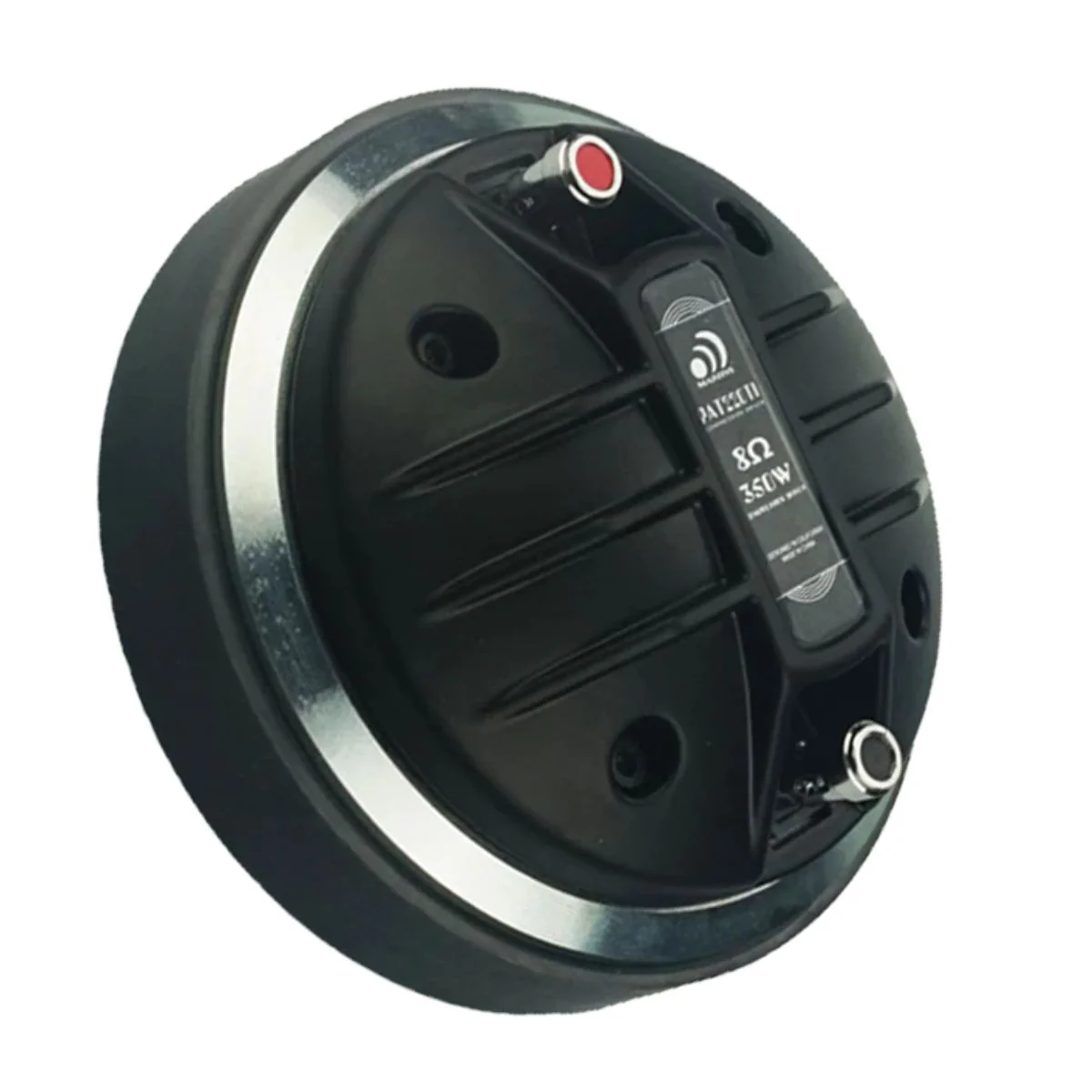

Massive Audio 75 Watts RMS 8 Ohm 1" Screw-On Compression Driver PAT220TI

Included In This Listing:

• (1) Massive Audio PAT220TI 1" Screw-On Compression Driver

The Massive Audio PAT220TI is a 1" screw-on compression driver designed for serious sound enthusiasts. Built with a titanium diaphragm, 44.4mm CCAW voice coil, and ferro-fluid cooling, this driver delivers 110dB sensitivity and a smooth frequency range from 800Hz to 20kHz. Featuring a high-grade ferrite magnet and a finned heat sink for improved thermal management, it ensures lasting performance at high volumes. Perfect for car audio, PA systems, and pro audio applications, the PAT220TI combines power, clarity, and reliability in one compact driver.

Features

• 1" Screw-On Compression Driver (1 3/8" throat exit)


• Titanium diaphragm for superior sound clarity


• 44.4 mm CCAW voice coil, field replaceable


• High-grade ferrite magnet with rear finned heatsink


• Ferrofluid cooled for extended reliability


• Sensitivity rated at 110dB for extreme output


• Recommended 18dB crossover network

Specifications

• Impedance: 8 Ohm


• Frequency Range: 800Hz – 20kHz


• RMS Power Handling: 75W


• Peak Power Handling: 350W


• Sensitivity: 110dB (2.83V @ 1m)


• Mounting Type: Screw-On (1 3/8" Exit)


• Voice Coil: 44.4mm CCAW


• Weight: 1 lb.

Dimensions:

• Diameter: 1.38"


• Width: 1.38"


• Hight: 1.38"
