• Nominal Impedance: 8 Ohms RMS Watts: 140W Peak Watts: 300W
• Channels: 4 Peak Output Power @ 14.4V: 250W x 4 RMS @ 4 Ohms: 80W x 4

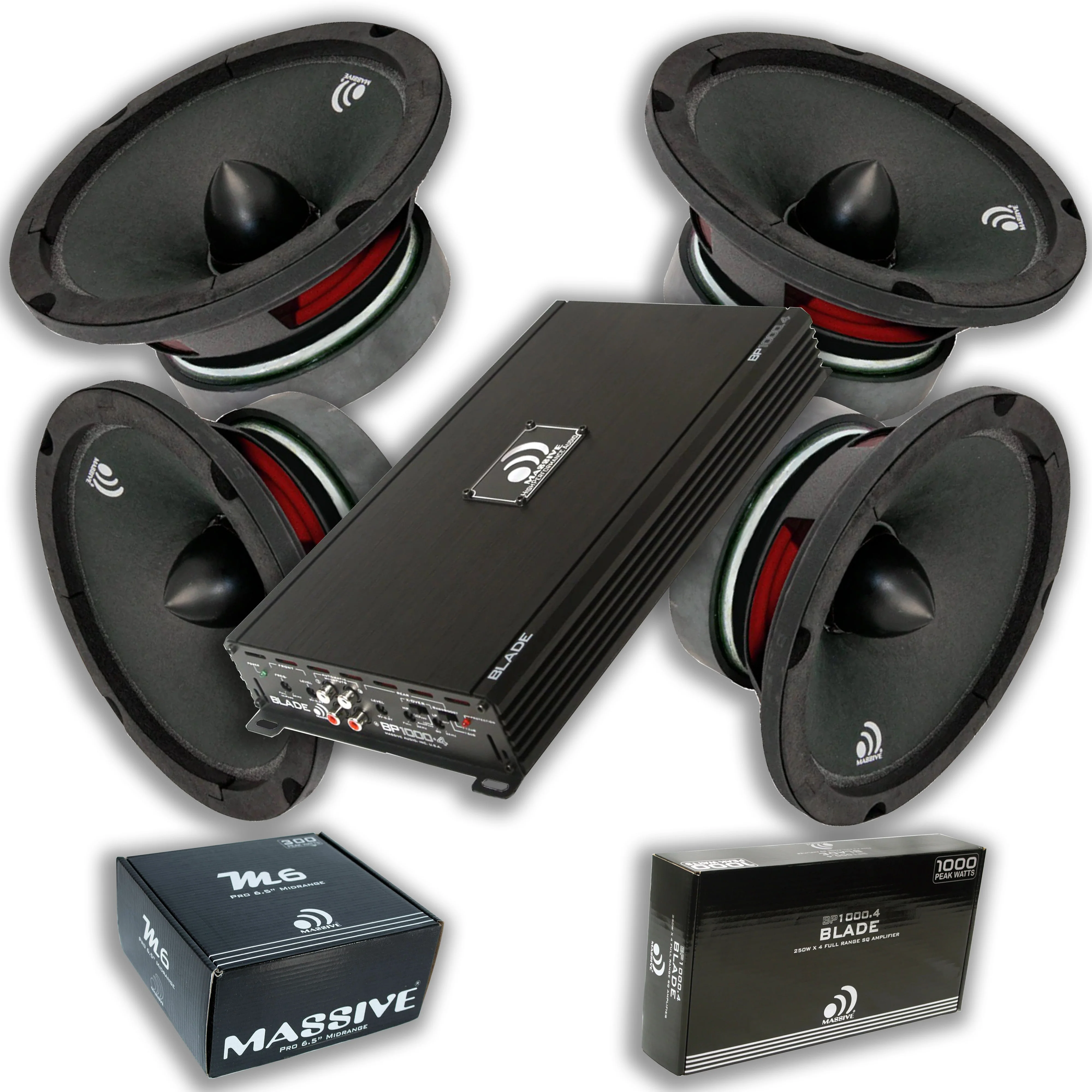

Massive Car Audio 6.5" Loud Speakers 1200W 8 Ohm With 4 Ch 2 Ohm Amplifier

Massive Audio's proven Professional High-Grade Efficiency, High Power Mid-Range Speaker designs are a result of years of experience, research and dedication to high end professional audio products.

The BLADE BP Series Amplifiers are designed with our "Live, Loud and Play Hard" motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high-level speaker signal at up to 9 Volts directly in.

This Listing Includes:

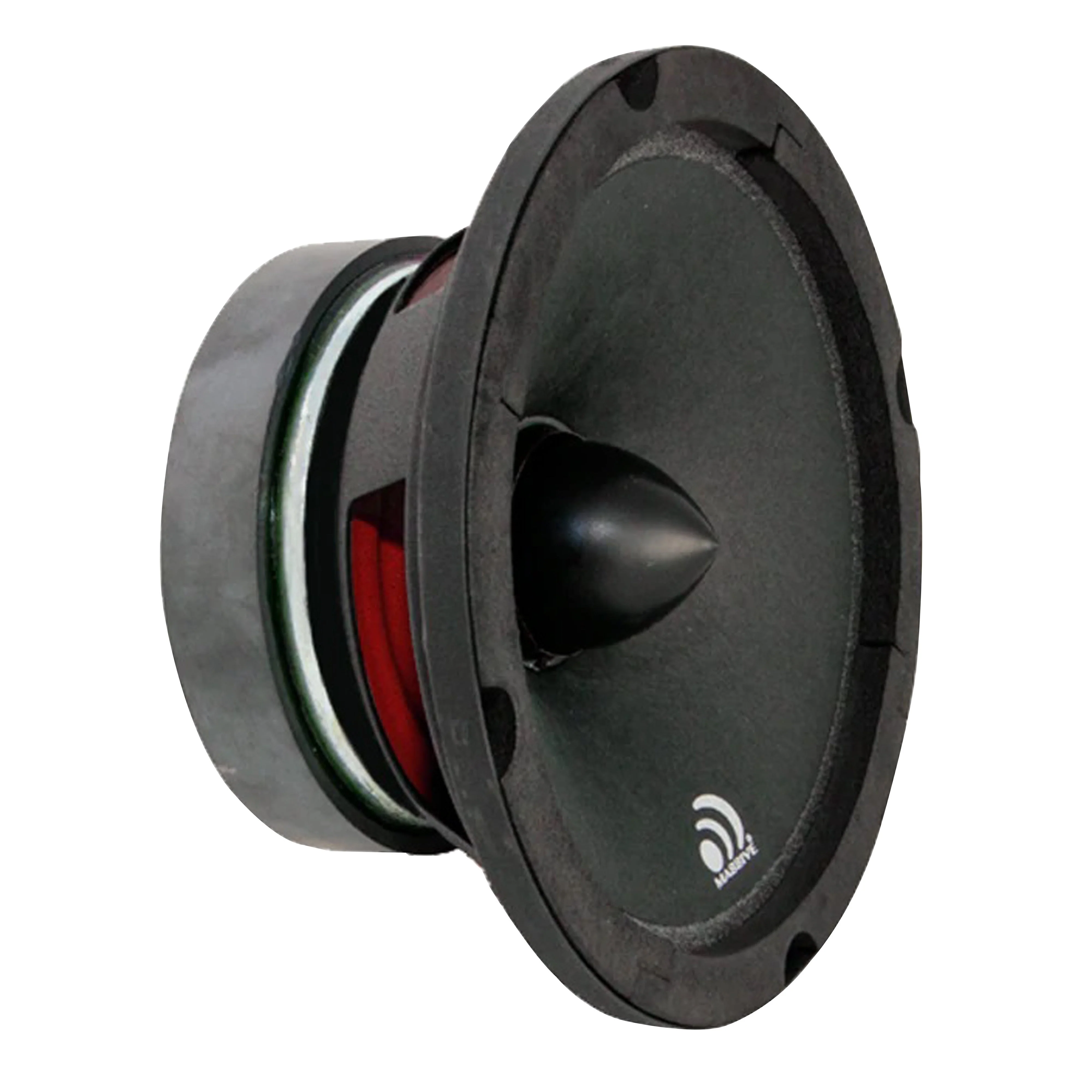

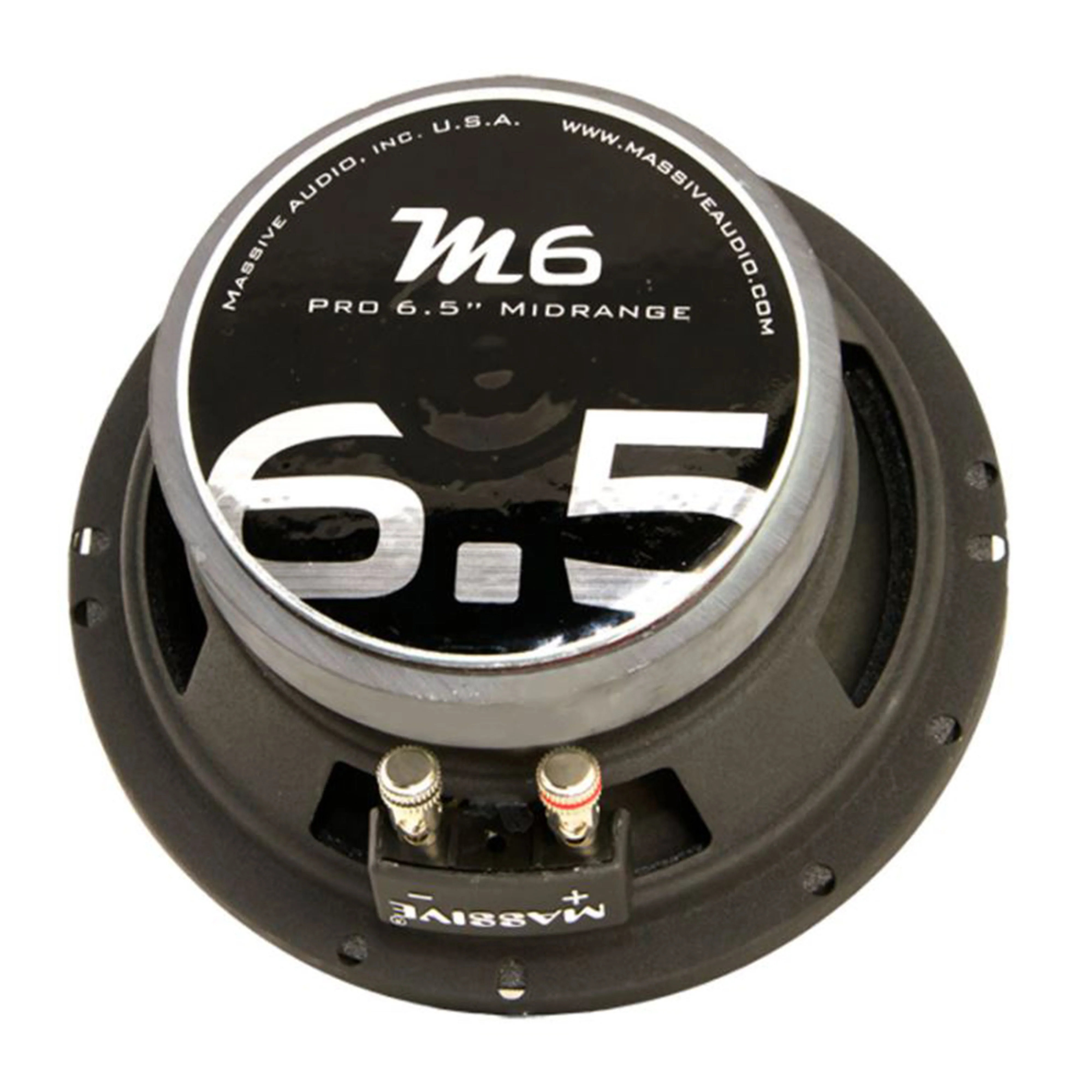

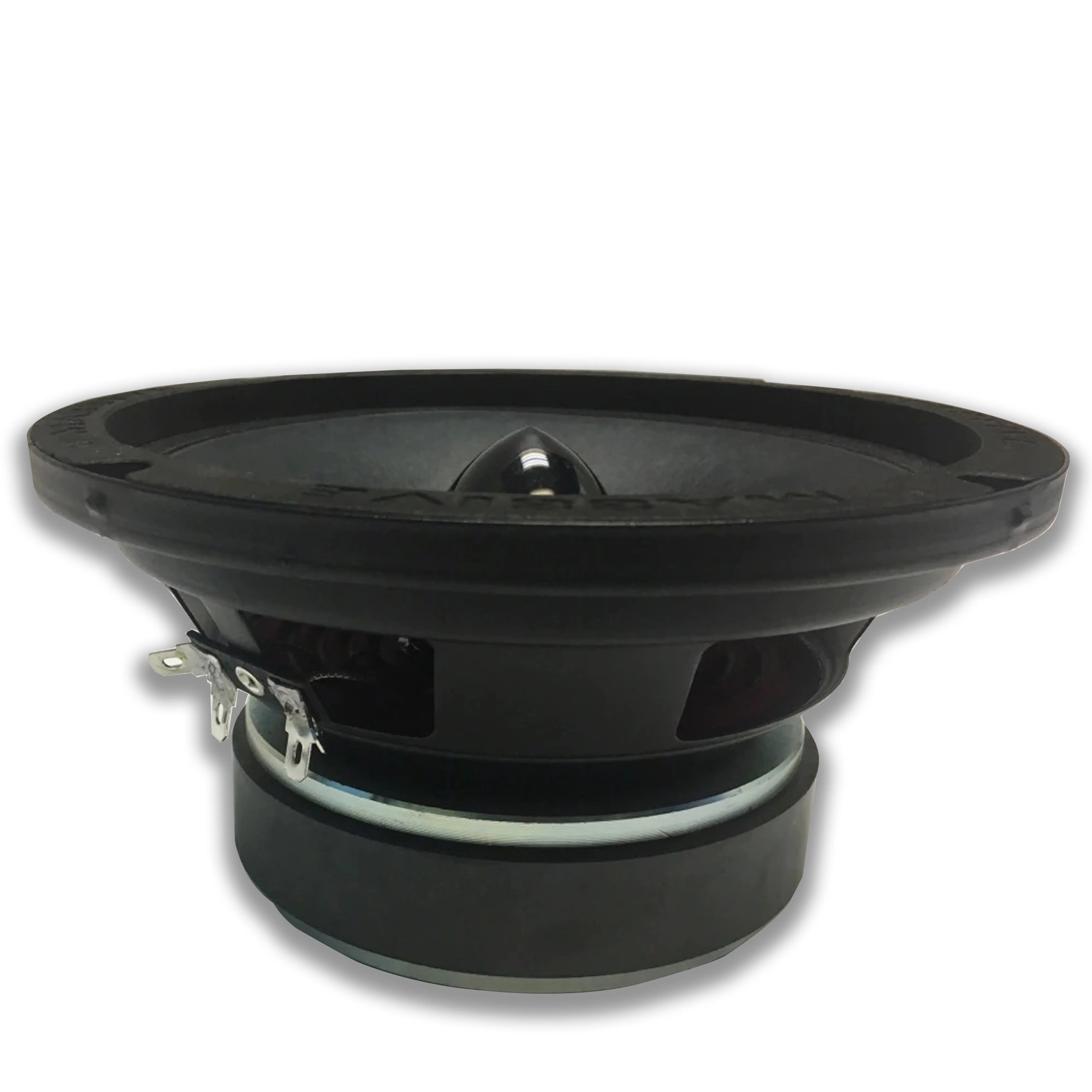

(4) Massive Audio 6.5" Loud Speakers MA-M6

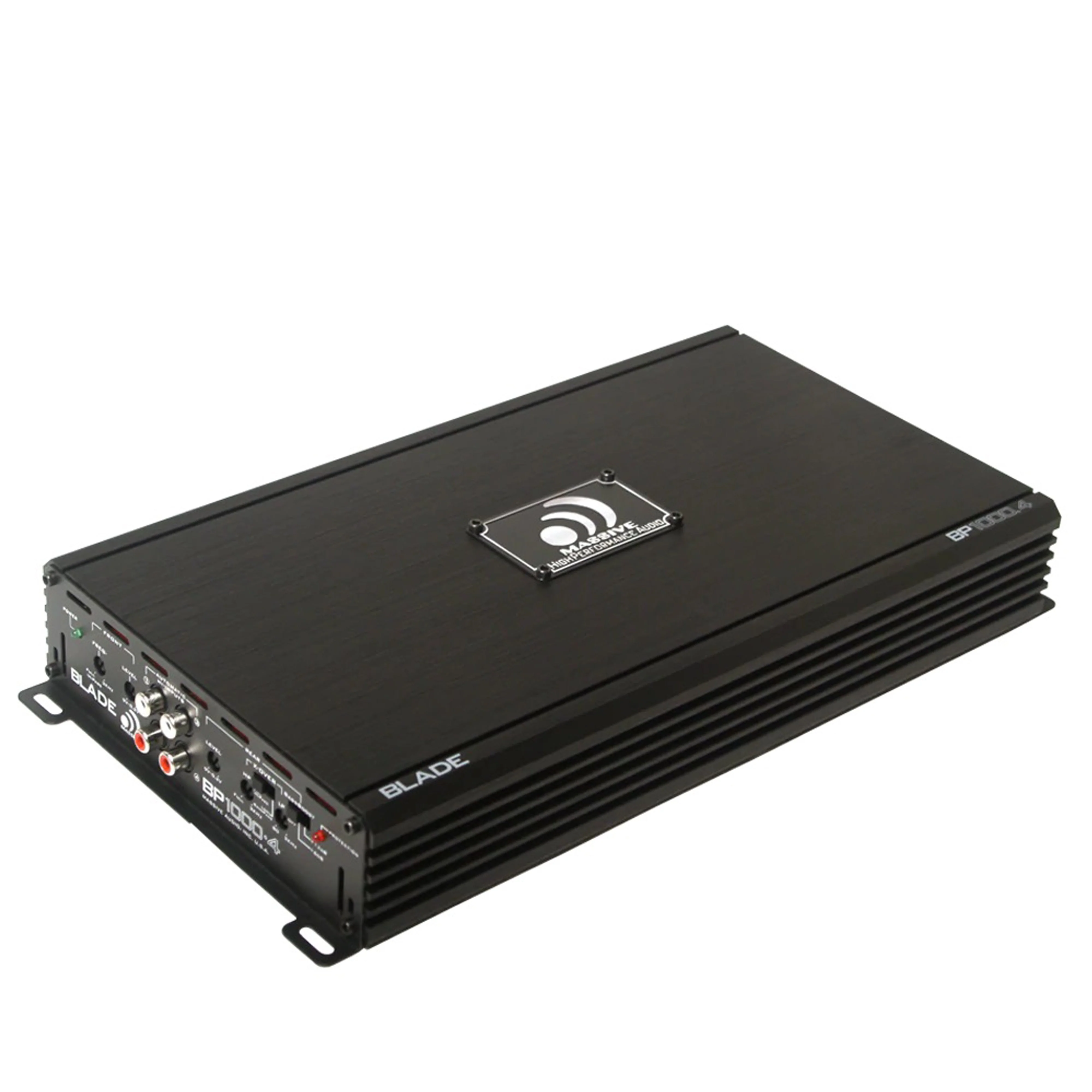

(1) Massive Audio 4 Channel Amplifier MA-BP1000.4

SPEAKER SPECIFICATIONS:

Nominal Basket Diameter: 6.5" (166mm)

Nominal Impedance: 8 Ohms

RMS Watts: 140W

Peak Watts: 300W

Sensitivity: 96dB

Recommended Hi Pass Crossover: 270 Hz

Frequency Response: 270-10KHz

Voice Coil Diameter: 1.5" (38.5mm)

Voice Coil Wire: CCAW

Former Material: Til

Frame Material: Stamped Steel

THIELE-SMALL PARAMETERS:

Equivalent Volume: Vas - 2.23L

Excursion: Xmax - 0.75mm

Free Air Resonance: Fs - 270 Hz

Mechanical Mass: Qms - 1.27

Total Factor: Qes - 0.814

Cone Area: Sd - 0.014 m2

Mechanical Mass: Mms - 0.0073 kg

BI Factor: BI - 7.7 Tm

DC Resistance: Re - 5.2 Ohms

Inductance: Le - 0.22 Mh at 1 KHz

Mechanical Compliance: Cms - 0.85 mm/N

MOUNTING DIMENSIONS:

Mounting Holes Diameter: 0.19" x 0.28" (5x7mm)

Mounting Holes: B.C.D. 6.06" (154mm)

Depth: 3.3" (84mm)

AMPLIFIER SPECIFICATIONS:

Channels: 4

Peak Output Power @ 14.4V: 250W x 4

RMS @ 4 Ohms: 80W x 4

RMS @ 2 Ohms: 160W x 4

RMS Bridged @ 4 Ohms: 320W x 2

Frequency Response: 10Hz - 35KHz

Input Sensitivity: 0.2 ~ 9.0V

Signal to Noise Ratio: Greater than 90dB

THD & Noise: Less than 0.05%

Low Pass Cross Frequency: 80Hz - 3KHz

High Pass Cross Frequency: Full - 3KHz

Bass EQ: 0-6 dB/12dB @ 45 Hz

Minimum Impedance: 2 Ohm Stereo

Fuse Size: 30A x 2

DIMENSIONS (LxWxH):

MM: 320 x 180 x 51

Inches: 12.6 x 7.1 x 2
