• High Amperage and Durability: Elite Series 400 Amp Alternator designed for maximum amperage and durability.
• Redesigned for 2020: Newly redesigned with 6-phase technology, massive twin rectifier assemblies, and 12 diodes.
• Daily Use Reliability: Engineered for daily use, maintaining 200+ amps even at engine idle speeds.
• Belt Compatibility Note: Equipped with a smaller 1.75-inch diameter alternator pulley, requiring a slightly shorter drive belt for proper tension.
• Advanced Technology: Uses the more robust 4-pin style regulator, bypassing the RVC charging system in GM truck applications (2005>).

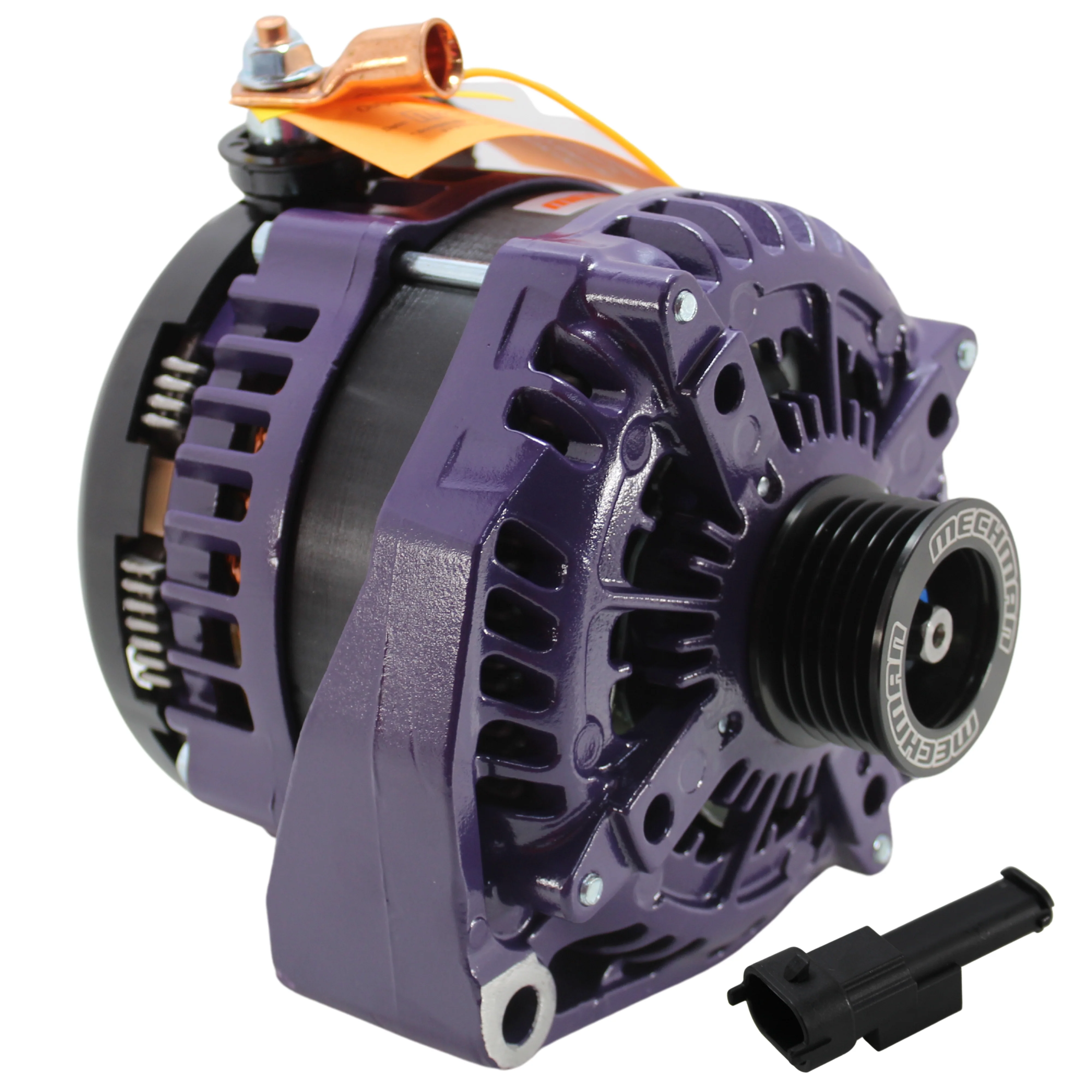

Mechman S-Series 400 Amp Alternator For 2014 - 2018 GM 6.2L Truck Purple 14019400

This listing includes:

• (1) S-Series 400 Amp Alternator For 2014 - 2018 GM 6.2L Truck (Purple)


• (1) 1 wire P101 harness

Experience top-tier electrical performance with the Mechman Elite Series 400 Amp Purple Billet Alternator designed for 14-18 GM Trucks. This alternator, newly redesigned for 2020, combines 6-phase technology, massive twin rectifier assemblies, and 12 diodes to deliver exceptional amperage and durability for daily use. While maintaining 200+ amps even at engine idle speeds, this alternator comes with a smaller 1.75-inch diameter pulley, requiring a slightly shorter drive belt for proper tension. It is not recommended for sustained use above 5,000 RPM engine speed. The advanced 4-pin style regulator bypasses the RVC charging system in GM truck applications (2005>). With the included 1-wire P101 harness and P103 module, installation is simplified, ensuring stable voltage output without extreme fluctuations.

Specifications:

• Made for 2014 - 2018 GM 6.2L Truck


• Amperage Output: 400 Amps


• Voltage Compatibility: 12


• Redesigned: 2020


• Technology: 6-phase, twin rectifier assemblies, 12 diodes


• RPM Limitation: Not recommended for sustained use above 5,000 RPM engine speed


• Regulator: 4-pin style
