• (1) JL-SUB10/LR
• (1) DS-CANDY-XXL1B
• (2) DS-GEN-X104D
• (1) DS-AMPKIT4

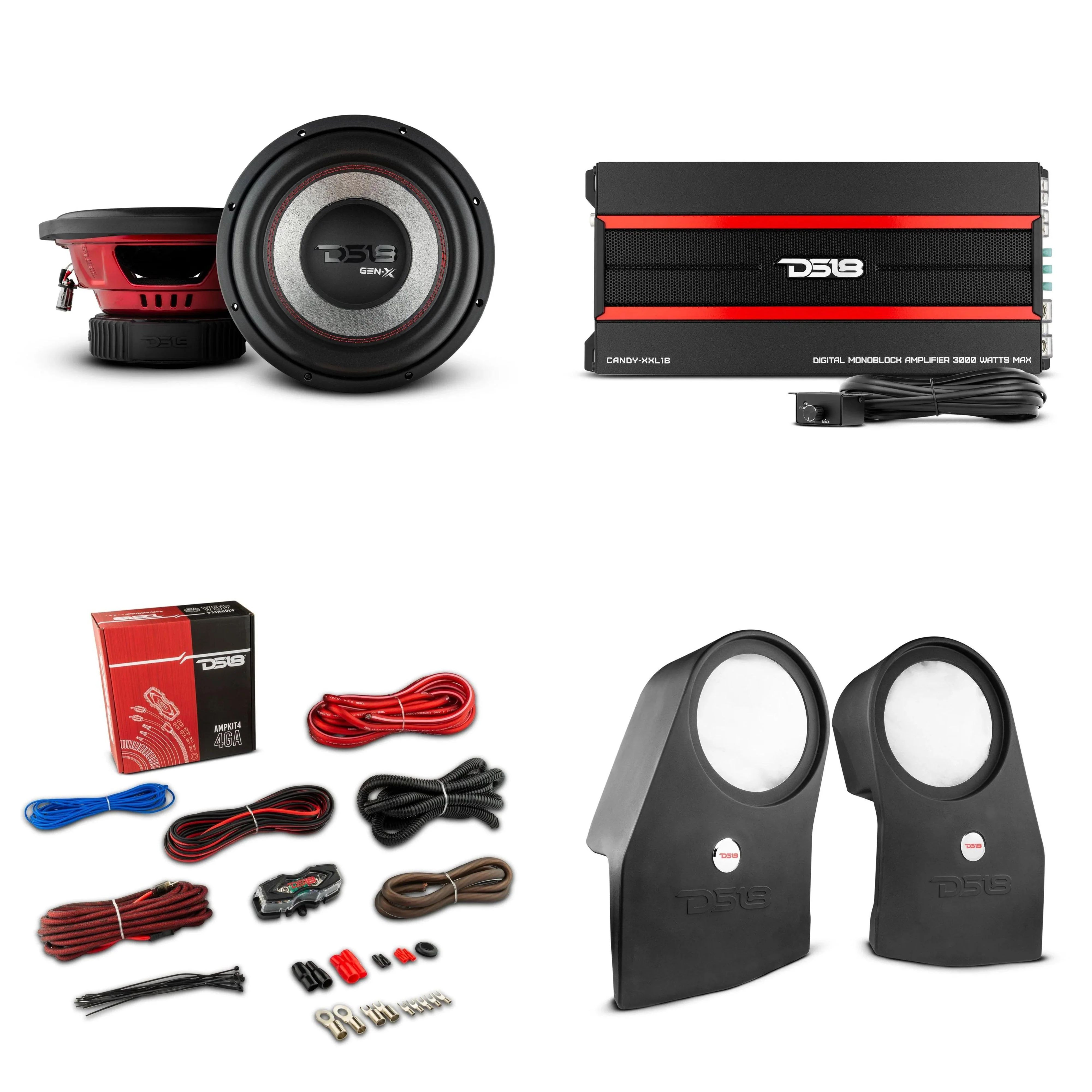

This powerful DS18 Subwoofer package has everything you need to give your vehicle a huge boost in bass and audio clarity!

This combo has the JL-SUB10/LR vehicle speaker enclosures and the powerful CANDY-XXL1B 3000 Watt Amplifier. All of which is easy to wire with the included DS18 AMPKIT4.

This Listing Includes:

(1) JL-SUB10/LR

(1) DS-CANDY-XXL1B

(2) DS-GEN-X104D

(1) DS-AMPKIT4

Product Features:

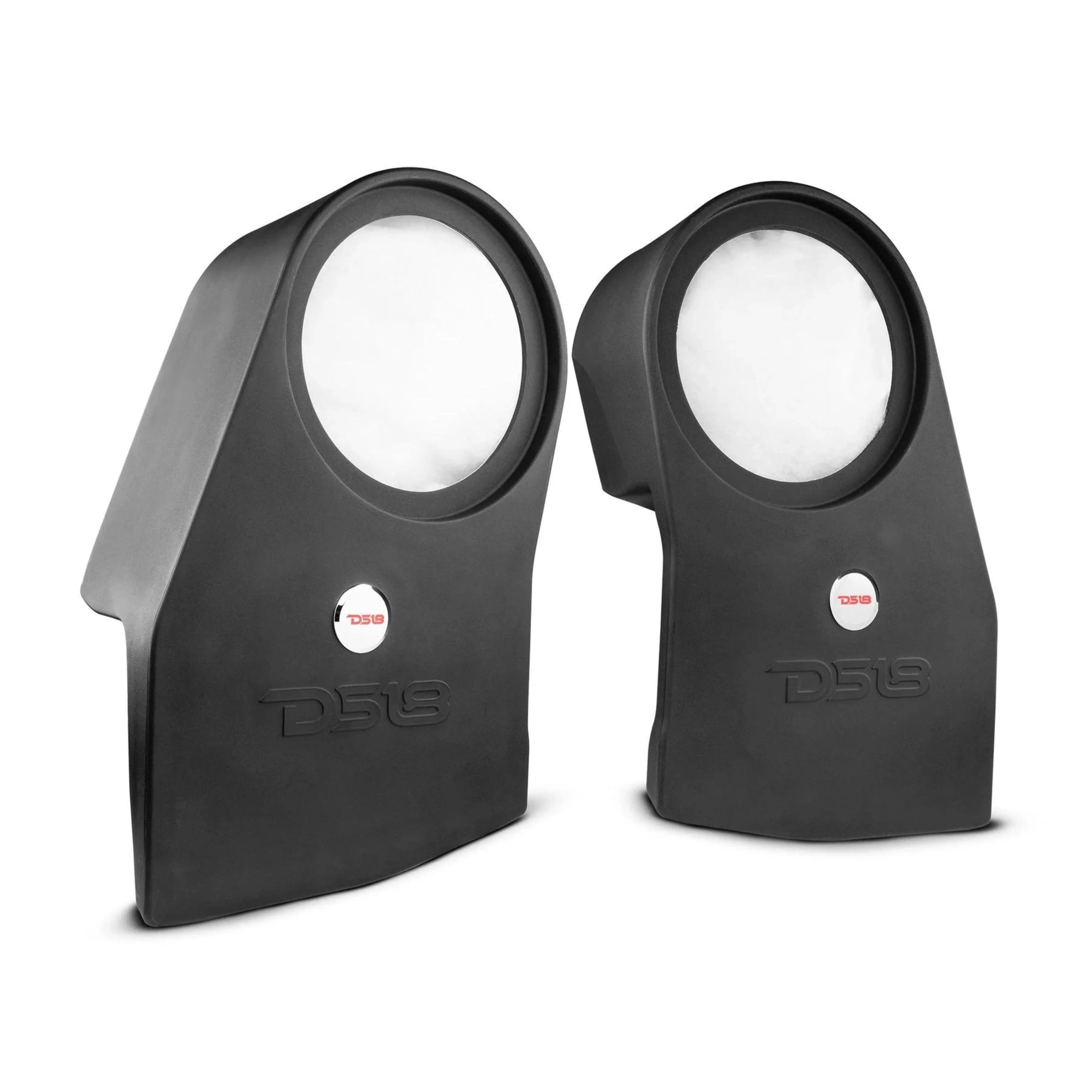

JL-SUB10/LR

Features: - Fits 10" Subwoofer - Injected High-Density ABS - UV Protected And All Elements Ready - Lightweight and Strong Material - Mounting Bracket And Hardware Included - 1 Meter 6 Core Input Wire (speaker input and RGB) - Internal VOL Area: 0.5F/14L Dimensions: Mounting Depth: 5.02" Cut-Out Diameter: 10"

• Sturdy and compact custom fitted prefab box designed for JL/JLU Jeeps


• Lightweight and Strong Material


• Mounting Bracket and Hardware Included


• 1 Meter 6 Core Input Wire (Speaker Input And RGB)


• Internal Vol Area: 0.5 cubic feet

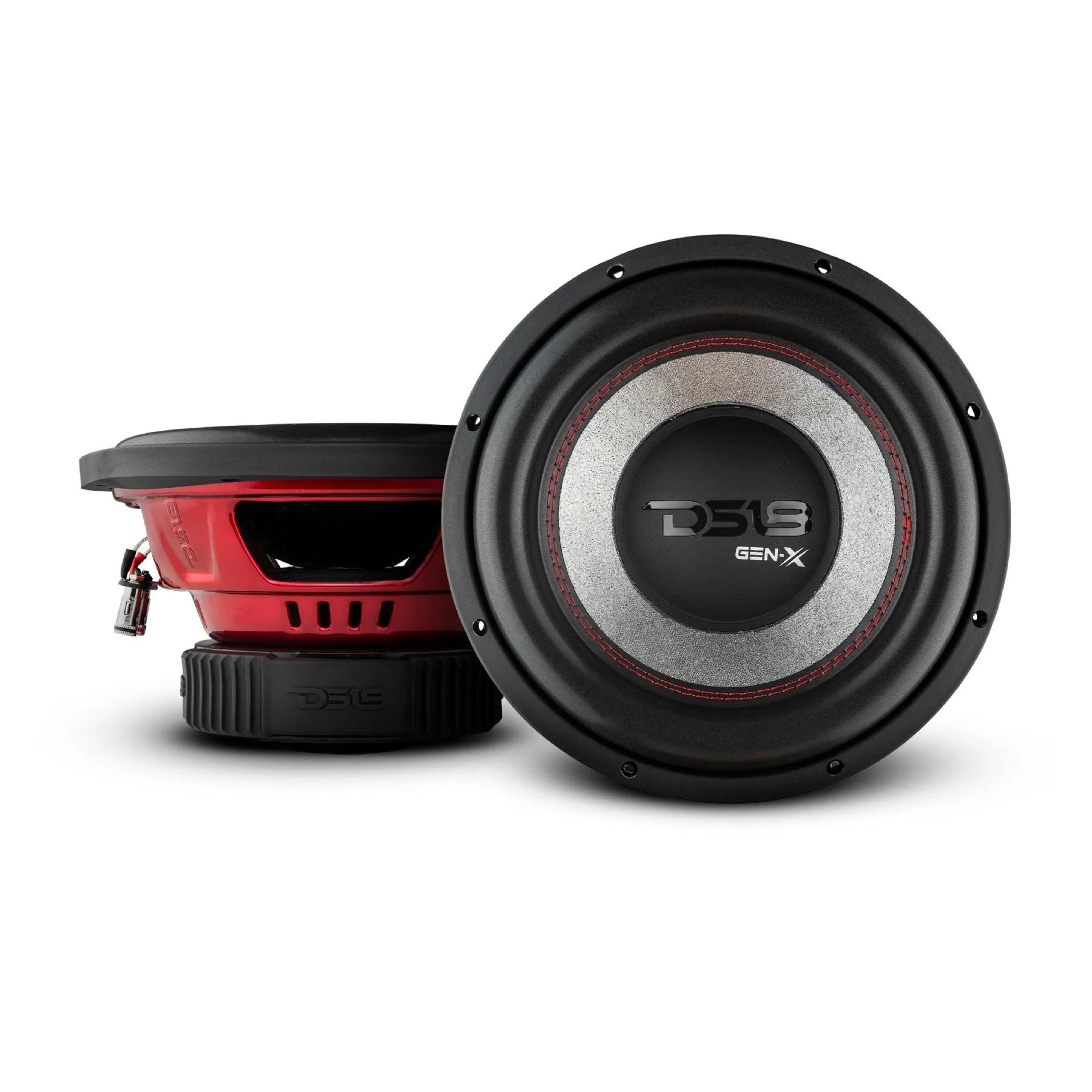

DS-GEN-104D

Features: Model: GEN-X104D Type: Subwoofer Size: 10" RMS Power: 400W MAX Power: 800W Impedance: 4 + 4 Voice Coil Size: 2" Magnet: Ferrite Magnet Size: 66 oz Frequency Response: 25Hz - 6KHz Frame: Steel Basket Cone: Paper with Glass Fiber Surround: Foam Edge Voice Coil Former Material: Black Aluminum Mounting Cut-Out: 9.21" (234mm) Mounting Depth: 5.39" (137mm) Overall Diameter: 10.24" (260mm) Net Weight: 6kg

• Loud booming bass that shatters the terrain beneath you


• High Quality Ferrite Motor With Aluminum Coils For Very High Power To DB Efficiency and Loudness


• Stylish DS18 Design That Gives Bass On Command

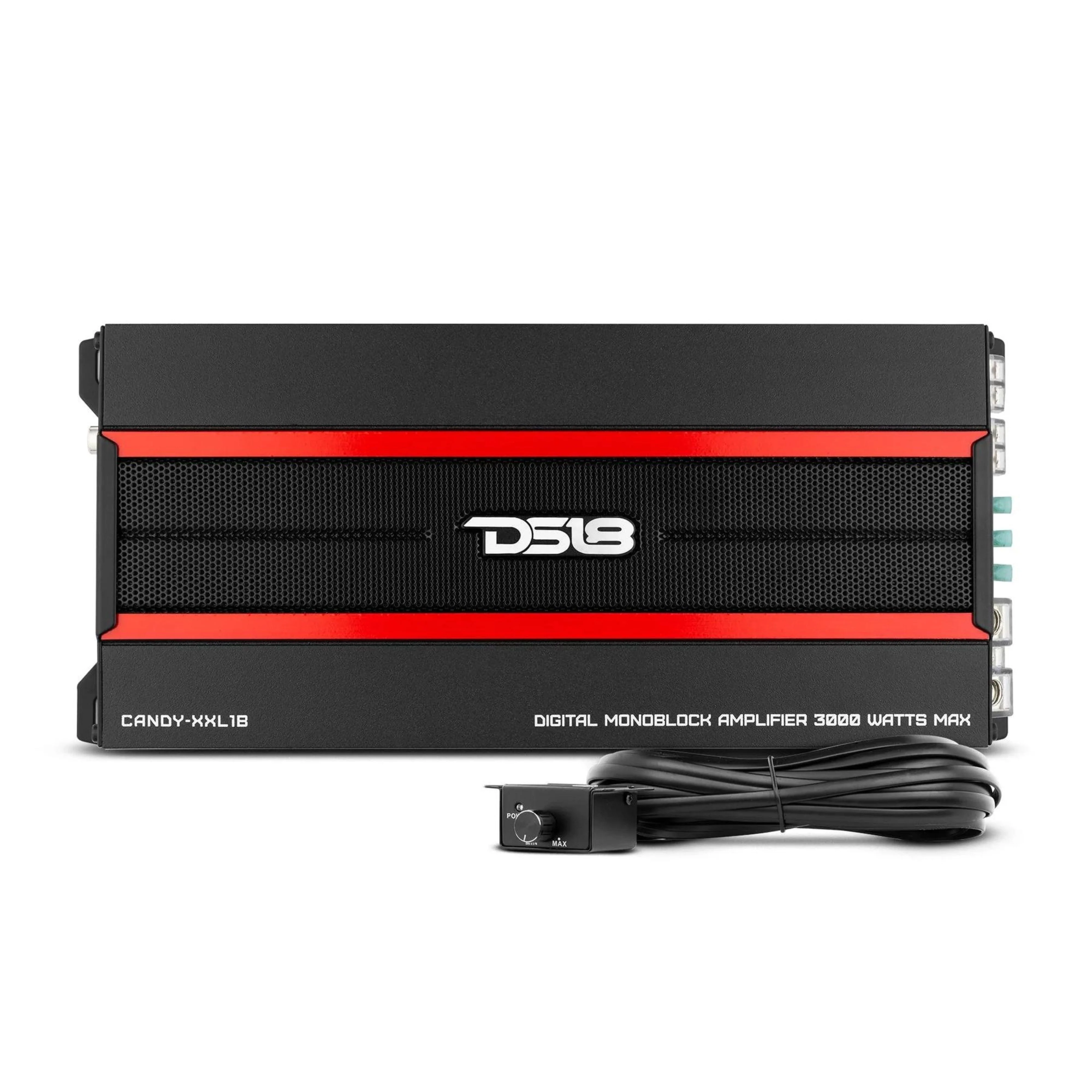

CANDY-XXL1B

SPECIFICATIONS:

RMS Power @ 14.4 V DC Power @ 4 Ohms: 1 x 400 Watts Power @ 2 Ohms: 1 X 650 Watts Power @ 1 Ohms: 1 x 1000 Watts Min. Speaker Impedance: 1 Ohm THD Distortion: 0.01% Frequency Response: 20 Hz~150 Hz Input Sensitivity: 0.2 V~+6 V Input Impedance: 10 K Signal to Noise Ratio: 100 dB Remote Sub Gain Control: 0.2 V~+6 V Crossover Network Boost Frequency: 40 Hz~100 Hz Low Pass Filter: 50 Hz~150 Hz Phase Control: 0~180 Bass Boost: 0 dB~+18 dB Fuse Rating: 3 x 35 A

• Unmatched power output to size ratio


• Small and Powerful Design Allows for a Wide Range of Versatility


• Extremely durable high grade components


• RCA and Hi/Lo inputs for easy integration into your factory audio system

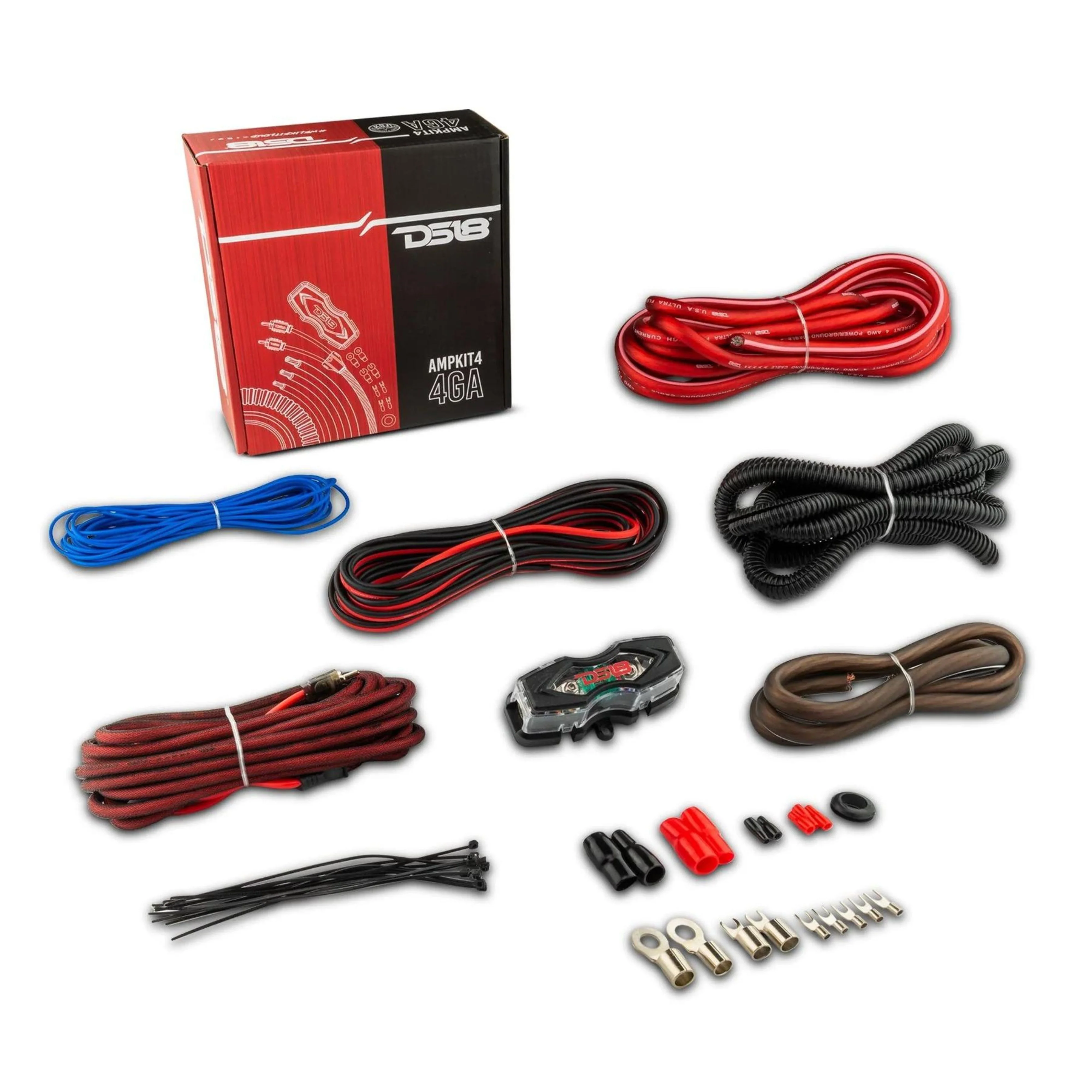

DS-AMPKIT4

17 Feet 4 Gauge Red Super-Flex-Twist Premium Cable 3 Feet 4 Gauge Black Super-Flex-Twist Ground Cable 17 Feet 14 Gauge Red/Black Super-Flex-Twist Speaker Cable 17 Feet 2 Channel Shielded Twisted Pair Premium Audio Interconnects 17 Feet Remote Turn-On Wire 6 Feet Split Loom Tubing 1 Piece AGU Fuse Holder (1) 100 Amp Fuse 4 Gauge Accessories
