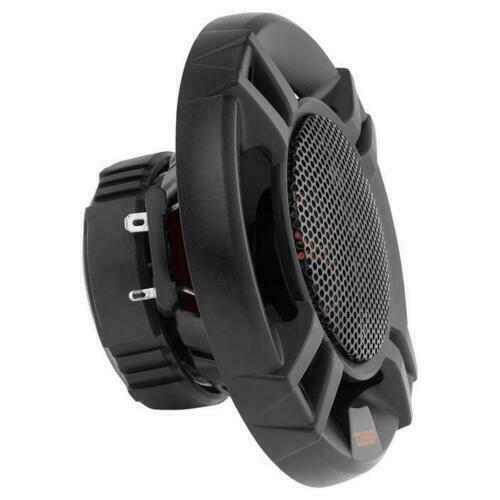

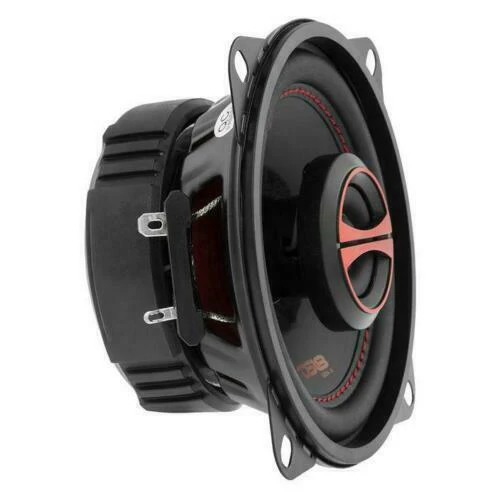

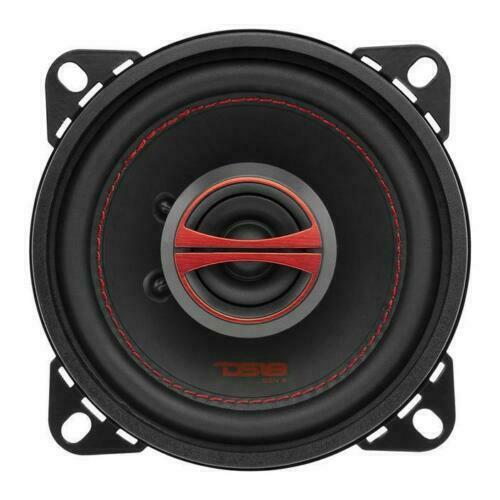

2x 4" 2-Way Coaxial Speaker 240 Watts Dome Tweeter 4 ohm DS18 GEN-X4 Series

The GEN-X Coaxial Series features Mylar balanced dome tweeters, black paper cones with rubber edges, and sleek mesh grills with red accents. These speakers will hit all frequencies with great style. They boast a fine clarity that is unparalleled by any other speaker in their class.

Highlights:

-2 to 4 way design for extreme full range quality hitting all the right frequencies.

-Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio.

-included grills to protect your speakers as well as great looks to blend in to any vehicle.

SPECIFICATIONS

Size: 4"

RMS Power: 40 W Each Speaker

MAX Power: 120 W Each Speaker

Frequency response: 120-20 KHz

Impedance: 4 ohm

Sensitivity: 83 dB/w/m

Surround: Rubber Edge

Cone: Black Paper

Voice Coil Wire: ASV

Grilles: Yes

Tweeter Magnet Material: NdFeB

Tweeter Done Material: Mylar

Tweeter Design: Coaxial 1WAY

Woofer Cone Material: Paper

Woofer Surround: Rubber

MEASUREMENTS

Voice coil size: 1"(25.4 mm)

Magnet Size: 2.75 x 1.25 x 0.39 (70 x 32 x 10 mm)

Tweeter Size: 1.10(28 mm) Mylar Balanced Dome Top (No Grill): 1.98(50.5 mm)

Mounting depth: Top (w/Grill): 2.67(68 mm) Bottom: 1.68(42.7 mm)

Mounting Hole: 3.70(94 mm)

Tweeter Protrusion: 0.25(6.5mm)

Cut-out dimension: 116.5-4mm (5.5 x 7.5)
