• This Listing Includes:
• (2) Deaf Bonce 6.5" Midrange Speakers AP-M61SE
• (2) Deaf Bonce 1 Tweeters HLG-25NEO
• (8) Phillips Head mounting screws

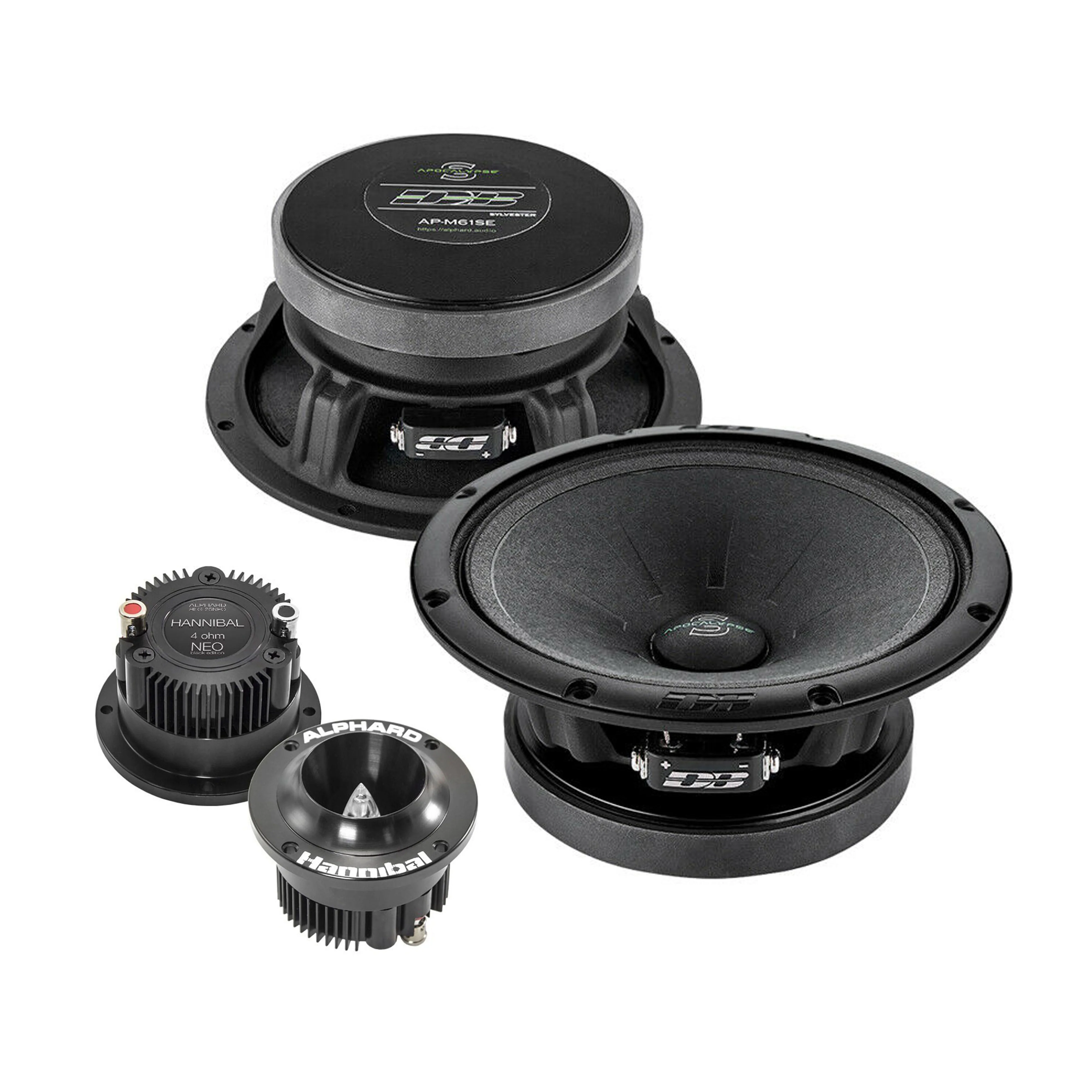

Pair of Deaf Bonce 6.5 Mid-Range Speakers 520W 4 Ohm w/ 1" Neo Tweeters 160W

These Deaf Bonce Hannibal series TH-25G tweeters handle an impressive 80 Watts of power each @ 4 Ohms for extremely loud and crystal clear highs. They have a high quality Titanium diaphragm and Neodymium magnet. These tweeters are a great addition to any system. Black color looks awesome in any application. Copper voice coil wire and spring loaded connectors for easy hookup.

This Listing Includes:

(2) Deaf Bonce 6.5" Midrange Speakers AP-M61SE

(2) Deaf Bonce 1 Tweeters HLG-25NEO

(8) Phillips Head mounting screws

Features:

-Large1" Voice Coil

-Neodymium Magnet

-Titanium Diaphragm

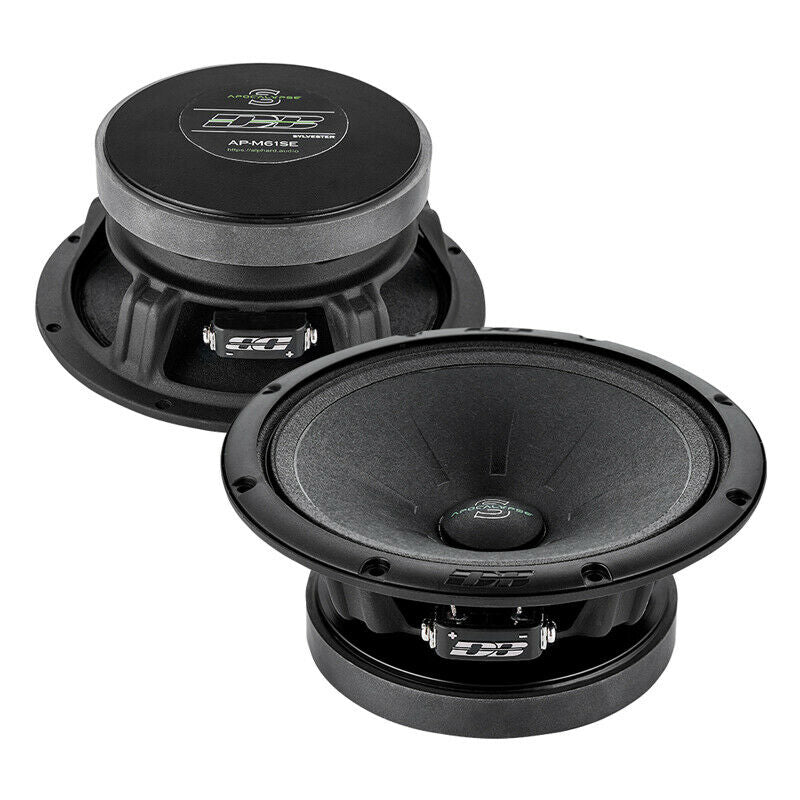

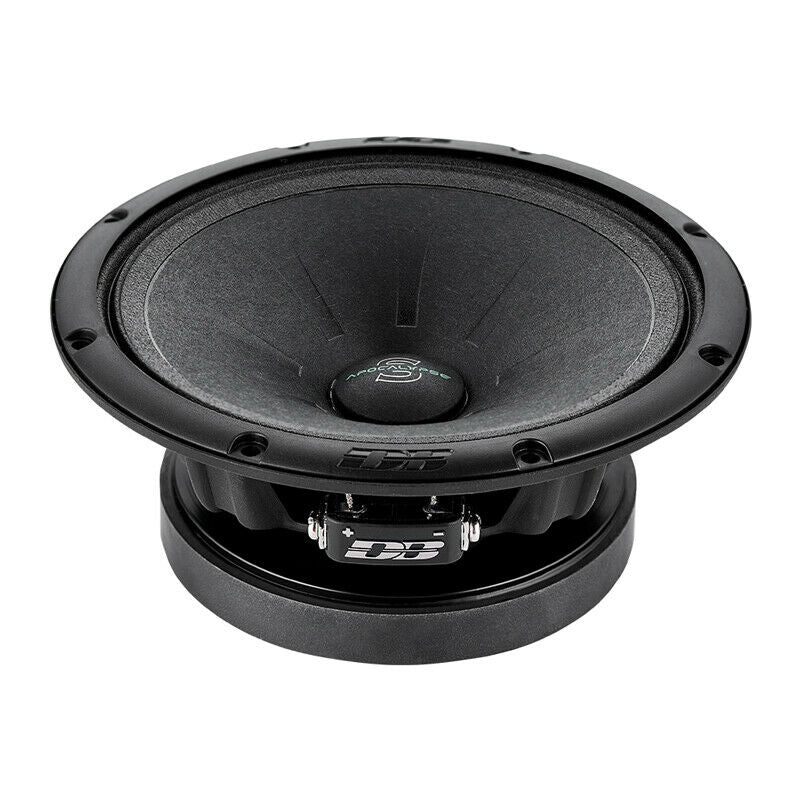

Specifications per AP-M61SE Speaker:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

MAX Power Handling: 260 Watts

RMS Power Handling: 130 Watts

Sensitivity (1w/1m): 101.5dB

Frequency Response: 100Hz ~ 15.5KHz

MOTOR:

Voice Coil Diameter: 1.25"

Winding Material: CCAW

Cone Material: Pressed Paper

Surround Material: Cloth

Basket Material: Stamped Steel

Magnet Material: Ferrite

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 6.8L

Free Air Resonance: Fs - 112Hz

Total Factor: Qts - 0.51

Force Factor: BL - 6.15

DIMENSIONS PER AP-M61SE V2 SPEAKER:

Overall Diameter: 6.69" (170mm)

Front Mount Baffle Cutout: 5.86" (149.5mm)

Mounting Depth: 2.83" (72.5mm)

Overall Depth: 3.07" (78.5mm)

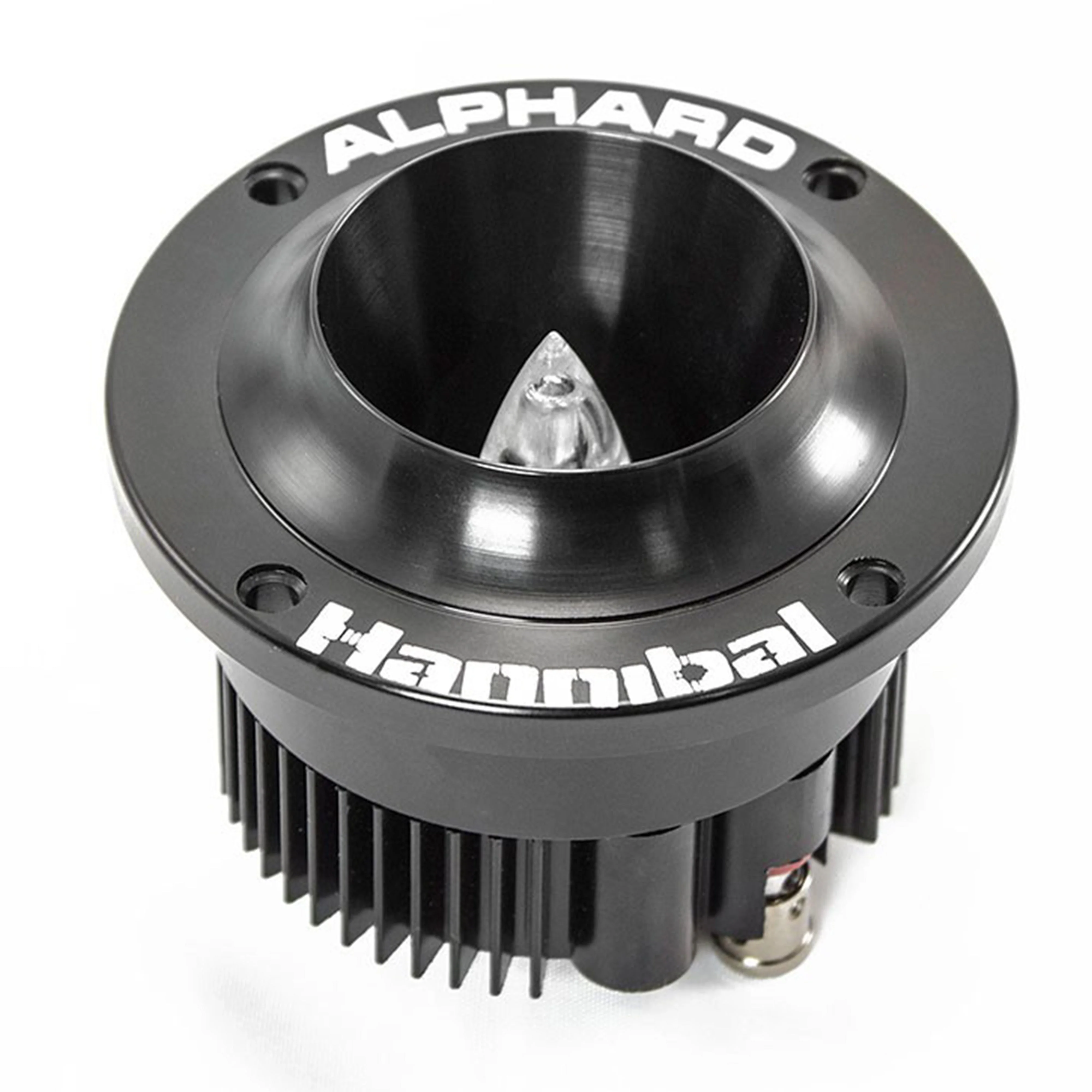

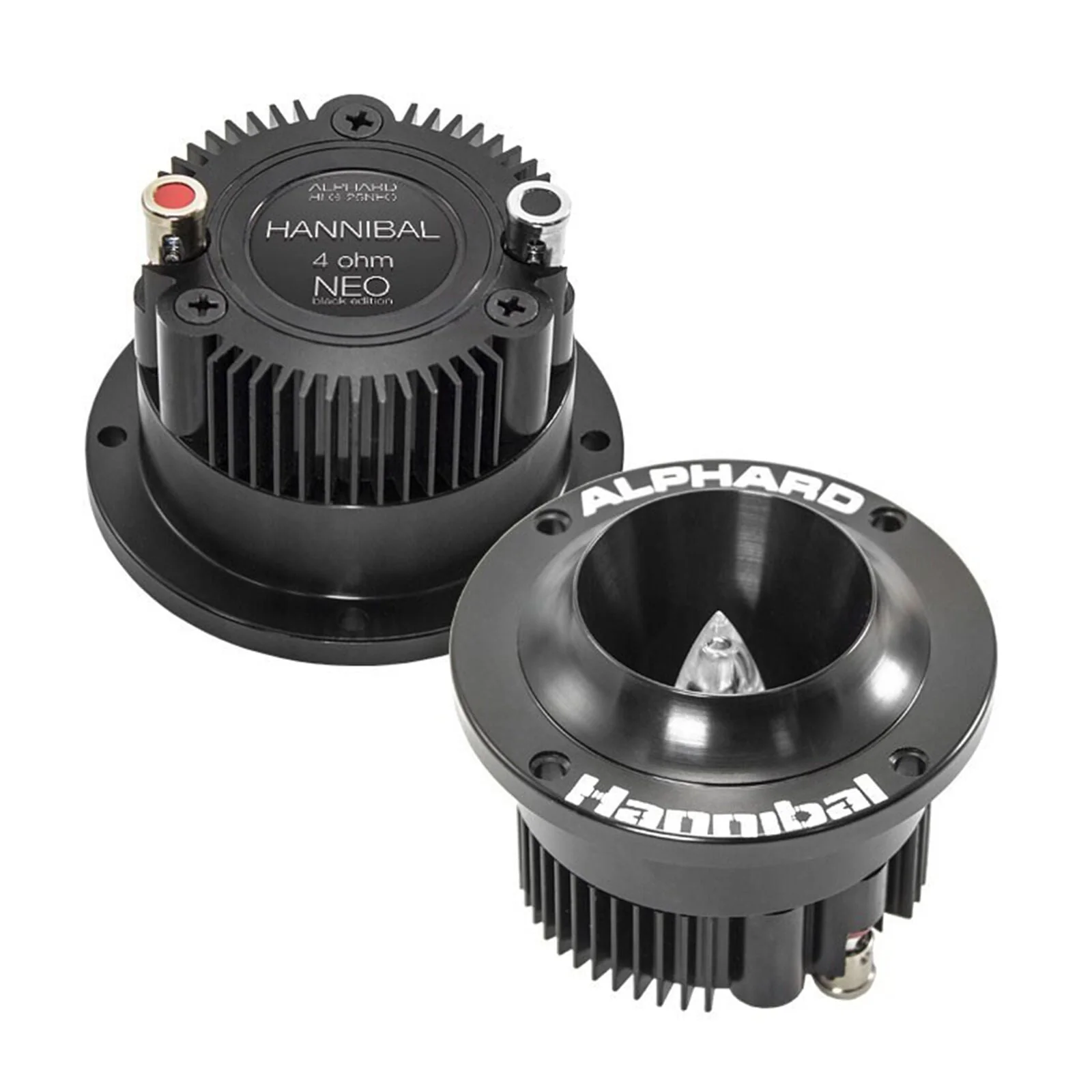

Specifications per HLG-25NEO Tweeter:

Frequency response: 2000 - 20000 Hz

Voice coil size: 1.00"

Diaphragm: Titanium

Magnet: Neodymium

Voice coil wire: Copper

RMS Power: 40 W

MAX Power: 80 W

Impedance: 4 Ohm

SPL: 106.00 dB

Fs: 2000.00 Hz

Dimensions per HLG-25NEO Tweeter:

Mounting depth: 1.93" (49.0 mm)

Cut-out dimension: 2.52" (64.0 mm)

Gross weight: 2.98 lb (1.35 kg)
