• Frequency Response: 110Hz ~ 13KHz
• Nominal Impedance: 4 Ohm
• Magnet Material: Neodymium

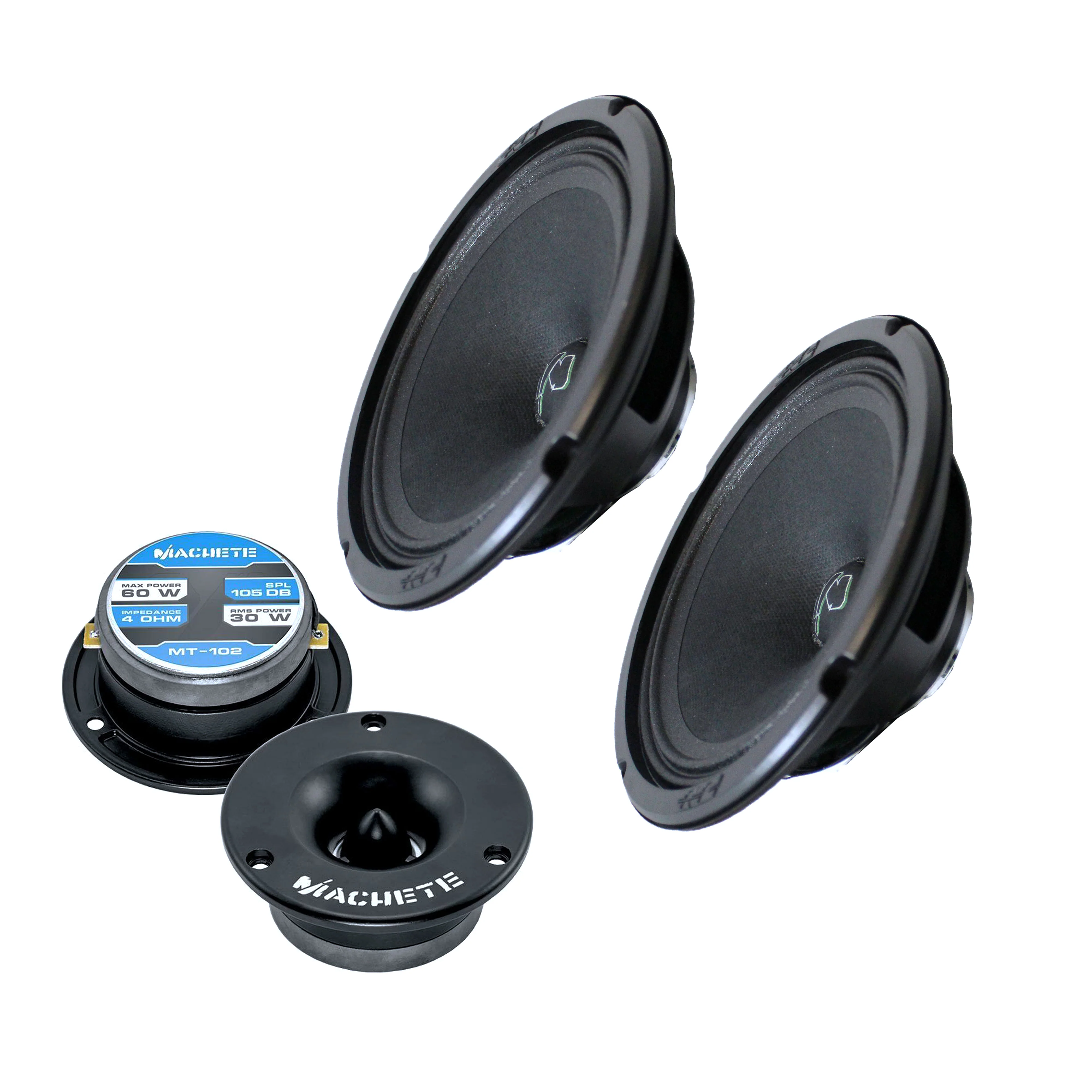

Pair of Deaf Bonce 6.5 Midrange Speakers 200W 4 Ohm w/ 1 Bullet Tweeters 240W

This Listing Includes:

• (2) Deaf Bonce 6.5 Midrange Speakers MM-60NEO



• (2) 1 Bullet Tweeters MT-102



• (2) Sets of hardware

(Does not include a bass blocker get one here: https://bigjeffaudio.com/collections/bass-blockers)

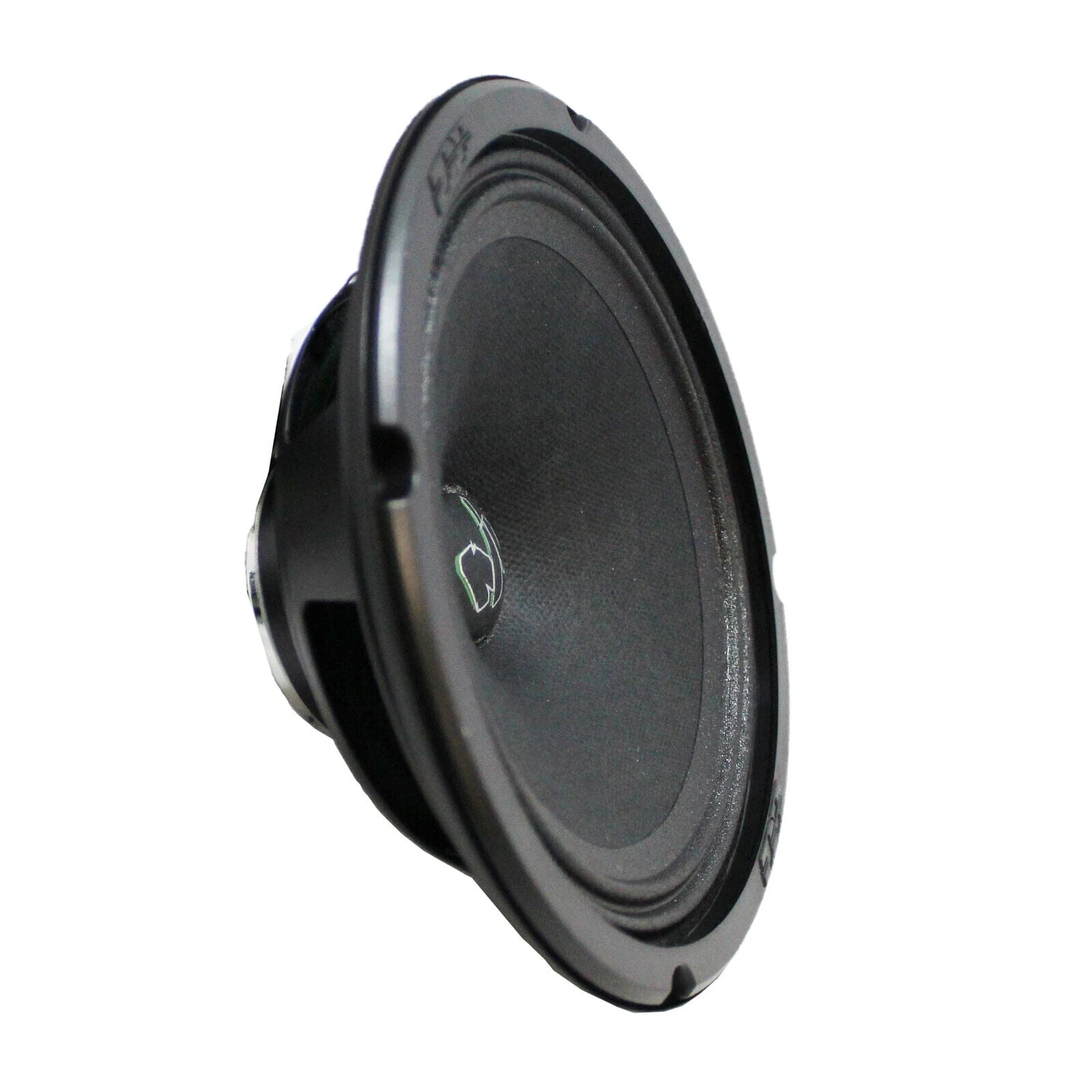

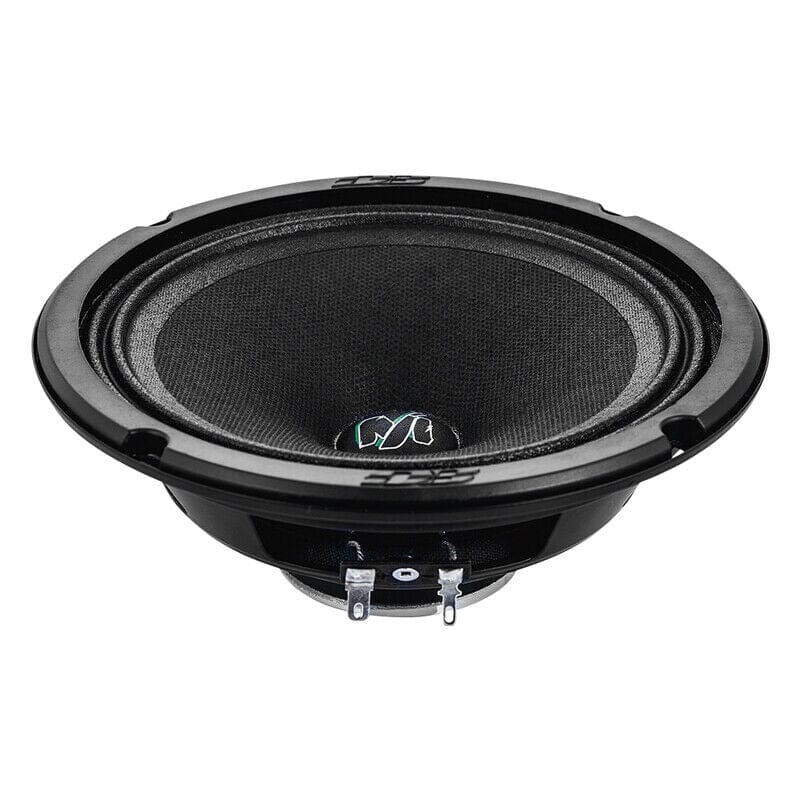

SPECIFICATIONS PER MM-60NEO SPEAKER:

• Nominal Diameter: 6.5



• Nominal Impedance: 4 Ohm



• MAX Power Handling: 200 Watts



• RMS Power Handling: 100 Watts



• Sensitivity (1w/1m): 95dB



• Frequency Response: 110Hz ~ 13KHz

MOTOR:

• Voice Coil Diameter: 1



• Winding Material: Copper



• Cone Material: Pressed Paper



• Surround Material: Cloth



• Basket Material: Stamped Steel



• Magnet Material: Neodymium

THIELE & SMALL PARAMETERS:

• Equivalent Volume: Vas - 6.4L



• Free Air Resonance: Fs - 120Hz



• Total Factor: Qts - 0.924



• Force Factor: BL - 5.6

DIMENSIONS PER MM-60NEO SPEAKER:

• Overall Diameter: 6.59 (167.5mm)



• Front Mount Baffle Cutout: 5.63" (143mm)



• Mounting Depth: 2.44 (62.2mm)



• Overall Depth: 2.71 (69mm)

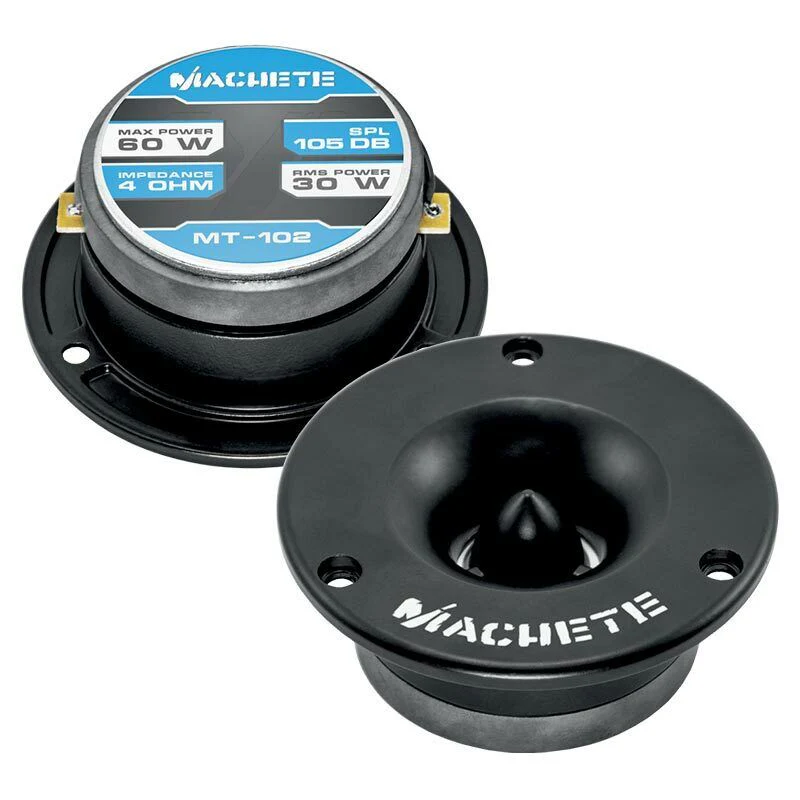

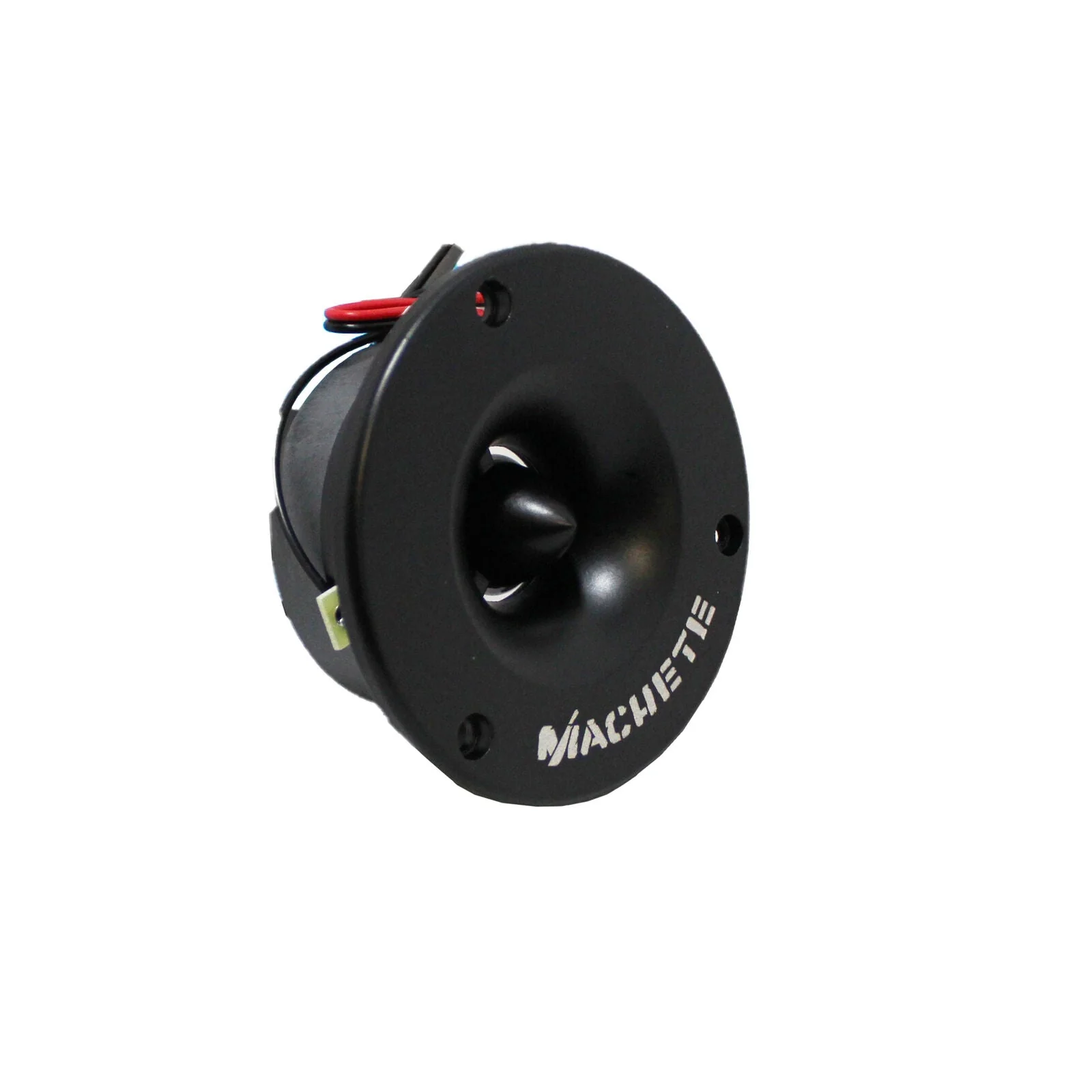

SPECIFICATIONS PER MT-102 TWEETER:

• Frequency response: 2000 - 20000 Hz



• Package quantity: Pair



• Diaphragm: Titanium



• Magnet: Ferrite



• Voice coil wire: Copper



• RMS Power: 30 W



• MAX Power: 60 W



• Impedance: 4 Ohm



• SPL: 105.00 dB

DIMENSIONS PER MT-102 TWEETER:

• Cutout Dimension: 3.28 / 83.3mm



• Backplate/Magnet Dimension: 2.53 / 64.3mm



• Overall Width: 3.92 / 99.6mm



• Bolt Hole Circle Circumference: 3.21 / 81.5mm
