• Nominal Impedance: 4 Ohm
• MAX Power Handling: 260 Watts
• RMS Power Handling: 130 Watts
• Frequency Response: 100Hz ~ 15.5KHz

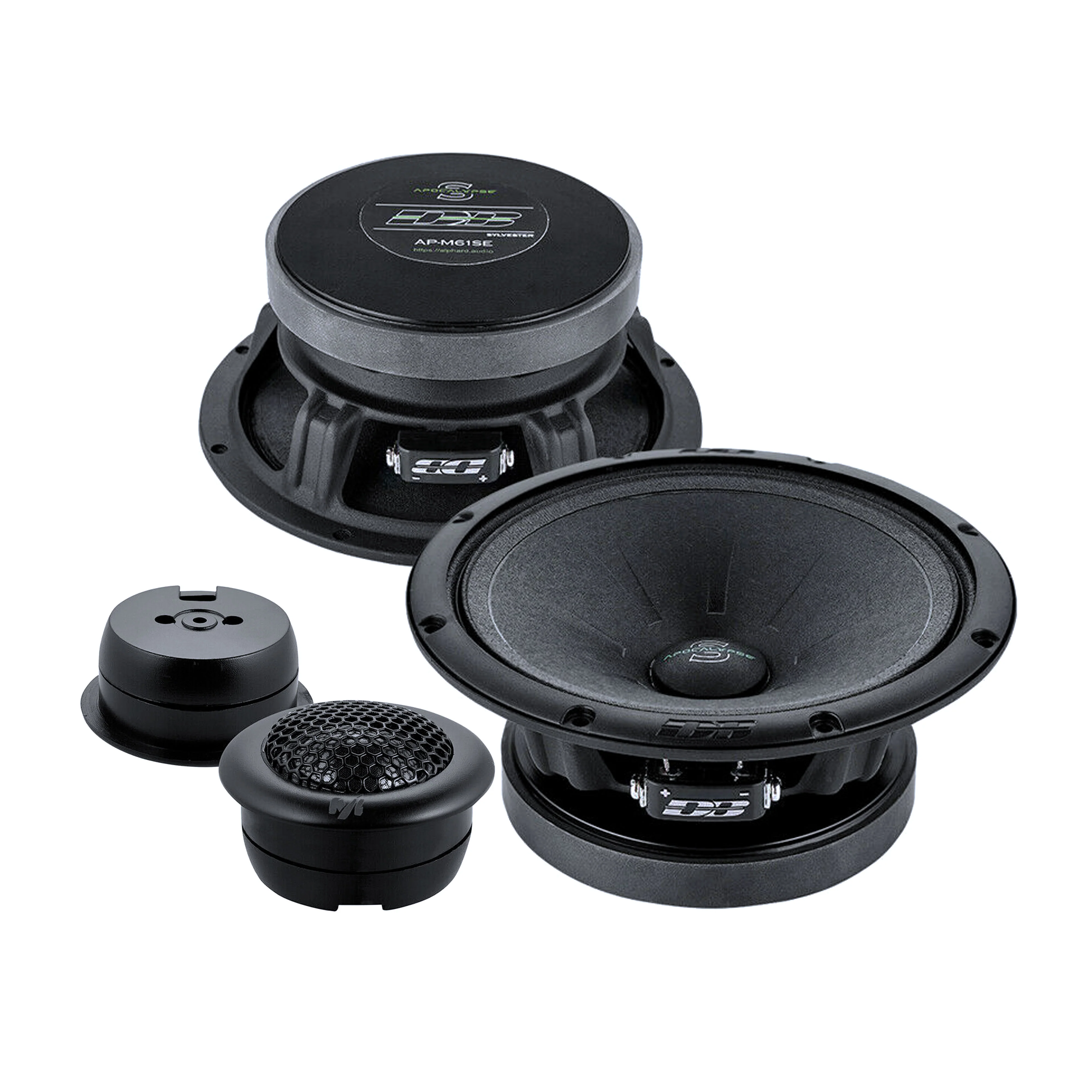

Pair of Deaf Bonce 6.5 Midrange Speakers 520W 4 Ohm w/ 1" Black Tweeters 100W

This Listing Includes:

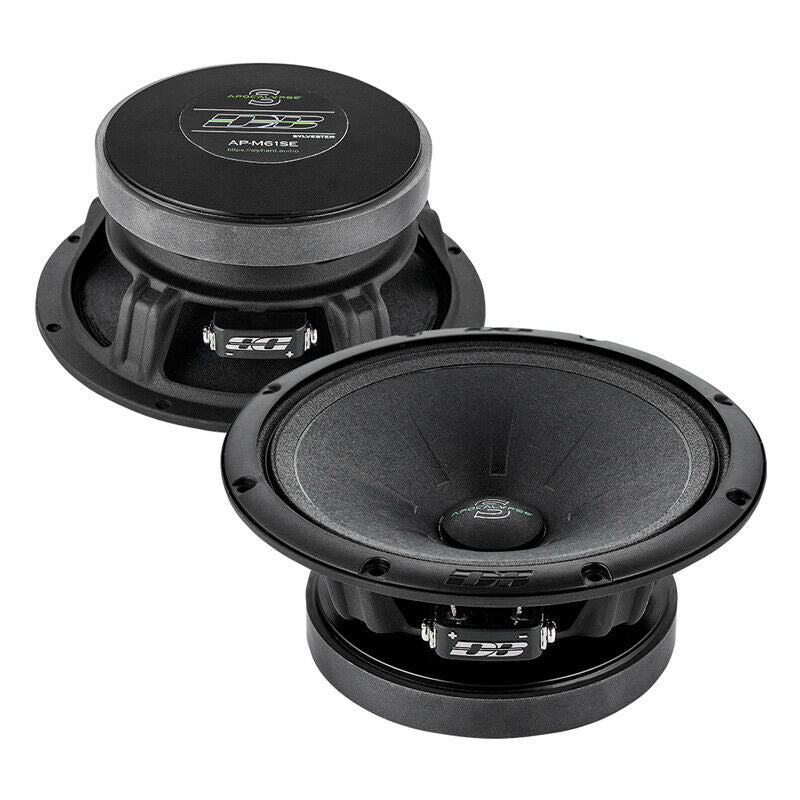

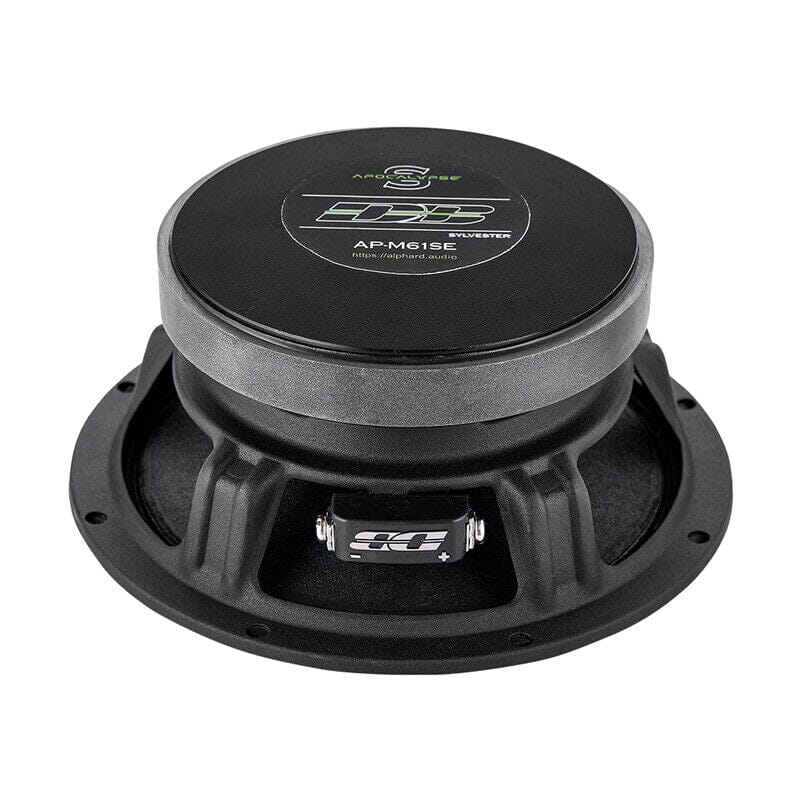

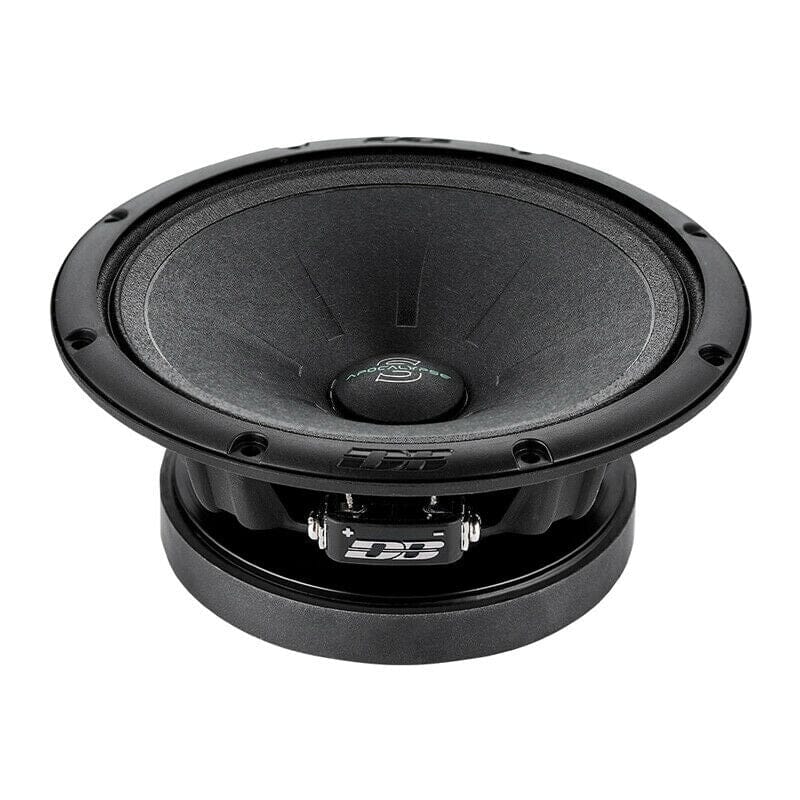

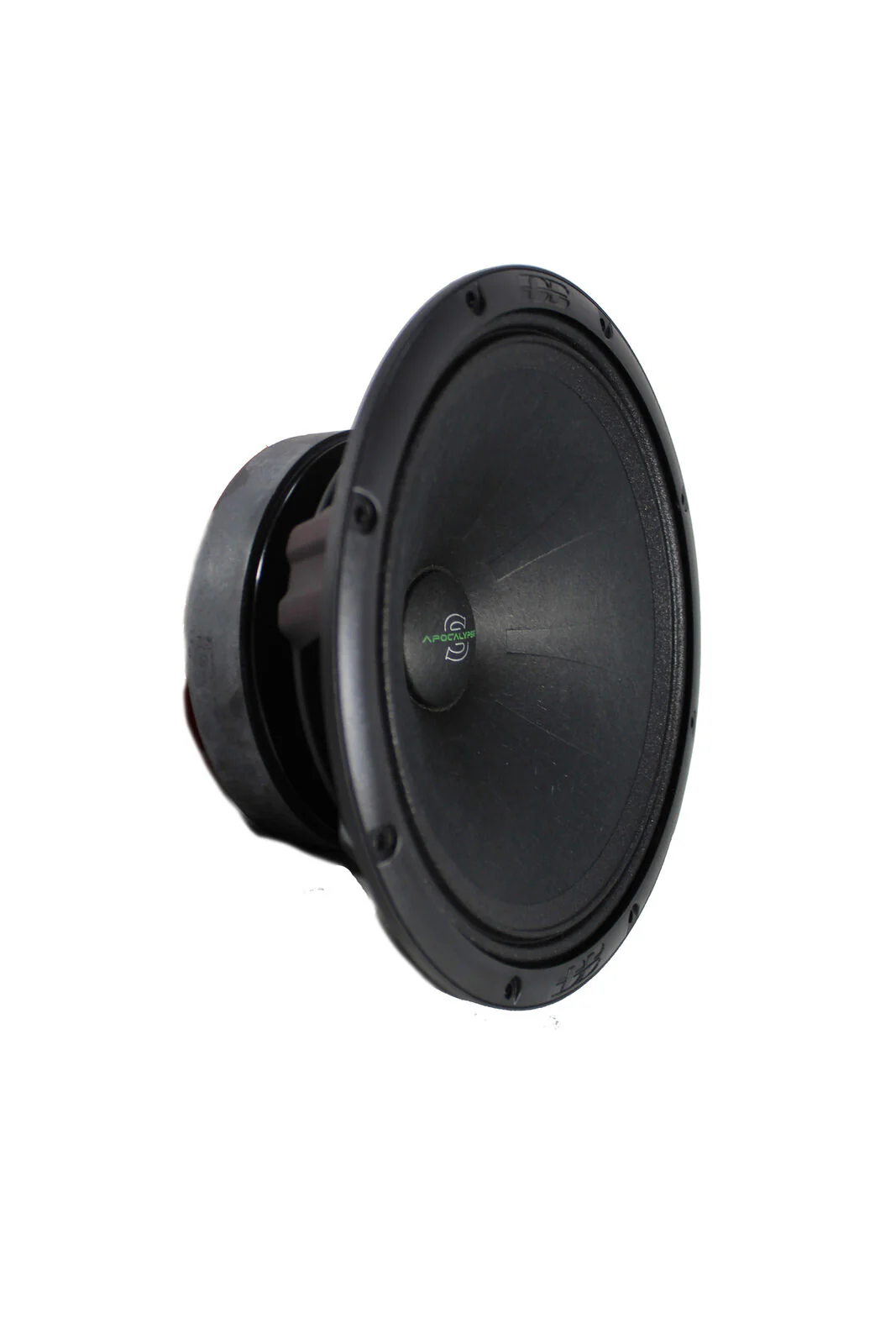

(2) Deaf Bonce 6.5" Midrange Speakers AP-M61SE

(2) High Frequency Black Tweeters MPT-17N

(2) Bass Blockers

(1) Set of Hardware

(2) Surface Angle Mounts

SPECIFICATIONS PER AP-M61SE SPEAKER:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

MAX Power Handling: 260 Watts

RMS Power Handling: 130 Watts

Sensitivity (1w/1m): 101.5dB

Frequency Response: 100Hz ~ 15.5KHz

MOTOR:

Voice Coil Diameter: 1.25"

Winding Material: CCAW

Cone Material: Pressed Paper

Surround Material: Cloth

Basket Material: Stamped Steel

Magnet Material: Ferrite

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 6.8L

Free Air Resonance: Fs - 112Hz

Total Factor: Qts - 0.51

Force Factor: BL - 6.15

DIMENSIONS PER AP-M61SE SPEAKER:

Overall Diameter: 6.69" (170mm)

Front Mount Baffle Cutout: 5.86" (149.5mm)

Mounting Depth: 2.83" (72.5mm)

Overall Depth: 3.07" (78.5mm)

SPECIFICATIONS PER MPT-17N TWEETER:

Frequency response: 2000-20000 Hz

Package quantity: Pair

Voice coil size: 1.00 inch

Magnet: Neodymium

RMS Power: 25 W

MAX Power: 50 W

Impedance: 4 Ohm

SPL: 95.00 dB

Diaphragm Material: Silk

Voice Coil Wire: Pure Aluminum

DIMENSIONS PER MPT-17N TWEETER:

Overall Diameter: 2.2"

Mounting Depth: 1"

Cut-out Dimension: 1.83"

Voice Coil: 1"

Gross weight: 0.66lbs
