• SPECIFICATIONS PER AP-M61SE SPEAKER: Nominal Diameter: 6.5" Nominal Impedance: 4 Ohm
• MT-30: RMS Power: 35 W MAX Power: 70 W

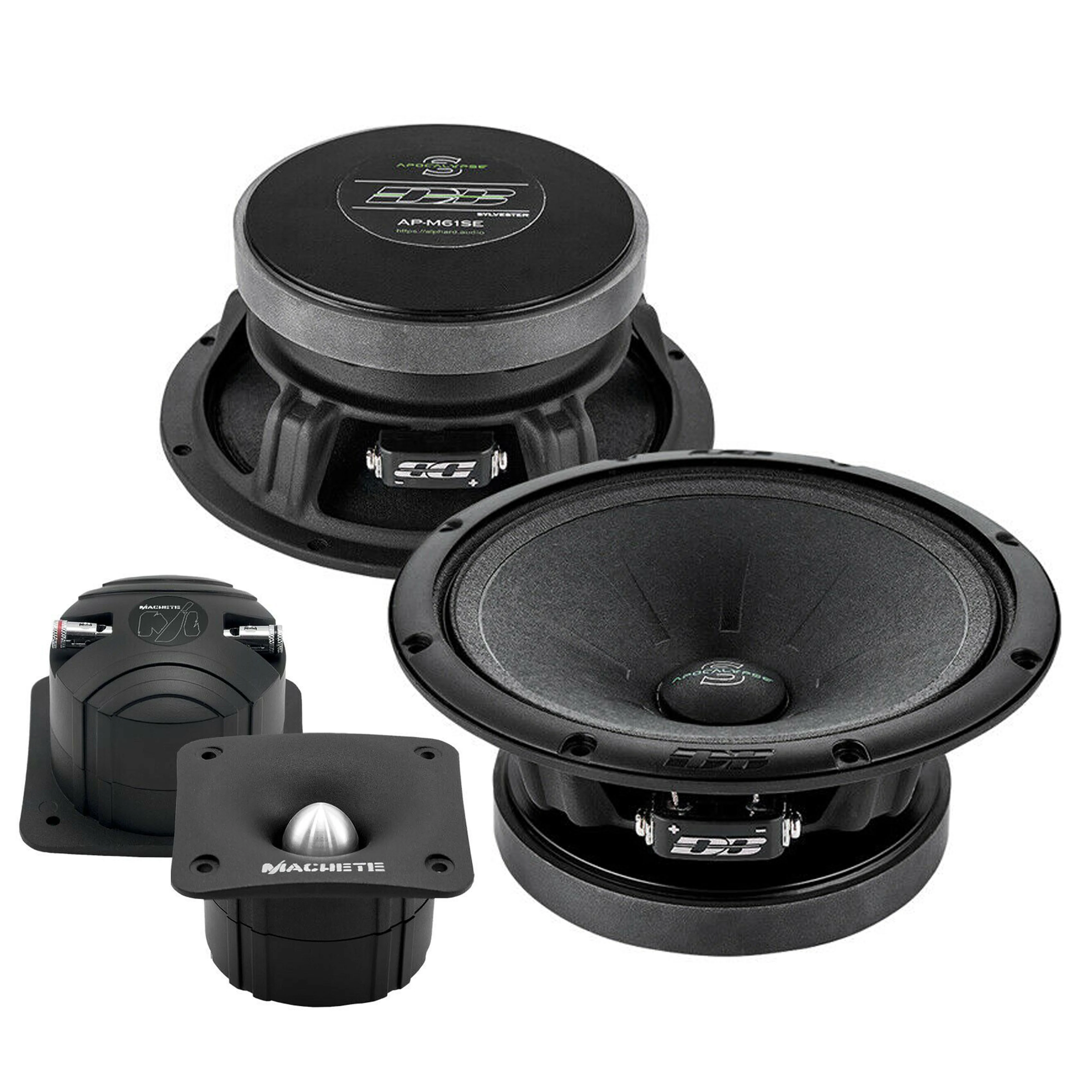

Pair of Deaf Bonce 6.5 Midrange Speakers 520W 4 Ohm w/ 1" Bullet Tweeters 160W

High frequency speaker of Machete series Machete MT-30 is developed for those, who like to listen to the loud and high quality sound This tweeter is right for use in both 2-way and three-way component systems MT-30 is the best choice in its price level.

This Listing Includes:

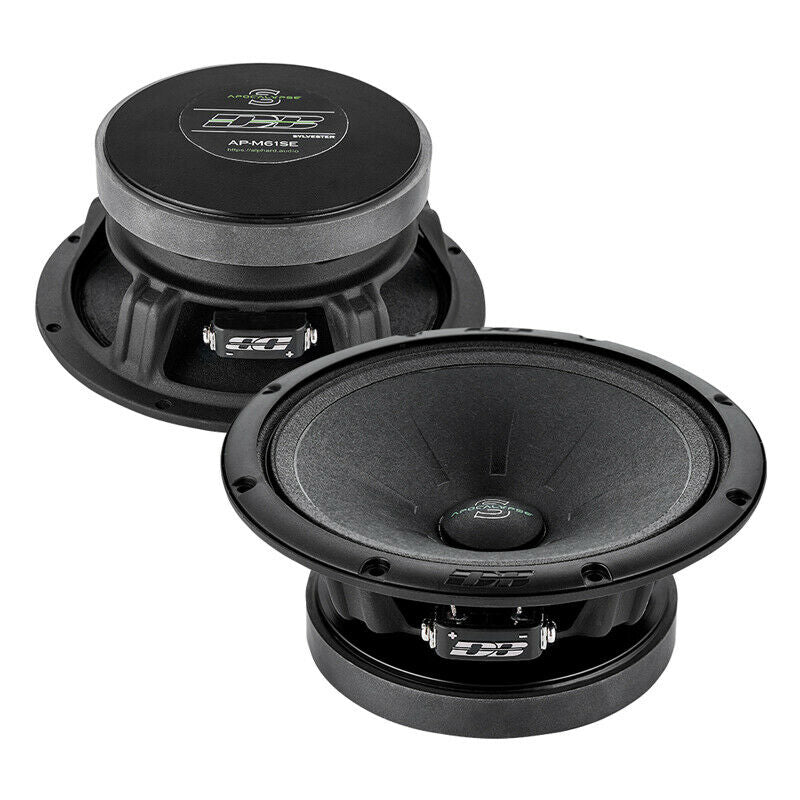

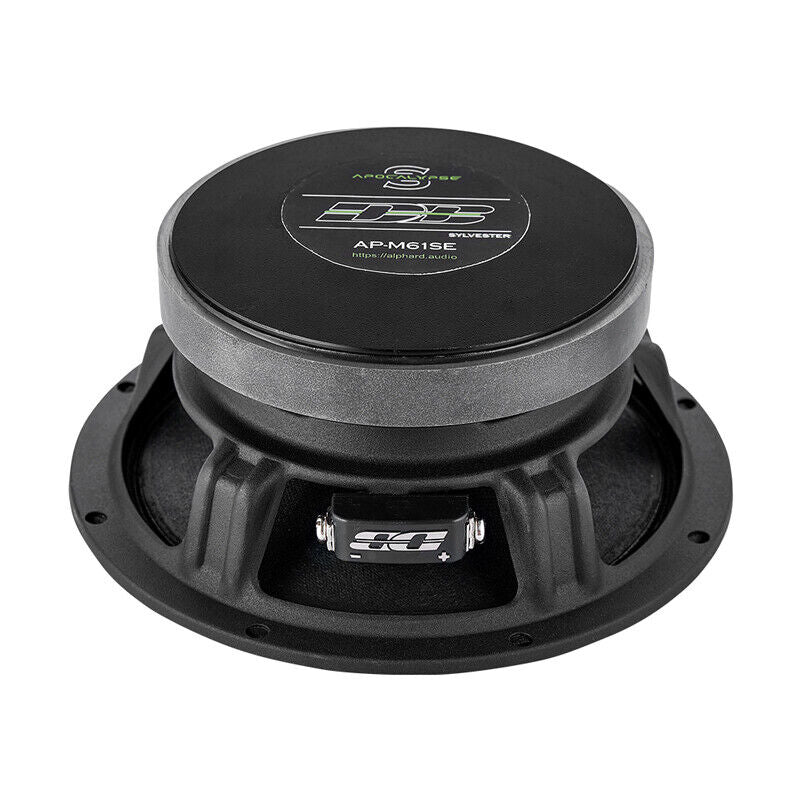

(2) Deaf Bonce 6.5" Midrange Speakers AP-M61SE

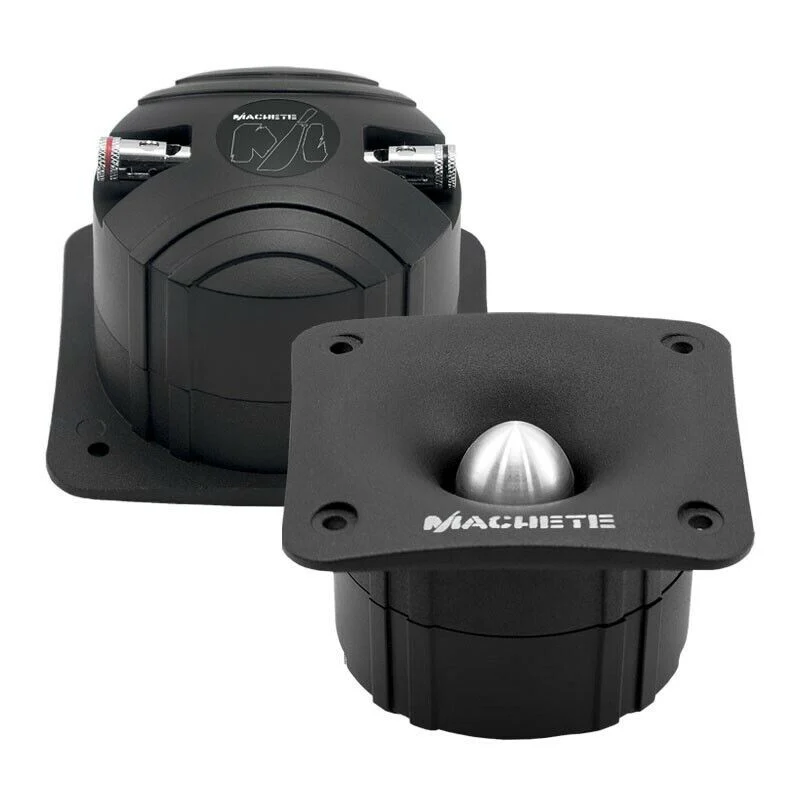

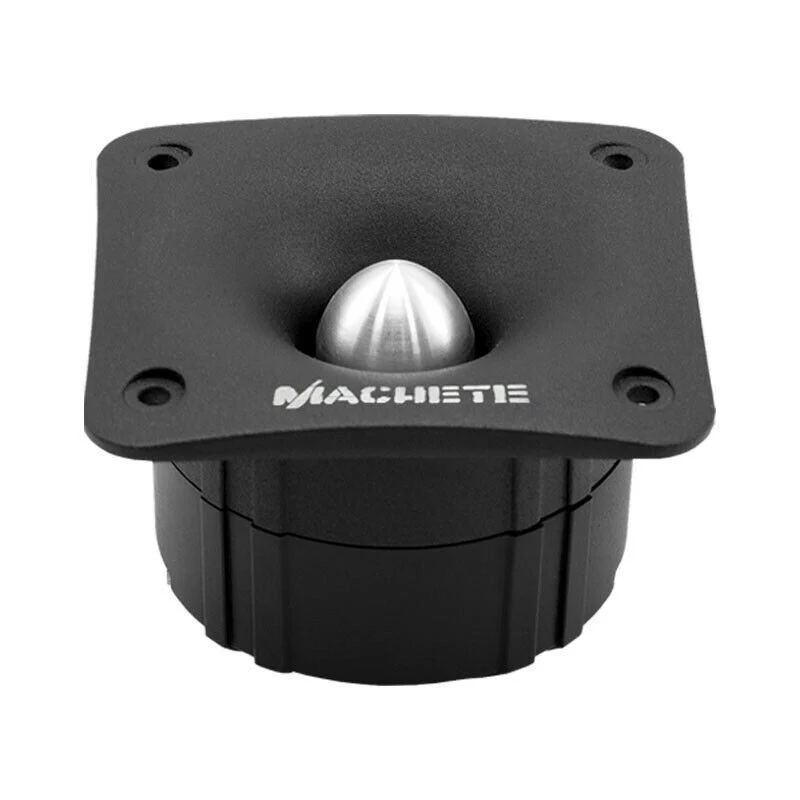

(2) 1" Bullet Tweeters MT-30

(2) Bass Blockers

SPECIFICATIONS PER AP-M61SE SPEAKER:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

MAX Power Handling: 260 Watts

RMS Power Handling: 130 Watts

Sensitivity (1w/1m): 101.5dB

Frequency Response: 100Hz ~ 15.5KHz

MOTOR:

Voice Coil Diameter: 1.25"

Winding Material: CCAW

Cone Material: Pressed Paper

Surround Material: Cloth

Basket Material: Stamped Steel

Magnet Material: Ferrite

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 6.8L

Free Air Resonance: Fs - 112Hz

Total Factor: Qts - 0.51

Force Factor: BL - 6.15

DIMENSIONS PER AP-M61SE SPEAKER:

Overall Diameter: 6.69" (170mm)

Front Mount Baffle Cutout: 5.86" (149.5mm)

Mounting Depth: 2.83" (72.5mm)

Overall Depth: 3.07" (78.5mm)

Specifications Per MT-30 Tweeter:

Frequency response: 3500 - 20000 Hz

Voice coil size: 1.00 inch

Diaphragm: Metal

Magnet: Ferrite

Voice coil wire: Copper

RMS Power: 35 W

MAX Power: 70 W

Impedance: 4 Ohm

SPL: 104.00 dB

Fs: 3000.00 Hz

Dimensions Per MT-30 Tweeter:

Cutout Dimension: 2.99" / 76mm

Horn Overall Width: 3.6" / 92mm

Horn Hole Cutout Width: 2.83" / 72mm

Horn Overall Length: 3.30" / 84mm
