• AP-m61SE MAX Power Handling: 260 Watts RMS Power Handling: 130 Watts
• MT-102 RMS Power: 30 W MAX Power: 60 W

Pair of Deaf Bonce 6.5 Midrange Speakers 520W 4 Ohm w/ 1 Bullet Tweeters 240W

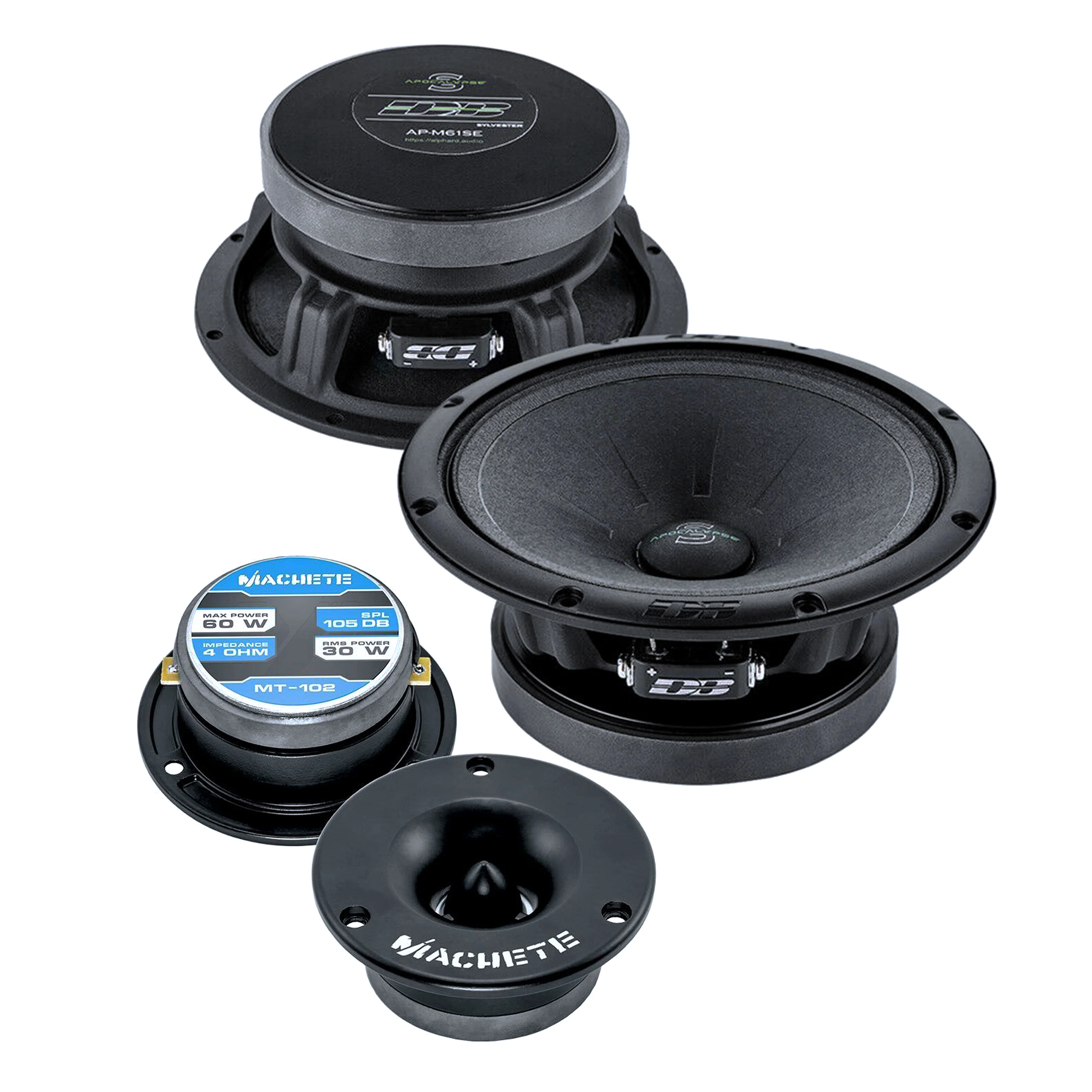

This Listing Includes:

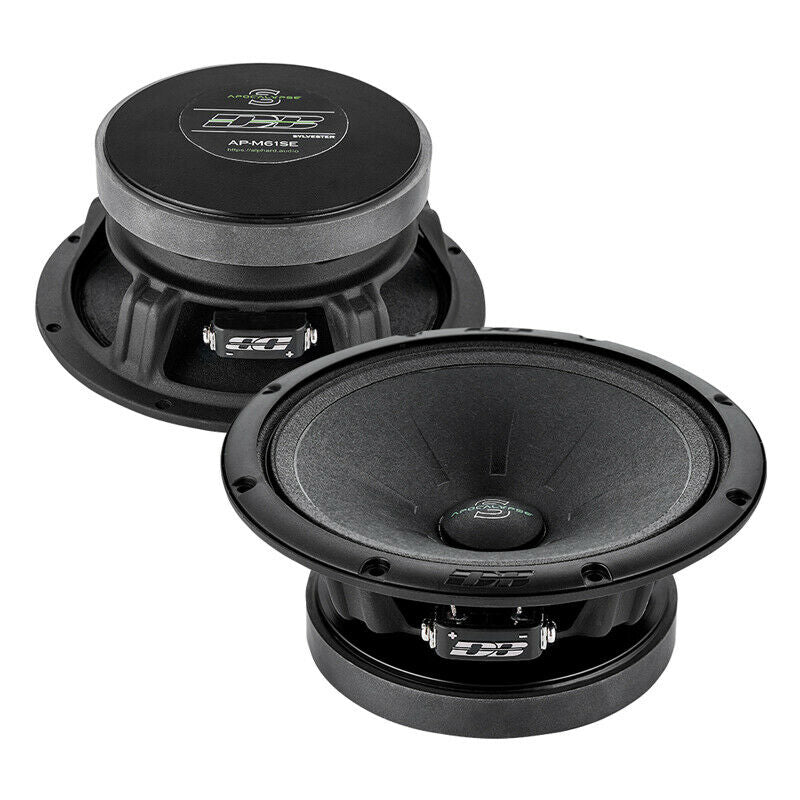

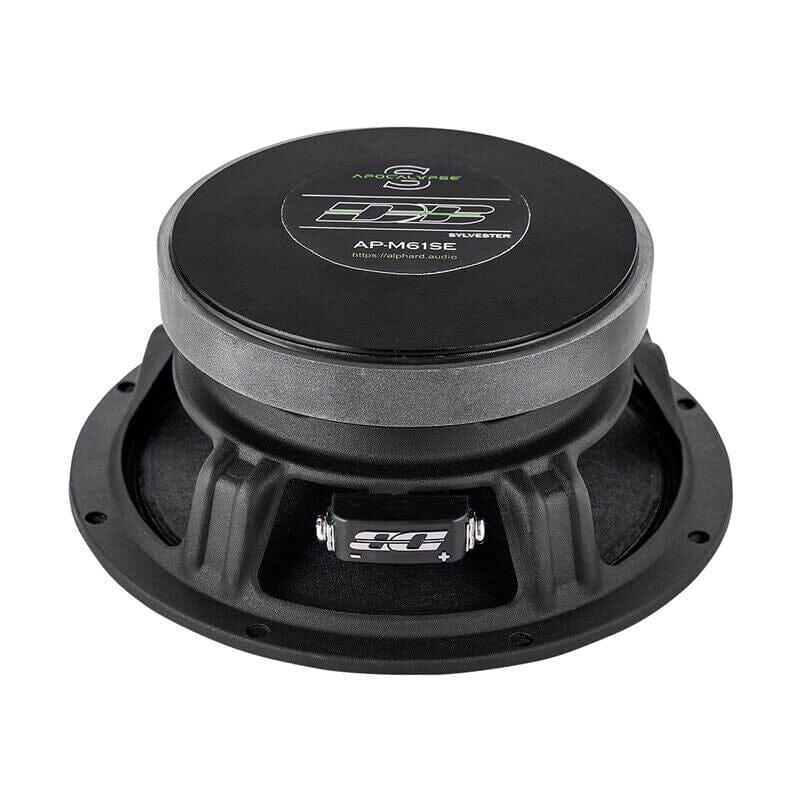

(2) Deaf Bonce 6.5" Midrange Speakers AP-M61SE

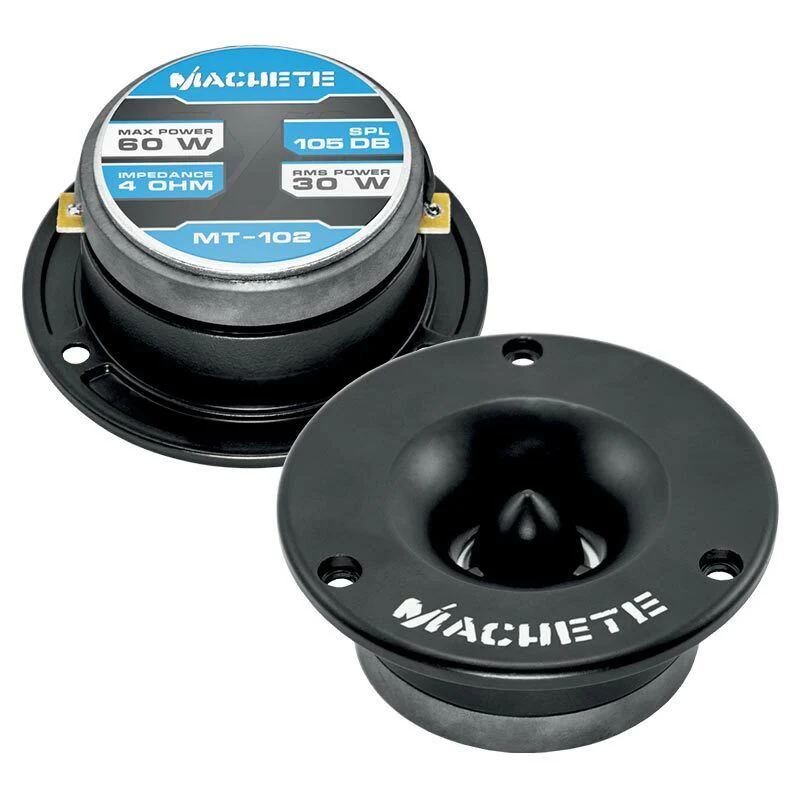

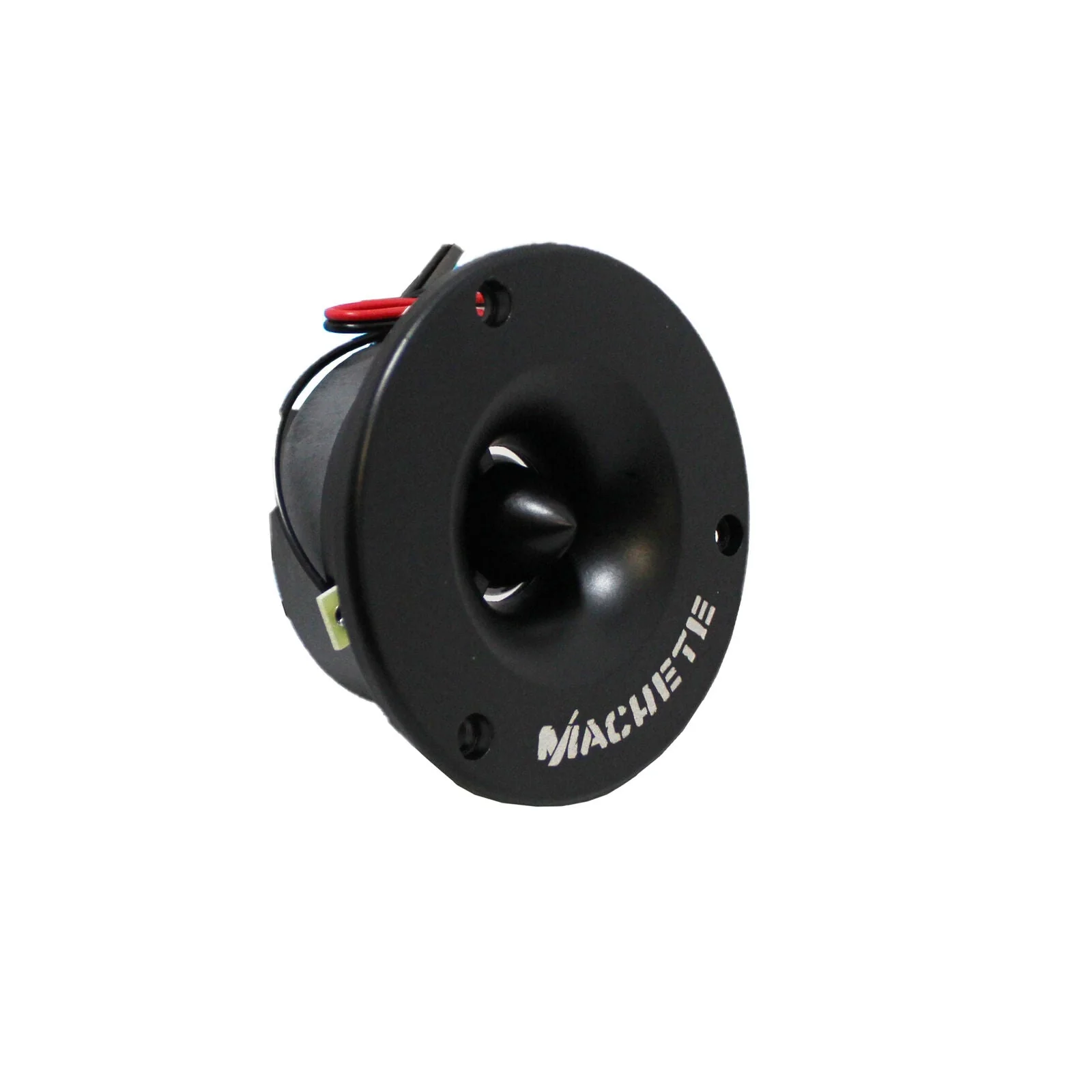

(2) 1" Bullet Tweeters MT-102

(2) Sets of hardware

(Does not include a bass blocker get one here: https://bigjeffaudio.com/collections/bass-blockers)

SPECIFICATIONS PER AP-M61SE SPEAKER:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

MAX Power Handling: 260 Watts

RMS Power Handling: 130 Watts

Sensitivity (1w/1m): 101.5dB

Frequency Response: 100Hz ~ 15.5KHz

MOTOR:

Voice Coil Diameter: 1.25"

Winding Material: CCAW

Cone Material: Pressed Paper

Surround Material: Cloth

Basket Material: Stamped Steel

Magnet Material: Ferrite

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 6.8L

Free Air Resonance: Fs - 112Hz

Total Factor: Qts - 0.51

Force Factor: BL - 6.15

DIMENSIONS PER AP-M61SE SPEAKER:

Overall Diameter: 6.69" (170mm)

Front Mount Baffle Cutout: 5.86" (149.5mm)

Mounting Depth: 2.83" (72.5mm)

Overall Depth: 3.07" (78.5mm)

SPECIFICATIONS PER MT-102 TWEETER:

Frequency response: 2000 - 20000 Hz

Package quantity: Pair

Diaphragm: Titanium

Magnet: Ferrite

Voice coil wire: Copper

RMS Power: 30 W

MAX Power: 60 W

Impedance: 4 Ohm

SPL: 105.00 dB

DIMENSIONS PER MT-102 TWEETER:

Cutout Dimension: 3.28" / 83.3mm

Backplate/Magnet Dimension: 2.53" / 64.3mm

Overall Width: 3.92" / 99.6mm

Bolt Hole Circle Circumference: 3.21" / 81.5mm
