• Frequency Response: 10Hz ~ 20KHz
• Crossover: 12dB/Octave
• Amplifier Class: D
• Nominal Impedance: 4 Ohm
• Free Air Resonance: Fs - 121Hz

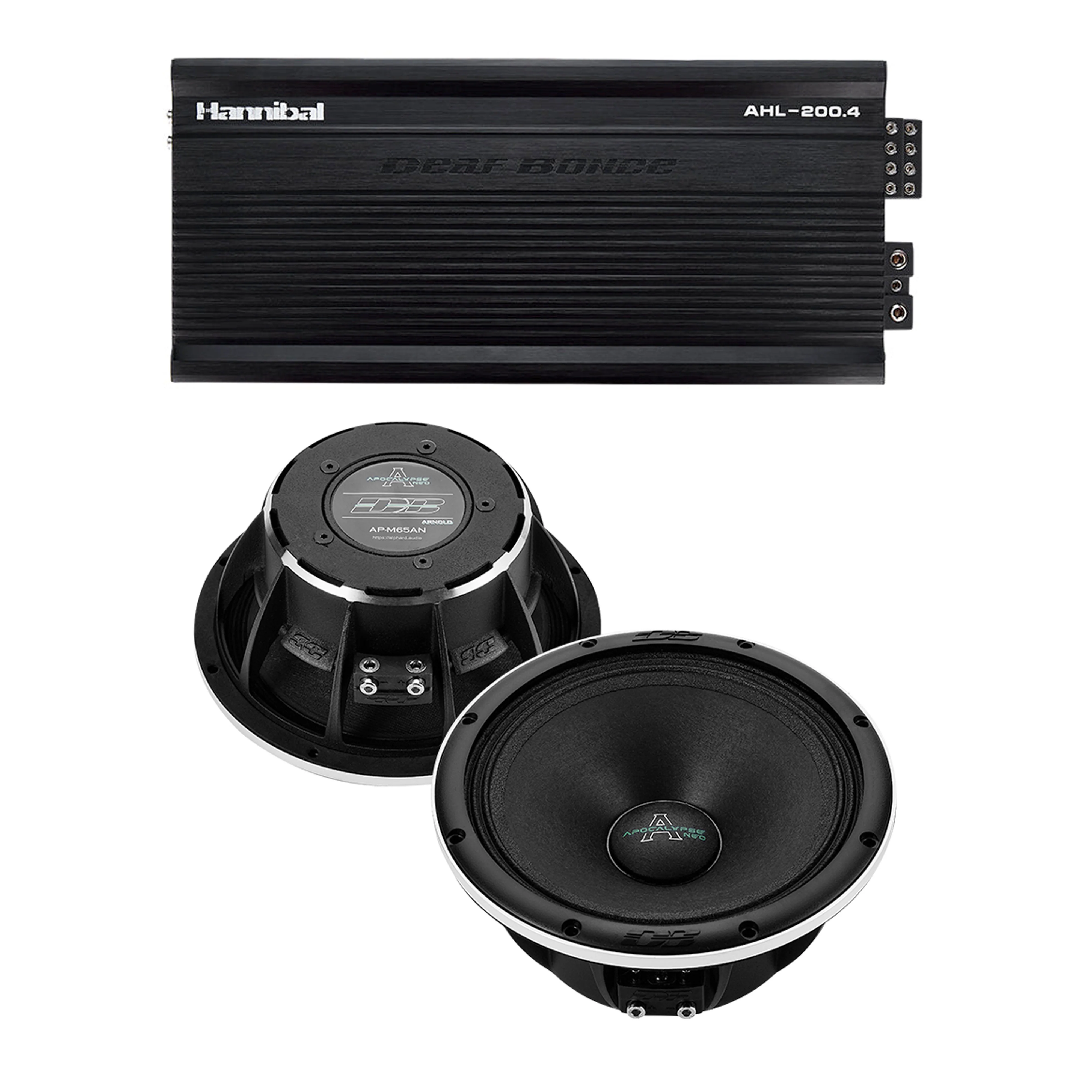

Pair of Deaf Bonce 6.5 Midrange Speakers 800W 4 Ohm w/ 4 Ch Amp Class D Black

This listing includes:

• (1) Deaf Bonce 4 Channel Amplifier AHL-200.4



• (2) Deaf Bonce 6.5" Apocalypse Midrange Speakers AP-M65AN



• Includes mounting hardware and manual.

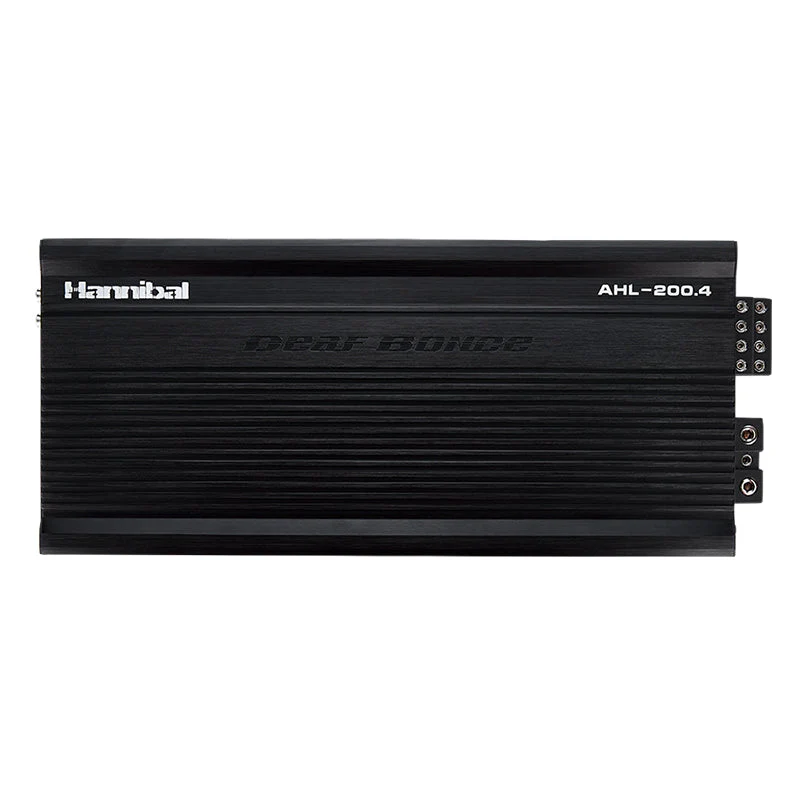

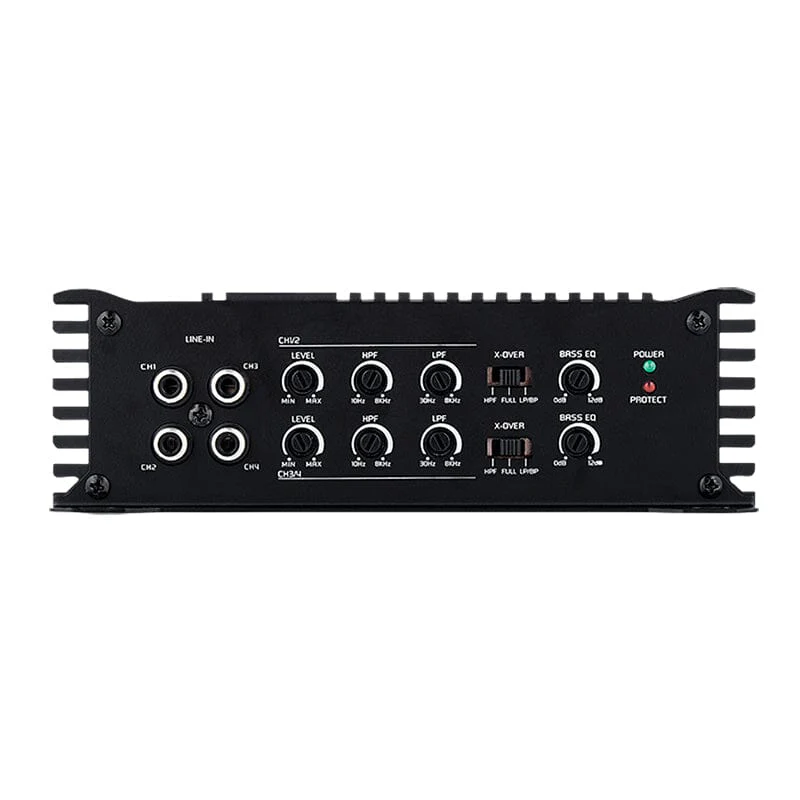

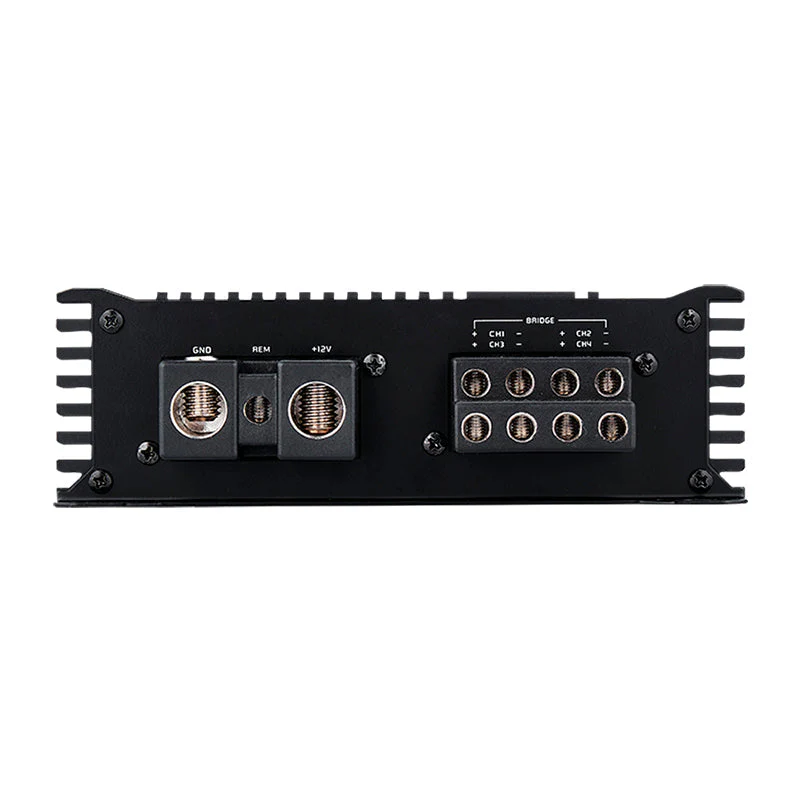

SPECIFICATIONS FOR AHL-200.4 Amp:

• Total Watts (Peak): 1420 Watts



• RMS Power @ 4 OHM: 4 x 200 Watts



• RMS Power @ 2 OHM: 4 x 330 Watts



• RMS Power @ 1 OHM: N/A



• RMS Power @ 4 OHM Bridge: 2 x 710 Watts

AUDIO SPECIFICATIONS:

• Simultaneous LPF and HPF: Yes



• Frequency Response: 10Hz ~ 20KHz



• Signal To Noise Ratio: >90dB



• Damping Factor: >100



• Input Sensitivity: 0.5 ~ 6V



• High Pass Filter: 10Hz ~ 8KHz



• Low Pass Filter: 30Hz ~ 8KHz



• Crossover: 12dB/Octave



• Bass Level Adjustment: 0 ~ 12dB @ 45Hz

FEATURES FOR AHL-200.4 AMP:

• Amplifier Class: D



• Number Of Channels: 4



• Minimum Impedance: 2 Ohm



• Led Indicator: Power / Protect



• Input Terminal Connection: 0 AWG (53.5mm)



• Output Terminal Connection: 8 AWG (8.37mm)



• Working Voltage: 9 ~ 15V



• Body Color | Finish: Black

DIMENSIONS FOR AHL-200.4 Amp:

• Overall Length: 14.96 (380mm)



• Overall Width: 6.85 (174mm)



• Overall Height: 2.17 (55mm)



• Unit Weight: 10.8 lbs

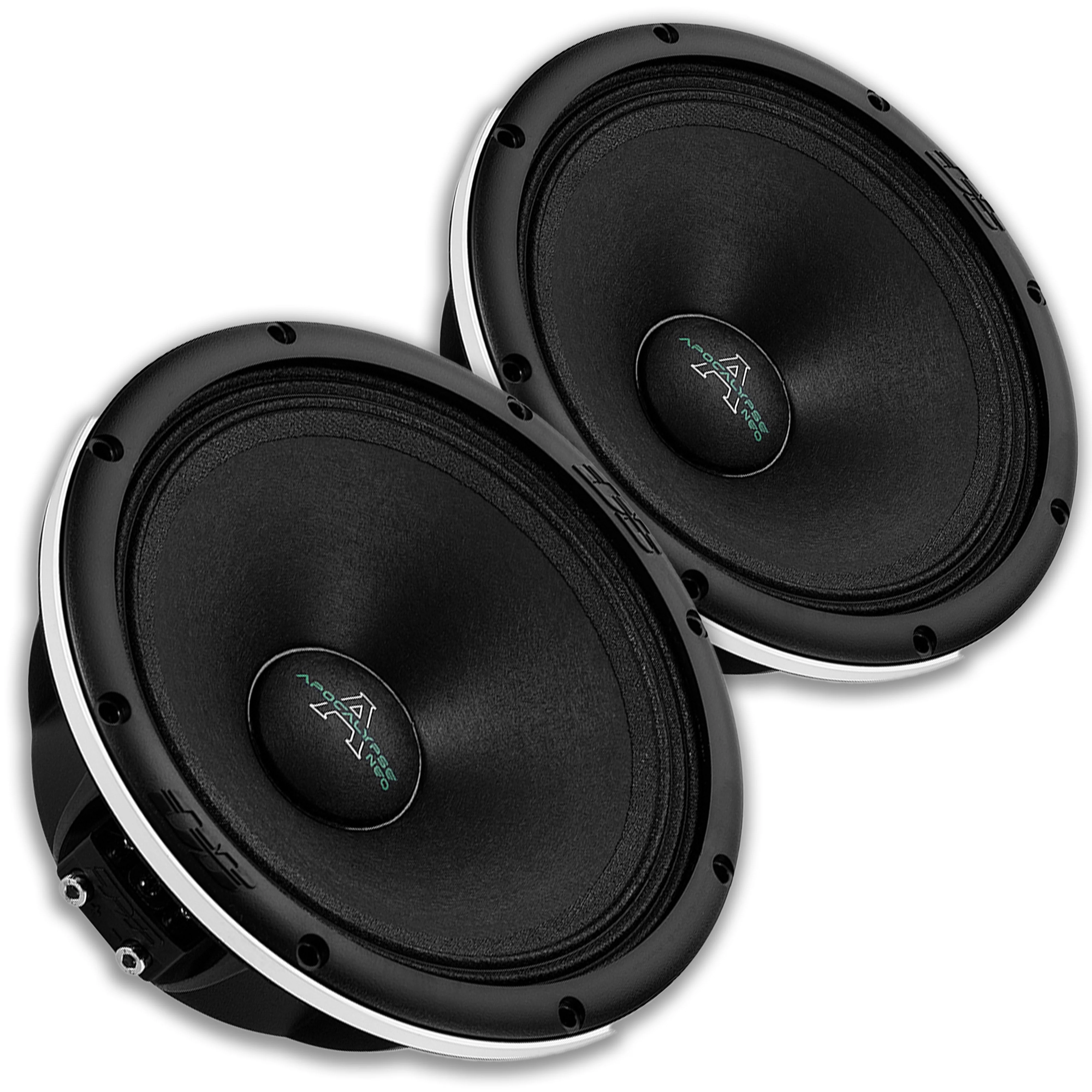

SPECIFICATIONS PER AP-M65AN SPEAKER:

• Nominal Diameter: 6.5



• Nominal Impedance: 4 Ohm



• MAX Power Handling: 400 Watts



• RMS Power Handling: 200 Watts



• Sensitivity (1w/1m): 102.5dB



• Frequency Response: 200Hz ~ 17KHz

MOTOR:

• Voice Coil Diameter: 1.5



• Voice Coil Wire Material: CCAW



• Cone Material: Pressed Paper



• Surround Material: Cloth



• Frame Material: Aluminum



• Magnet Material: Neodymium

THIELE & SMALL PARAMETERS:

• Equivalent Volume: Vas - 6.14L



• Free Air Resonance: Fs - 121Hz



• Total Factor: Qts - 0.30



• Force Factor: BL - 9.12

DIMENSIONS PER AP-M65AN SPEAKER:

• Overall Diameter: 6.7 (171.2mm)



• Cutout Diameter: 5.98 (152mm)



• Mounting Depth: 2.7 (67.5mm)



• Overall Depth: 3.0 (75.8mm)vUnit Weight: 3.2 lbs
