• Frequency Response: 200Hz ~ 14KHz
• Nominal Impedance: 4 Ohm
• Magnet Material: Neodymium

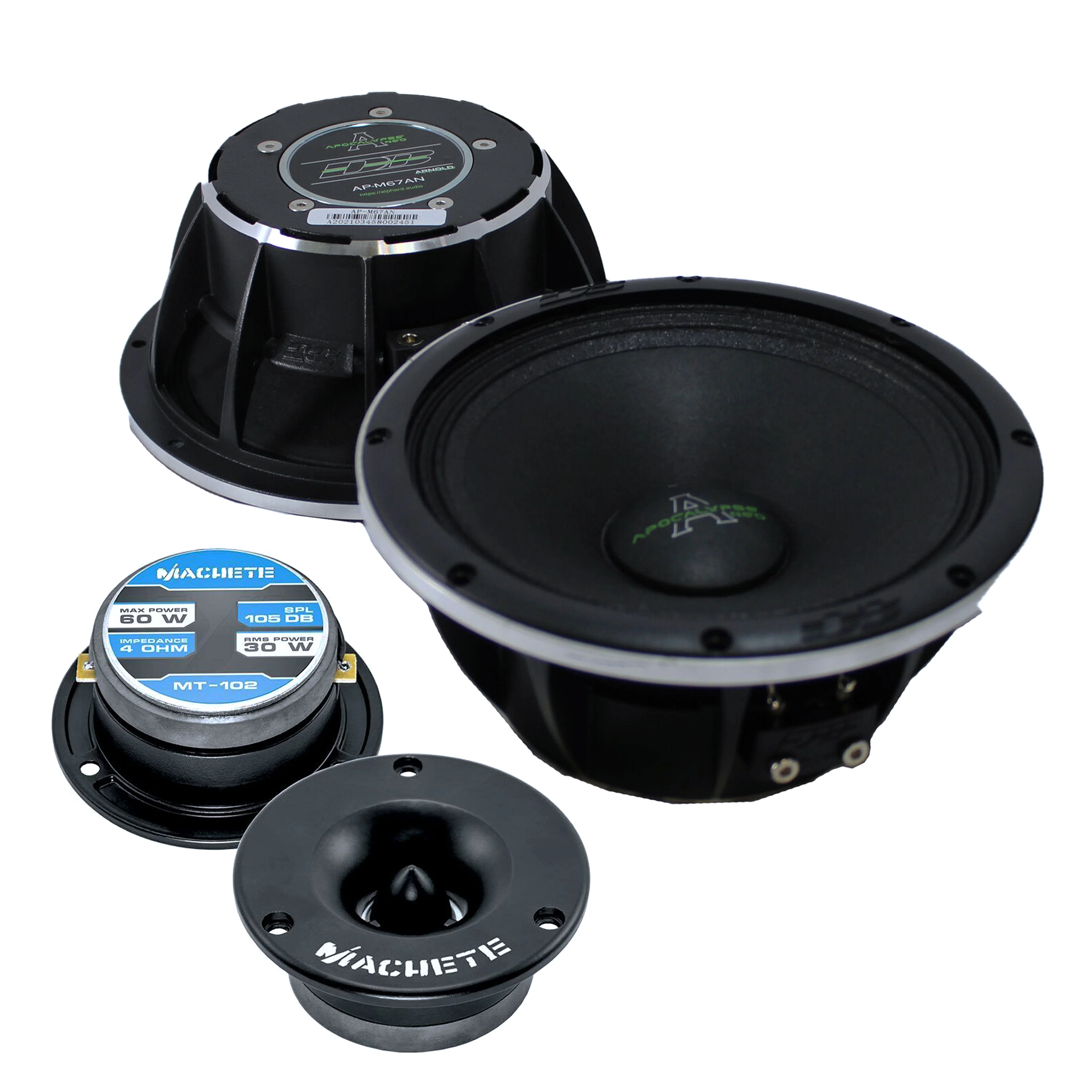

Pair of Deaf Bonce 6.75 Midrange Speakers 600W 4 Ohm w/ 1 Bullet Tweeters 240W

This Listing Includes:

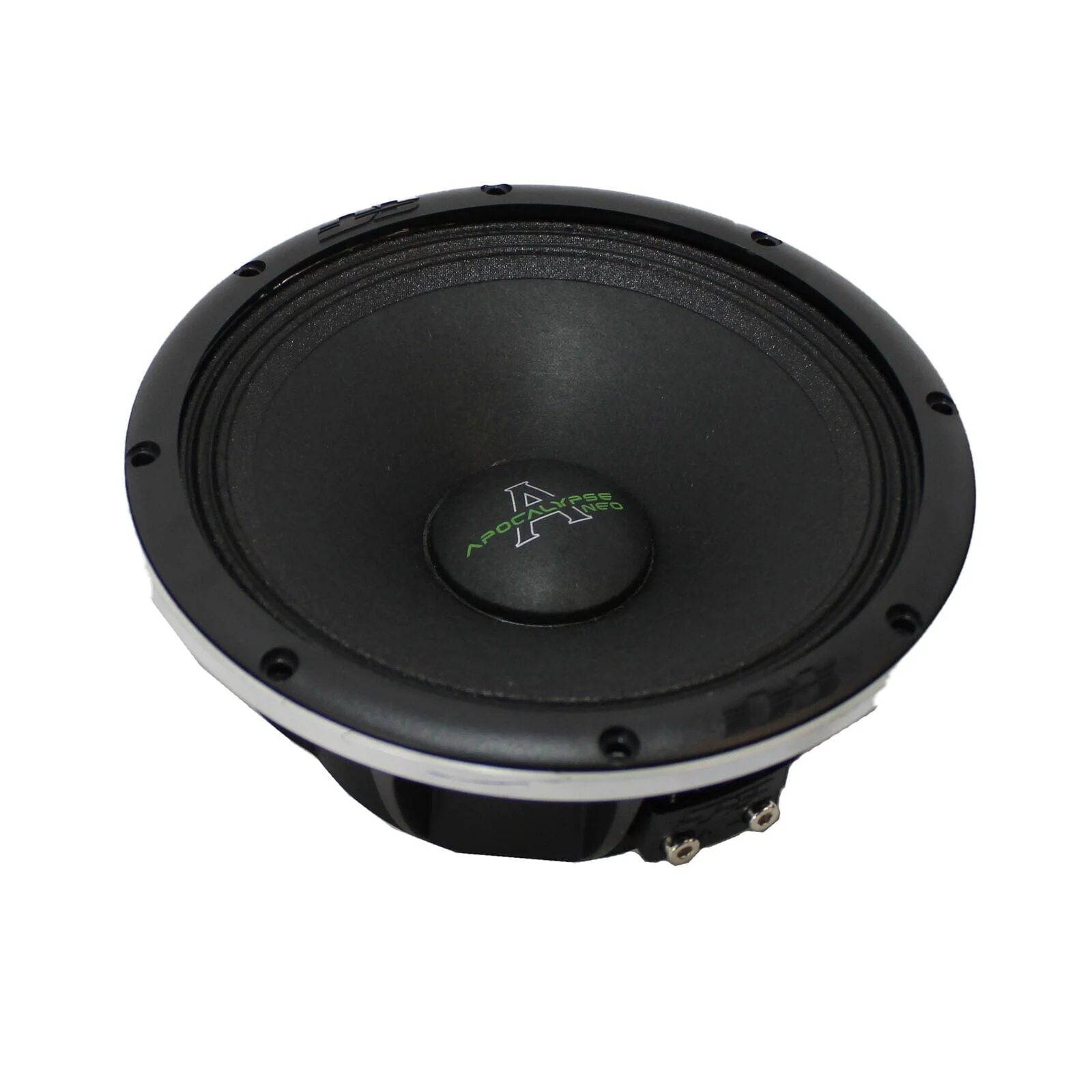

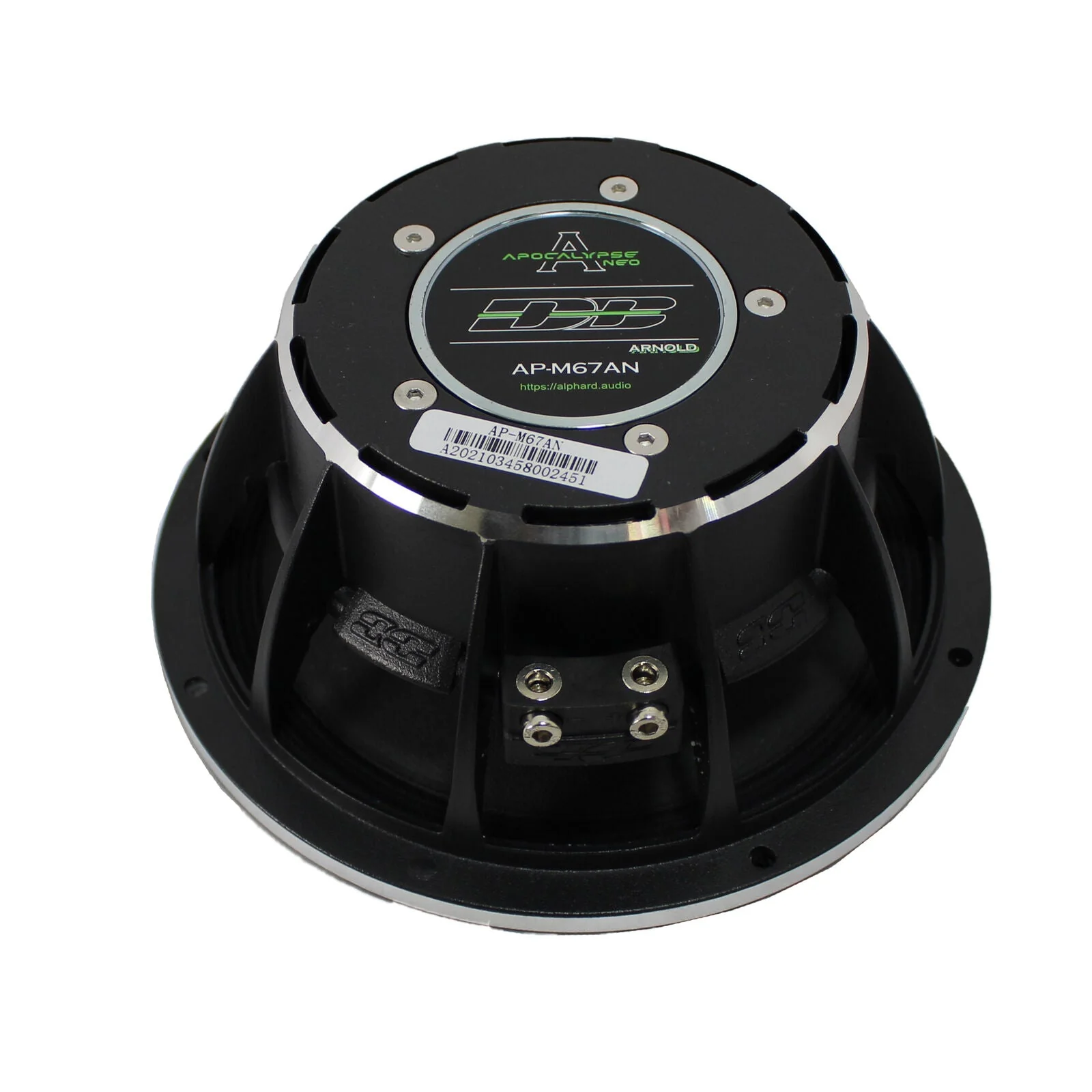

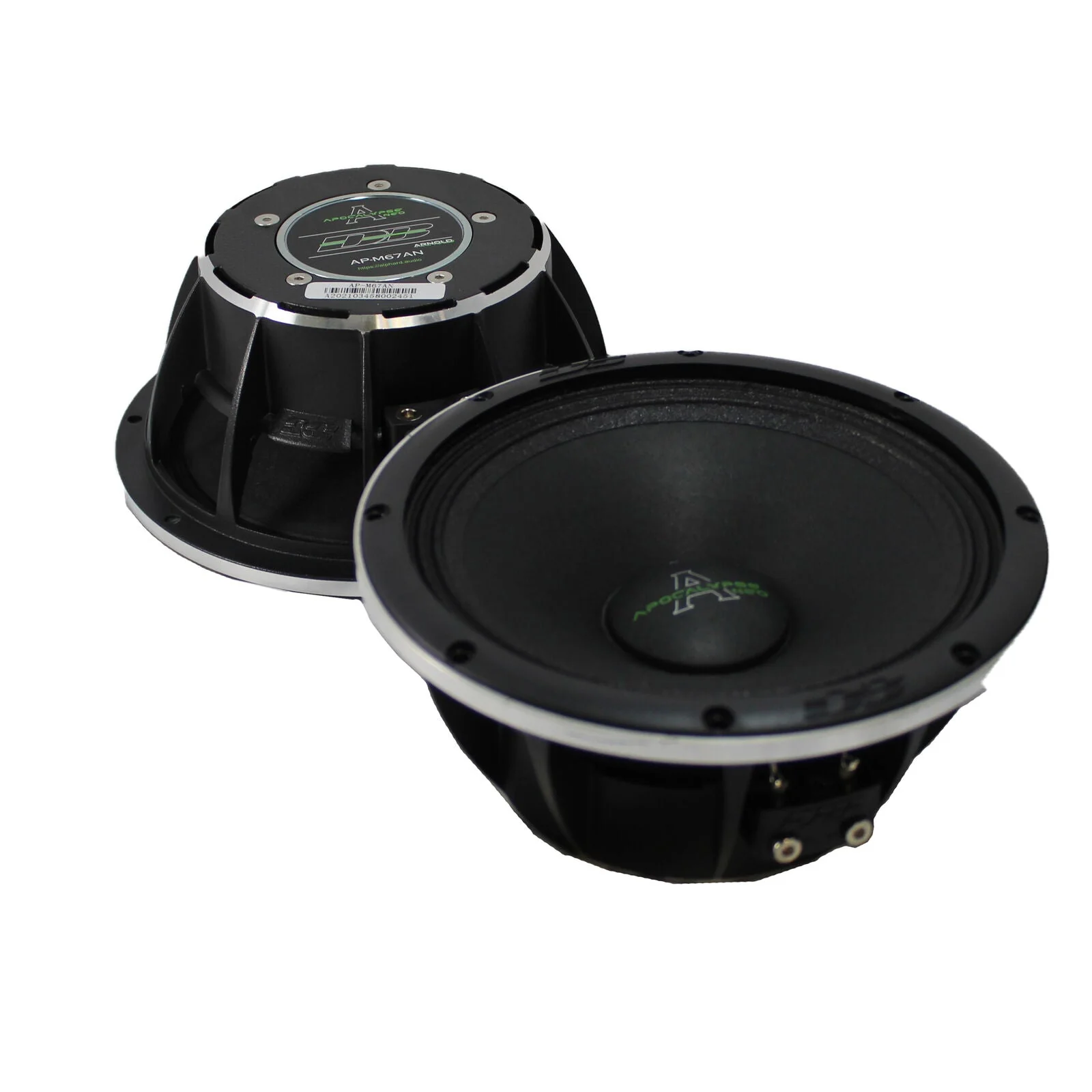

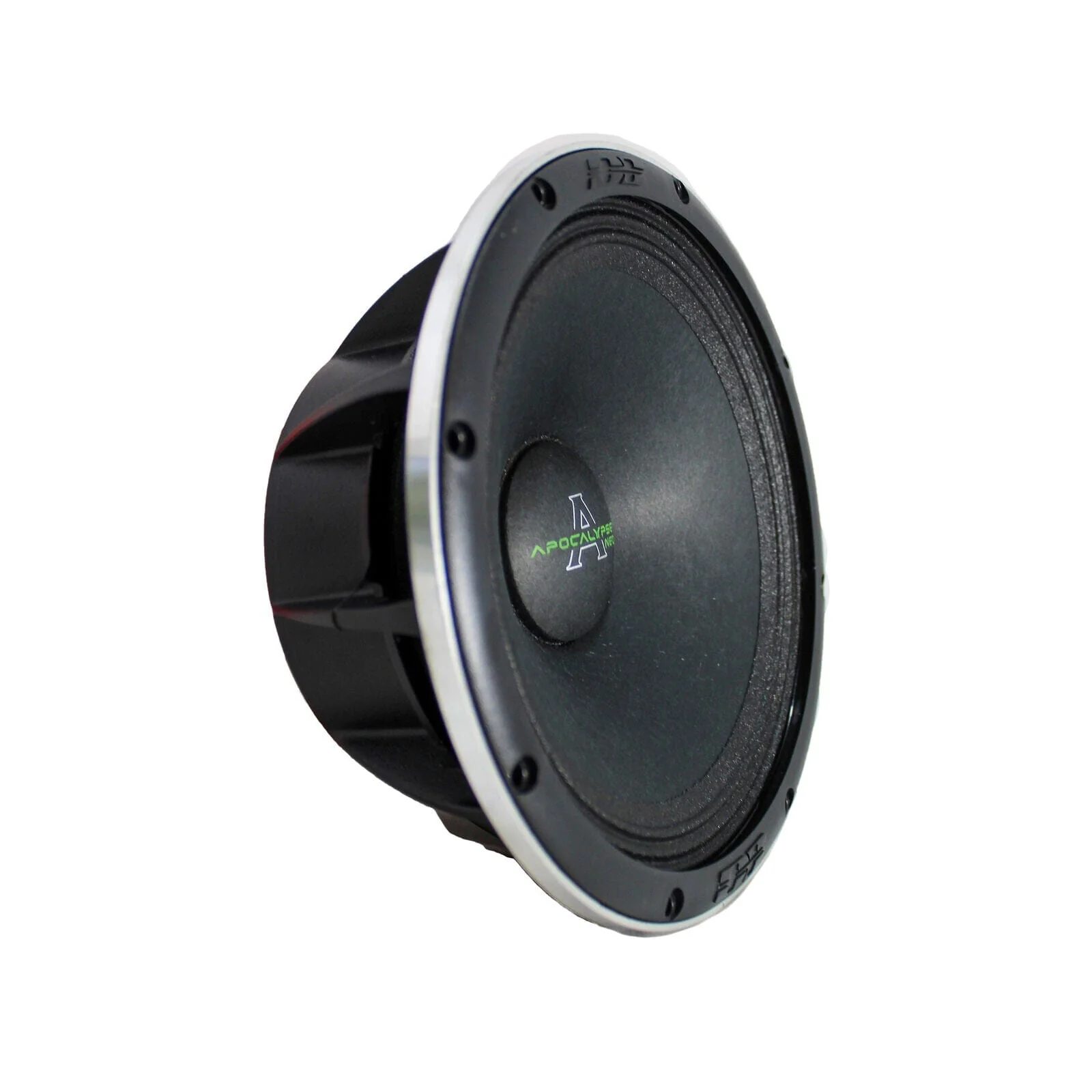

• (2) Deaf Bonce 6.5" Midrange Speakers AP-M67AN



• (2) 1" Bullet Tweeters MT-102



• (2) Sets of hardware

(Does not include a bass blocker get one here: https://bigjeffaudio.com/collections/bass-blockers)

These 6.5" Apocalypse Series Mid-Range speakers from Deaf Bonce can handle a huge 600 watts! Ferrite magnets for increased performance and sleek black & green color looks great in any application. The heart of the AP-M67AN is a powerful neodymium magnetic system which results in incredible sound. Sold in pairs.

SPECIFICATIONS PER SPEAKER:

• Nominal Diameter: 6.5"



• Nominal Impedance: 4 Ohm



• MAX Power Handling: 600 Watts



• RMS Power Handling: 300 Watts



• Sensitivity (1w/1m): 102dB



• Frequency Response: 200Hz ~ 14KHz

MOTOR:

• Voice Coil Diameter: 1.75"



• Winding Material: CCAW



• Cone Material: Pressed Paper



• Surround Material: Cloth



• Basket Material: Aluminum



• Magnet Material: Neodymium

THIELE & SMALL PARAMETERS:

• Equivalent Volume: Vas - 5.72L



• Free Air Resonance: Fs - 125Hz



• Total Factor: Qts - 0.31



• Force Factor: BL - 9.3

DIMENSIONS PER SPEAKER:

• Overall Diameter: 6.7" (171.2mm)



• Front Mount Baffle Cutout: 6.0" (152mm)



• Mounting Depth: 2.7" (67.5mm)



• Overall Depth: 3" (75.8mm)

SPECIFICATIONS PER MT-102 TWEETER:

• Frequency response: 2000 - 20000 Hz



• Package quantity: Pair



• Diaphragm: Titanium



• Magnet: Ferrite



• Voice coil wire: Copper



• RMS Power: 30 W



• MAX Power: 60 W



• Impedance: 4 Ohm



• SPL: 105.00 dB

DIMENSIONS PER MT-102 TWEETER:

• Cutout Dimension: 3.28" / 83.3mm



• Backplate/Magnet Dimension: 2.53" / 64.3mm



• Overall Width: 3.92" / 99.6mm



• Bolt Hole Circle Circumference: 3.21" / 81.5mm
