• Handles high frequencies with ease so you can enjoy your favorite music with loudness and sound quality combined.
• Powerful and reliable Titanium 4-Ohms 1-inch voice coil rated at 60 watts AES, 120 watts program, and 240 peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
• Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.

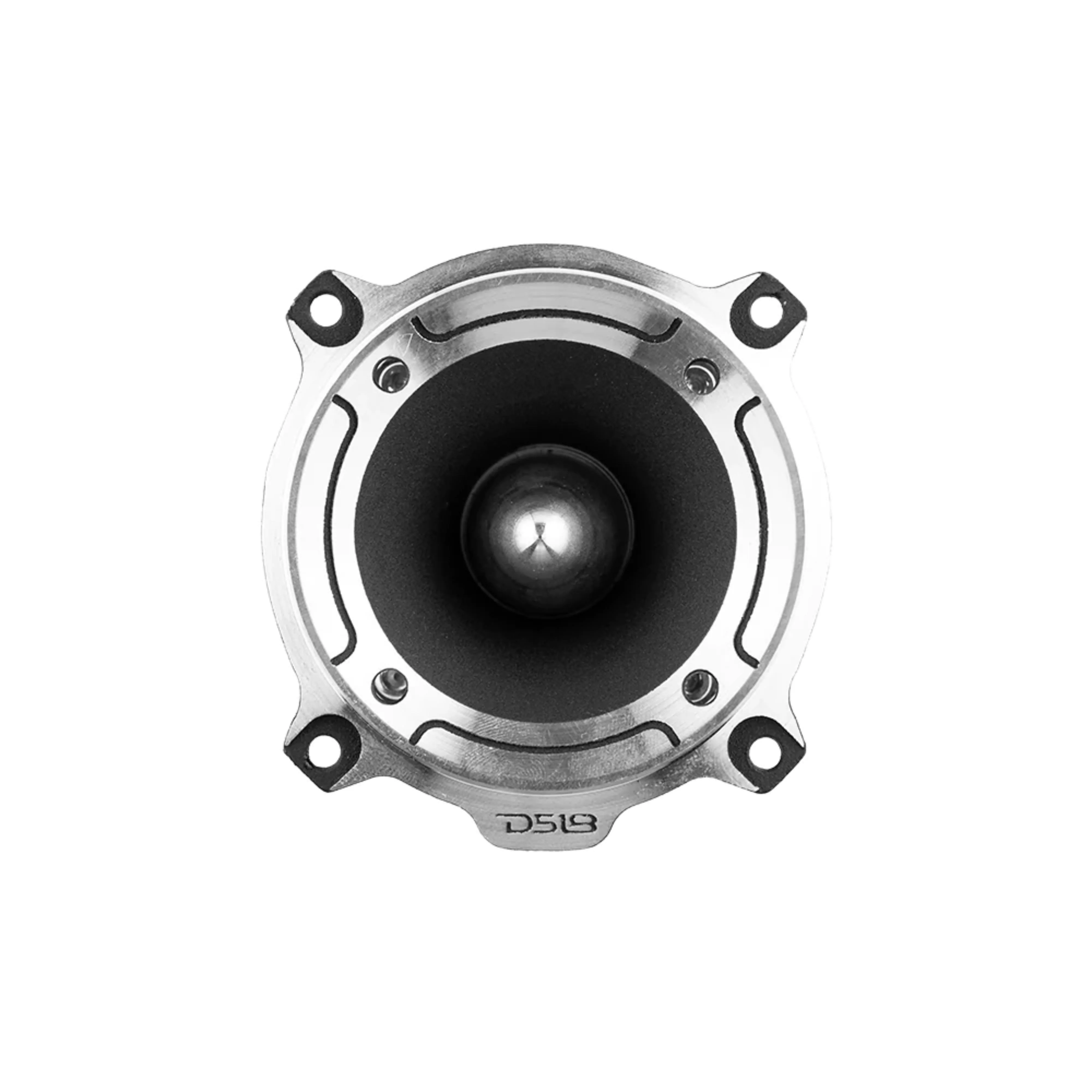

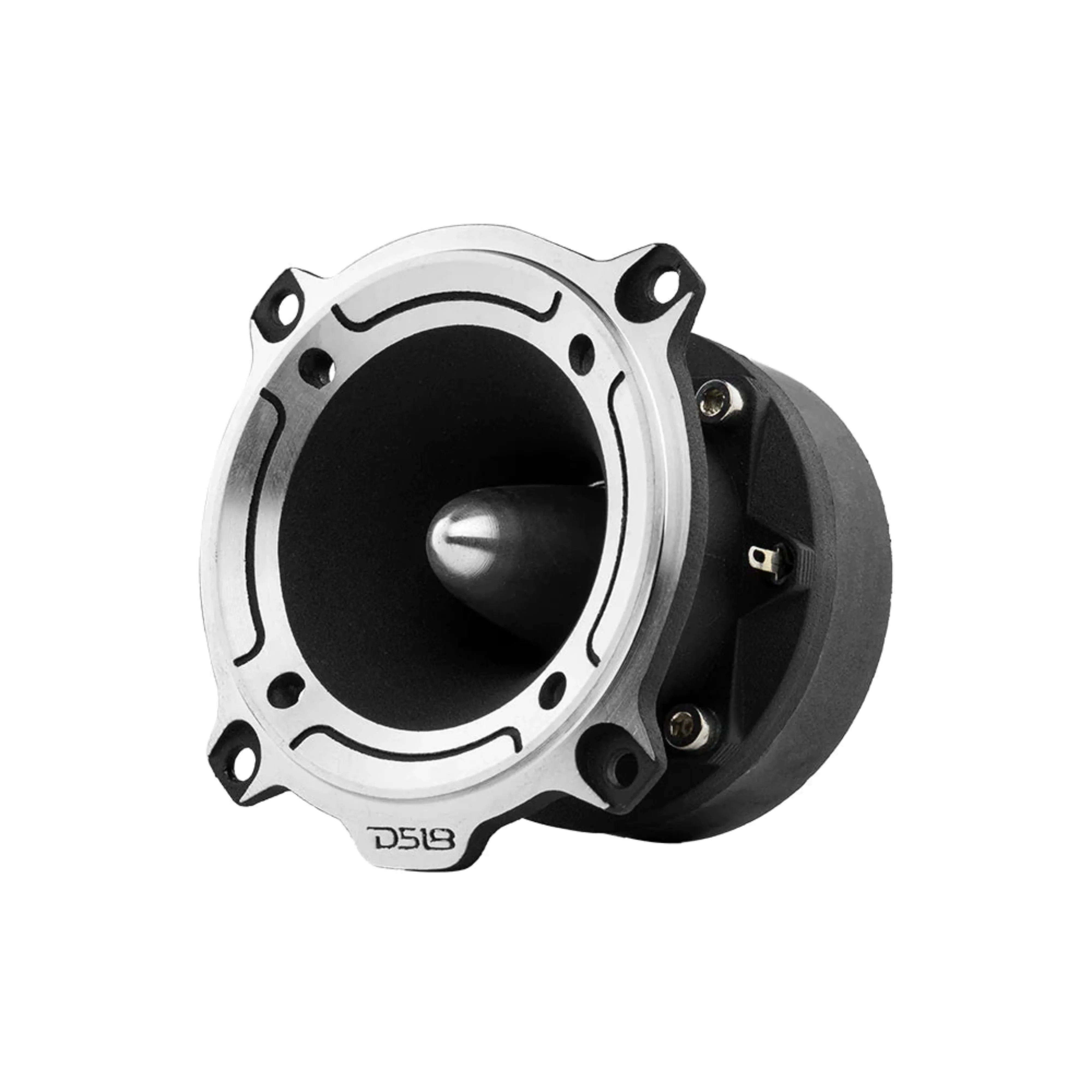

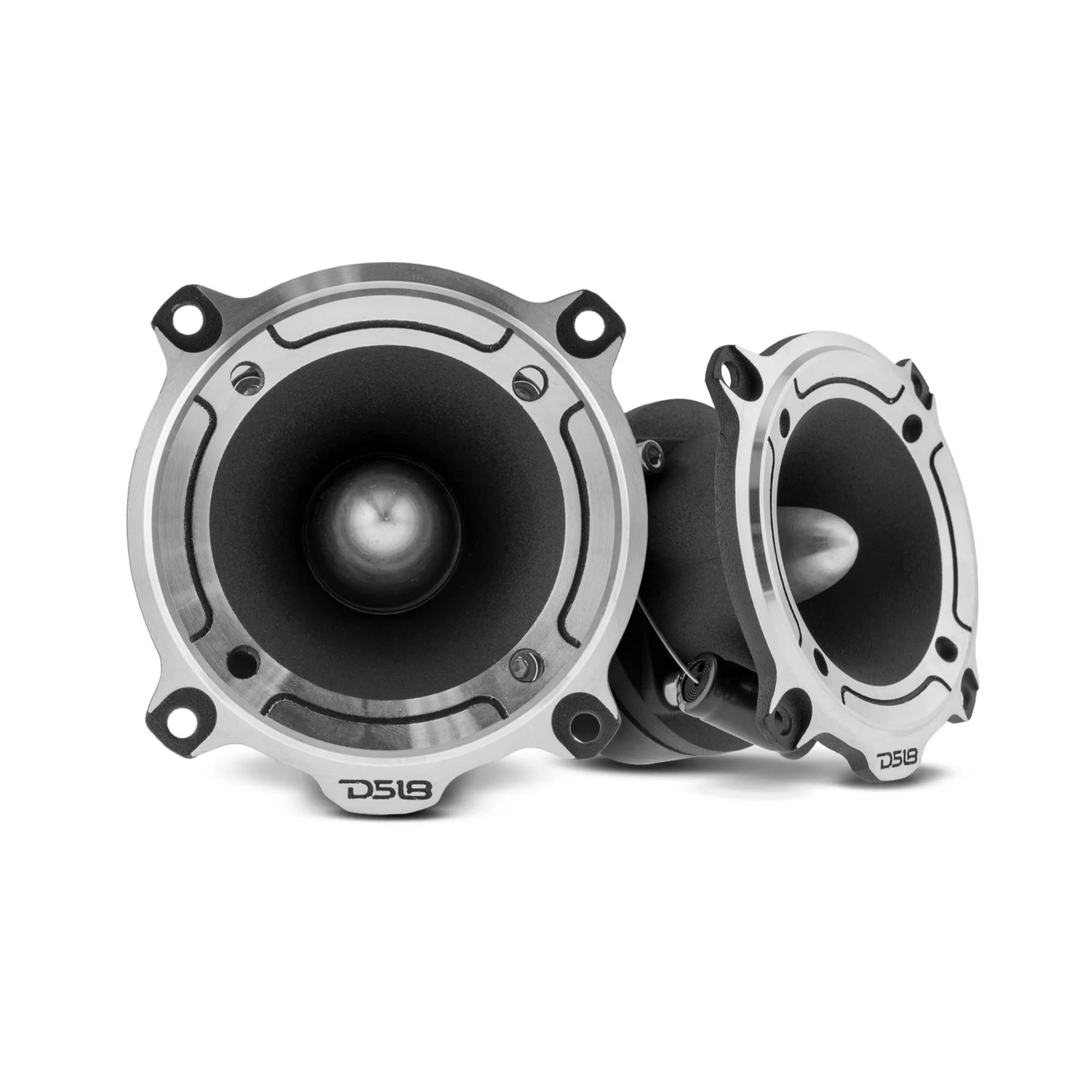

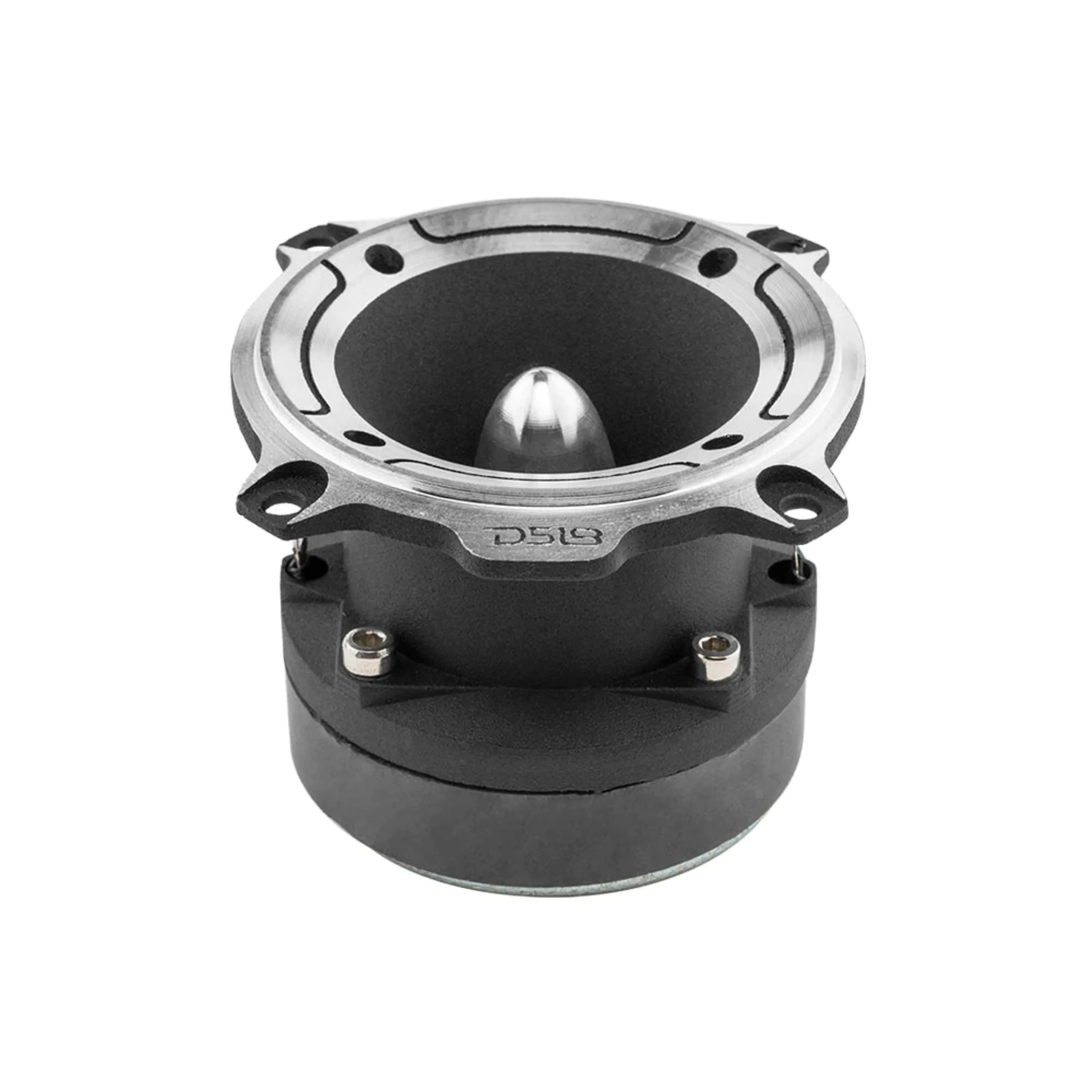

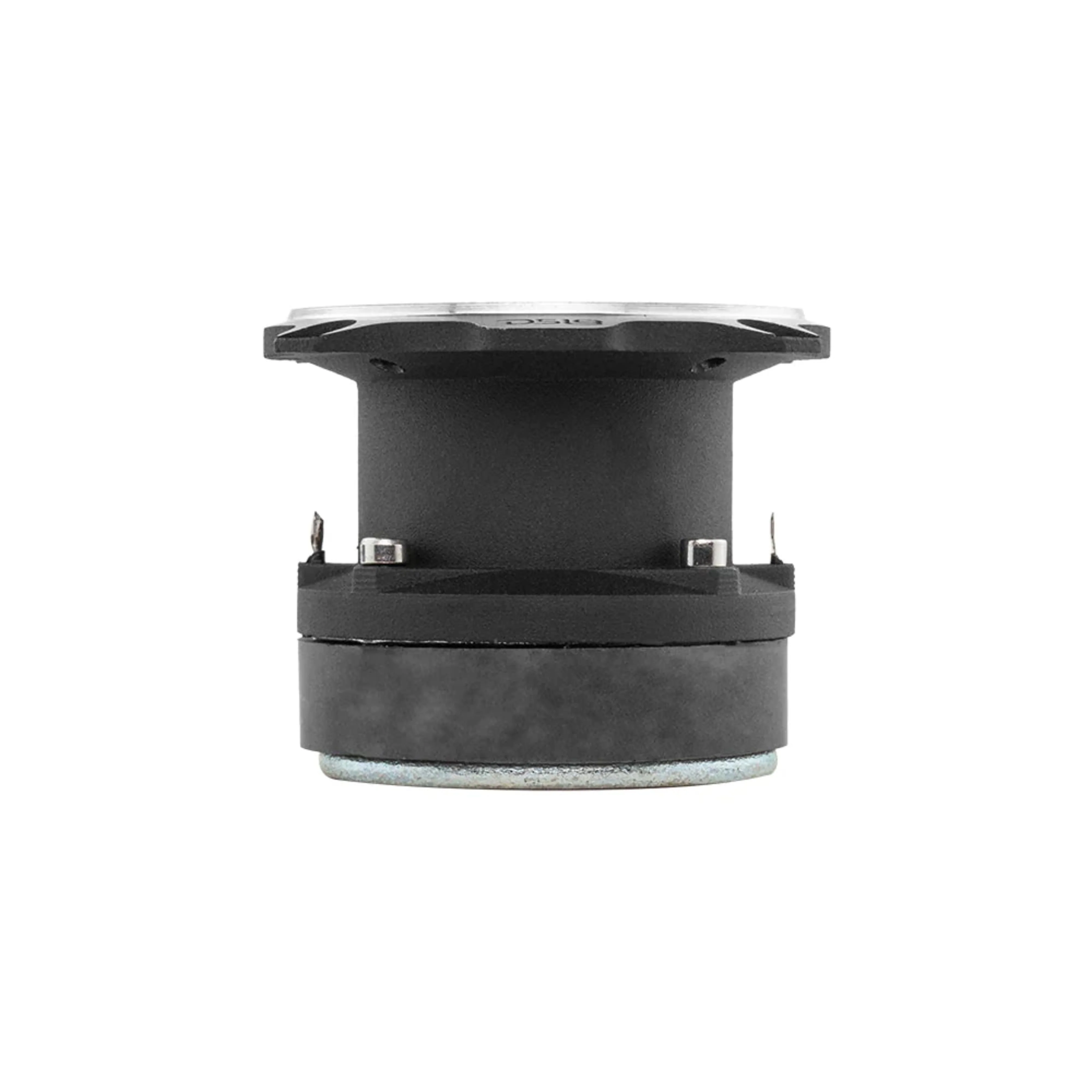

Pair of DS18 1 Super Tweeters High Compression 480 Watt 4 Ohm 1" VC Bullet PRO-TW220

This listing includes:

(2) DS18 1" Titanium Super Bullet Tweeters PRO-TW220

The DS18PRO-TW220 are out-of-this-world tweeters and for good reason. With 240W peak power handling and a frequency response of 2KHz to 20KHz, these professional grade super tweeters deliver accurate sounds at high frequencies--perfect if you like your highs crisp, bright, and loud! Better yet, the Bullet dust cover protects the voice coil and ensures that your highs cut through the noise.

Features:

• Designed to be repaired quickly and easily with our drop in voice coil kits that can be installed in less than 5 minutes.- Extremely high 104 dB rating for screaming loud high range frequencies delivered at high volumes with great sound quality.


• The ferrite motor structure, with a mounting depth of only 2.3 inches is robust yet small enough to fit an a wide and almost limitless number of applications.

SPECIFICATIONS PER TWEETER:

• Nominal Diameter: 3.2 (81mm)


• Nominal Impedance: 4 Ohm


• MAX Power Handling: 240 Watts


• RMS Power Handling: 120 Watts


• AES Power Handling: 60 Watts


• Sensitivity (1w/1m): 104 dB


• Frequency Response: 2kHz ~ 20kHz


• Recommended HI Pass Crossover: 3kHz

MOTOR:

• Voice Coil Diameter: 1 (25.4mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAR


• Diaphragm Material: Aluminum


• Magnet Material: Ferrite


• Magnet Weight: 8 Oz

BODY SPECIFICATIONS:

• Bullet Material: Aluminum


• Body Material: Aluminum


• Body Color/Finish: Sandblasted Black

DIMENSIONS PER TWEETER:

• Overall Diameter: 3.2 (81mm)


• Front Mount Baffle Cutout: 2.83 (72mm)


• Overall Depth: 2.57 (65.4mm)


• Mounting Depth: 2.3 (58.4mm)


• Weight: 1.4 lbs
