• 4 Ohm nominal impedance
• Frequency Response: 70Hz –7kHz
• 2" Voice Coil
• 98.5 dB Sensitivity

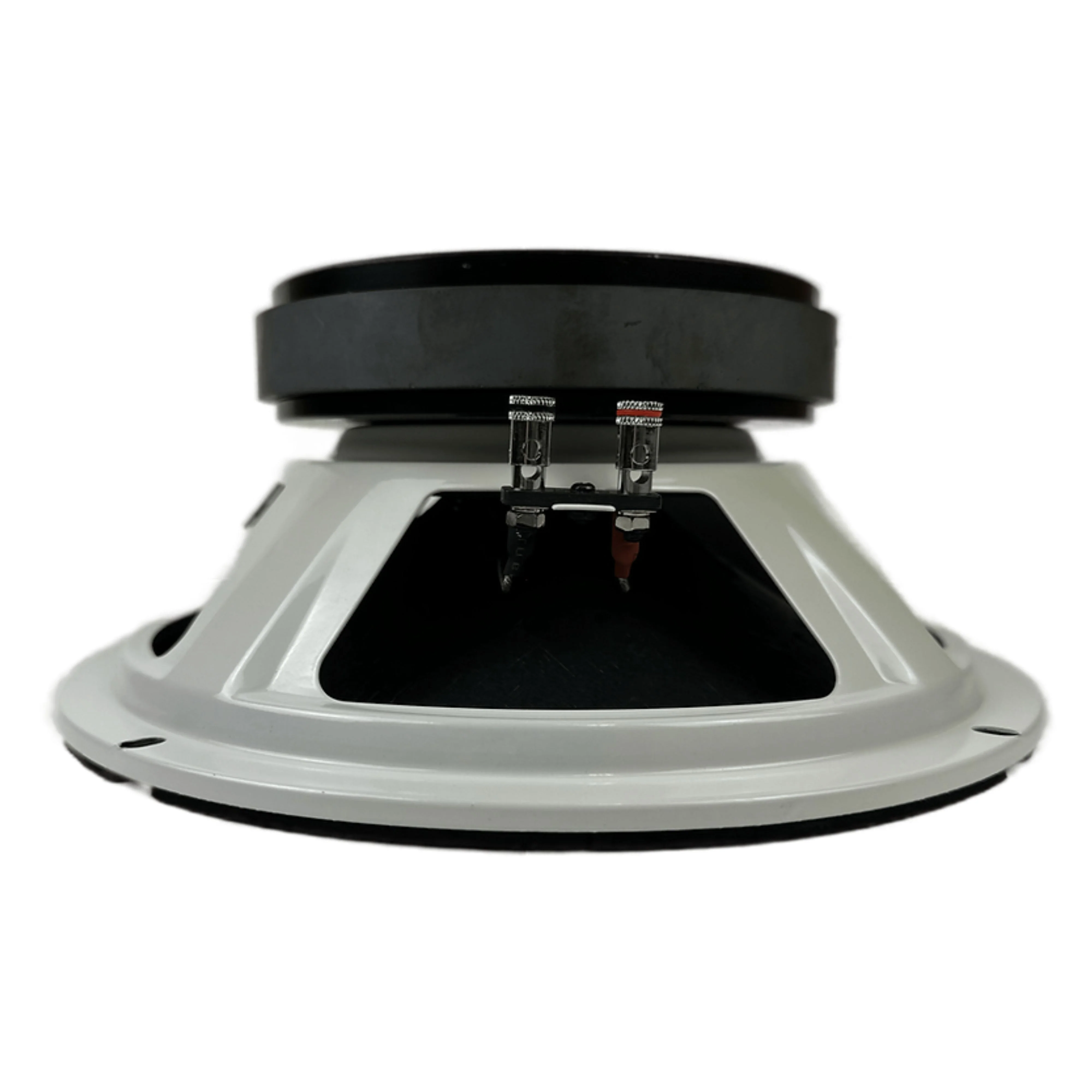

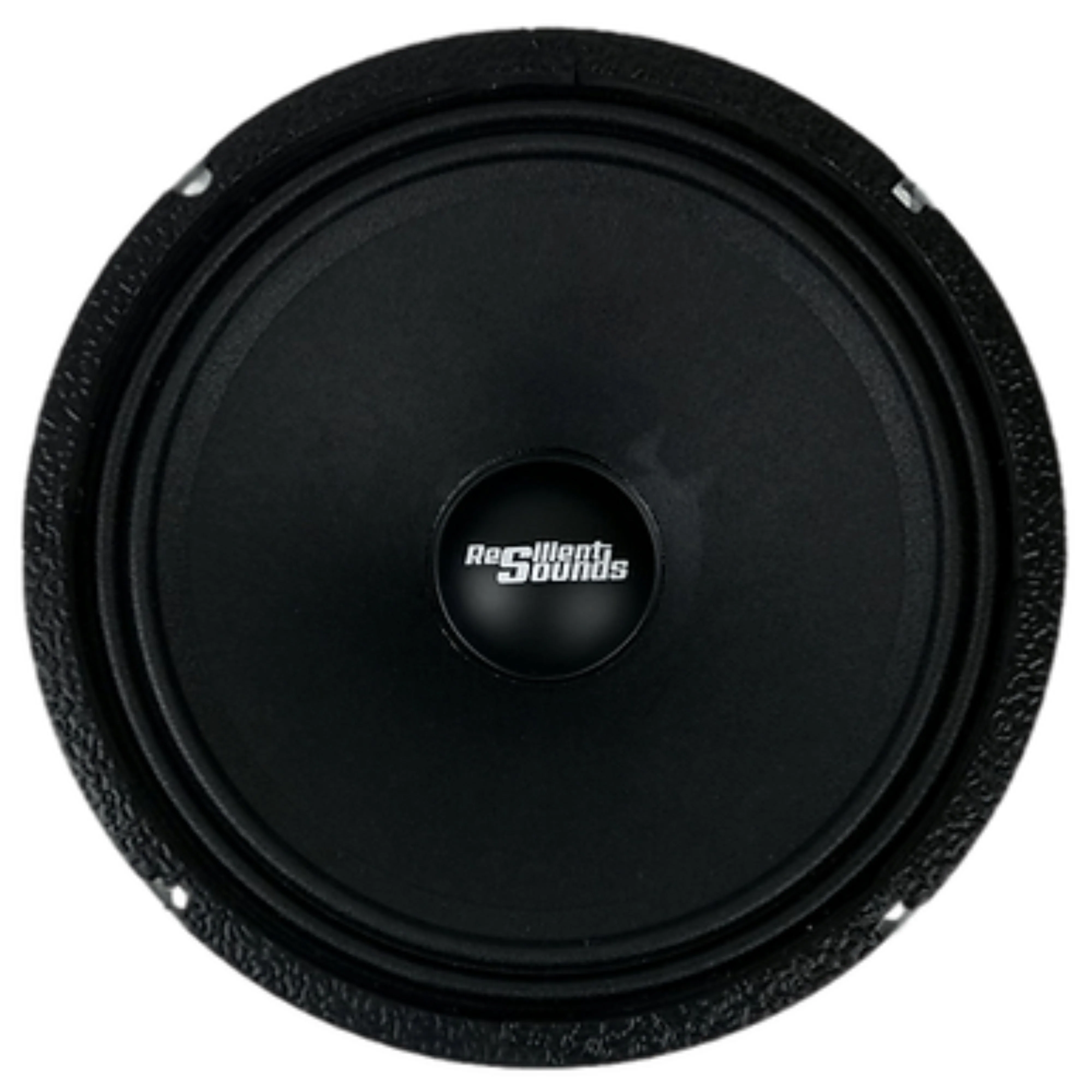

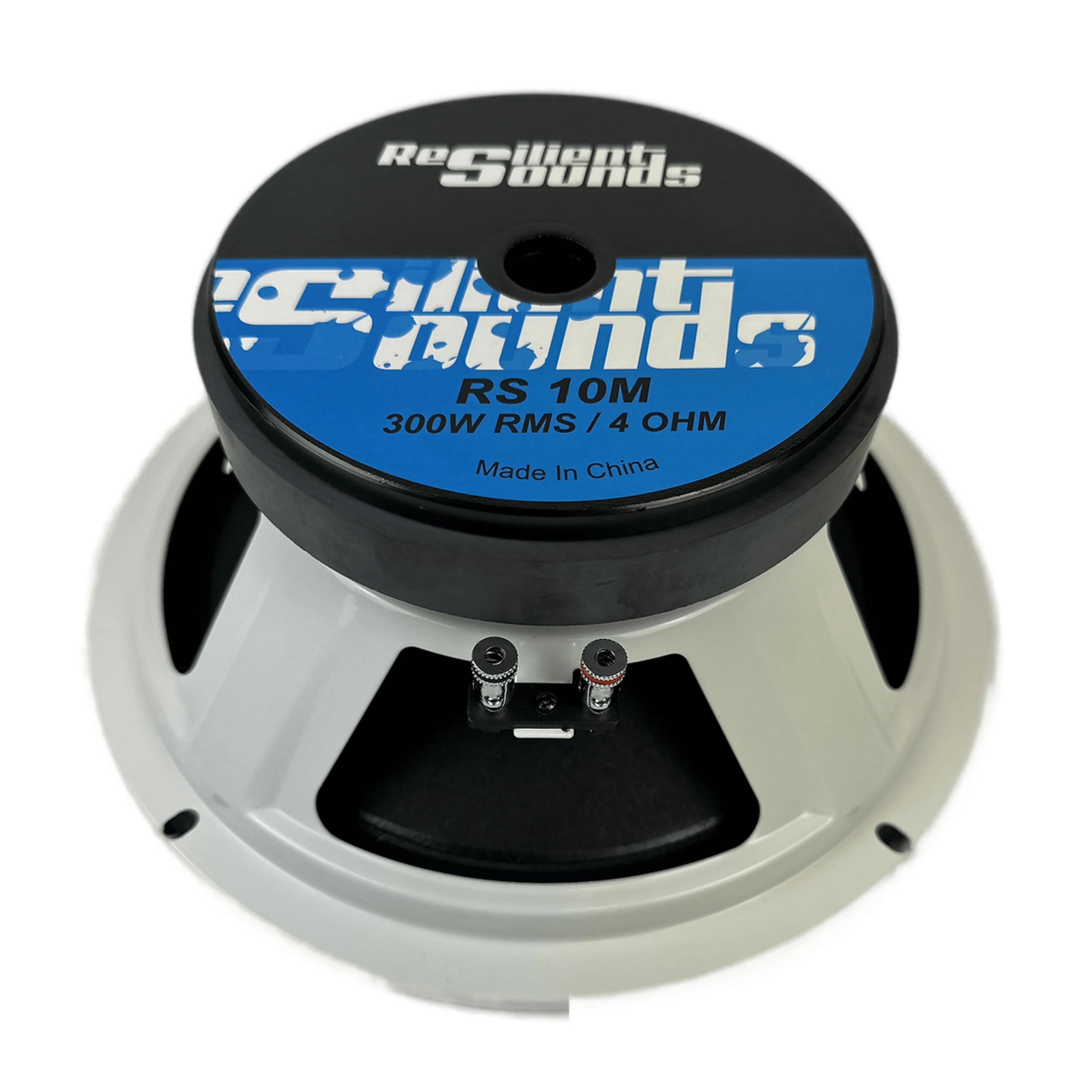

Resilient Sounds M Series 10" 300 Watt RMS 4 Ohm Midrange Car Audio Loudspeaker

This Listing Includes

• (1) 10" 300 Watt RMS 4 Ohm Midrange Car Audio Loudspeaker

Features:

• 600 Watts Max Power Handling


• 2" Voice Coil


• 98.5 dB Sensitivity


• 70HZ-7KHz of frequency response

Specifications:

• Nominal Diameter: 10" (254mm)


• Max Power Handling: 600 w


• RMS Power Handling: 300 w


• Frequency Response: 70Hz-7KHZ


• Nominal Impedance: 4ohm


• Sensitivity: 98.5 dB


• Magnet: Ferrite


• Voice Coil Diameter: 1.5"


• Voice Coil Wire: CCAW

THIELE-SMALL PARAMETERS

• Equivalent Volume (Vas): 37.94 L


• Free Air Resonance (Fs): 72 Hz


• Mechanical Factor (Qms): 5.51


• Electrical Factor (Qes): 0.48


• Total Factor (Qts): 0.44


• Cone Area (Sd): 349.6cm


• Mechanical Mass (Mms): 22.21 g


• BI Factor (BI): 8.21 Tm


• Dc Resistance (Re): 3.2 Ohms

Dimensions:

• Overall Diameter: 10.11"(257mm)


• Front Mount Baffle Cutout: 9.13"(232mm)


• Mounting Depth: 3.85"(98mm)


• Overall Depth: 4.21"(107mm)
