• (1) 8" 4-Ohm midrange car audio loudspeaker
• Nominal Impedance: 4 Ohm
• 1.5" CCAW voice coil
• Frequency Response: 95Hz–9.5kHz

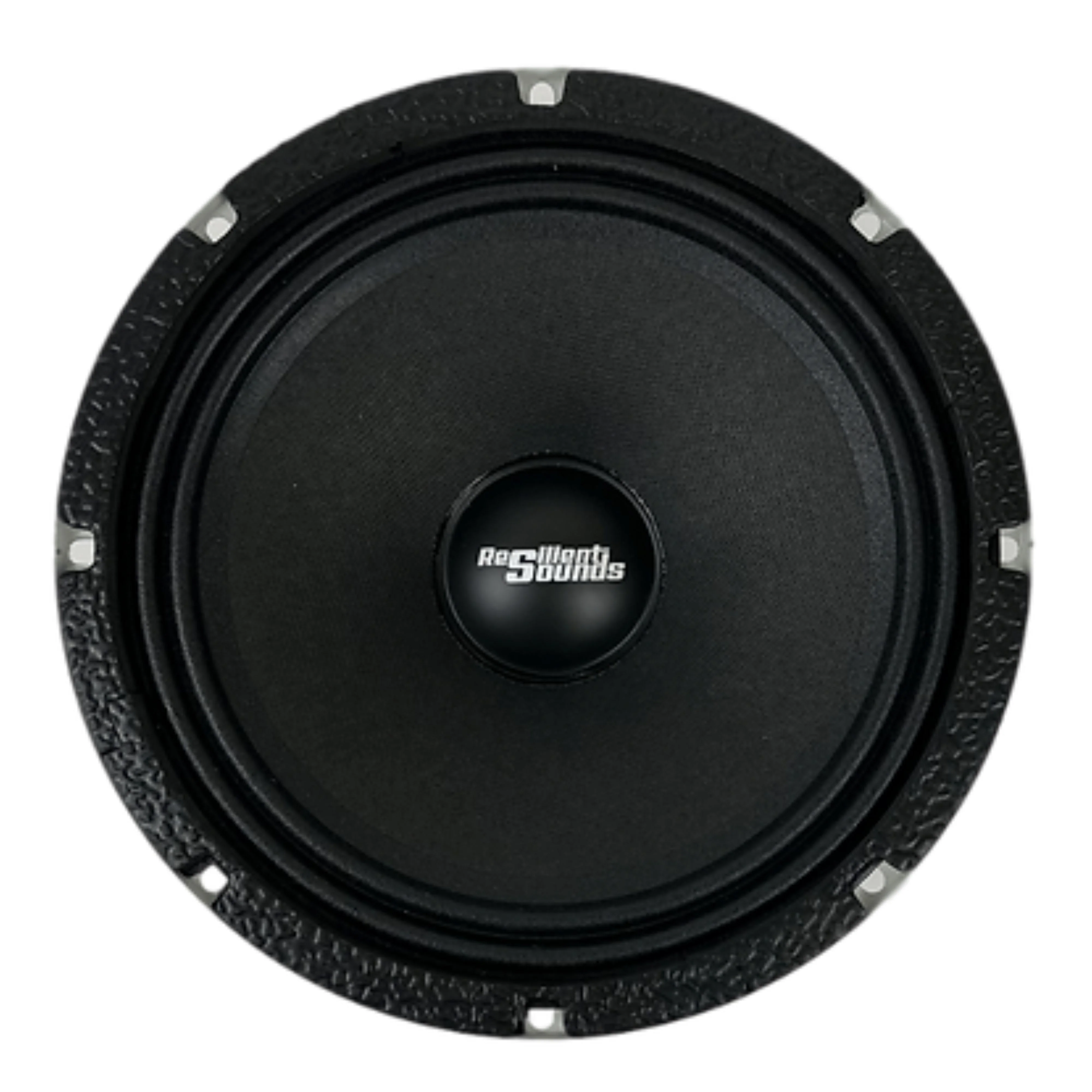

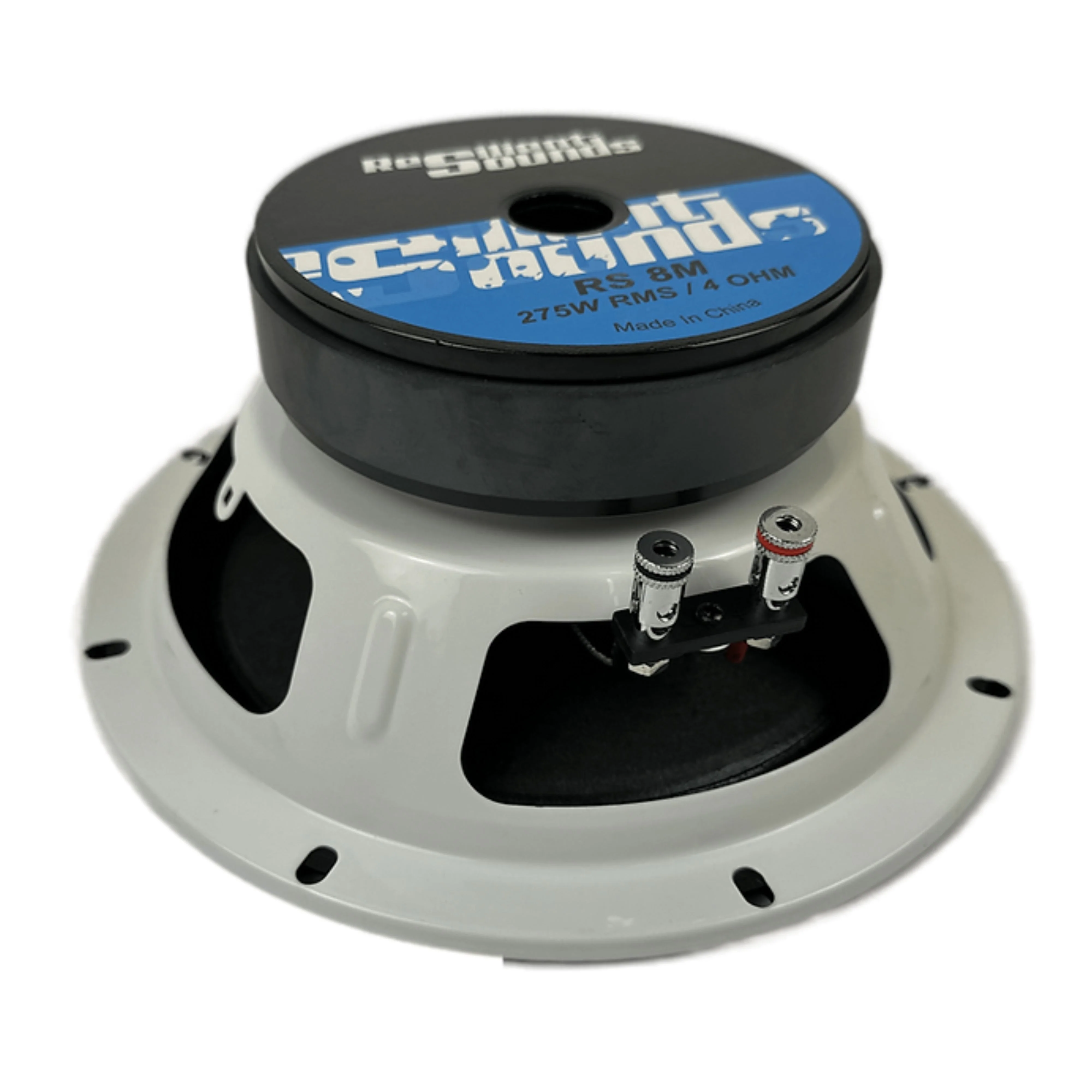

Resilient Sounds M Series 8" 275 Watt RMS 4 Ohm Midrange Car Audio Loudspeaker

This Listing Includes

• (1) 8" 275 Watt RMS 4 Ohm Midrange Car Audio Loudspeaker

Specifications:

• Nominal Diameter: 8" (203mm)


• Max Power Handling: 550 w


• RMS Power Handling: 275 w


• Frequency Response: 95Hz-9.5KHZ


• Nominal Impedance: 4ohm


• Sensitivity: 98 dB


• Magnet: Ferrite


• Voice Coil Diameter: 1.5"


• Voice Coil Wire: CCAW


• Vas: 11.92 L


• Fs: 101 Hz


• Qms: 5.75


• Qes: 0.75


• Qts: 0.67


• Sd: 216.4 cm Sq.


• Mms: 13.64 g


• BI: 6.07 Tm


• Re: 3.2 Ohms

Dimensions:

• Overall Diameter: 8.26" (210mm)


• Front Mount Baffle Cutout: 7.2" (183mm)


• Mounting Depth: 3.42" (87mm)


• Overall Depth: 3.74" (95mm)
