• Resilient Sounds NEO Series 10" Midrange Loudspeaker – Built for high-output midrange clarity with serious efficiency and power
• 500W RMS / 1000W Max Power – Clean, punchy mids at high volume without distortion
• 2.5” CCAW Voice Coil – Durable and responsive for high-performance midrange response

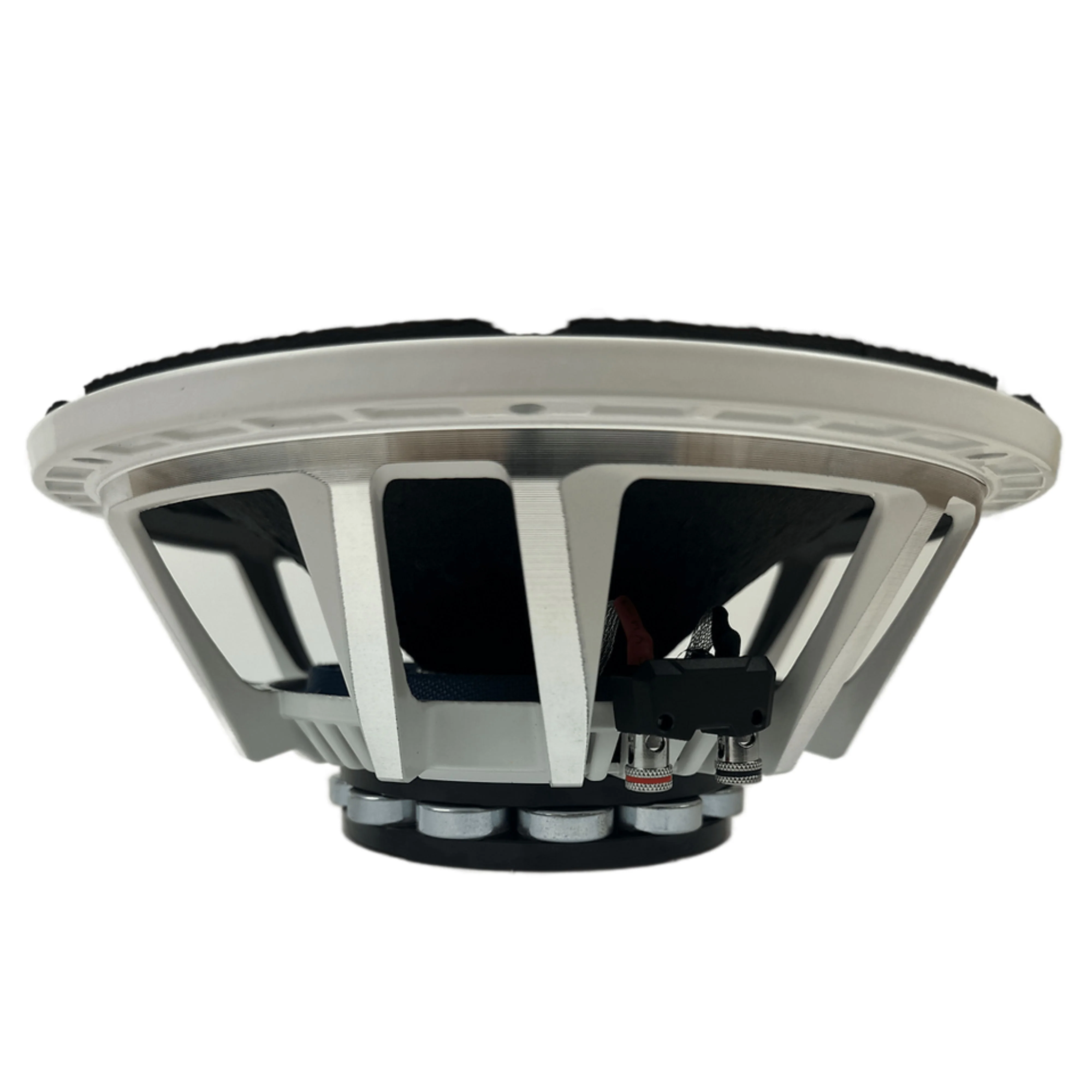

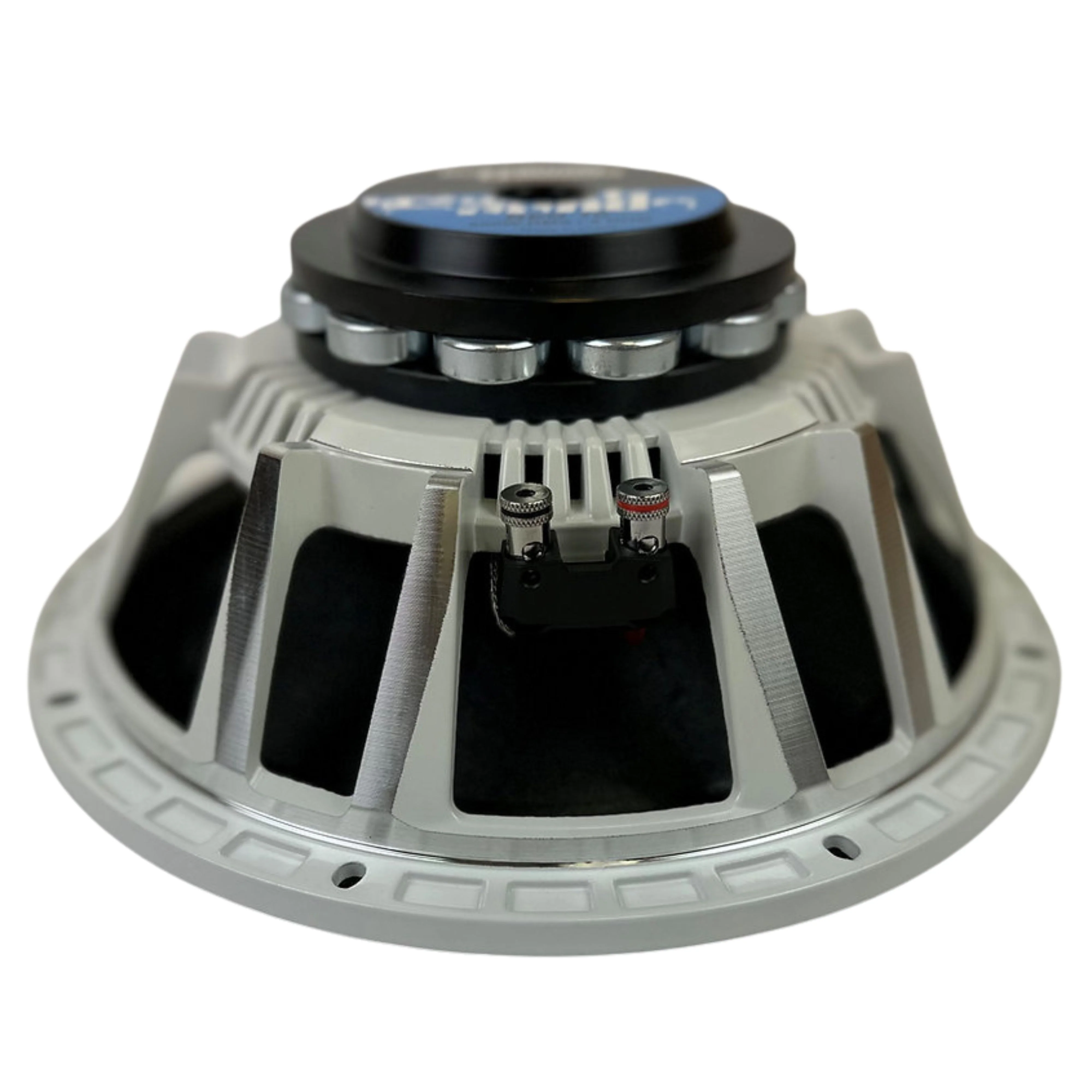

• Neodymium Magnet Motor – Lightweight yet powerful for maximum sensitivity and reduced mounting weight

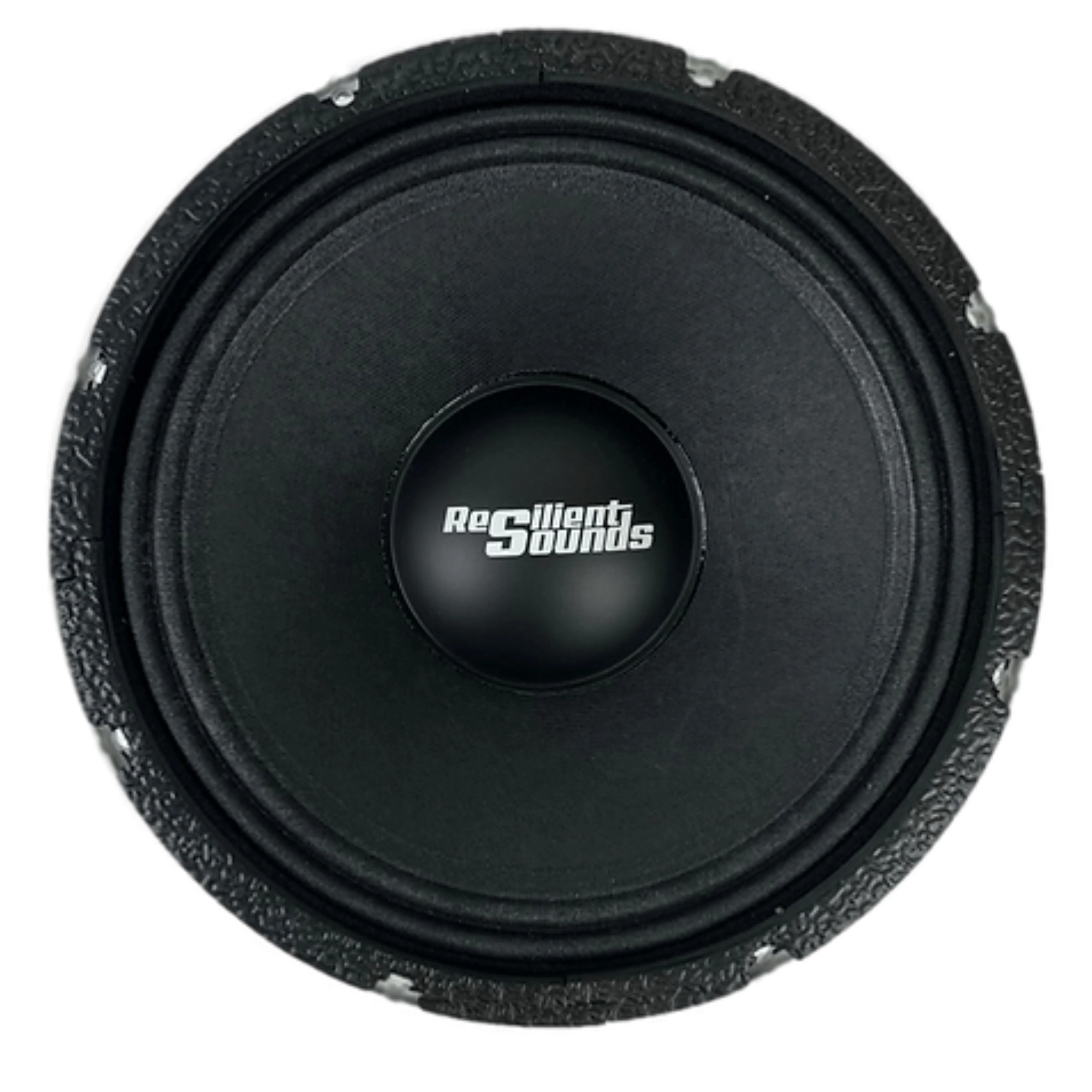

Resilient Sounds NEO Series 10" 500 Watt RMS 4 Ohm Midrange Car Audio Loudspeaker

This Listing Includes:

• (1) Resilient Sounds NEO Series 10" 500 Watt RMS 4 Ohm Midrange Car Audio Loudspeaker

Features:

• 1000 Watts Max Power Handling


• 2.5" Voice Coil


• 98.5 dB Sensitivity


• 75HZ-6.5KHz of frequency response

General Specifications:

• Nominal Diameter: 10" (254mm)


• Max Power Handling: 1000 W


• RMS Power Handling: 500 W


• Frequency Response: 75 Hz - 6.5 KHZ


• Nominal Impedance: 4 ohm


• Sensitivity: 98.5 dB


• Magnet: Neodymium


• Voice Coil Diameter: 2.5"


• Voice Coil Wire: CCAW

Thiele-Small Parameters:

• Vas: 26.8 L


• Fs: 76 Hz


• Qms: 4.5


• Qes: 0.37


• Qts: 0.34


• Sd: 349.6 cm


• Mms: 27.96 g


• BI: 10.77 Tm


• Re: 3.2 Ohms

Mounting Info:

• Overall Diameter: 10.31" (262mm)


• Front Mount Baffle Cutout: 9.25" (235mm)


• Mounting Depth: 4.09" (104mm)


• Overall Depth: 4.52" (115mm)
