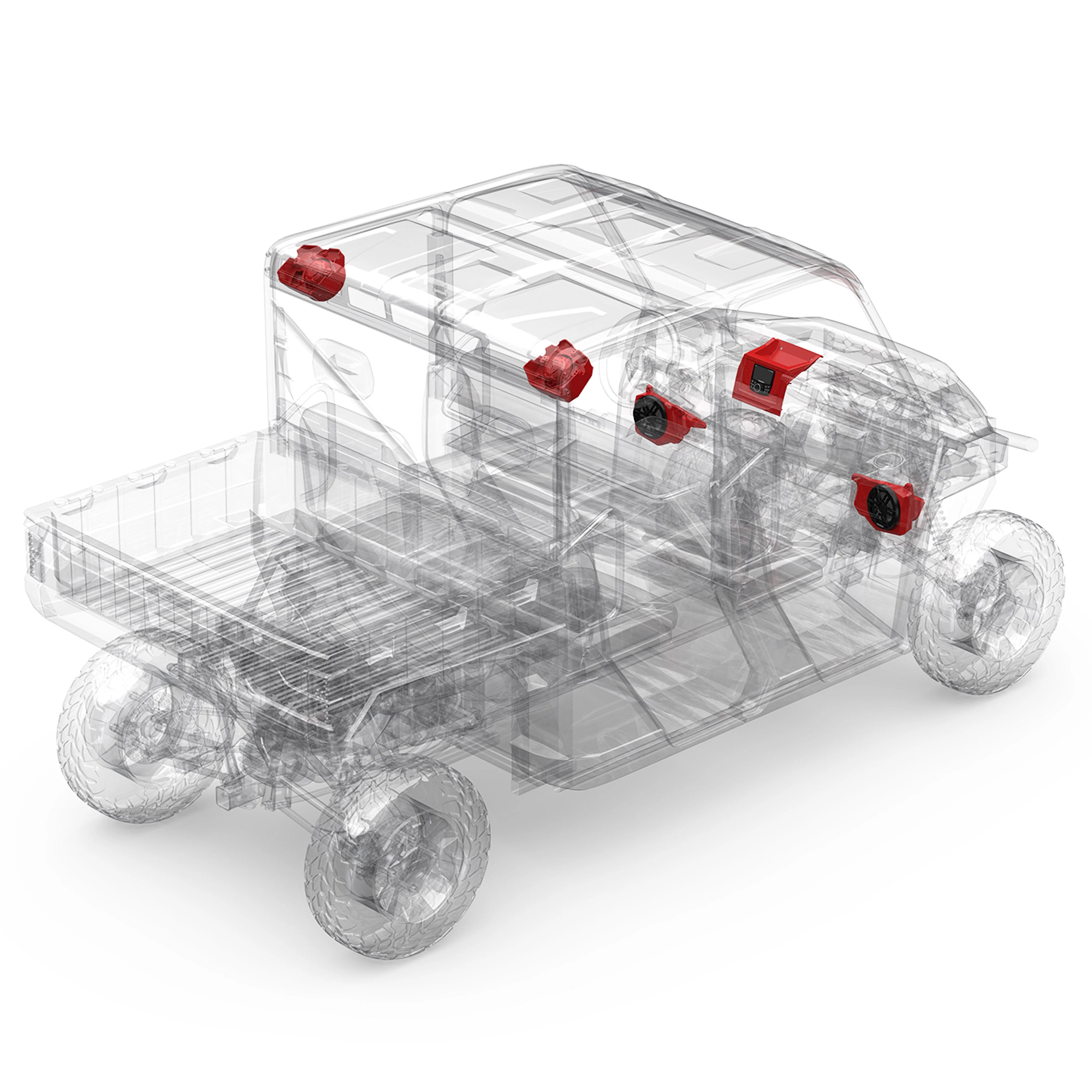

• The kit features the PMX-1 multi-media source unit with 6.5 Element Ready speakers in front lower and rear upper speaker pods
• A Polaris Ranger Poly Roof equipped with/without the Premium Roof Liner is required for installation of the rear speakers.
• This system is designed for select 2018 and newer XP 1000 FULL-SIZE (3-seat) and CREW (6-seat) models.
• The Ranger Stage-2 is an aftermarket M0 Element Ready front and rear audio system.
• Overall Diameter: 7.09 (180.1mm)

Rockford Fosgate 6.5 Marine Speakers & Front/Rear Pods - Complete Stereo System Dash Kit For 2018+ Polaris Ranger



The Ranger Stage-2 is an aftermarket M0 Element Ready front and rear audio system. The kit features the PMX-1 multi-media source unit with 6.5 Element Ready speakers in front lower and rear upper speaker pods. A Polaris Ranger Poly Roof equipped with/without the Premium Roof Liner is required for installation of the rear speakers. This system is designed for select 2018 and newer XP 1000 FULL-SIZE (3-seat) and CREW (6-seat) models.

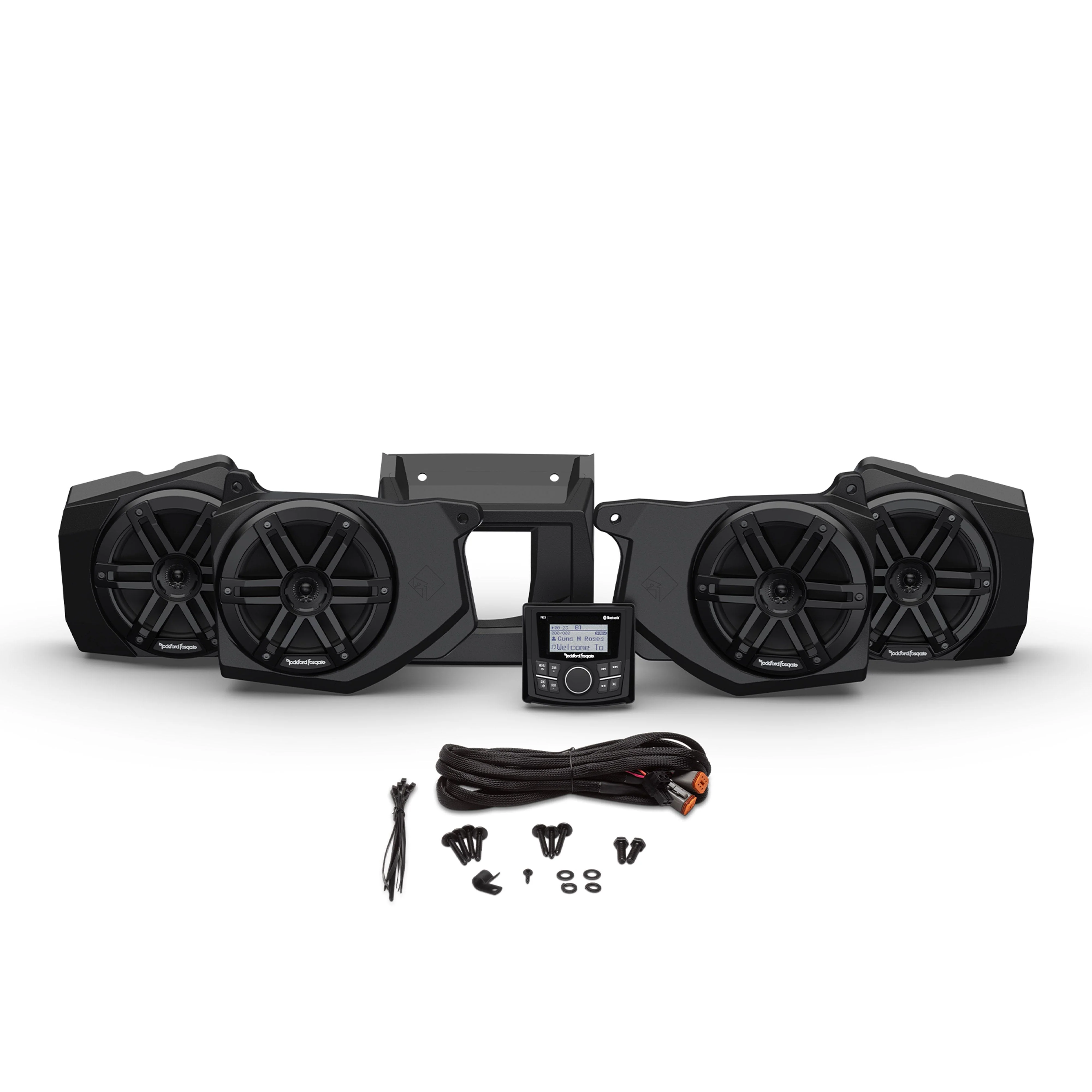

This listing includes:

(4) Rockford Fosgate M0-65B: M0 6.5" Marine Grade Speakers - Black

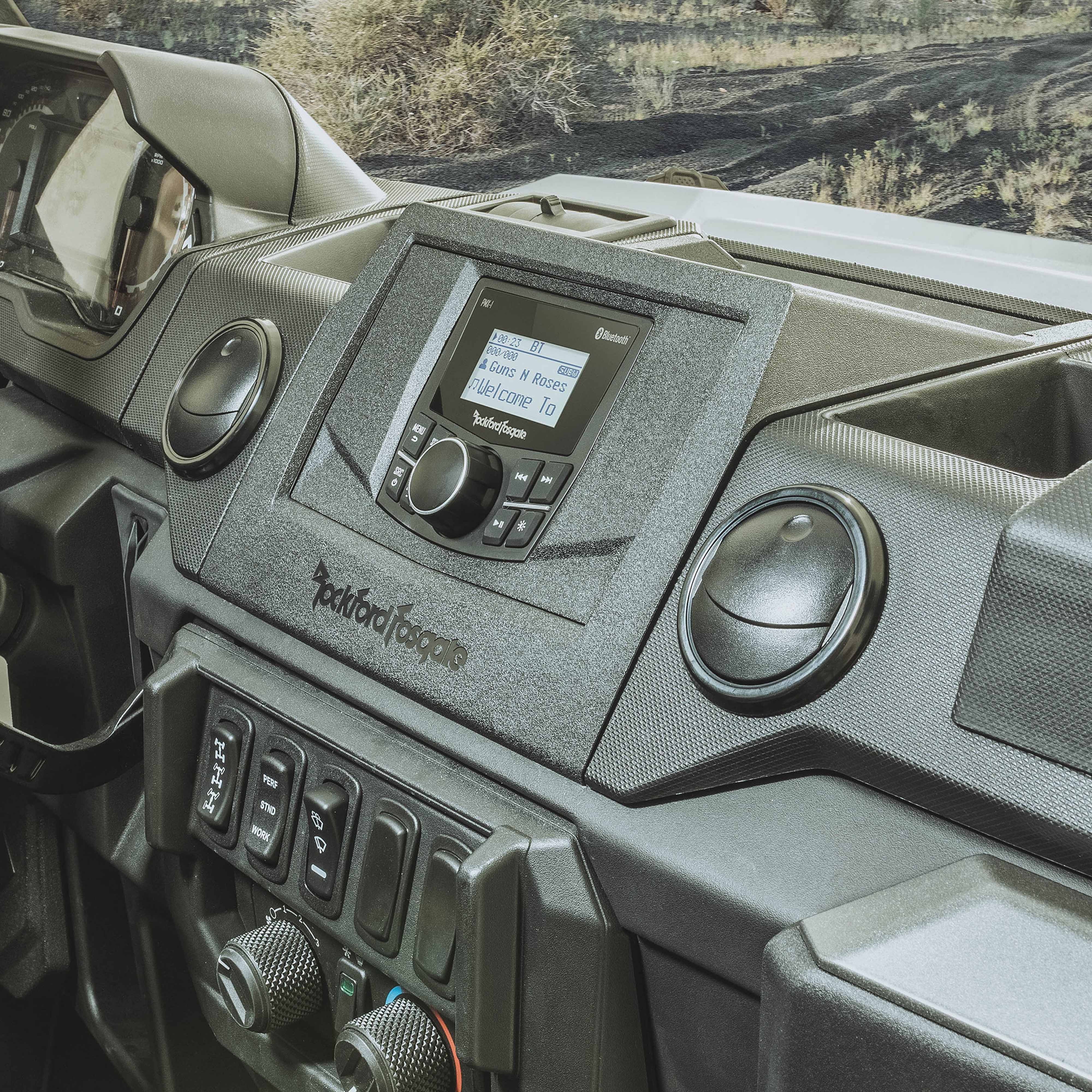

(1) Rockford Fosgate PMX-1: Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

(1) Rockford Fosgate RNGR18-DK: Dash kit for PMX-1, PMX-2 or PMX-3 on select Polaris Ranger models

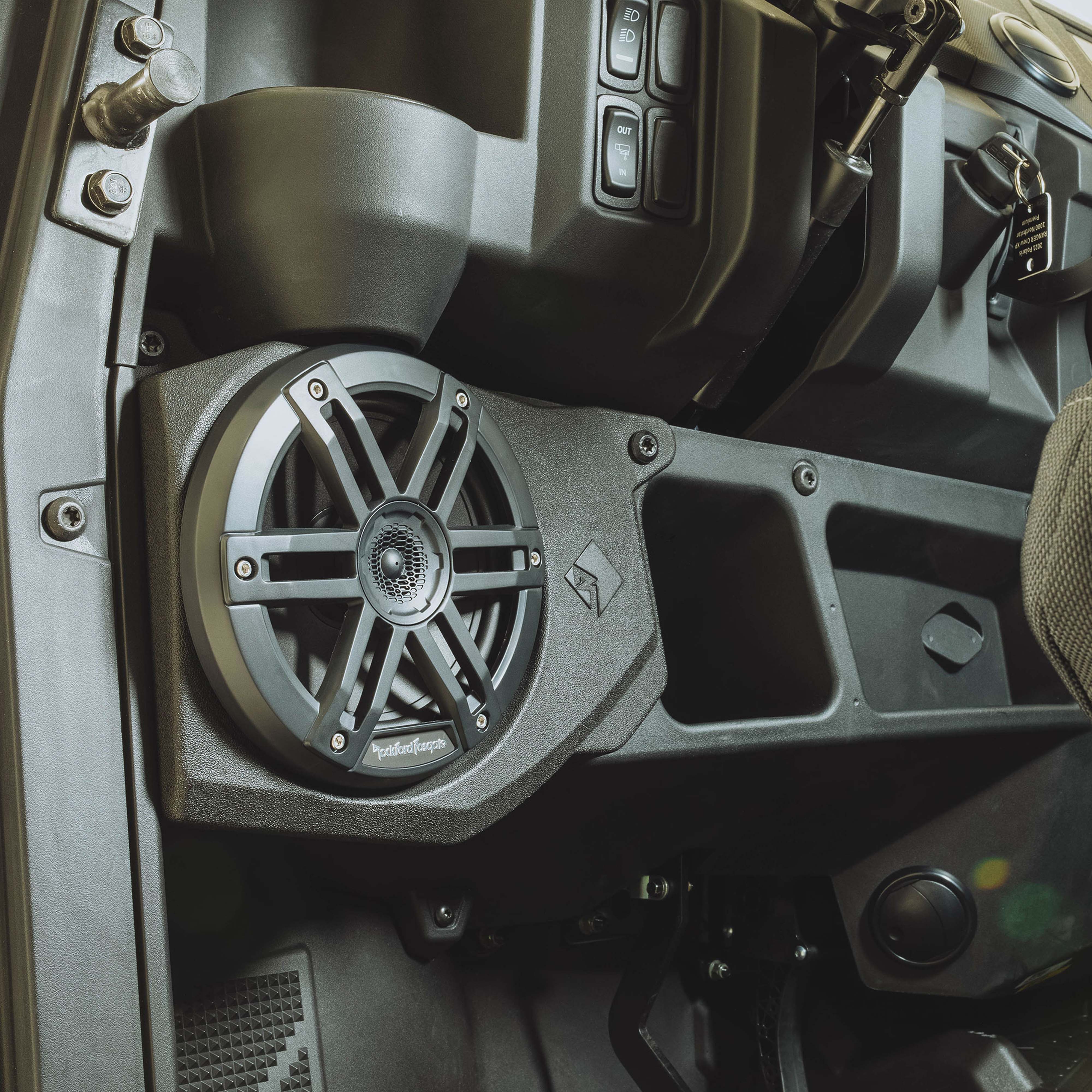

(2) Rockford Fosgate RNGR18-FSE: 6.5" front Color Optix speaker pods for select Polaris Ranger models

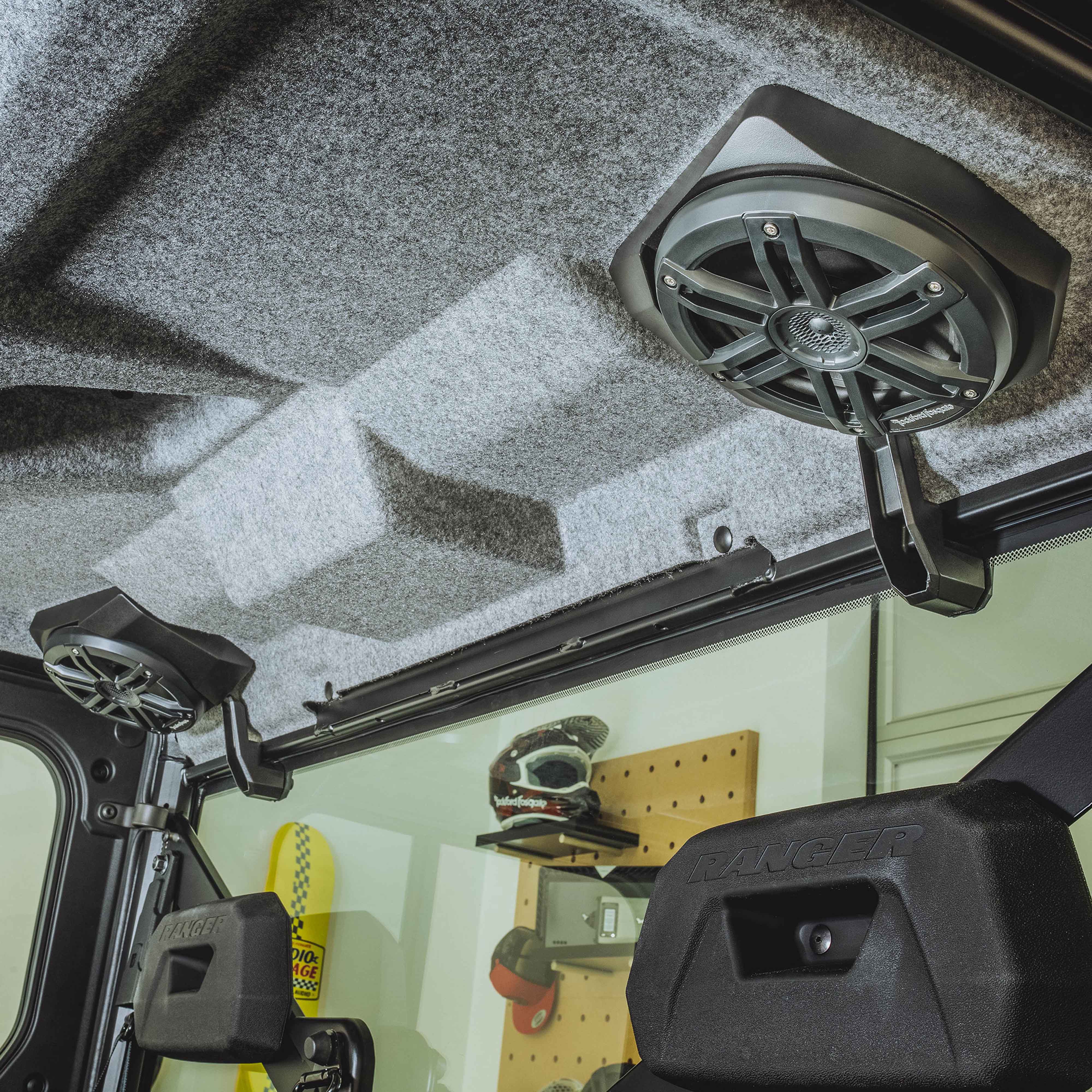

(2) Rockford Fosgate RNGR18-RSE: 6.5" rear speaker pods for select Polaris Ranger (requires Polaris poly roof)



SPECIFICATIONS PER M0-65B SPEAKER:

Type: 2-Way Full-Range

MAX Power: 250 Watts

RMS Power: 65 Watts

Impedance: 4 Ohm

Tweeter Size: 0.5" (12.7mm)

Crossover: High-Pass (HP): 6dB

Sensitivity (dB @ 2.83V/1M) 90.5dB

Frequency Response: 40Hz ~ 25kHz

Grille/Trim Ring Included: Yes

Mounting Hardware: Stainless Steel



DIMENSIONS PER SPEAKER:

Overall Diameter: 7.09 (180.1mm)

Overall Height: 3.54 (90mm)

Mounting Depth: 2.52" (63.9mm)

Cutout Diameter: 5.38 (136.6mm)

Grille Height: 1.03 (26.1mm)





SPECIFICATIONS FOR PMX-1 MEDIA RECIEVER:

Bluetooth: Yes 3.0+EDR, A2DP 1.3

Aux Input: Yes (1 RCA Pair)

USB Charging: Yes

TUNER Number of Presets: 18 FM / 12 AM / 6 WB

AM Tuner: Range 530 - 1710 kHz

Sensitivity: 40 dB

Frequency Response: 45 to 2.4 KHz

FM Tuner: Range: 87.9 - 107.9 MHz

Sensitivity: 8 dB

Frequency Response. 20 - 15 KHz

25W x 4 @ 4 Ohm RMS

50W x 4 @ 2 Ohm MAX

Min Speaker Impedance: 2

Frequency Response: RCA: 20 Hz - 20 kHz

High-Level: 20 Hz - 20 kHz

Signal to Noise Ratio: RCA 2V: Less than 85 dB

Media Formats:

MP3, WMA, AAC, DRM

USB Version: 2.0



DIMENSIONS:

Width: 4.5" (11.5cm)

Face Depth: 1.5" (3.8cm)

Mount Depth: 2.9" (7.4cm)

Height: 4.2" (10.6cm)

Back Panel Cutout: 3" (77mm)
