• Takes place of 5 gallon bucket location under front or rear seat
• Texture and color matched to vehicle interior
• Injection molded Centrex plastic with integrated UV inhibitors
• Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
• Port cap included to create sealed enclosure for tighter response or when submerging UTV
• Designed for use with Color Optix™ M1D4-10 and M1D4-10B subwoofers
• Designed for use with Color Optix™ M2D4-10I and M2D4-10IB subwoofers
• 1 Year Warranty

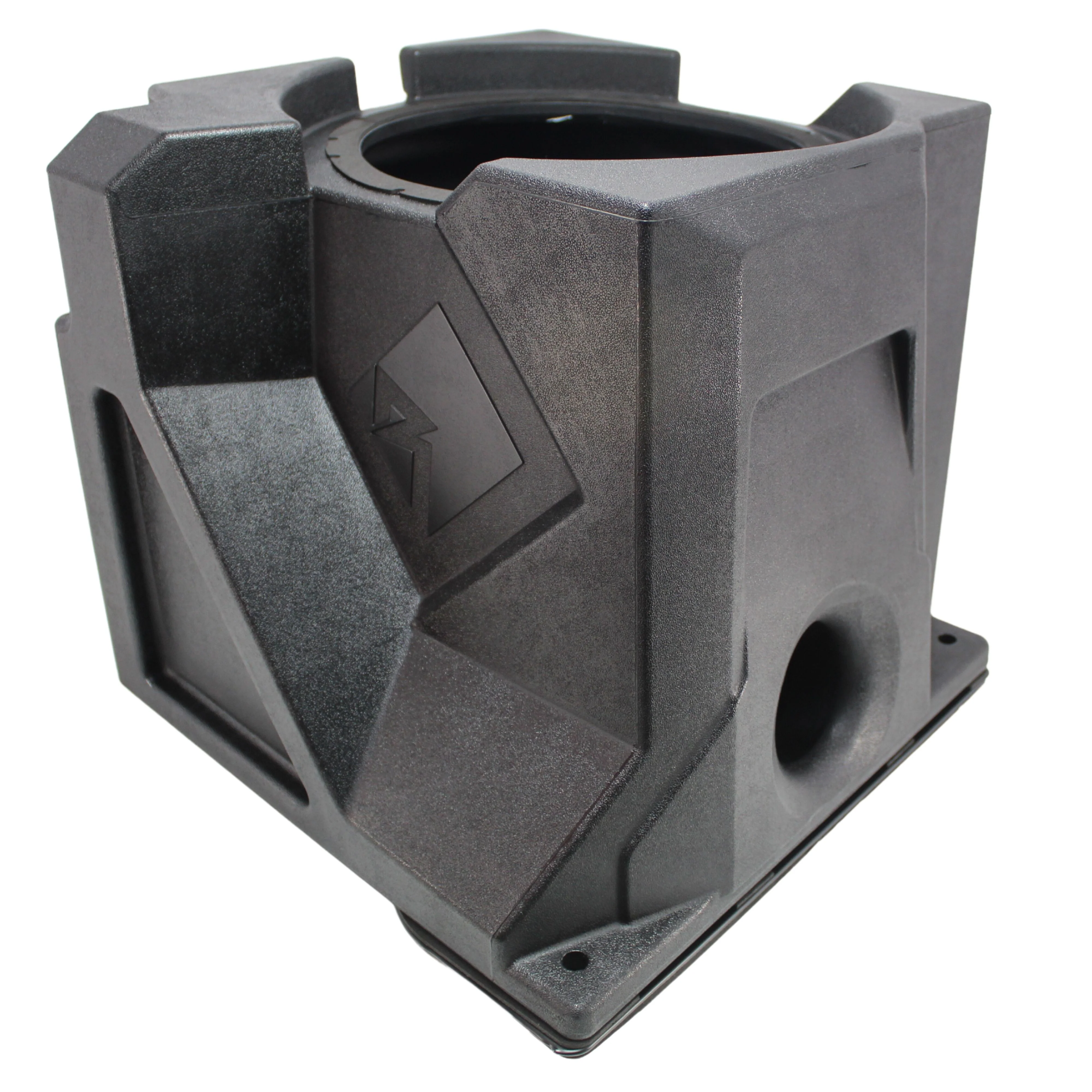

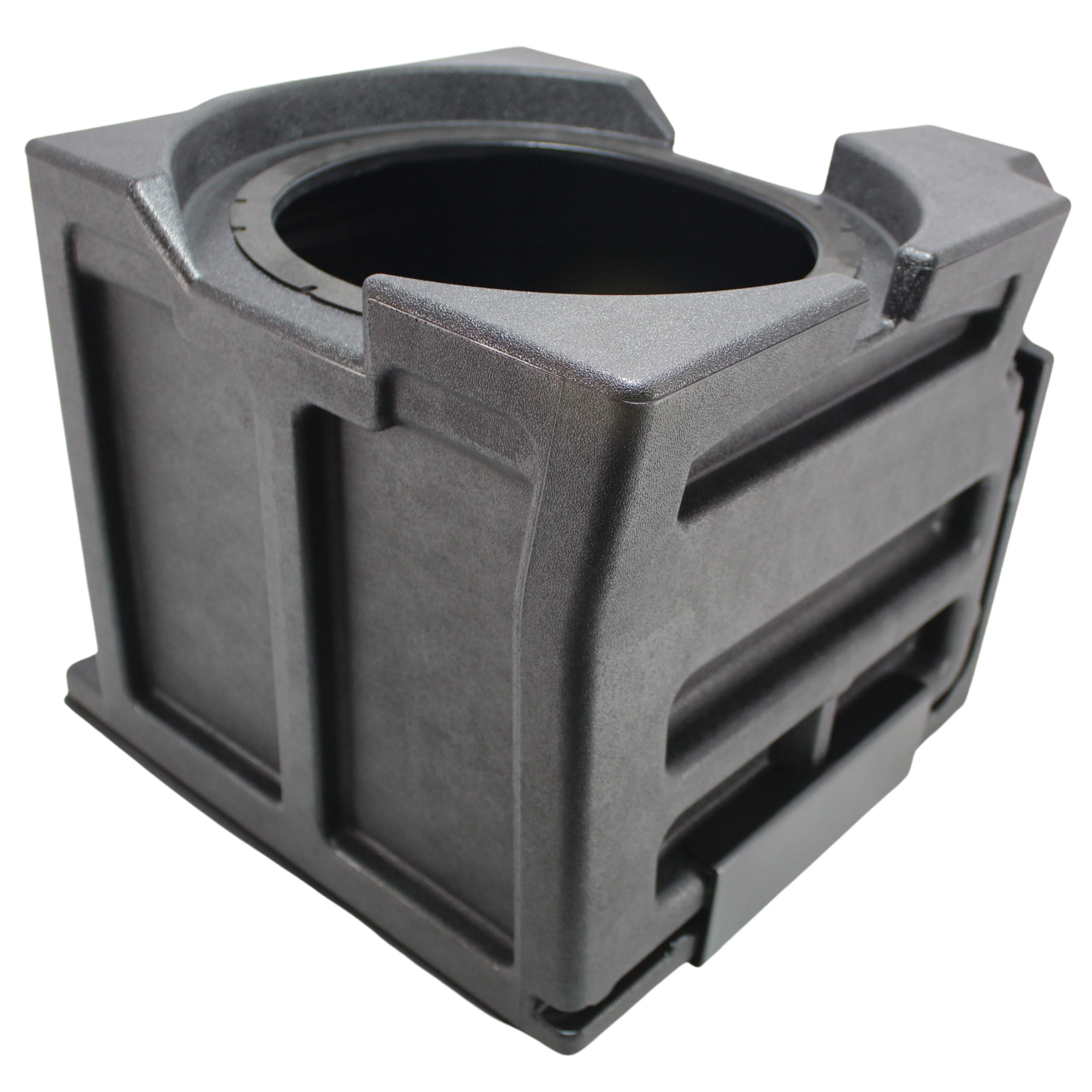

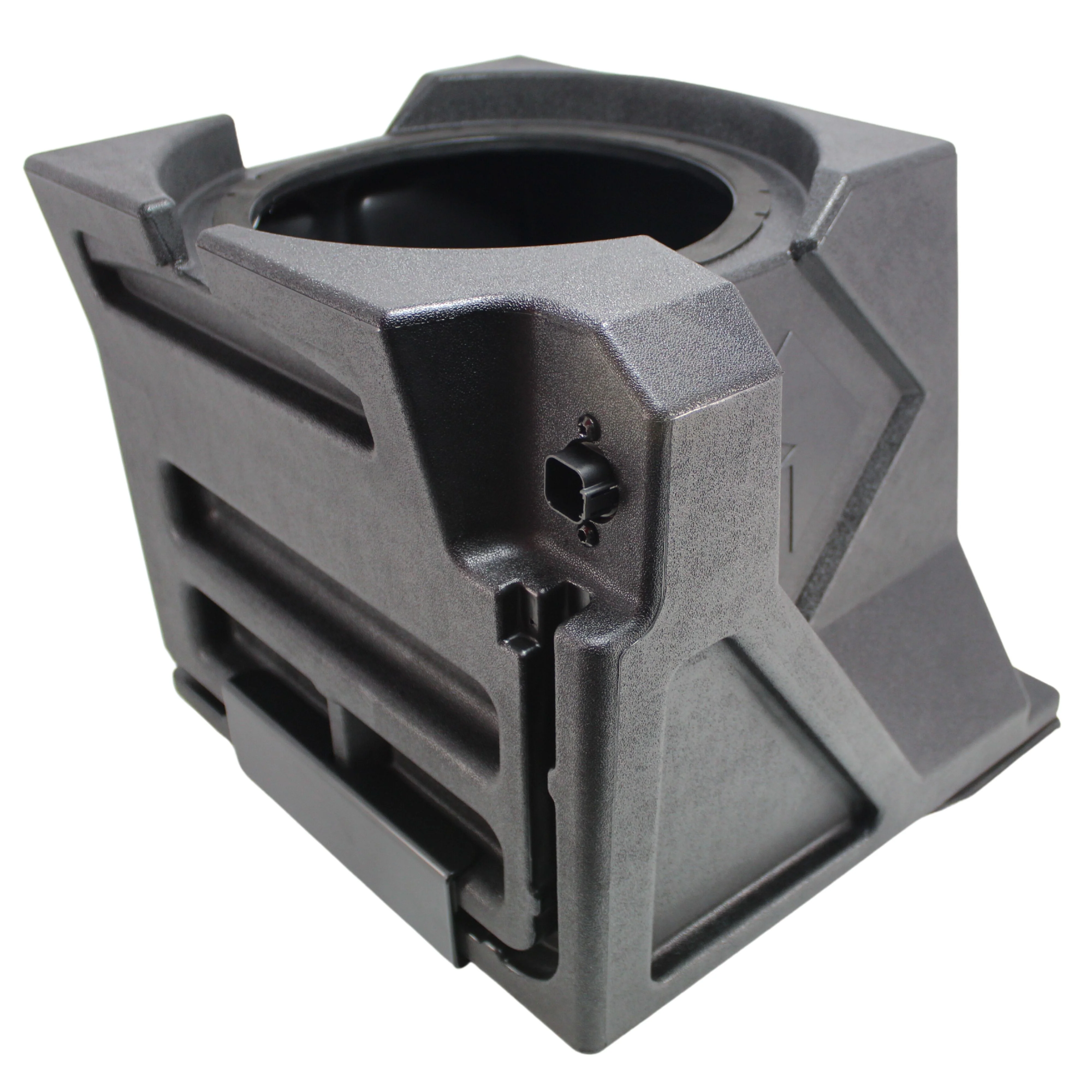

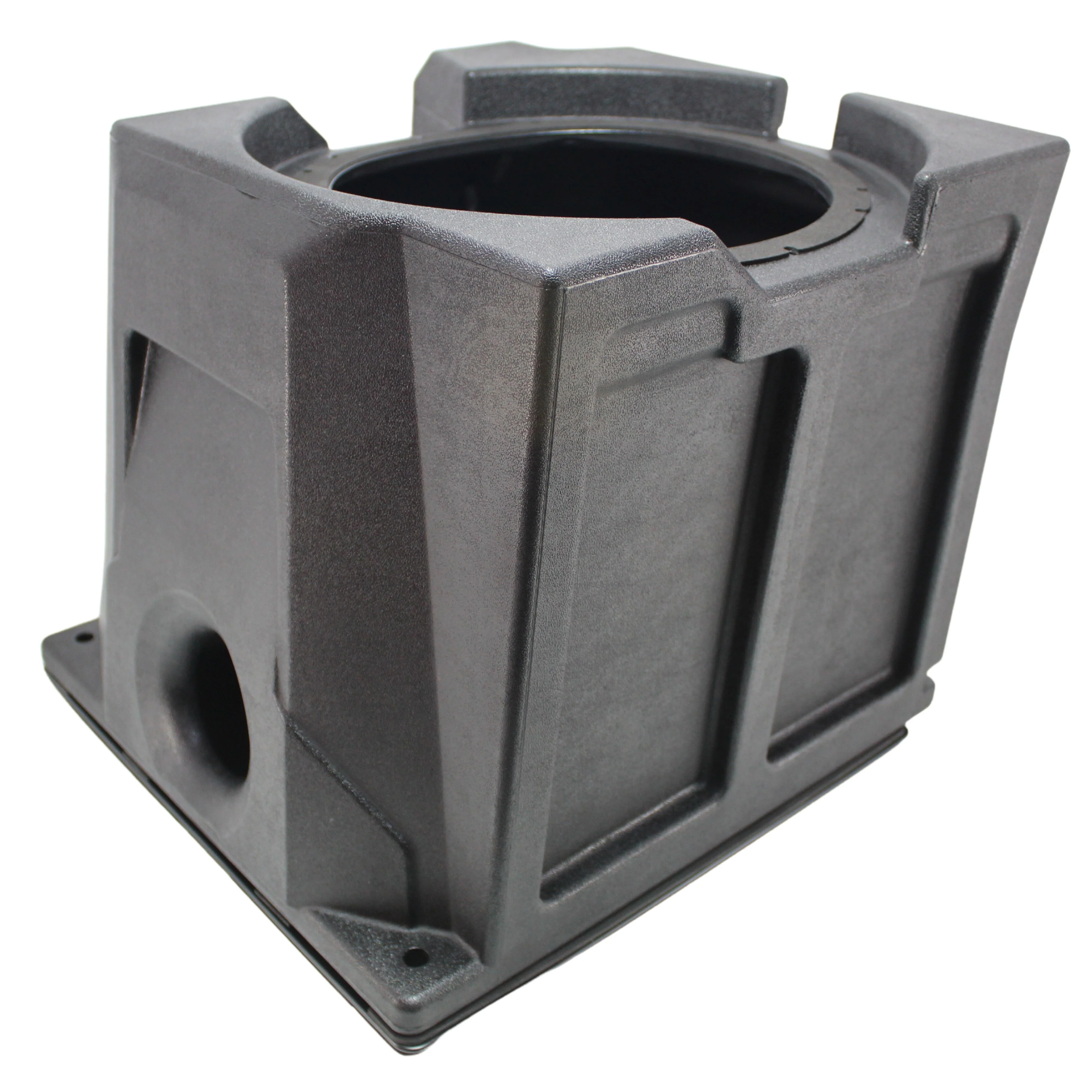

Rockford Fosgate 10" Color Optix Subwoofer Enclosure for 2018+ Ranger (Gen-2) FWE

This listing includes:

• (1) Rockford Fosgate 10" Color Optix Subwoofer Enclosure for select 2018+ Ranger models (gen 2)

The new 2nd generation 10" subwoofer enclosure is Color Optix℠Ready for systems utilizing M1 and M2 series subwoofers. The newer roto-molded composite blend is lighter in weight and designed to directly fit select RANGER model vehicles. New Vented design produces louder output over previous Gen-1 model. Includes vent cap to create sealed enclosure for tighter response or when submerging your UTV. Subwoofer enclosure fits under the front or rear passenger seat where the 5-gallon bucket emboss is located. Designed for use with M1/M2 series 10" woofers. Kit includes all needed hardware for the installation.

Rockford Fosgate audio systems for select 2018+ RANGER models are 100% Element Readyâ„, providing the ability to take your off-road vehicle into any environment. The system features a plug and play design, requires minimal drilling for some components, and includes step-by-step installation videos.  NOTE: This bundle is provided as a rear-subwoofer upgrade for RNGR18-STG4, RNGR18-STG5, RNGR18RC-STG5, RNGR18-STG6, and RNGR18RC-STG6. Wiring this subwoofer in parallel with the existing subwoofer included in the STG kit will create a 1© load on the M5-1500X5 subwoofer channel, which the amplifier is stable to handle.

Features:

• Element Ready | Motorsports


• IPX6 Water Intrusion Rating


• Color Optix Control

In the box:

Included In The Box:

• (1) 1510-75386-01 Front Woofer Enclosure


• (1) 1560-73630-01 Wiring Harness 1250mm, 4x 22AWG & 2x 16AWG

1130-75442-01 Accessory Pack:

• (1) 1025-71321-01 Wire Saddles 23.8 * 9.6 x 12.05


• (1) 1125-61435-01 Cable Tie 0.19W x 14.5 in.


• (2) 1125-71317-01 Screw M8 x 1.25, 29.5mm, 13mm Hex


• (2) 1125-71319-01 Split Lock Washer M8, 2.1mm


• (1) 1125-74670-01 Screw Flanged Socket T 3.5 x 13


• (3) 1125-75385-01 Screw Round M6 x 1.0, 37.5mm, T40 Torx


• (2) 1125-75436-01 Washer 16.0mm OD, 8.5mm ID, 1.0 mm

Specifications:

• Shipping weight: 19 lbs
