• Circuit Topology Class: Class AD
• Signal InputHigh/Low Level Input: 4-Pin harness
• 2-channel amplifier with high efficiency
• Conformal coated pc board
• Motorsport and marine applications

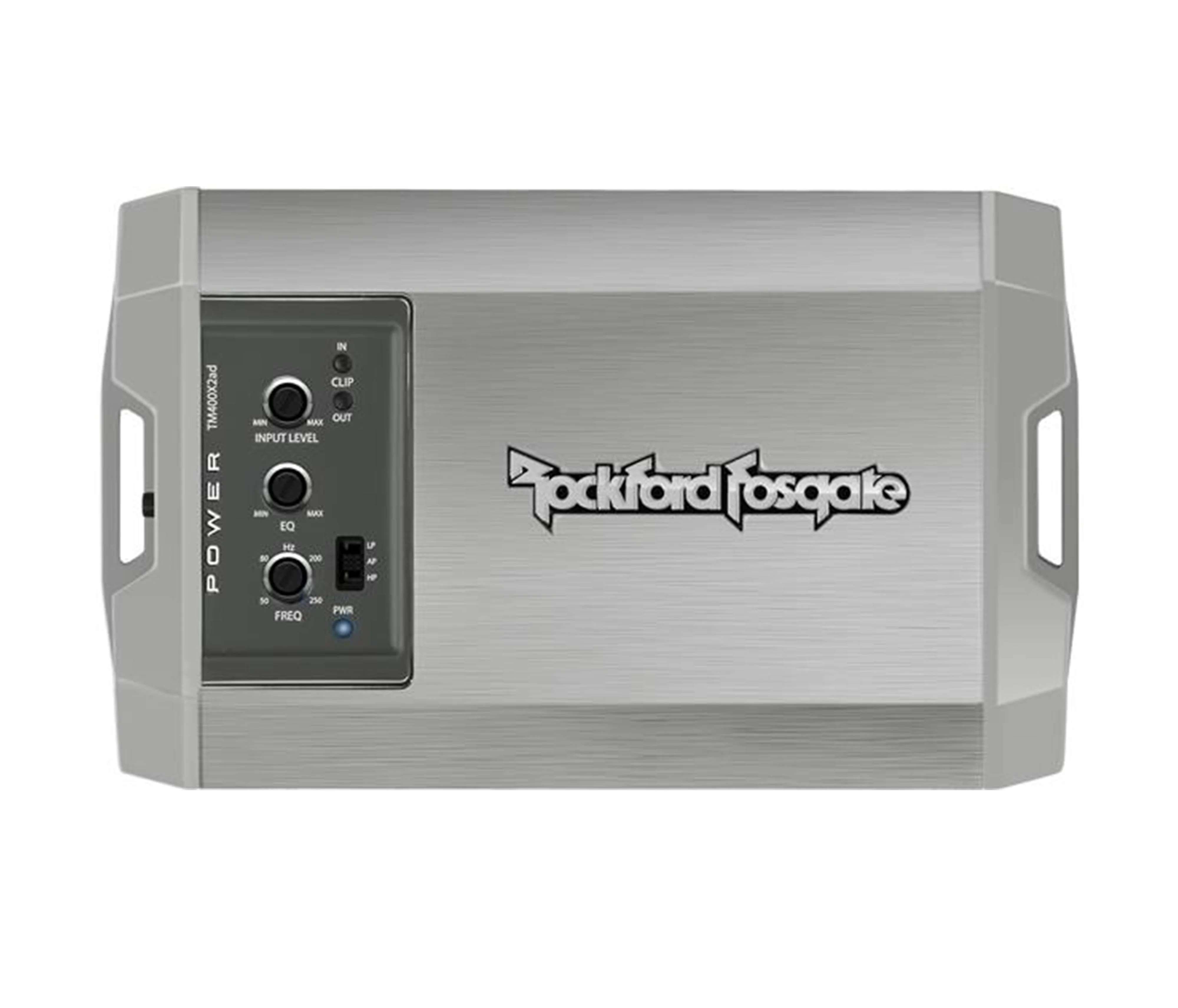

Rockford Fosgate 400 Watt 2-Channel Marine & Powersports Amplifier TM400X2ad







The TM400X2ad is a 400 Watt 2-channel amplifier with high efficiency Class-ad technology and a conformal coated pc board designed for motorsport and marine applications.







This Listing Includes:



(1) Amplifier







Features:



- 200 watts RMS x 2 at 4 ohms (400 watts peak per channel)



- 200 watts RMS x 2 at 2 ohms



- 400 watts RMS x 1 at 4 ohms (bridged)



- Bridgeable: Yes



- Frequency Response: 20Hz - 20kHz +/-1dB



- Input Sensitivity: 150 mV - 12 V



- Circuit Topology Class: Class AD



- Signal InputHigh/Low Level Input: 4-Pin harness



- Operating Voltage: 9 - 16 VDC



- Power Wire Gauge: 8 AWG







Crossover Controls



- High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth



- Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth



- All-Pass: Yes
