Rockford Fosgate 5 Channel 1000 Watt Class AD Power Marine Amplifier TM1000X5ad

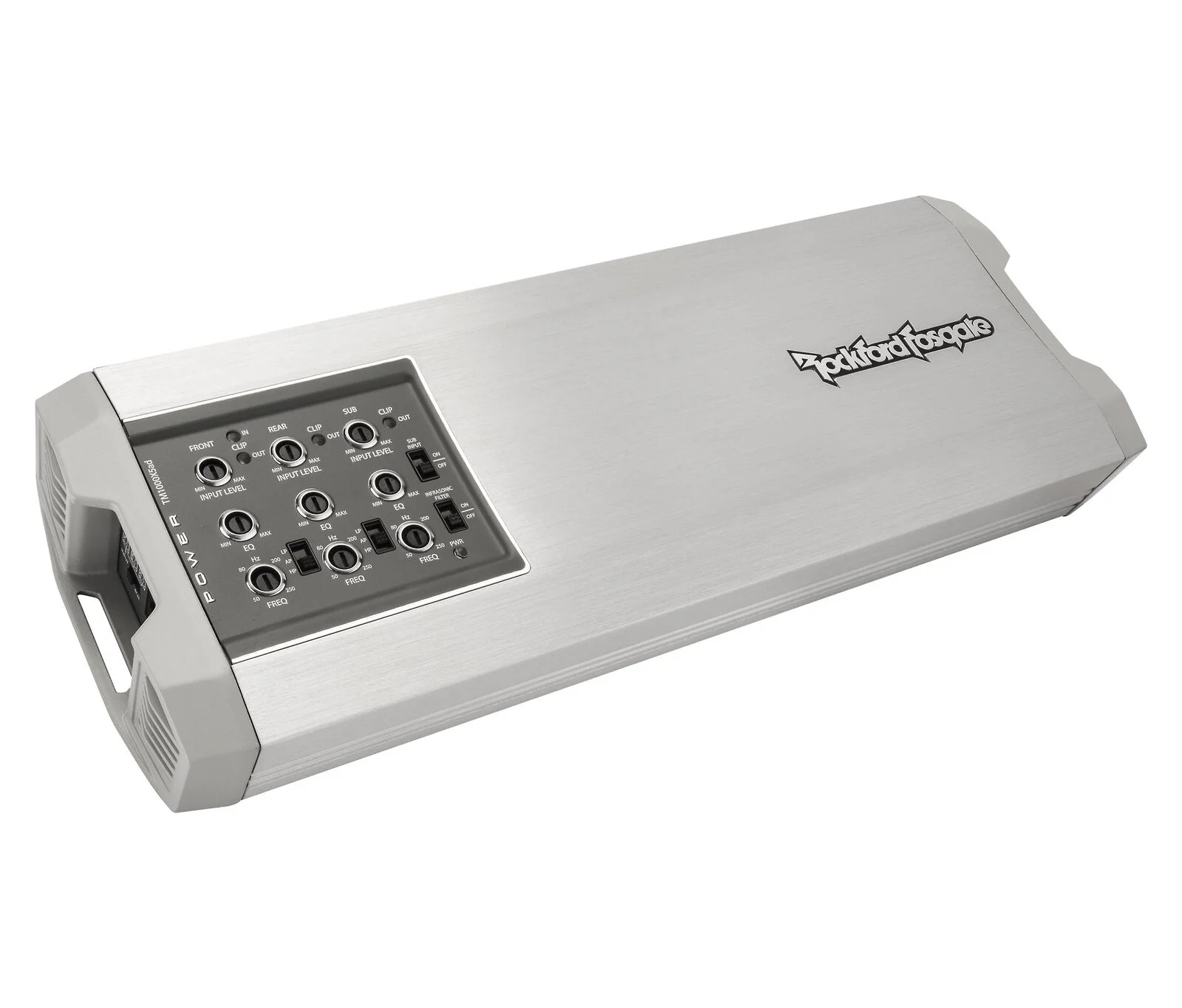

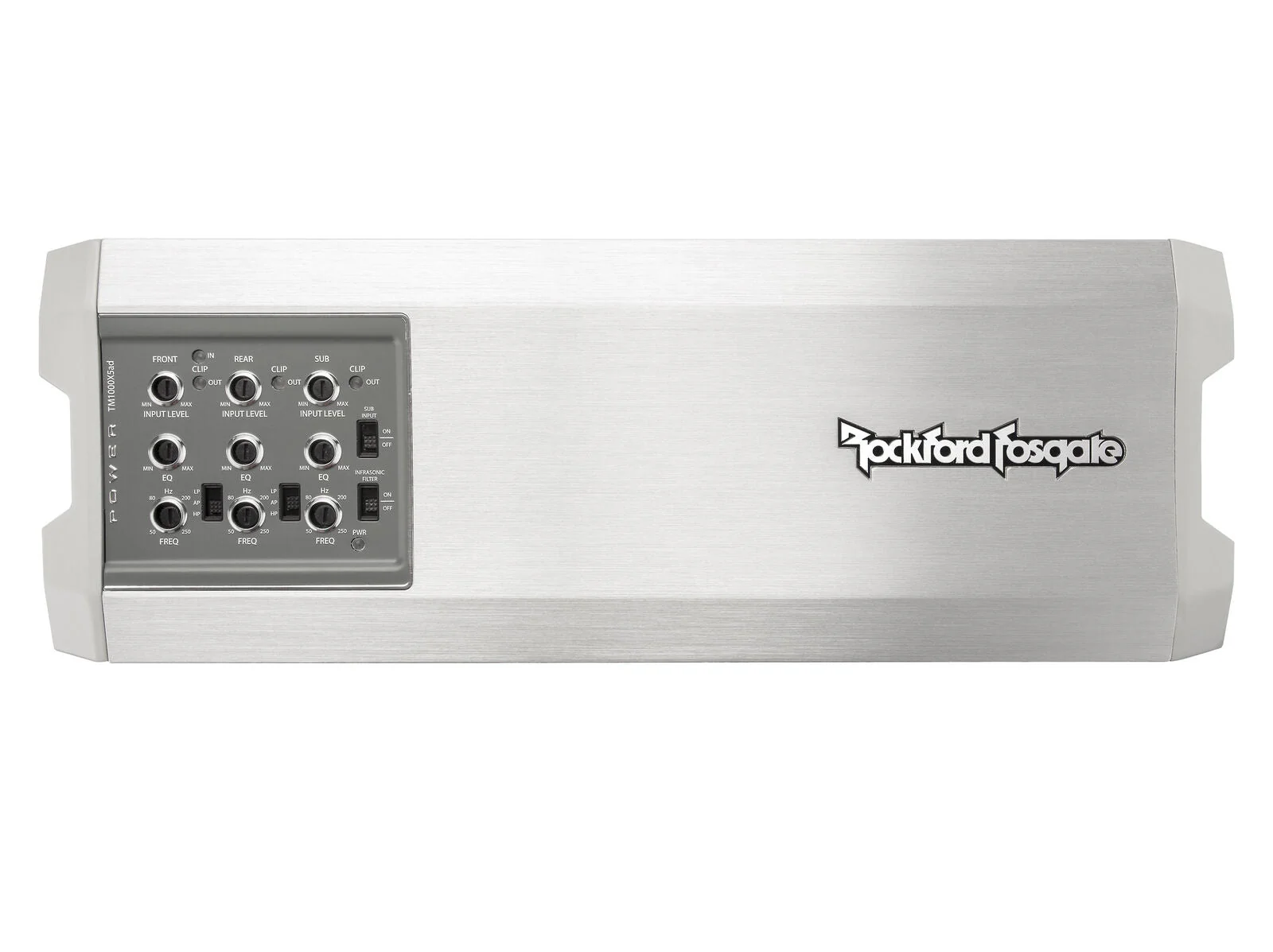

The Power Marine TM1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs



This Listing Includes:

(1) Amplifier



Features:

- Rockford Fosgate proprietary Class AD technology

- Class bd Technology

- Differential inputs with high level auto turn-on feature

- AP remote out feature when using high level inputs

- 4/2 Ohm Multi-Impedance Constant Power

- C.L.E.A.N. input/output clip detection and indicator LEDs

- Top mounted controls

- Dual fan cooled

- Real time thermal sensing

- Dual extruded heat sinks

- All other Rockford protection schemes

- CEA-2006 and CE Compliant

- Discrete surface mount technology

- Marine grade two part epoxy coating on circuit boards



Specifications:

Number of Channels: 5

Total Power: 1000 Watts

Bridgeable: Yes

Frequency Response: 20Hz - 20kHz

Input Sensitivity: 150 mV to 12 V

Circuit Topology Class: Class AD + Class BD (Sub)

Efficiency (average): More Than 85%

Optional PLC2 provides Punch Level Control (Not Included)

Power Wire Gauge: 4 AWG

Power Input Connector: Detachable Compression Terminal



Rated Power

- 100 Watts x 4 + 400 Watts x 1 @ 4

- 100 Watts x 4 + 600 Watts x 1 @ 2

- N/A + 600 Watts x 1 @ 1

- 200 Watts x 2 @ 4 Bridged + N/A



Dynamic Power

- 138 Watts x 4 + 487 Watts x 1 @ 4

- 118 Watts x 4 + 748 Watts x 1 @ 2

- N/A + 663 Watts x 1 @ 1

- 225 Watts x 2 @ 4 Bridged + N/A

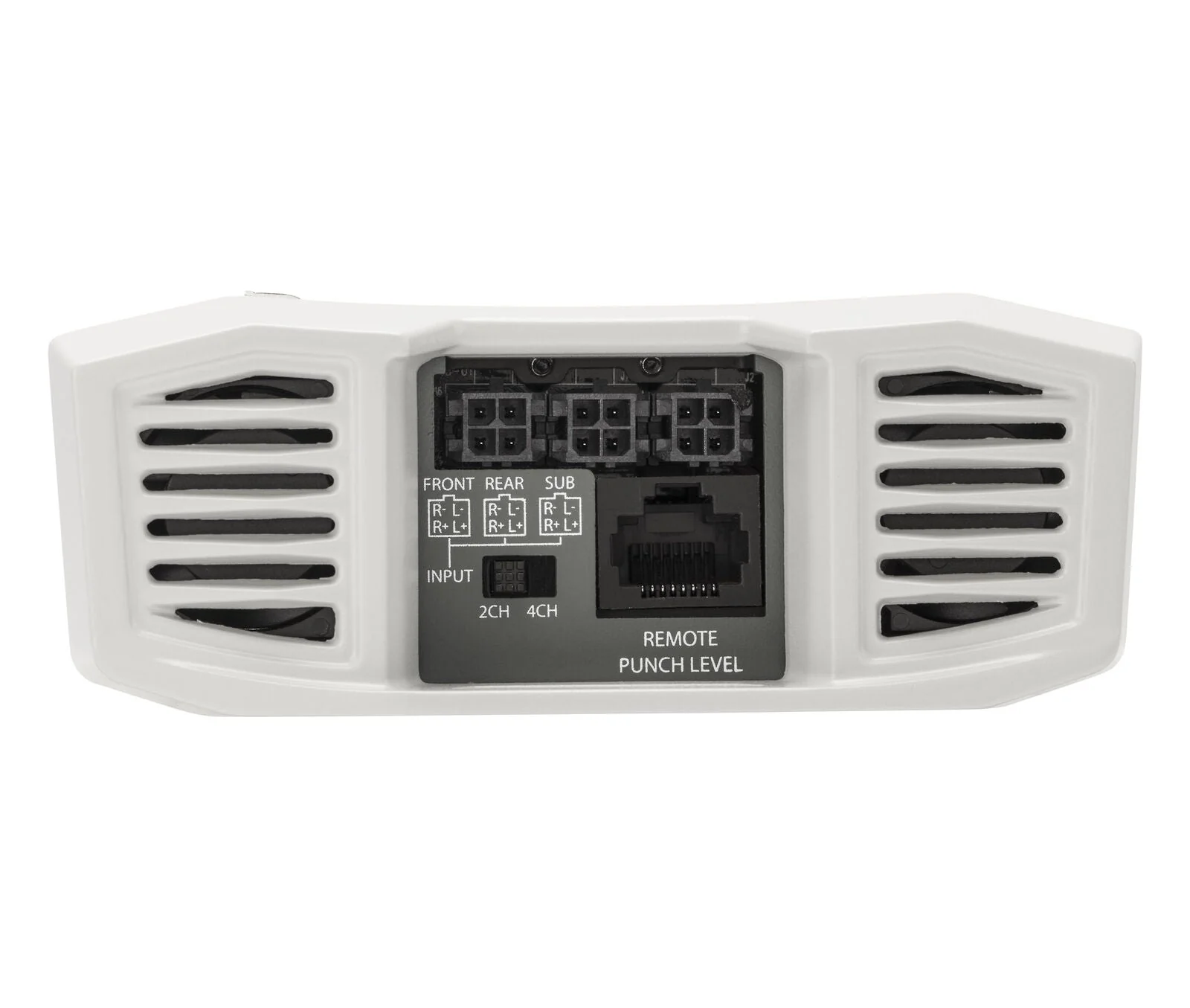

Signal Input

- Front High/Low Input: 4-Pin harness

- Rear High/Low Input: 4-Pin harness

- Input Switch: 2CH/4CH



Tone Controls

- Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)

- Front/Rear Bass: 0 to +18 dB @ 45Hz (LP mode)

- Sub: 0 to +18 dB @ 45Hz



Crossover Controls

- High-Pass: 50Hz - 250Hz @ 12dB/Octave

- Low-Pass: 50Hz - 250Hz @ 12dB/Octave

- Subwoofer: 50Hz - 250Hz @ 12dB/Octave

- Infrasonic: 28Hz @ 12dB/Octave

- Butterworth Alignment on all filters



Visual Indicators

- Power: Blue LED

- Protect: Red LED

- Input Clip: Red LED3

- Output Clip: Blue/Violet/Red LED1,2,3



LED Color Legend:

- 1BLUE: Less Than or Equal to 0.5% THD

- 2VIOLET: 1% THD

- 3RED: 10%+ THD



Speaker Wire Gauge

- Front/Rear: 16 AWG

- Sub: 10 AWG

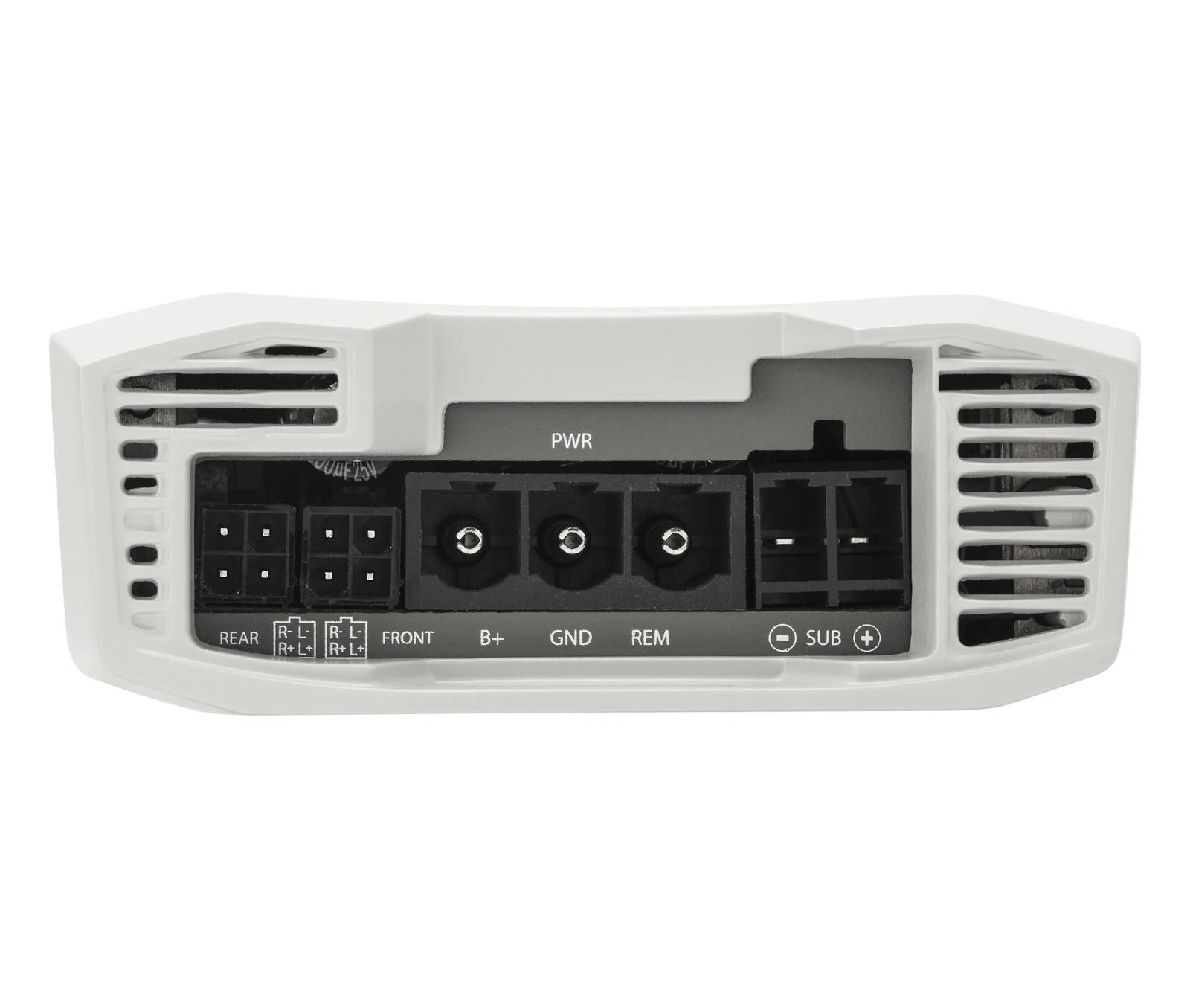

Speaker Output Connector

- Front: 4-Pin Harness

- Rear: 4-Pin Harness

- Sub: Detachable Compression Terminal
