Rockford Fosgate 6 Fullrange Speakers 220W 4 Ohm 2 Way Coax & 1 Tweeters 200W

Fanatics that need a great sounding speaker to replace factory installed garbage will certainly benefit from this Punch series full-range speaker. The P16 offers a Flex Fit basket to ensure compatibility with odd shaped factory speaker locations and an ICC (Integrated Concealed Crossover), eliminating the need to mount any black boxes.

Highlights:

- FlexFit basket design.

- Injection molded mineral filled polypropylene cone.

- OEM adapter plate included.

- PEI dome tweeter.

- Butyl midrange rubber surround.

- 1 Year Manufacturer Warranty.

The PP4-T Punch Pro is a 1.5" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.

Highlights:

- Aluminum diaphragm.

- All Metal Input Spring Terminal Connection.

- High Temp Kapton Former Voice Coil.

- Die Cast Aluminum Housing.

- Billet stock machined aluminum phase plug.

- Mounting hardware included.

- Built-in 6dB/Octave crossover.

- 1 Year Manufacturer Warranty.

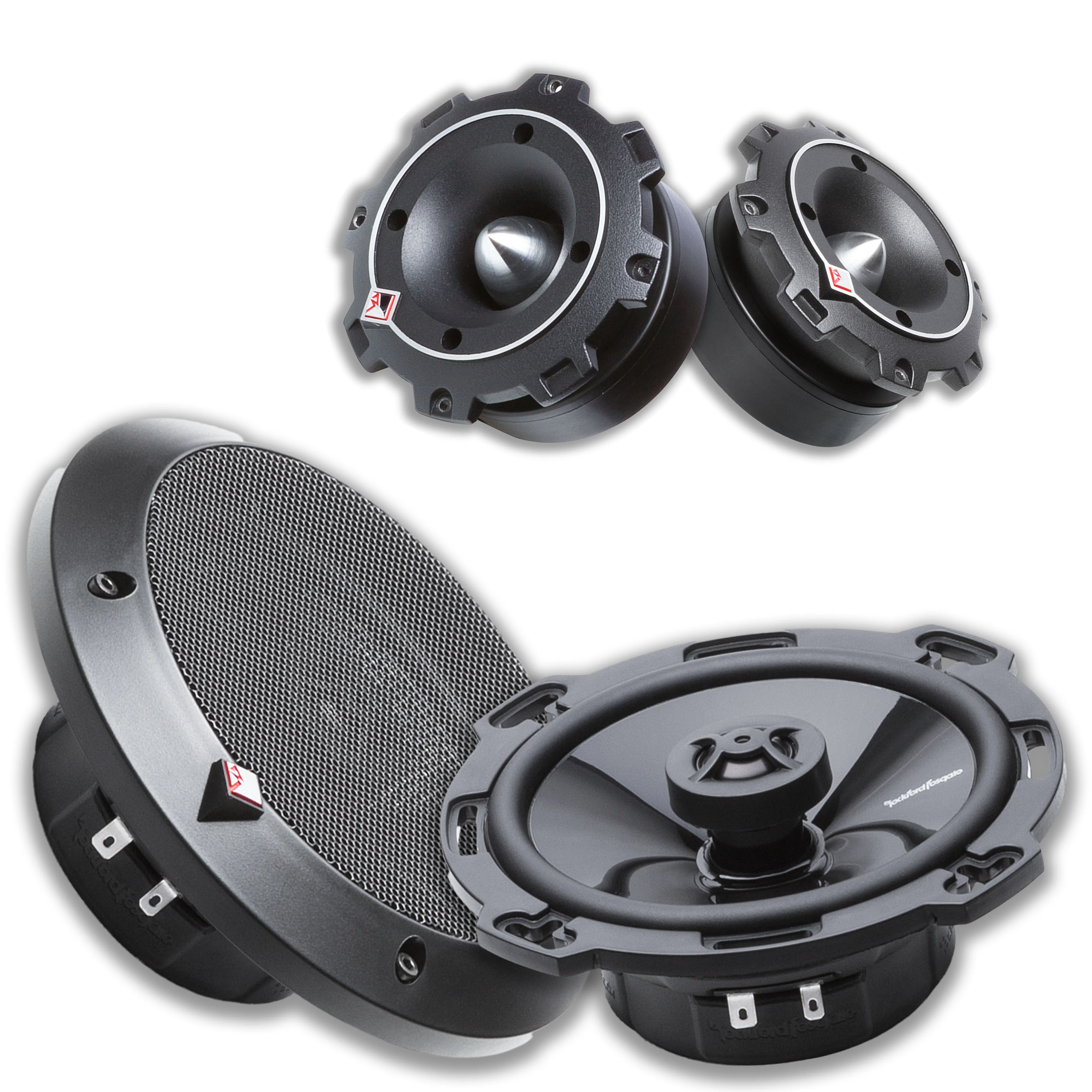

This listing includes:

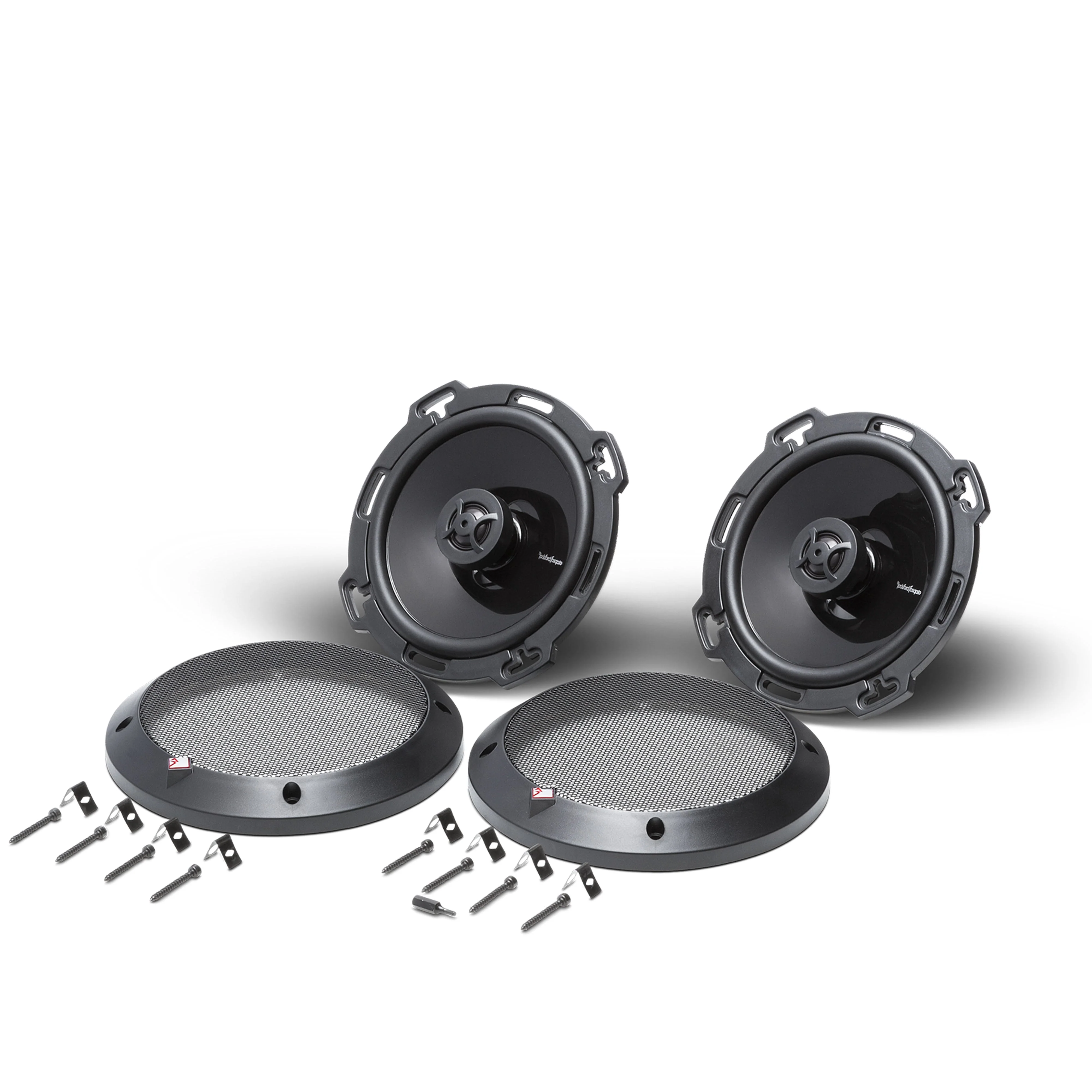

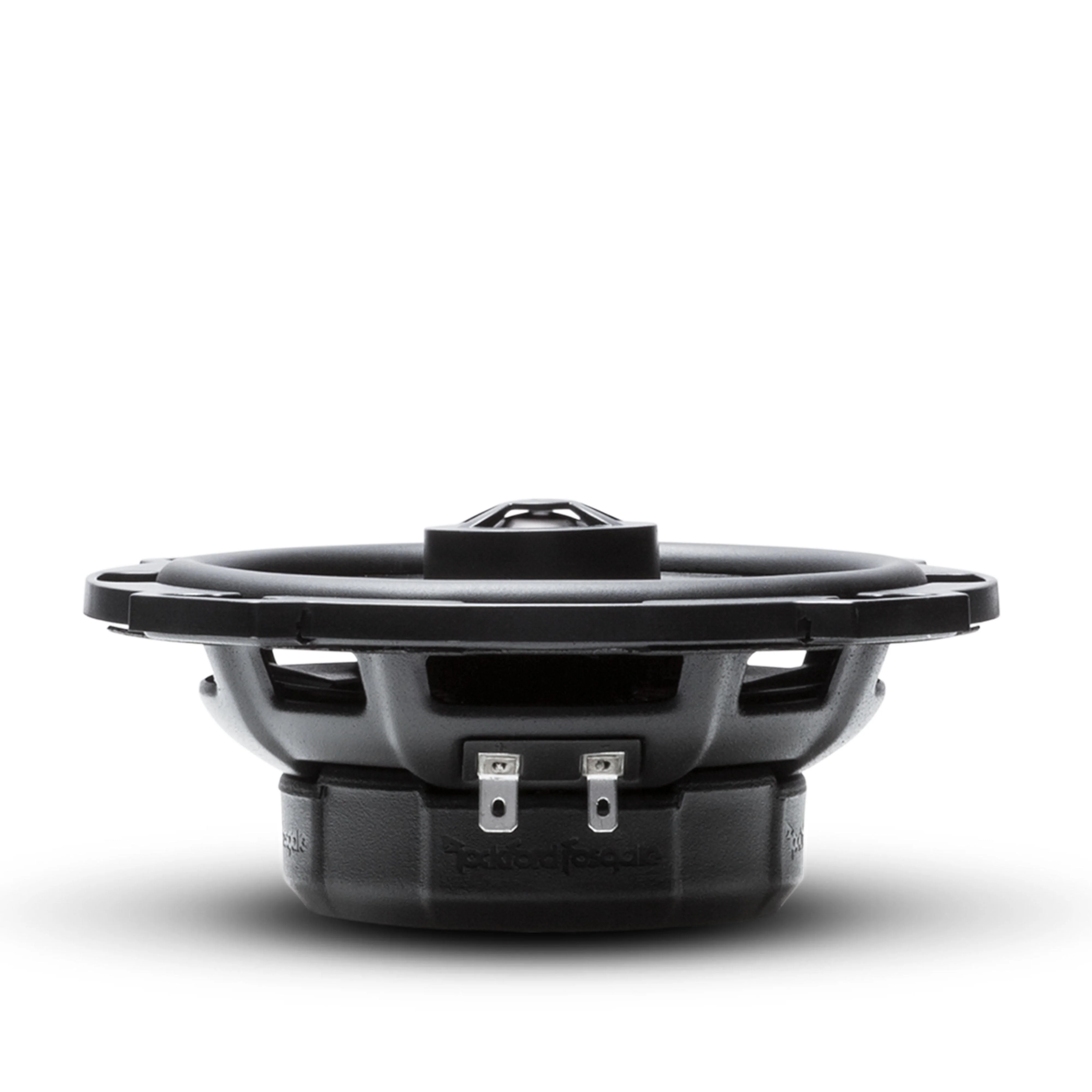

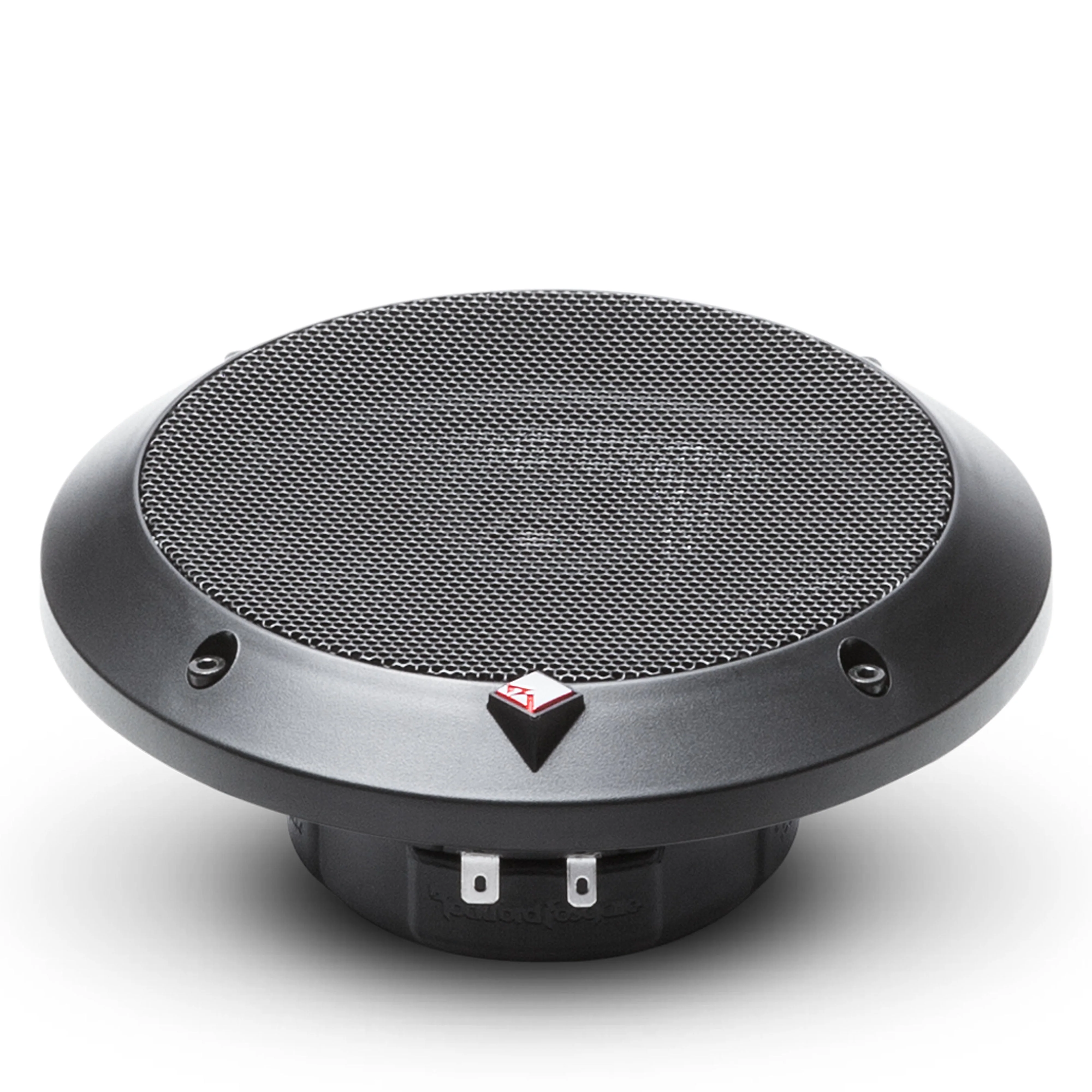

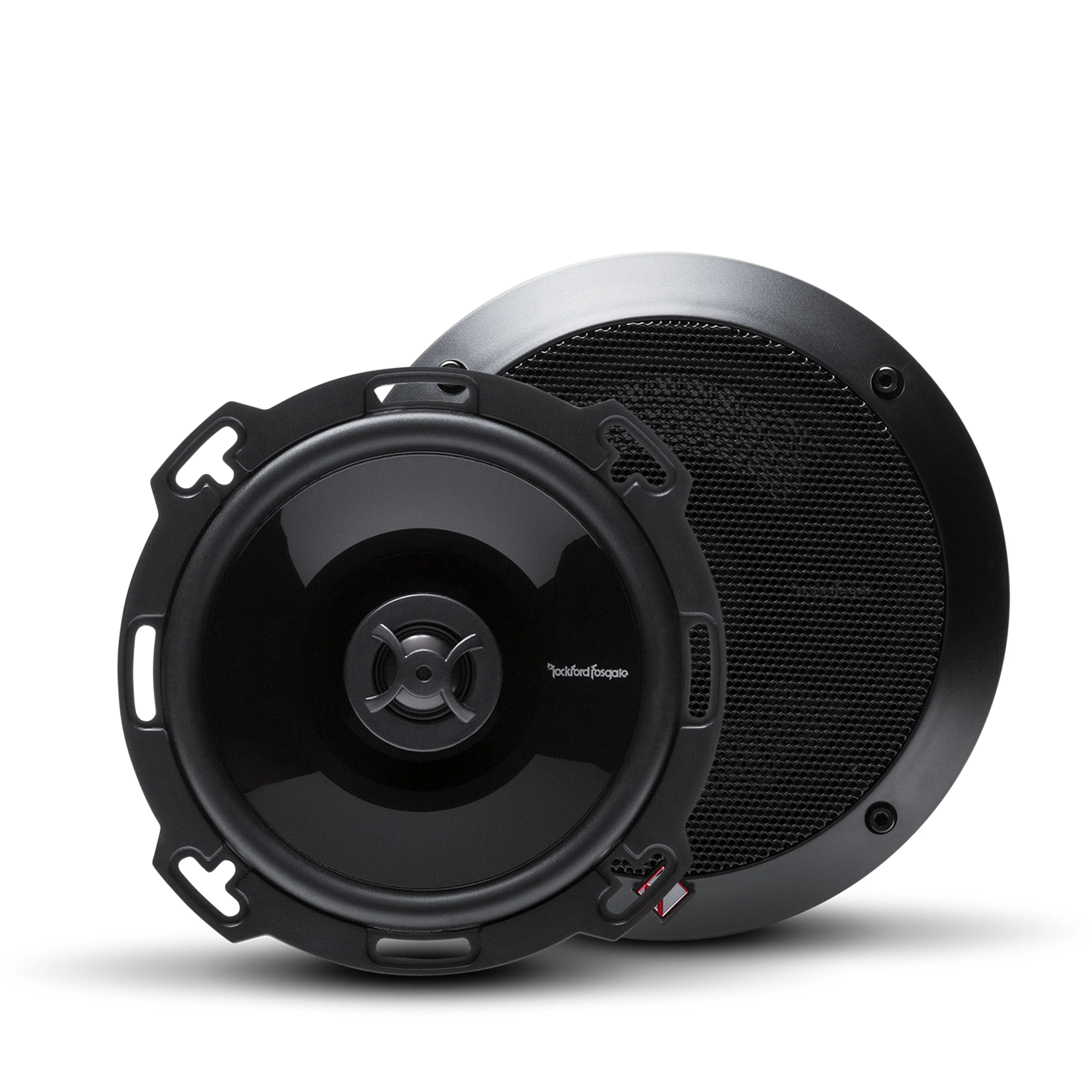

(2) Rockford Fosgate 6 Fullrange Speakers P16

(2) Rockford Fosgate 1.5 Tweeters PP4-T

SPECIFICATIONS PER P16 SPEAKER:

Speaker Type: 2 Way Coaxial

Nominal Diameter: 6 (153mm)

Nominal Impedance: 4 Ohm

MAX Power Handling: 110 Watts

RMS Power Handling: 55 Watts

Sensitivity (1w/1m): 88dB

Sensitivity (2.83V/1m): 91dB

Frequency Response: 65Hz ~ 22KHz

Crossover: Built in Tweeter Crossover

MOTOR:

Voice Coil Diameter: 1 (25.4mm)

Cone Material: Mineral Polypropylene

Surround Material: Butyl rubber

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 0.60ft (16.8L)

Excursion: X-max - 3.5mm

Free Air Resonance: Fs - 65Hz

Total Factor: Qts - 0.68

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.69 (170mm)

Mounting Diameter: 5.05 (128.2mm)

Mounting Depth: 1.93 (49mm)

Overall Depth: 2.89 (73.4mm)

Trim Ring Diameter: 6.89 (175mm)

Trim Ring Height: 0.94 (23.8mm)

-------------------------------------------------------------------

SPECIFICATIONS PER PP4-T TWEETER:

Nominal Diameter: 1.5 (38.1mm)

Nominal Impedance: 4 Ohm

MAX Power Handling: 100 Watts

RMS Power Handling: 50 Watts

Sensitivity (1w/1m): 105dB

Sensitivity (2.83V/1M): 108dB

Frequency Response: 4.5KHz ~ 20KHz

Crossover: 4.5KHz @ 6dB/Octave

MOTOR:

Voice Coil Diameter: 1.475 (37.5mm)

Voice Coil Former Material: High Temp Kapton

Diaphragm Material: Aluminum

Free Air Resonance: Fs - 3KHz

DIMENSIONS PER TWEETER:

Overall Diameter: 5.28 (134mm)

Tweeter Mounting Diameter: 4.33 (110mm)

Mounting Depth: 2.59 (65.8mm)
