Rockford Fosgate Audio 6.5" Fullrange Speakers 300W Euro Fit & 1 Tweeters 200W

Get Power series sound quality in a drop-in speaker. These 6.5 2-way full-range speakers inherent all the coolest features from - their big brother - the T1 component systems. Features include a bridge-mounted tweeter and are optimized for a wide variety of U.S., European, and import vehicles. Be prepared, these are more than OEM replacement speakers, their sound quality has been perfected for true Rockford Fosgate fanatics!

Highlights:

- Injection molded carbon fiber filled polypropylene cone.

- 1" treated aluminum dome tweeter.

- VAST vertical attach surround technique increases effective radiating cone area up to 25%.

- Santoprene rubber surround.

- Linear high excursion matched motor magnetics and suspension design.

- High temp aluminum voice coil.

- Stamp-cast aluminum frame.

- Fatigue and tear resistant poly cotton spider.

- FlexFit 2 mounting.

- Integrated concealed 12dB/Octave crossover components.

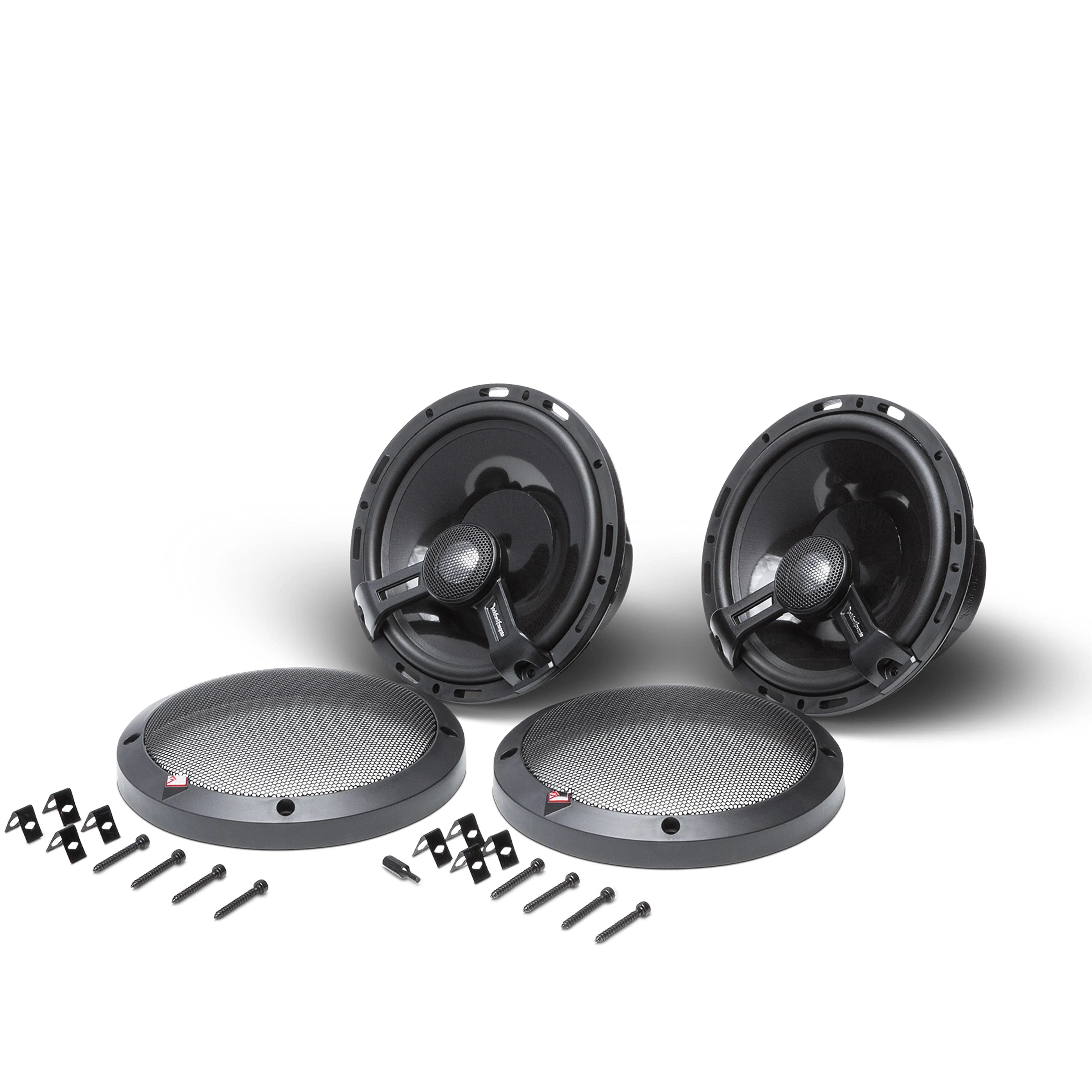

- Grilles and mounting hardware included.

- 1 Year Manufacturer Warranty.

The PP4-T Punch Pro is a 1.5" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.

Highlights:

- Aluminum diaphragm.

- All Metal Input Spring Terminal Connection.

- High Temp Kapton Former Voice Coil.

- Die Cast Aluminum Housing.

- Billet stock machined aluminum phase plug.

- Mounting hardware included.

- Built-in 6dB/Octave crossover.

- 1 Year Manufacturer Warranty.

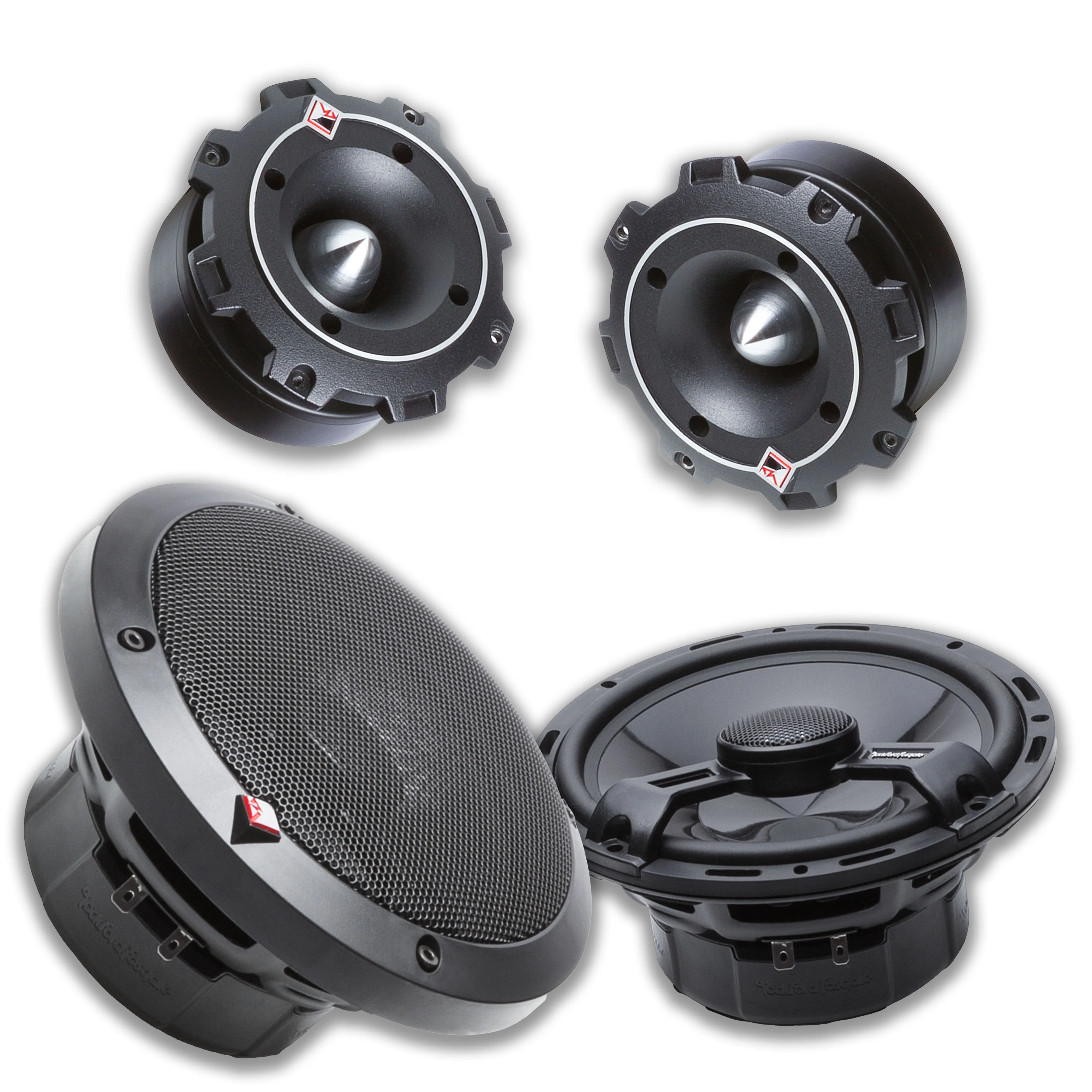

This listing includes:

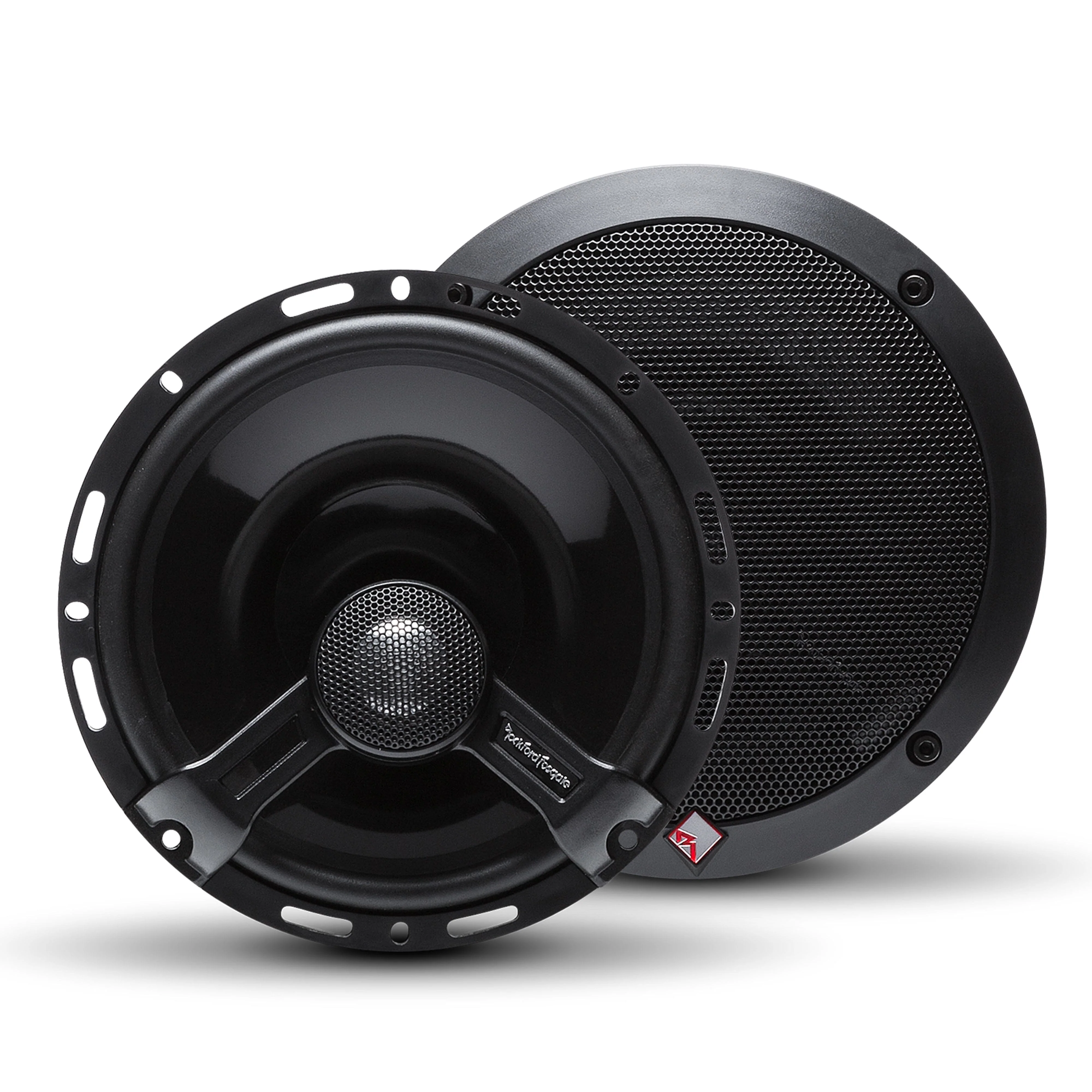

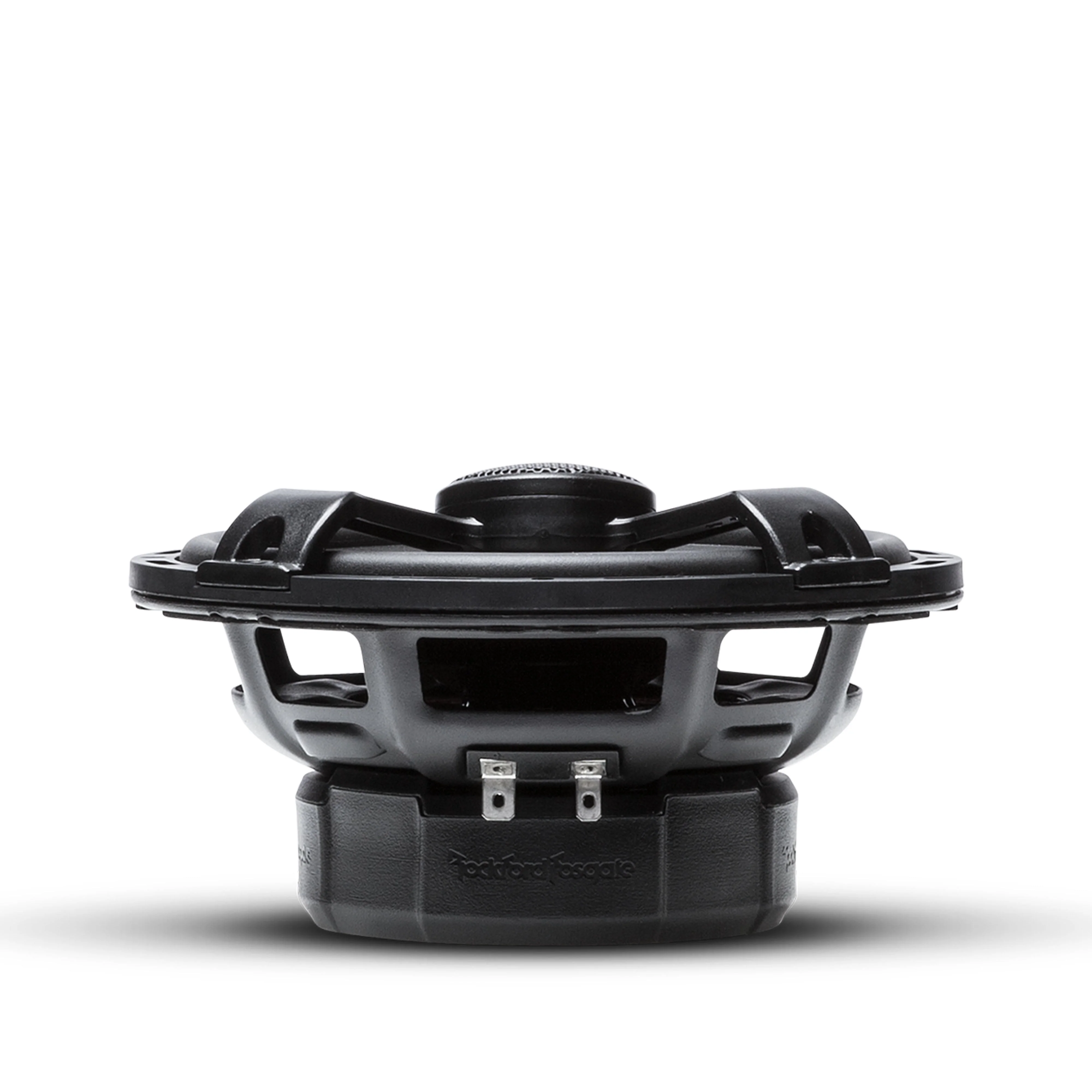

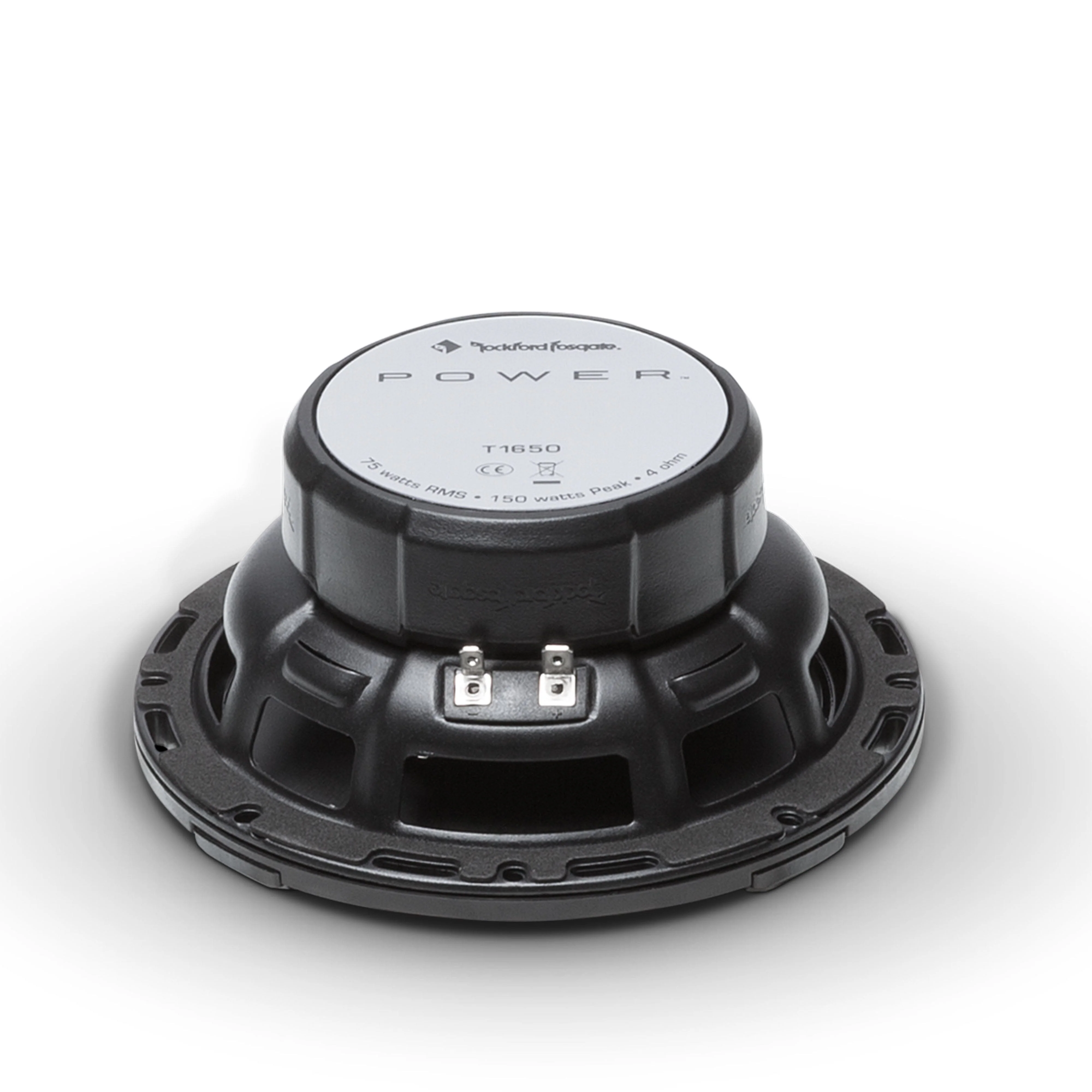

(2) Rockford Fosgate 6.5 Fullrange Speakers T1650

(2) Rockford Fosgate 1.5 Tweeters PP4-T

SPECIFICATIONS PER T1650 SPEAKER:

Nominal Diameter: 6.5 (165mm)

Nominal Impedance: 4 Ohm

MAX Power Handling: 150 Watts

RMS Power Handling: 75 Watts

Sensitivity (1w/1m): 88dB

Sensitivity (2.83V/1m): 91dB

Frequency Response: 44Hz ~ 20KHz

High Pass Crossover: 12dB/Octave Butterworth

MOTOR:

Voice Coil Diameter: 1.1 (27.9mm)

Voice Coil Former Material: High temp aluminum

Cone Material: Carbon fiber filled polypropylene

Surround Material: Santoprene rubber

Basket Material: Stamp-cast aluminum

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 0.47ft (13.4L)

Excursion: X-max - 5mm

Free Air Resonance: Fs - 59Hz

Total Factor: Qts - 0.73

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.5 (165mm)

Mounting Diameter: 5.5 (140mm)

Mounting Depth: 2.5 (64mm)

Overall Depth: 3.6 (92mm)

Trim Ring Diameter: 6.8 (172mm)

-------------------------------------------------------------------

SPECIFICATIONS PER PP4-T TWEETER:

Nominal Diameter: 1.5 (38.1mm)

Nominal Impedance: 4 Ohm

MAX Power Handling: 100 Watts

RMS Power Handling: 50 Watts

Sensitivity (1w/1m): 105dB

Sensitivity (2.83V/1M): 108dB

Frequency Response: 4.5KHz ~ 20KHz

Crossover: 4.5KHz @ 6dB/Octave

MOTOR:

Voice Coil Diameter: 1.475 (37.5mm)

Voice Coil Former Material: High Temp Kapton

Diaphragm Material: Aluminum

Free Air Resonance: Fs - 3KHz

DIMENSIONS PER TWEETER:

Overall Diameter: 5.28 (134mm)

Tweeter Mounting Diameter: 4.33 (110mm)

Mounting Depth: 2.59 (65.8mm)
