Rockford Fosgate Car Audio 6 Fullrange Speakers 280W 4 Ohm & 1 Tweeters 200W

Get Power series sound quality in a drop-in speaker. These 6 2-way full-range speakers inherent all the coolest features from - their big brother - the T1 component systems. Features include a pole-mounted tweeter, shallow mounting depth and integrated concealed crossovers. Be prepared, these are more than OEM replacement speakers, their sound quality has been perfected for true Rockford Fosgate fanatics!

Highlights:

- FlexFit basket design.

- OEM adapter plate included.

- Aluminum dome tweeter with polyurethane suspension.

- ICC (Integrated Concealed Crossover).

- Carbon fiber & polypropylene injection molded cone.

- Butyl midrange rubber surround.

- 1 Year Manufacturer Warranty.

The PP4-T Punch Pro is a 1.5" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.

Highlights:

- Aluminum diaphragm.

- All Metal Input Spring Terminal Connection.

- High Temp Kapton Former Voice Coil.

- Die Cast Aluminum Housing.

- Billet stock machined aluminum phase plug.

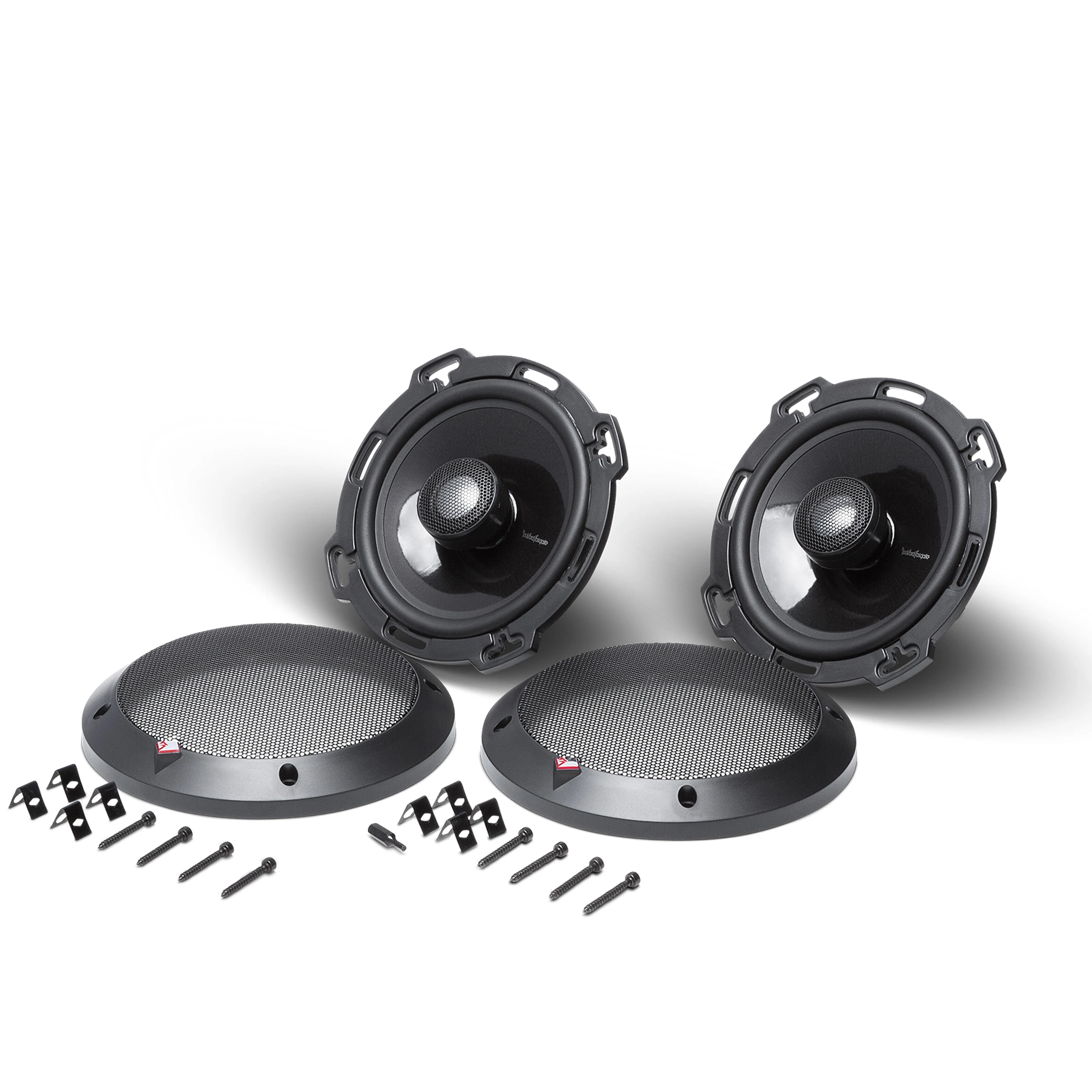

- Mounting hardware included.

- Built-in 6dB/Octave crossover.

- 1 Year Manufacturer Warranty.

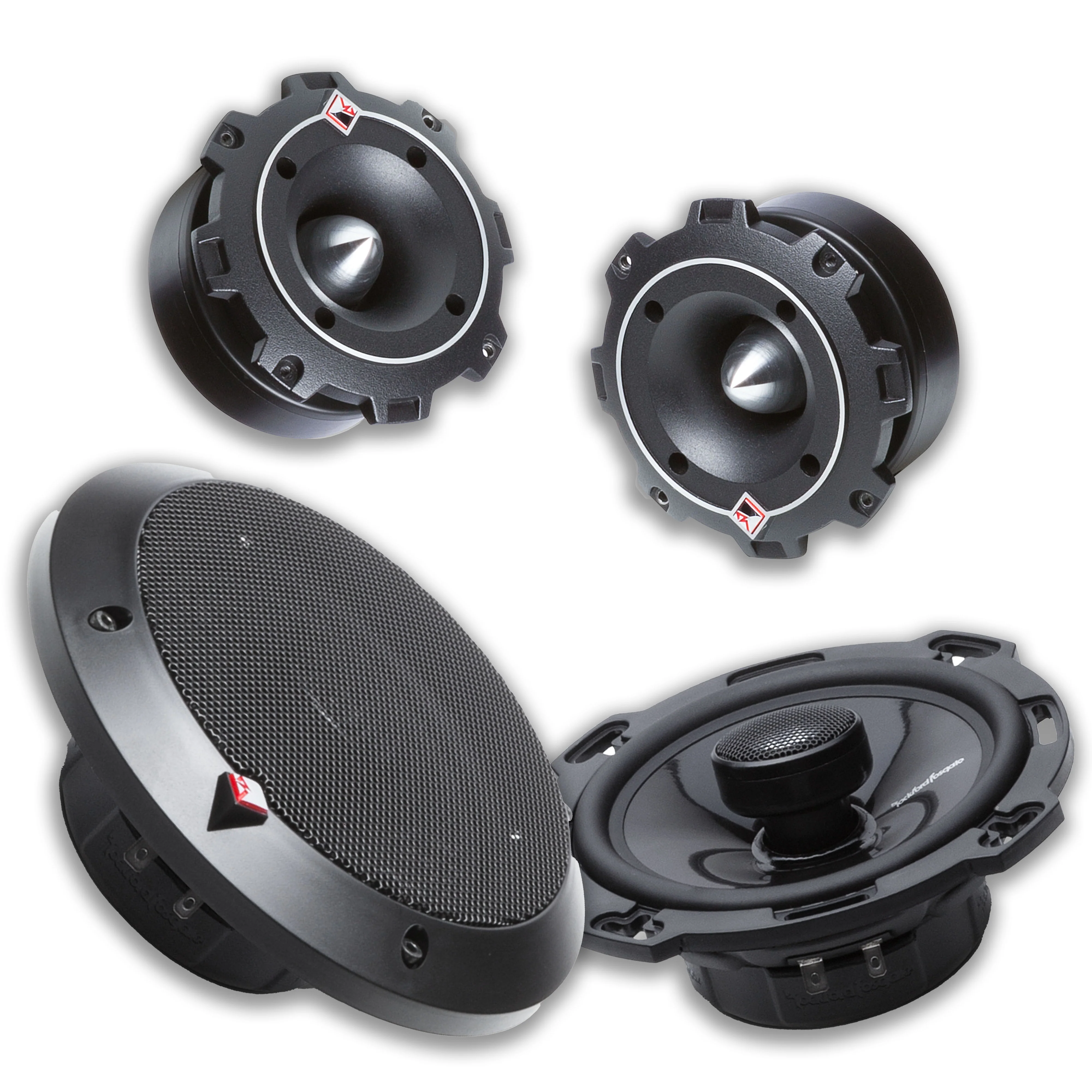

This listing includes:

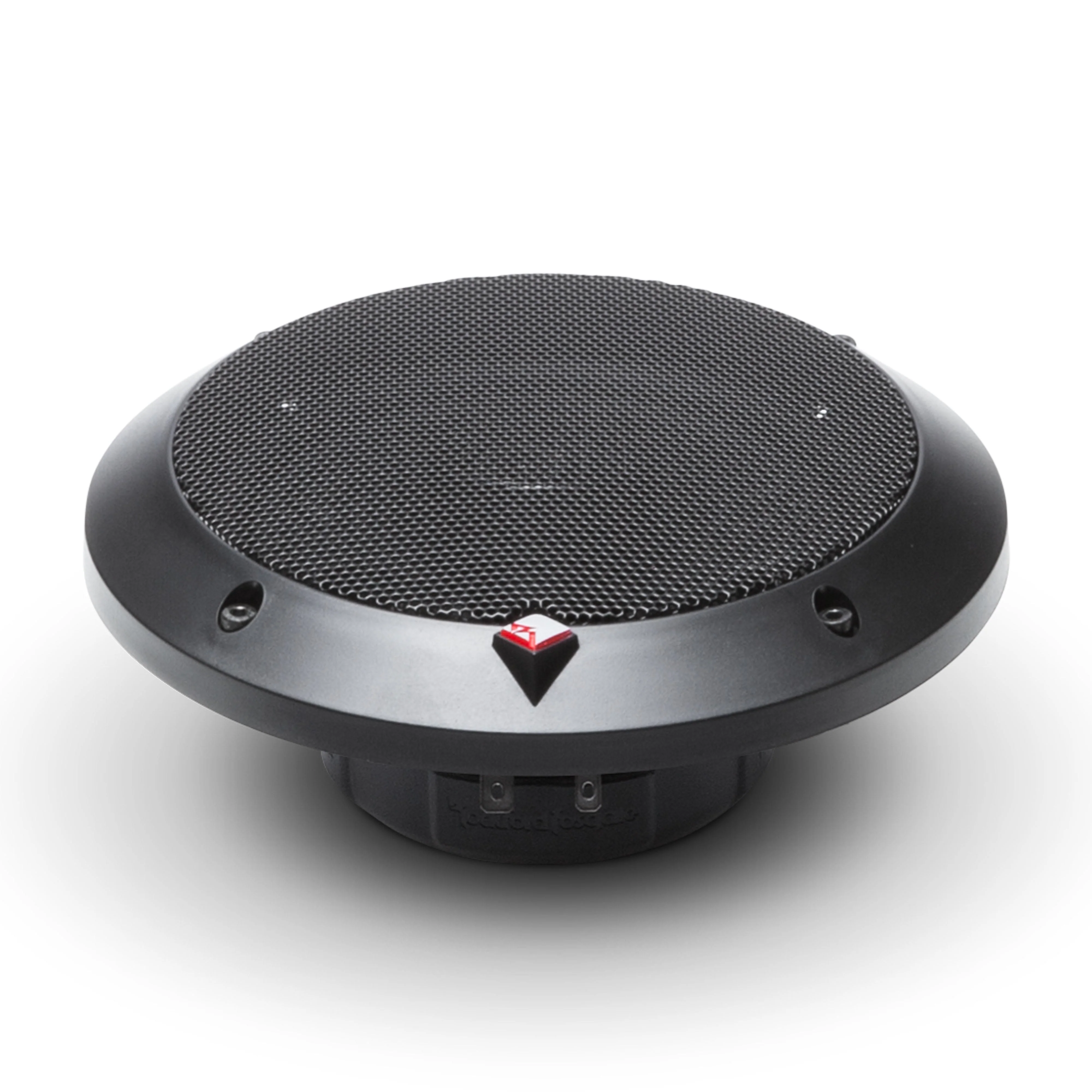

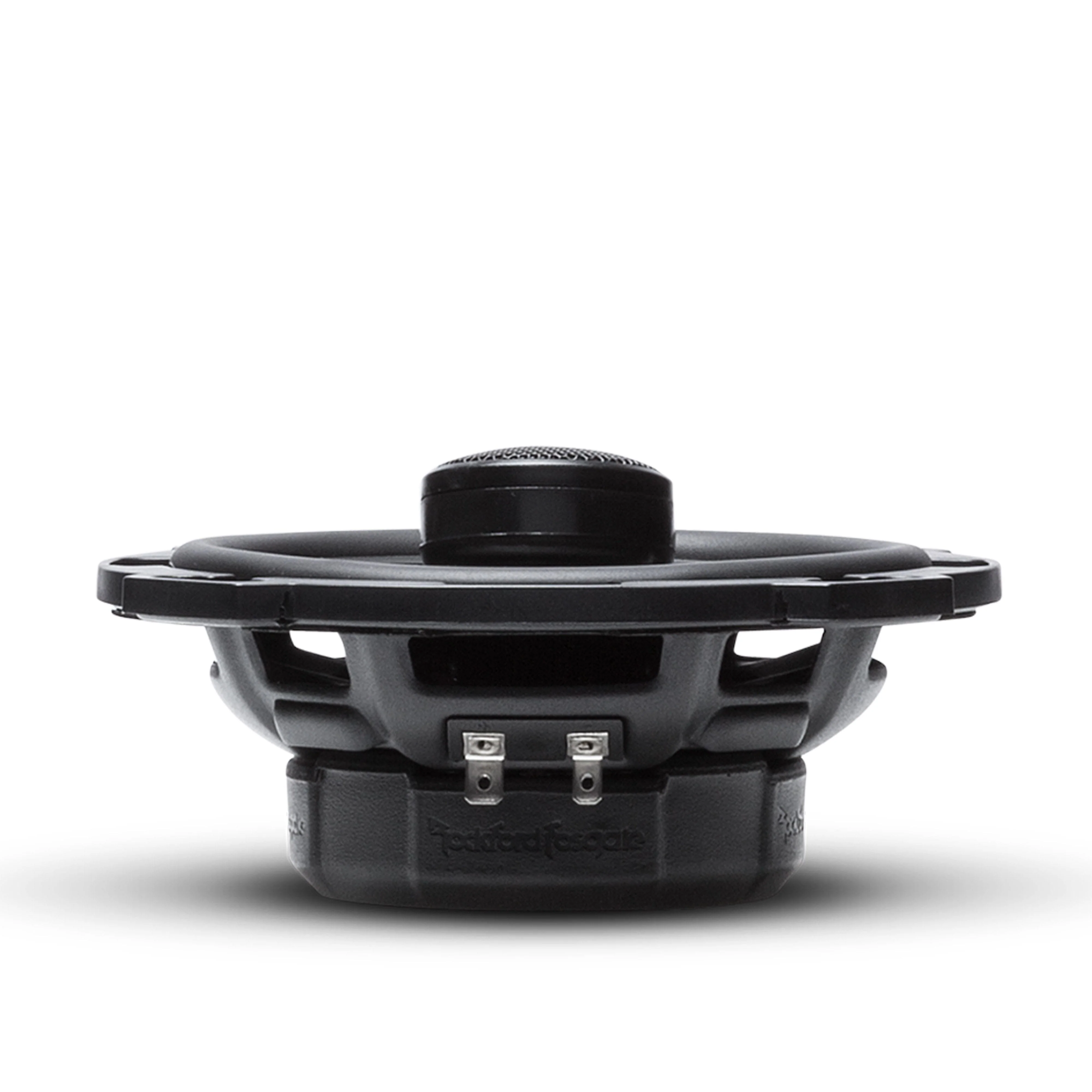

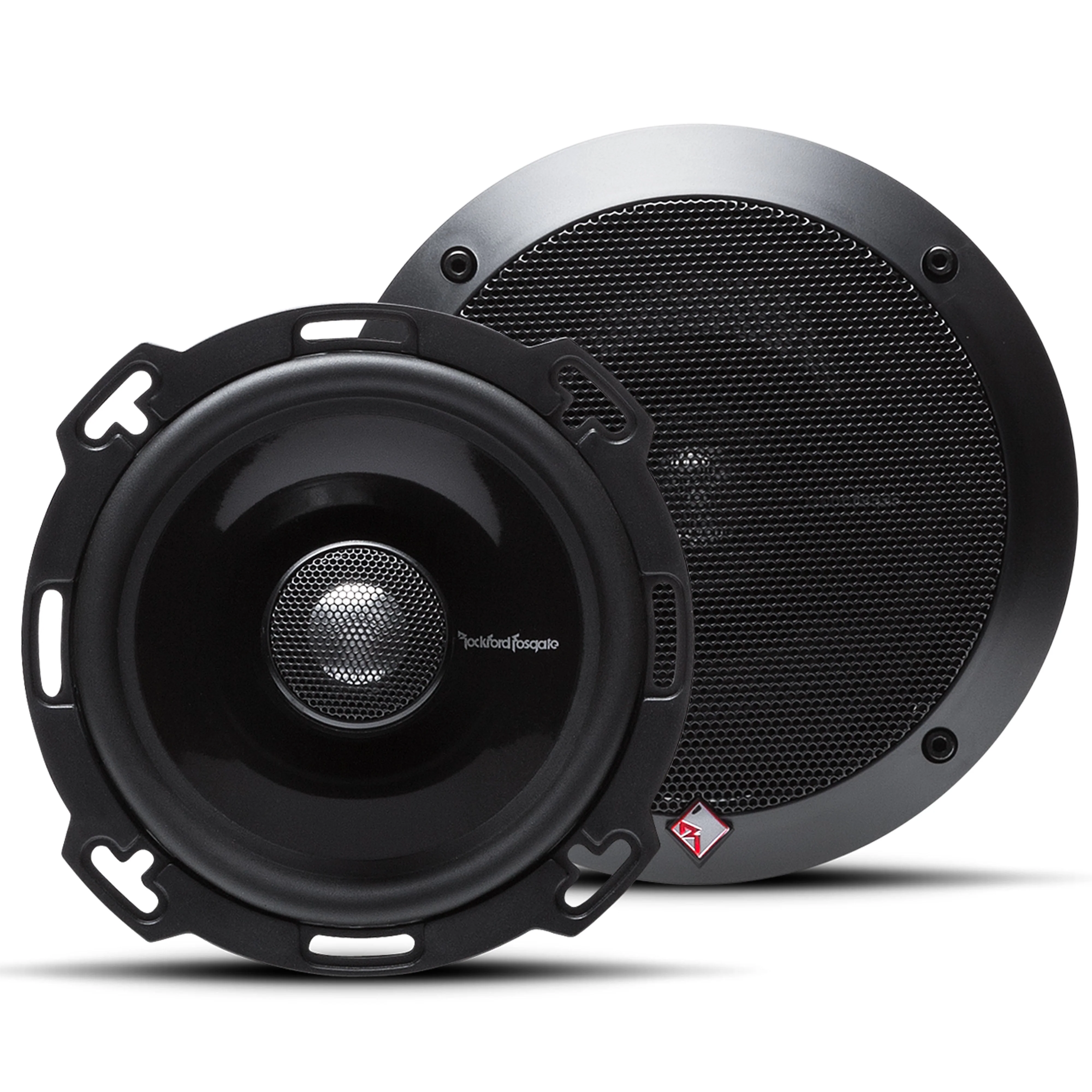

(2) Rockford Fosgate 6 Fullrange Speakers T16

(2) Rockford Fosgate 1.5 Tweeters PP4-T

SPECIFICATIONS PER T16 SPEAKER:

Speaker Type: 2 Way Coaxial

Nominal Diameter: 6 (152mm)

Nominal Impedance: 4 Ohm

MAX Power Handling: 140 Watts

RMS Power Handling: 70 Watts

Sensitivity (1w/1m): 88dB

Frequency Response: 65Hz ~ 22KHz

High Pass Crossover: 12dB/Octave Butterworth

MOTOR:

Voice Coil Diameter: 1.1 (27.9mm)

Voice Coil Former Material: Aluminum

Cone Material: Carbon fiber & Polypropylene injection mold

Surround Material: Butyl midrange rubber

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 0.39ft (11.0L)

Excursion: X-max - 4.5mm

Free Air Resonance: Fs - 65Hz

Total Factor: Qts - 0.70

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.69 (170mm)

Mounting Diameter: 5.04 (128mm)

Mounting Depth: 1.93 (49mm)

Overall Depth: 3.02 (76.7mm)

Trim Ring Depth: 1.18 (29.9mm)

-------------------------------------------------------------------

SPECIFICATIONS PER PP4-T TWEETER:

Nominal Diameter: 1.5 (38.1mm)

Nominal Impedance: 4 Ohm

MAX Power Handling: 100 Watts

RMS Power Handling: 50 Watts

Sensitivity (1w/1m): 105dB

Sensitivity (2.83V/1M): 108dB

Frequency Response: 4.5KHz ~ 20KHz

Crossover: 4.5KHz @ 6dB/Octave

MOTOR:

Voice Coil Diameter: 1.475 (37.5mm)

Voice Coil Former Material: High Temp Kapton

Diaphragm Material: Aluminum

Free Air Resonance: Fs - 3KHz

DIMENSIONS PER TWEETER:

Overall Diameter: 5.28 (134mm)

Tweeter Mounting Diameter: 4.33 (110mm)

Mounting Depth: 2.59 (65.8mm)
