Rockford Fosgate Car Audio Package 8 Midrange Speakers 500W & 1 Tweeters 200W

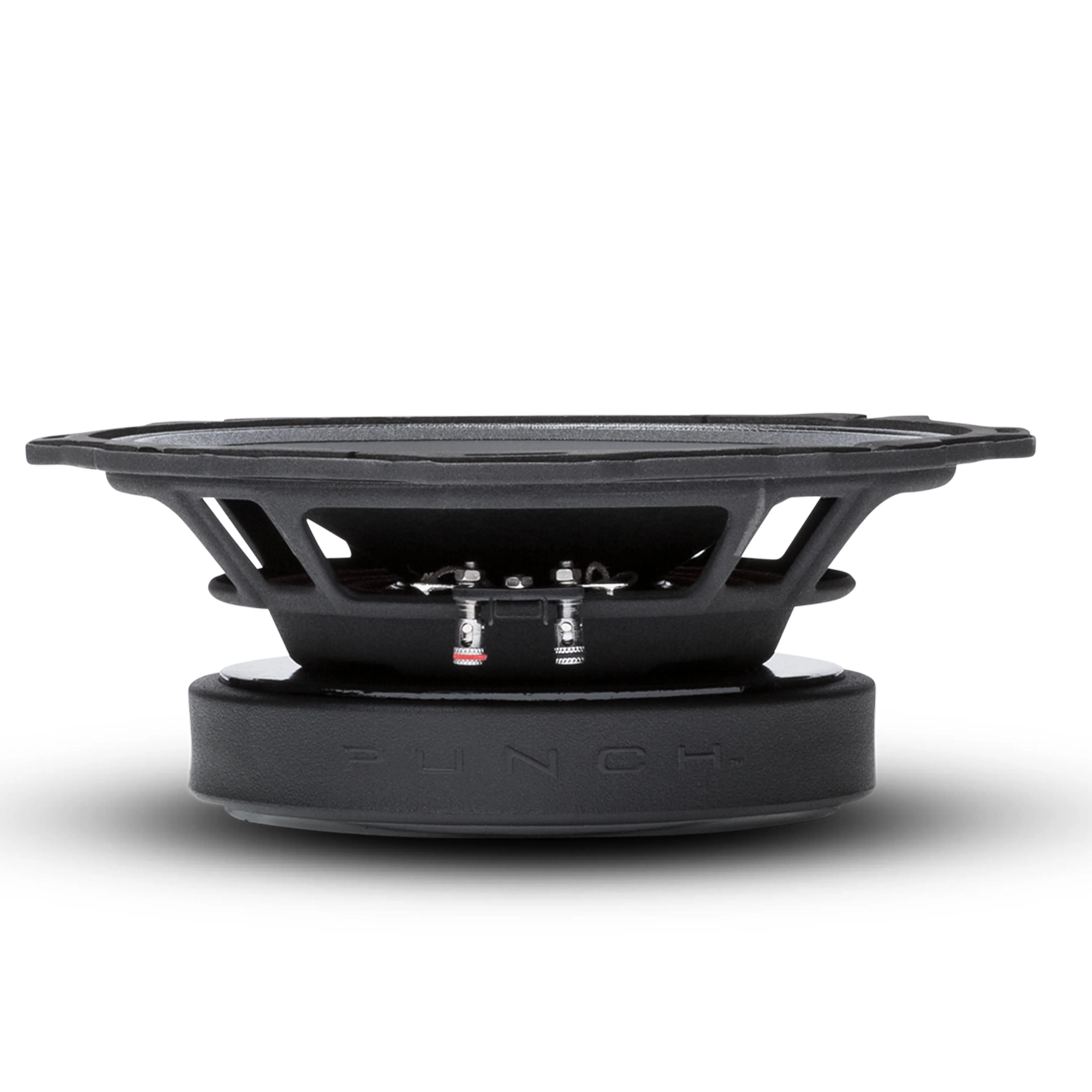

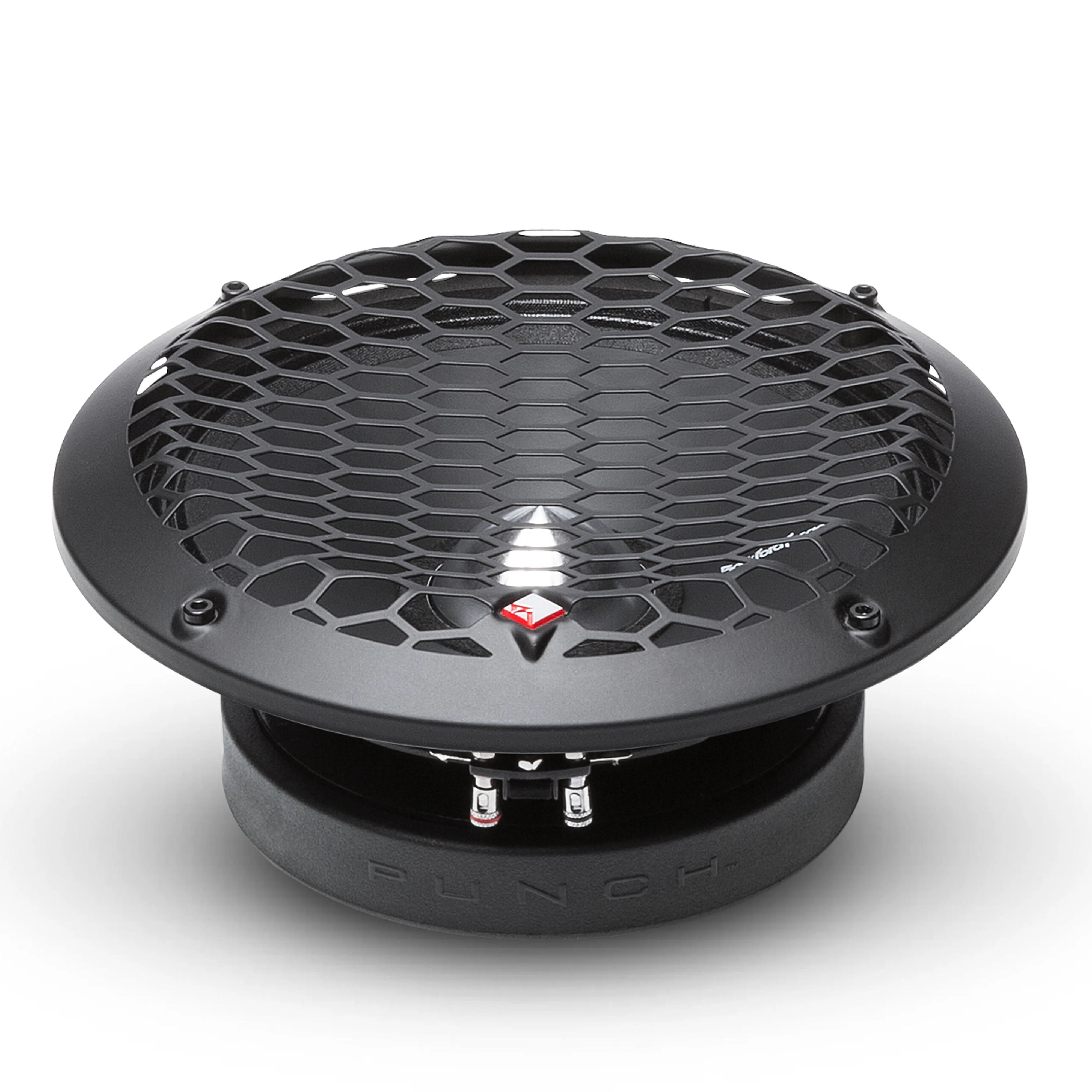

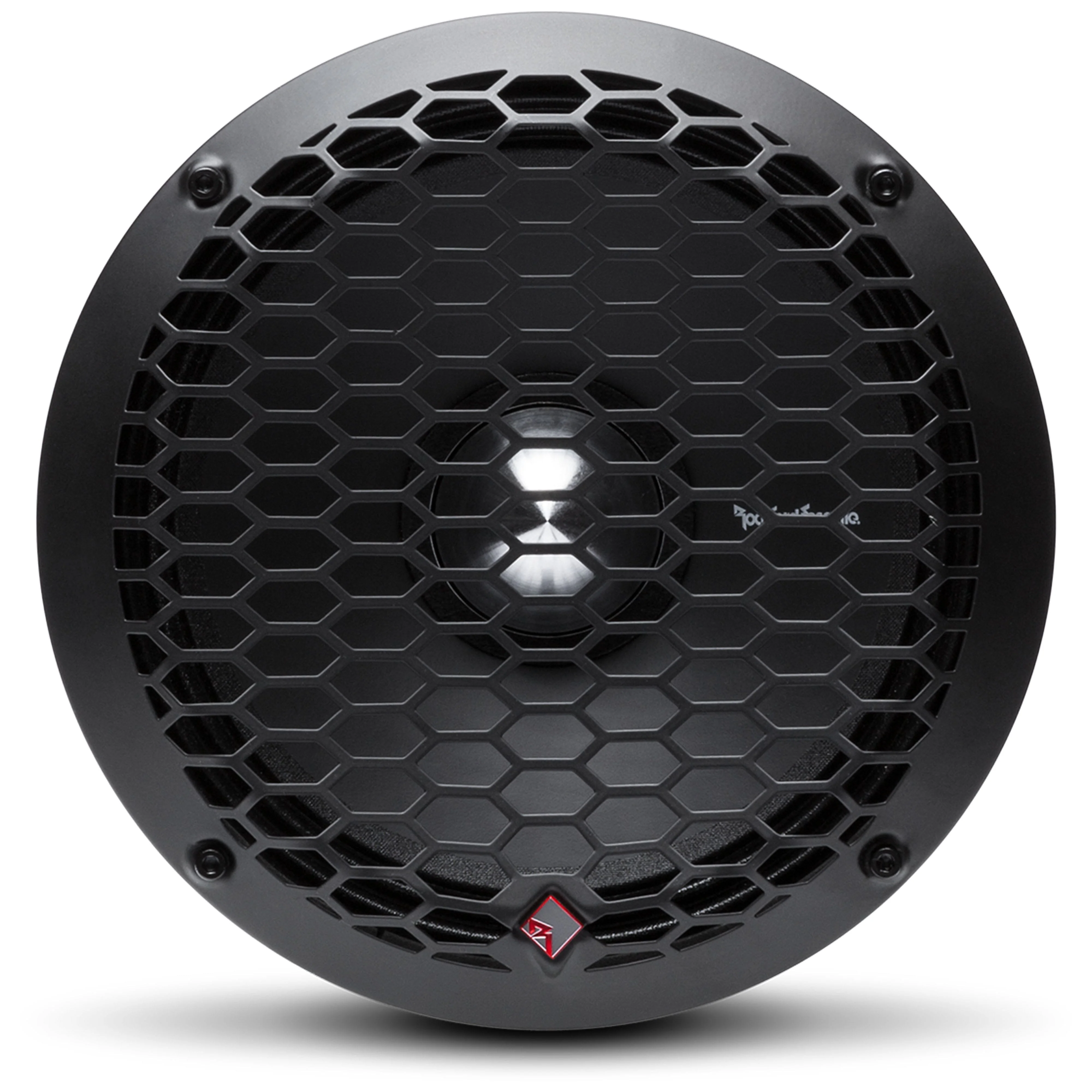

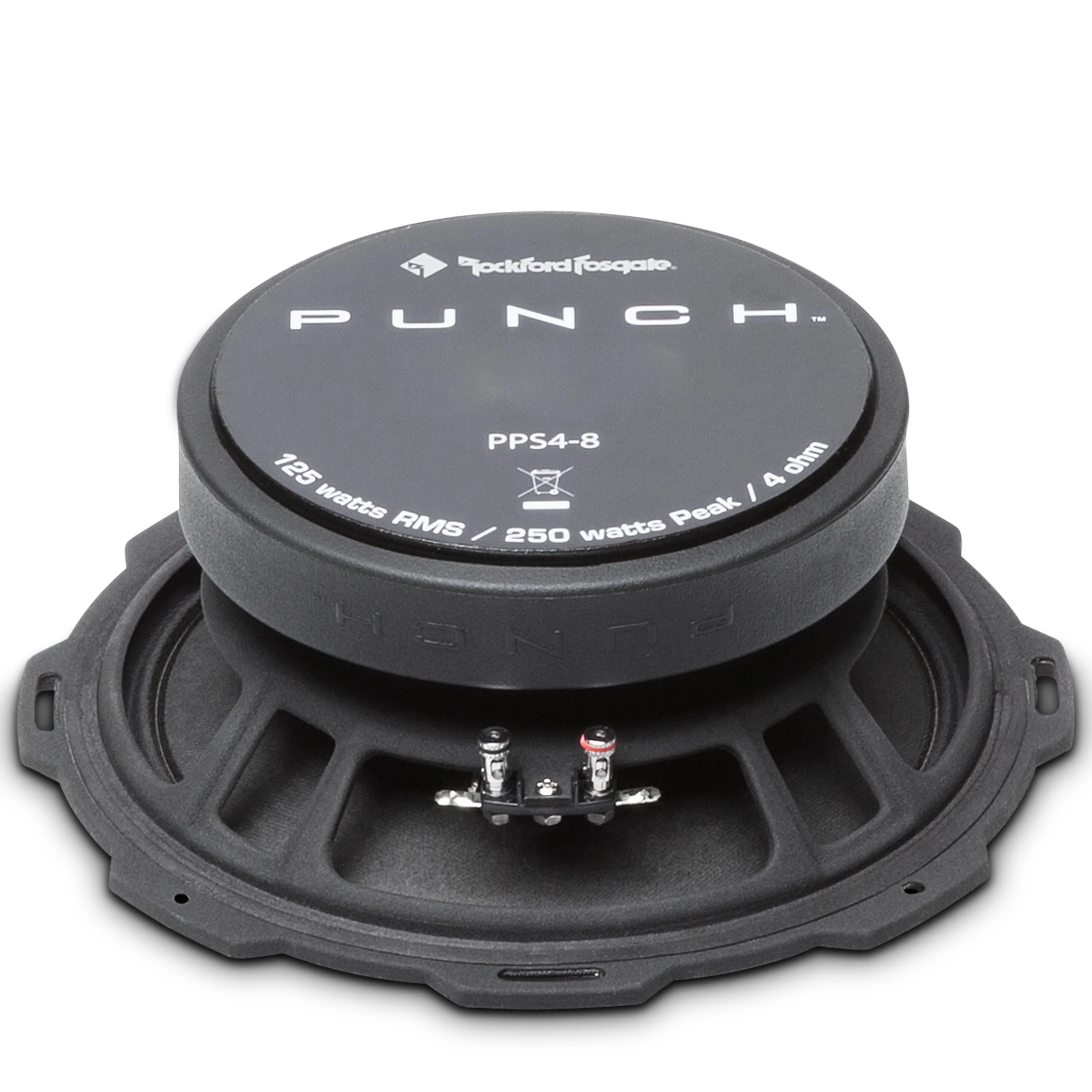

The PPS4-8 Punch Pro is a 8" midrange loudspeaker engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high temperature voice coil, combined with a fiber reinforced paper cone and corrugated treated cloth surround create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes protective grilles.

Highlights:

- Fiber reinforced high strength paper cone with treated "W" style surround.

- Stamp-cast aluminum frame.

- All Metal Input Spring Terminal Connection.

- Billet stock machined aluminum phase plug.

- Corrugated treated cloth surround.

- Fatigue and tear resistant poly cotton spider.

- Grilles and mounting hardware included.

- High temp aluminum voice coil.

- Periodic-stitched fatigue resistant lead wire.

- 1 Year Manufacturer Warranty.

The PP4-T Punch Pro is a 1.5" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.

Highlights:

- Aluminum diaphragm.

- All Metal Input Spring Terminal Connection.

- High Temp Kapton Former Voice Coil.

- Die Cast Aluminum Housing.

- Billet stock machined aluminum phase plug.

- Mounting hardware included.

- Built-in 6dB/Octave crossover.

- 1 Year Manufacturer Warranty.

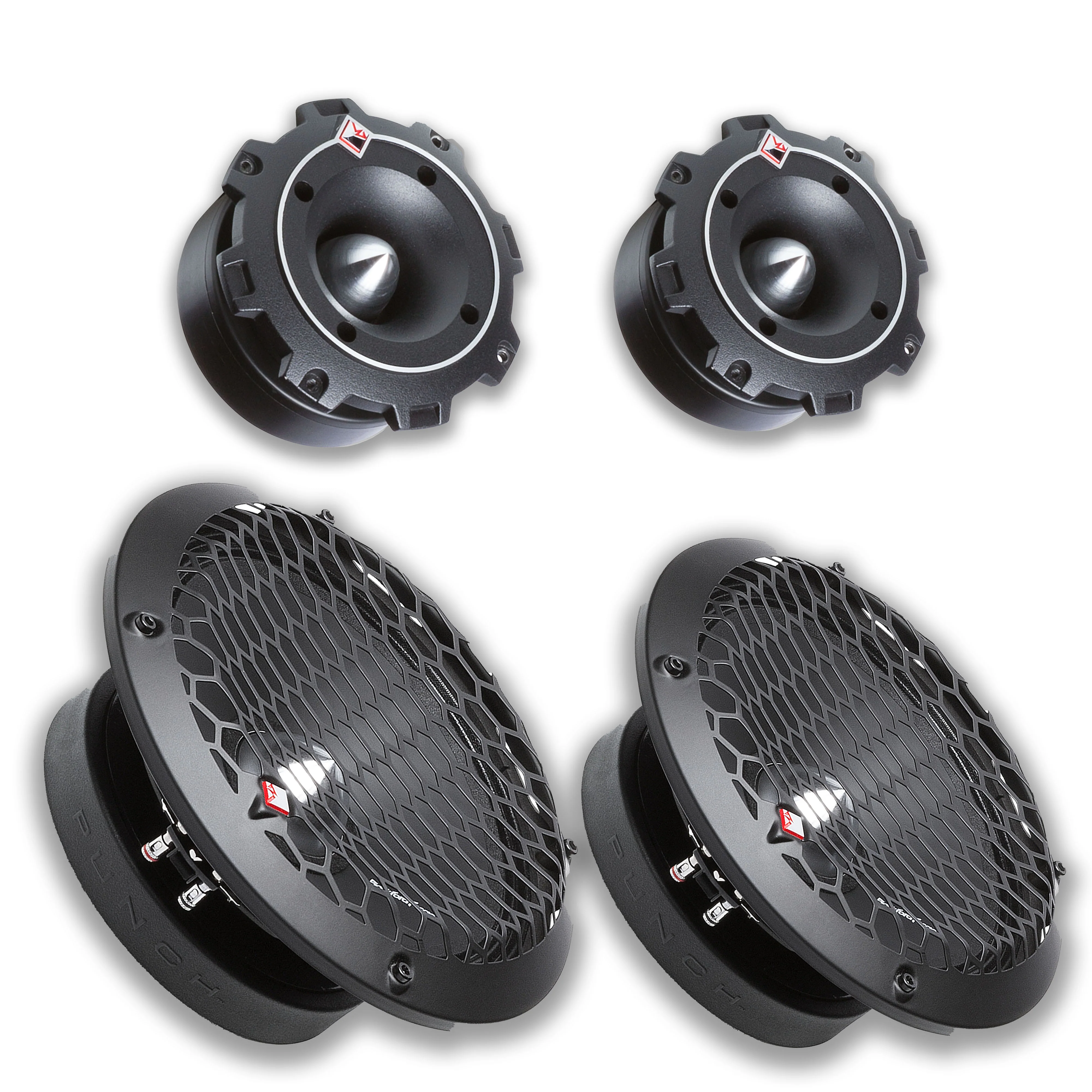

This listing includes:

(2) Rockford Fosgate 8 Midrange Speakers PPS4-8

(2) Rockford Fosgate 1.5 Tweeters PP4-T

SPECIFICATIONS PER PPS4-8 SPEAKER:

Nominal Diameter: 8

Nominal Impedance: 4 Ohm

MAX Power Handling: 250 Watts

RMS Power Handling: 125 Watts

Sensitivity (1w/1m): 94.5dB

Frequency Response: 80Hz ~ 5KHz

MOTOR:

Voice Coil Diameter: 2 (49.5mm)

Cone Material: Fiber reinforced high strength paper

Basket Material: Stamp-cast aluminum

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 0.54ft (15.2L)

Excursion: X-max - 1mm

Free Air Resonance: Fs - 80Hz

Total Factor: Qts - 0.34

DIMENSIONS PER SPEAKER:

Overall Diameter: 8.27 (210mm)

Trim Ring Diameter: 8.35 (212mm)

Mounting Diameter: 7.12 (180.87mm)

Mounting Depth: 2.91 (74mm)

Overall Depth: 3.12 (79.25mm)

Trim Ring Height: 0.92 (23.24mm)

-------------------------------------------------------------------

SPECIFICATIONS PER PP4-T TWEETER:

Nominal Diameter: 1.5 (38.1mm)

Nominal Impedance: 4 Ohm

MAX Power Handling: 100 Watts

RMS Power Handling: 50 Watts

Sensitivity (1w/1m): 105dB

Sensitivity (2.83V/1M): 108dB

Frequency Response: 4.5KHz ~ 20KHz

Crossover: 4.5KHz @ 6dB/Octave

MOTOR:

Voice Coil Diameter: 1.475 (37.5mm)

Voice Coil Former Material: High Temp Kapton

Diaphragm Material: Aluminum

Free Air Resonance: Fs - 3KHz

DIMENSIONS PER TWEETER:

Overall Diameter: 5.28 (134mm)

Tweeter Mounting Diameter: 4.33 (110mm)

Mounting Depth: 2.59 (65.8mm)
