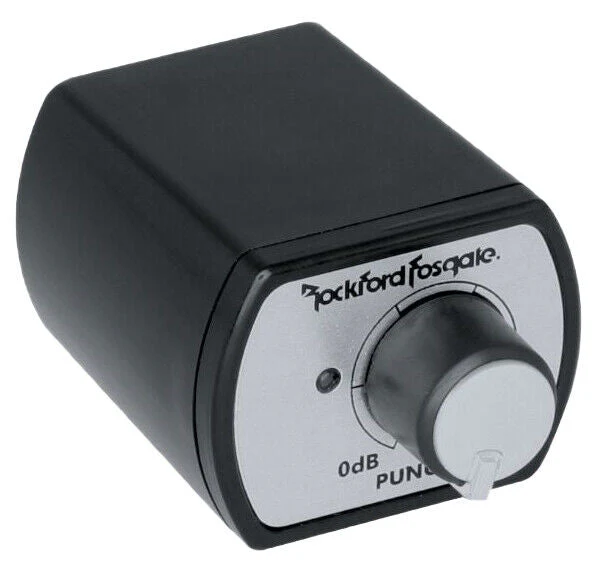

Rockford Fosgate EQ Remote Control for 2007-Up Power and Punch Series Amplifiers

This listing includes:

(1) Rockford Punch EQ Remote Module

(1) 16.5' Remote Cable RJ-45 Connectors on Each End

(1) Led with Attached 8" Power/Ground Harness

(1) Additional Remote Front Panel

(1) Mounting Bracket

(2) Mounting Screws

(1) Flat Washer

(1) Nut

(1) Instruction Manual

Wired remote Punch equalization control for select 2007 and newer amplifiers.

This remote Punch EQ offers 0dB to +18dB boost @ 45Hz and/or a hinge treble boost 0dB to +12dB @ 12kHz. Cable and mounting hardware included. For use with select 2007 and newer PUNCH & POWER amplifiers.

Remote wired bass/treble boost

0dB to +18dB bass boost @ 45 Hz

0dB to +12dB treble boost @ 12.5 kHz

Bass/Treble filtering based upon in-board amplifier crossover setting (HP-LP-AP)

Controls bass on rear outputs of 4-channel amplifiers

Conveniently mount under dash, inside center console or glovebox

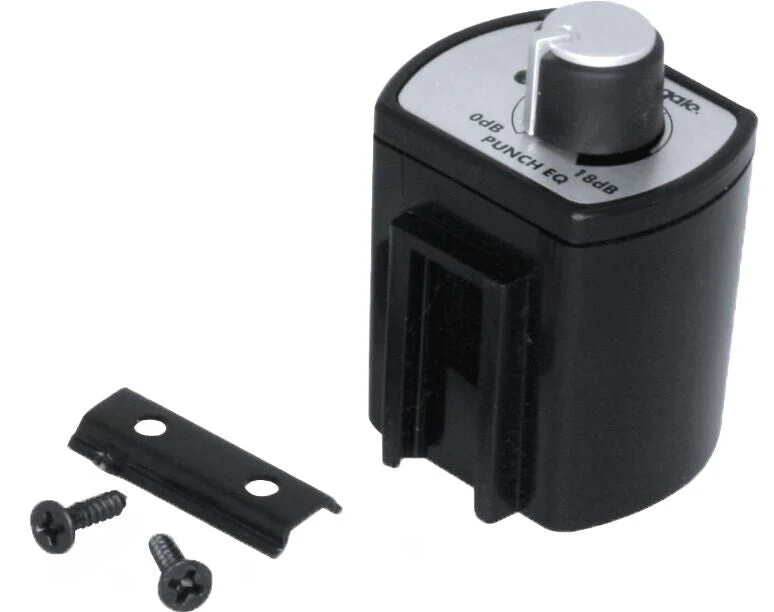

Includes bass knob, cable, mounting clip, mounting screws

1 Year Warranty

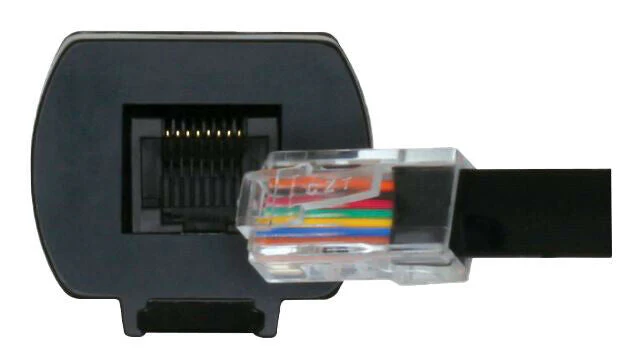

Connector Type: CAT5 (8-Conductor Non-Flipped)

Compatible Models:

2012-2014

Punch PBR300X2

Punch PBR500X1

2011-2014

Punch PBR300X1

Power T800-4ad

Power T1000-4ad

2011-2012

Punch P1000X1D

Punch P1000X5D

2010-2014

Power T500-1bdCP

Power T1000-1bdCP

Power T1500-1bdCP

Power T2500-1bdCP

2010-2012

Punch P400-1

Punch P500-4

Punch P700-1bd

2009-2012

Punch P300-2

Punch P500-1bd

2009-2010

Power T1000-4

2009

Power T1000-1bd

Power T2500-1bd

2007-2014

Power T400-2

Power T400-4

Power T600-2

Power T600-4

2007-2012

Punch P200-2

Punch P300-1

Punch P400-2

Punch P400-4

Punch P500-2

Punch P1000-1bd

2007-2009

Power T500-1bd

Power T1500-1bd
