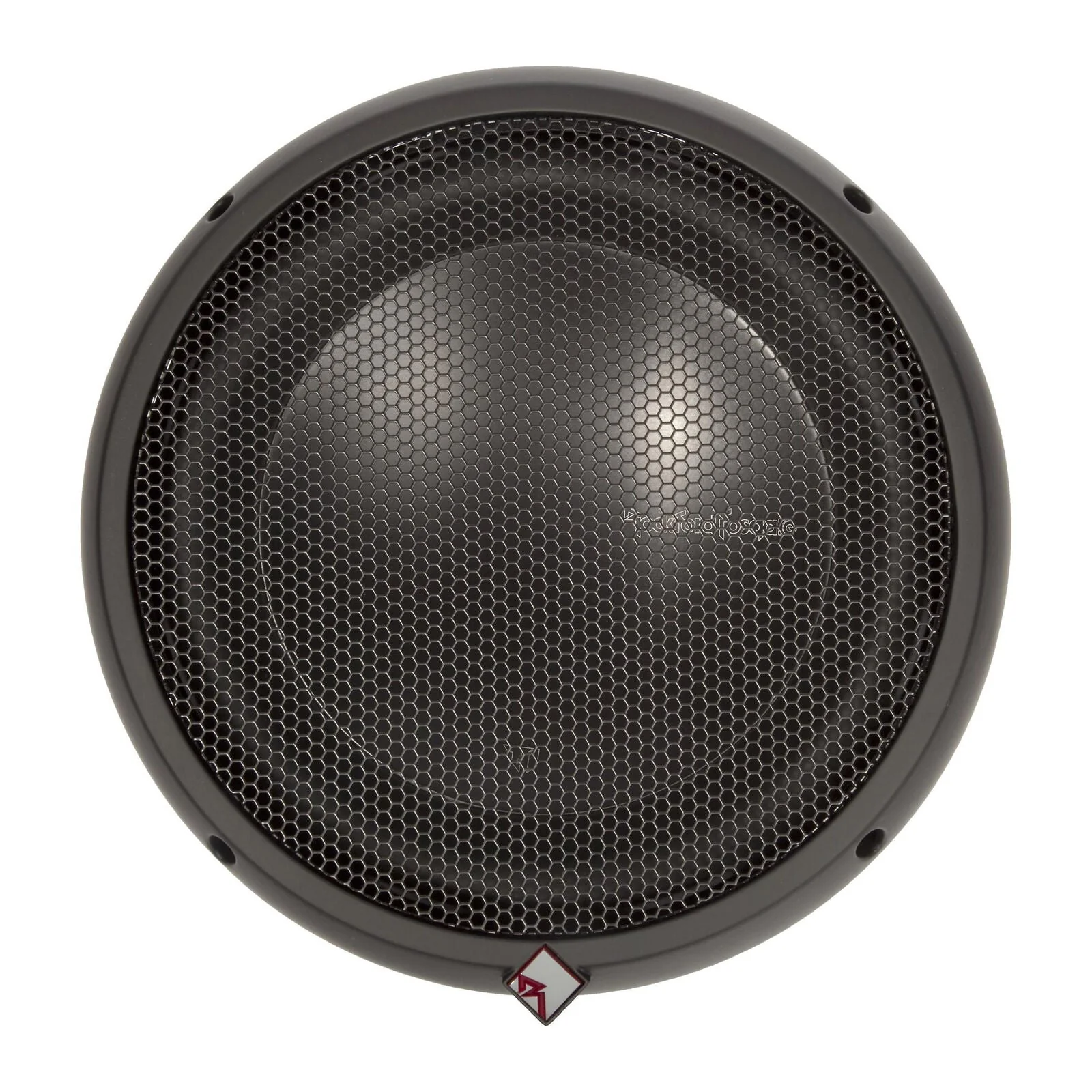

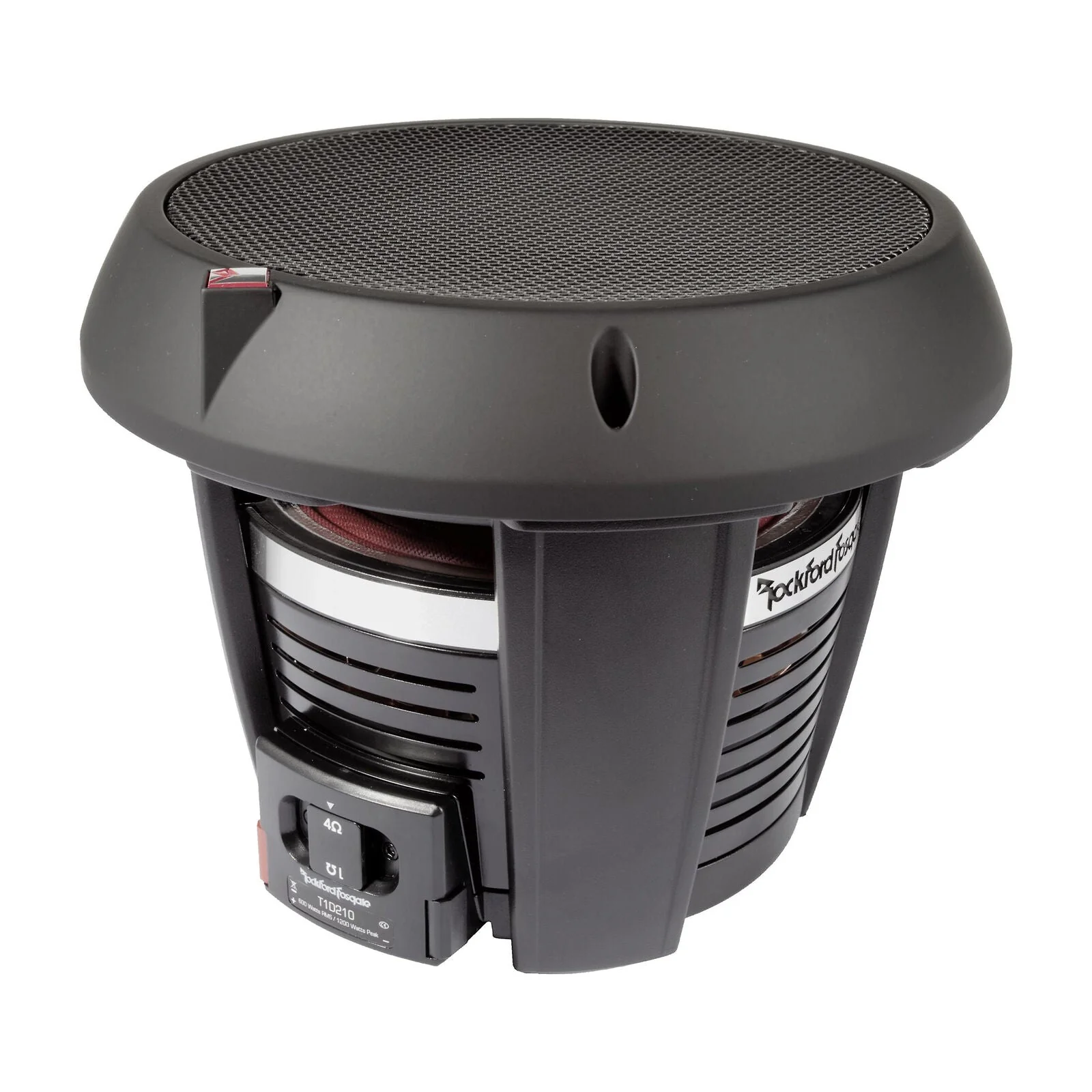

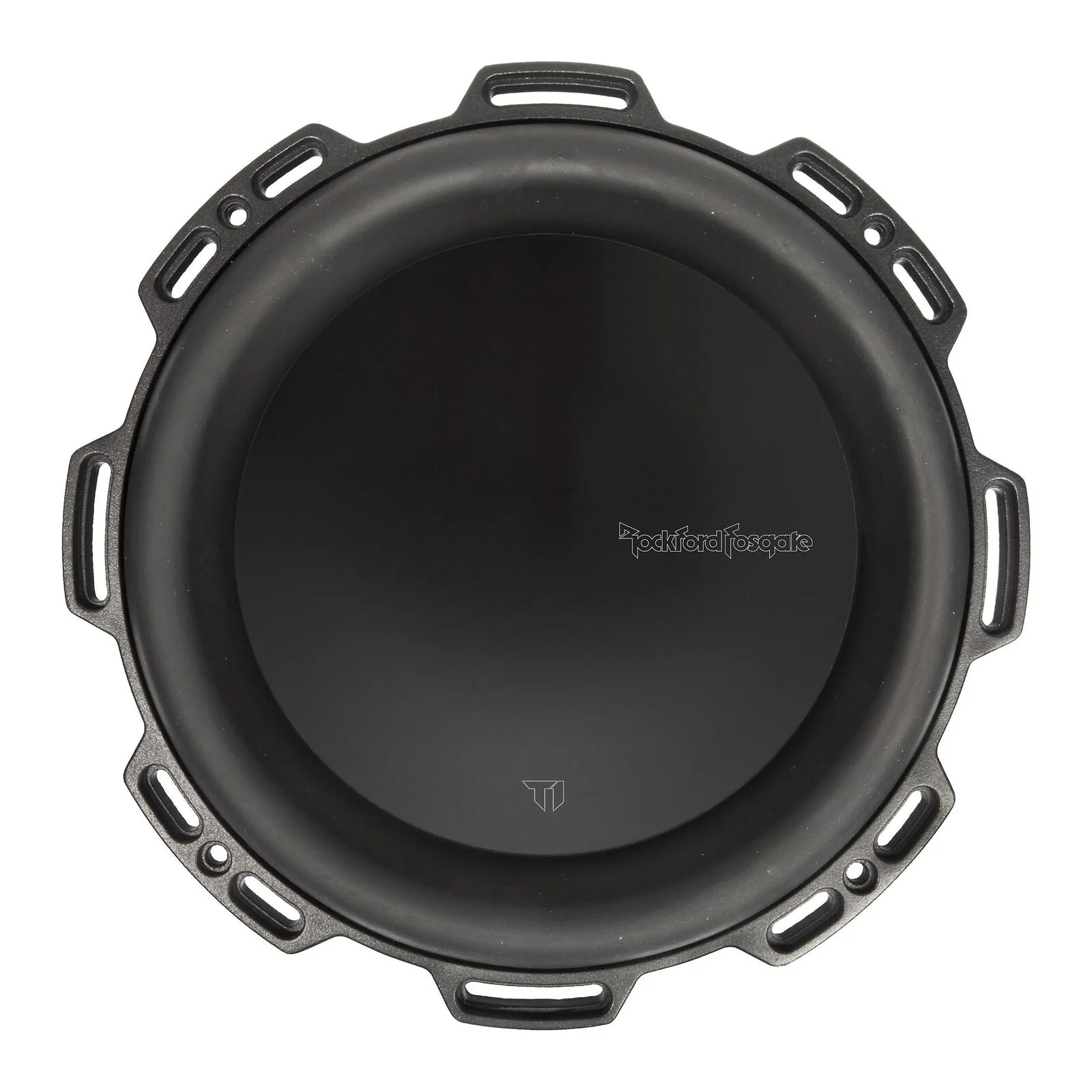

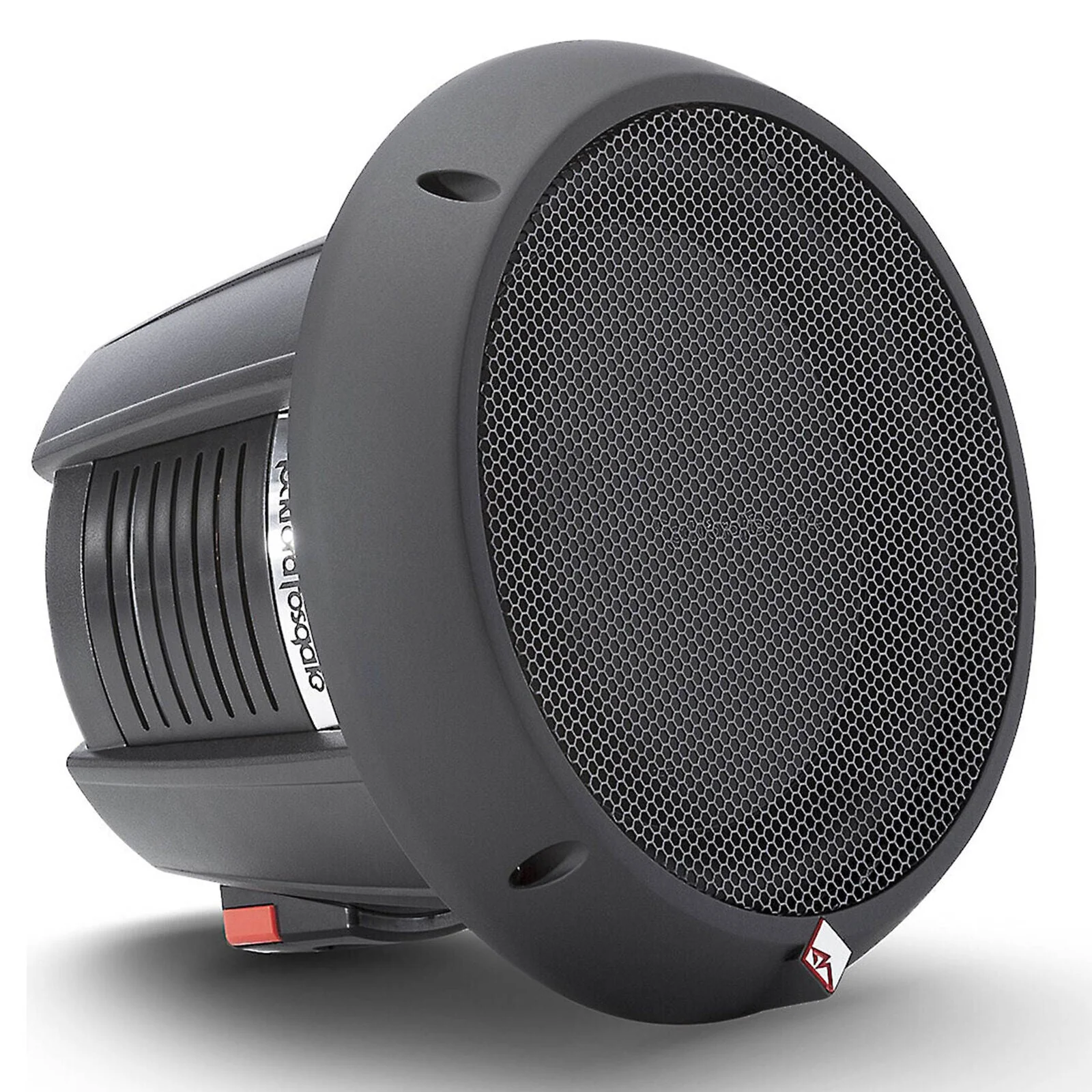

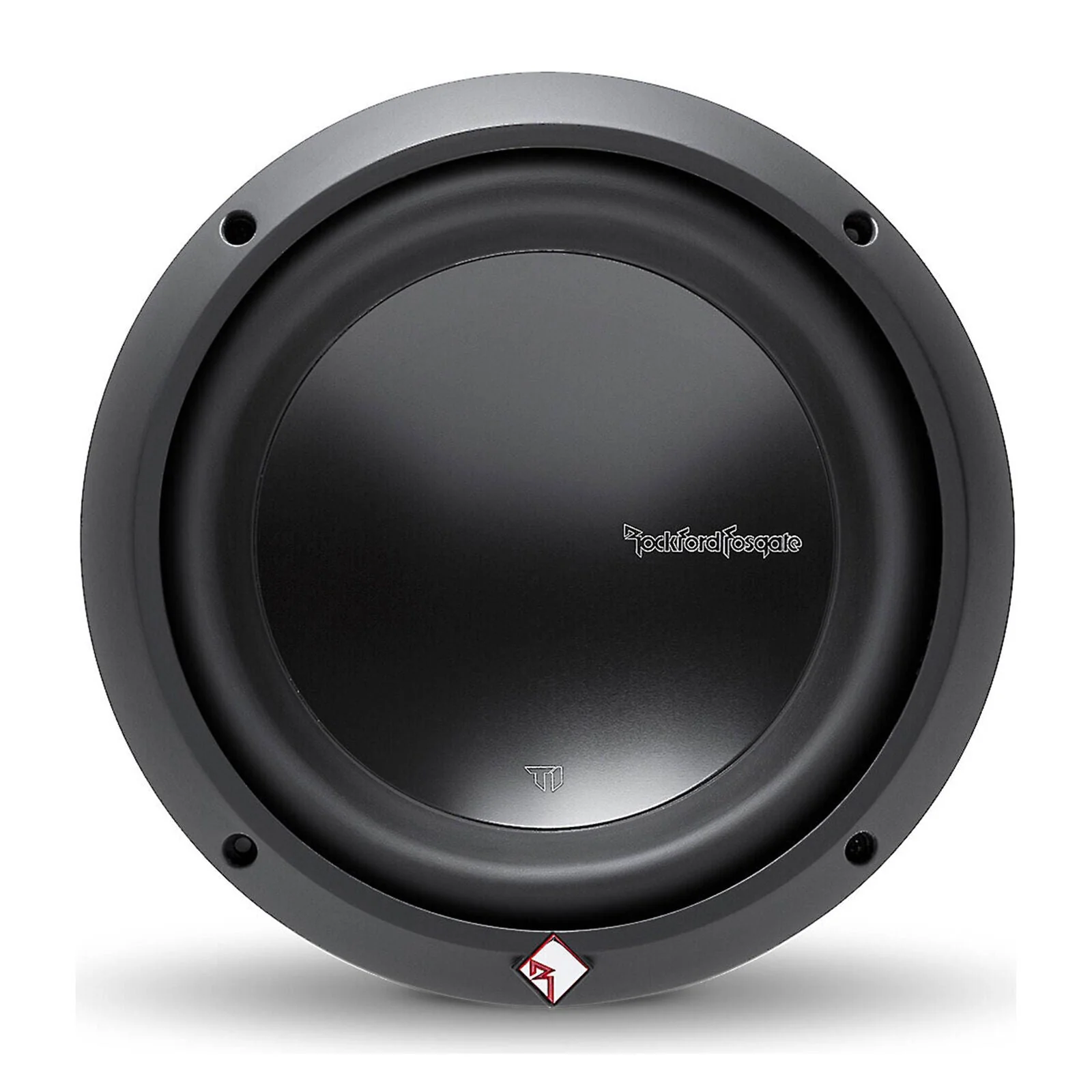

Rockford Fosgate Power T1 Series 10" 600W RMS 2-Ohm 3" DVC Subwoofer
Rockford Fosgate Power T1 Series 10" 600W RMS 2-Ohm 3" DVC Subwoofer
This Listing Includes:
- (1) Rockford Fosgate 10" Subwoofer
- (1) Grille
- (1) Fused 1-ohm/4-ohm SWIFT jumper (installed)
- (1) Non-fused 1-ohm/4-ohm SWIFT jumper (not installed)
- (12) 1-5/8" Allen head screws
- (1) 4mm Allen head bit
- (1) Installation/Operation Manual
Description:
This Rockford Power Series T1D210 Dual 2 Ohm subwoofer builds on the latest Rockford Fosgate technologies. Featuring patented VAST technology, it increases surface cone area by up to 25%, allowing the T1D210 to perform like a much larger woofer. It handles an impressive 1200 watts, delivering powerful bass. The cone is reinforced with Kevlar fibers used in bulletproof vests and features a hard anodized aluminum dust cap that protects the cone while showcasing the glossy Rockford Fosgate logo. This ensures you get classic warm bass from a virtually indestructible cone! The new FlexFit basket offers extreme flexibility for challenging installations. Rockford Fosgate’s unique SWIFT terminals let you easily configure your system with high-power or multi-sub setups by rotating the impedance selection jumper to switch between 1 or 4 ohms. If you plan to add another sub in the future, this impedance selector simplifies system reconfiguration. Clean, high-tech, and capable of setting off car alarms, this subwoofer will amaze with its performance.
FEATURES:
- Symmetrical dual progressive roll tear-resistant poly-cotton spiders
- Periodic-stitched fatigue-resistant tinsel lead wire
- Proprietary 8 AWG insulated all-metal input spring terminal connection
- High-temp voice coil with spun-laced Nomex reinforcement collar
- Optimized and matched magnetic and compliance geometry
- Anodized aluminum heat-sinking dust cap
- Kevlar fiber reinforced paper cone
- Rigid die-cast aluminum basket
- Optimized pole piece and spider venting
- Anodized aluminum voice coil former with copper-clad aluminum wire
- Size: 10"
- Power Handling: 600 Watts RMS, 1200 Watts Max
- Magnet Weight: 100 oz
- Speaker Connector: Compression Terminal
- Voice Coil Diameter: 3" (75.5 mm)
- Nominal Impedance: Dual 2 Ohm
- Woofer Displacement: 0.078 cu. ft. (2.2 Liters)
- Sealed Box Volume: 0.75 cu. ft. (21.2 Liters)
- Vented Box Volume: 1.5 cu. ft. (42.4 Liters)
THIELE & SMALL PARAMETERS:
- SPL: 83 dB @ 1w/1m
- Vas: 15.4 Liters
- Re: 3.25 Ohms
- Le: 1.8 mH
- Fs: 34.5 Hz
- Qts: 0.54
- Qes: 0.59
- Qms: 6.00
- Xmax: 16 mm
DIMENSIONS:
- Cutout Diameter: 9.0625 in. (230 mm)
- Mounting Depth: 6.375 in. (161.9 mm)
Shipping Weight: 25.7 lbs (11.65 kg)
