• Features fairing and bag lid speakers, plus a compact, weather-resistant 4-channel amplifier with an installer-friendly amplifier kit
• E Power Series TM400X4ad 4-channel amplifier uses Rockford Fosgate's proprietary Class AD technology to draw big power with less current draw from your bike's electrical system.
• This kit is designed to work with 2015-up Harley-Davidson Road Glide or 2014-up Street Glide touring bikes

Rockford Harley Davidson Road/Street Glide Fairing/Tour-Pak Speakers, Amp & Kit

This Listing Includes:

• (2) TMS65 Speakers


• (2) 2015+ Road Glide Grilles


• (2) 2014+ Street Glide Grilles


• (2) 2014+ TourPak Grilles


• (1) TM400X4ad Amplifier


• (1) RFK-HD14 Amp Mounting Kit

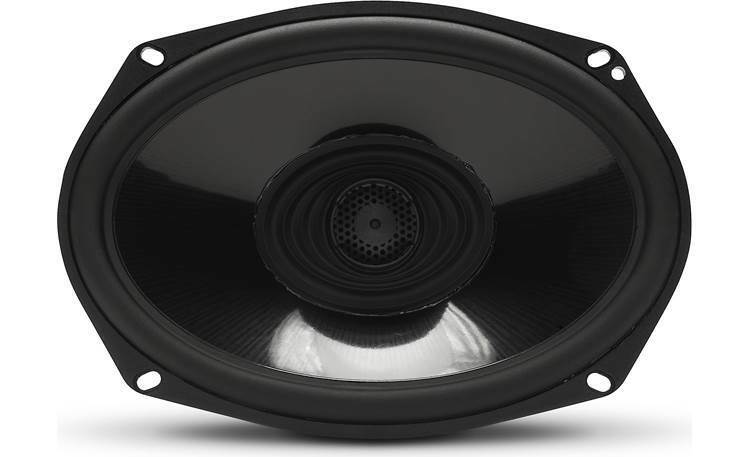

• (2) TMS69 Speakers


• (2) 6x9" Speaker Grilles


• (2) 6x9" Basket Protectors


• (2) 6x9" Mounting Rings


• (2) Baglid Cutting Templates


• (5) Factory Amp Bypass Plugs


• (1) DSR1 Loop-Thru Harness


• (2) Amp Output Y-Adaptors


• (2) Wiring Harness Kits


• (1) Hardware Pack

Ready to upgrade the sound on your 2015-up Harley-Davidson Road Glide or 2014-up Street Glide? Designed to fit your Harley, this speaker and amp package features fairing and bag lid speakers, plus a compact, weather-resistant 4-channel amplifier with an installer-friendly amplifier kit. The Stage 3 package includes two Rockford Fosgate TMS65 6-1/2" speakers. Rockford Fosgate's TMS69BL14 speaker kit features a pair of 6"x9" speakers that are designed to fit in your Harley-Davidson's factory bag lids. E Power Series TM400X4ad 4-channel amplifier uses Rockford Fosgate's proprietary Class AD technology to draw big power with less current draw from your bike's electrical system. You'll install the amp using the included RFK-HD14 kit which includes everything you need for the job, from mounting plate and wiring harnesses right down to the screws.

TM400X4ad Amplifier Specifications:

• Number of Channels: 4


• Total Power(Sum of Rated Power): 400 Watts


• Circuit Topology Class: Class AD


• Recommended Fuse (not included): 60 A


• Suggested Alternator: 75 A


• Power Wire Gauge:8 AWG


• Speaker Wire Gauge: 16 AWG

Rated Power(RMS Continuous Power):

• 100 Watts x 4 @ 4-Ohm


• 100 Watts x 4 @ 2-Ohm


• 200 Watts x 2 @ 4-Ohm Bridged

Dynamic Power (PVC/PowerCube):

• 128 Watts x 4 @ 4-Ohm


• 152 Watts x 4 @ 2-Ohm


• 290 Watts x 2 @ 4-Ohm Bridged

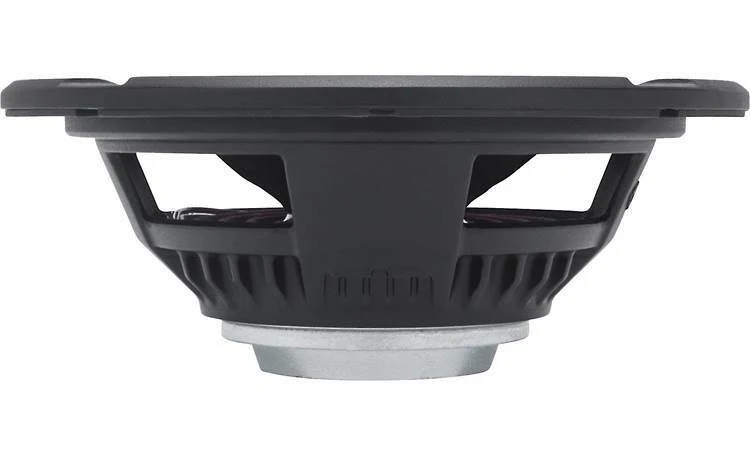

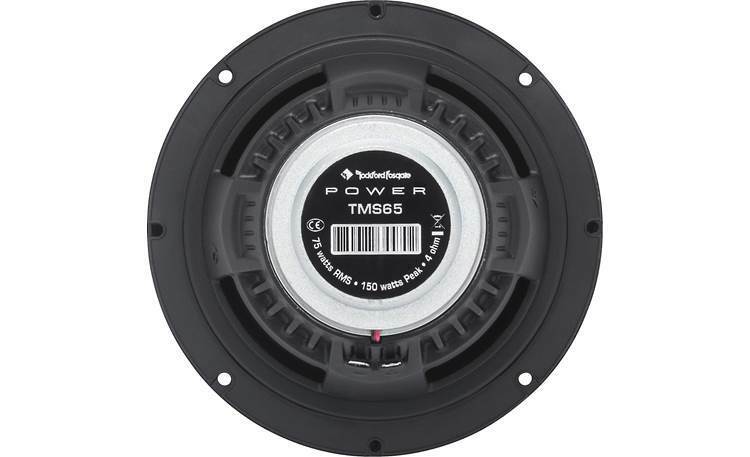

TMS65 Fairing/Tour-Pak Speakers Specifications:

• Power Handling (RMS): 75 Watts RMS


• Power Handling (MAX): 150 Watts MAX


• Nominal Impedance (Ohms): 4-Ohm


• Speaker Type: 2-Way Coaxial


• Vehicle CompatibilityHarley-Davidson Road Glide: 2015+


• Harley-Davidson Street Glide: 2014+


• Frequency Response (Hz):56 Hz - 20 kHz


• Sensitivity(dB @ 2.83V/1M): 94 dB

TMS69BL14 Saddlebag Audio Kit Specifications:

• Power Handling: 100 Watts RMS


• Impedance: 4-Ohms


• Speaker Type: 2-Way


• Midrange Mounting Depth: 2.75" (70 mm)


• Sensitivity(dB @ 1W/1M): 89 dB

RFK-HD14 Amplifier Wiring Kit Specifications:

• FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements


• 100% Pure Crystal-Oxygen Free Copper (PC-OFC)


• Plug and Play design for easy installation


• Designed for use with 2014-Current Harley-Davidson Motorcycles


• Battery PWR/GND Gauge: 8 AWG


• Fuse Size: 60 Amp


• Dual Amp Installation Kit: No


• Amplifier PWR/GND Gauge:8 AWG


• Speaker Wire Gauge: 16 AWG


• Fuse Type: MAXI

Compatibility note: This kit is designed to work with 2015-up Harley-Davidson Road Glide or 2014-up Street Glide touring bikes only.

Important Note: All 2014-up Harley-Davidson radios use a "high fidelity" EQ curve which will cause severe distortion in any audio upgrade. After installing this system, you'll need to get your radio reflashed by your Harley-Davidson Dealer.
