• The Rockford Fosgate Stage 3 kit delivers immersive bass for trail adventures.
• This system lets you install front Color Optix speakers and a subwoofer on compatible RZR models.
• Equipped with a PMX-2 digital media receiver, it includes essential components such as front speaker enclosures, an 800-watt Element Ready amplifier, M1 6.5" Color Optix speakers, and more.
• The kit simplifies installation with all required hardware, reducing the time and tools needed for setup.

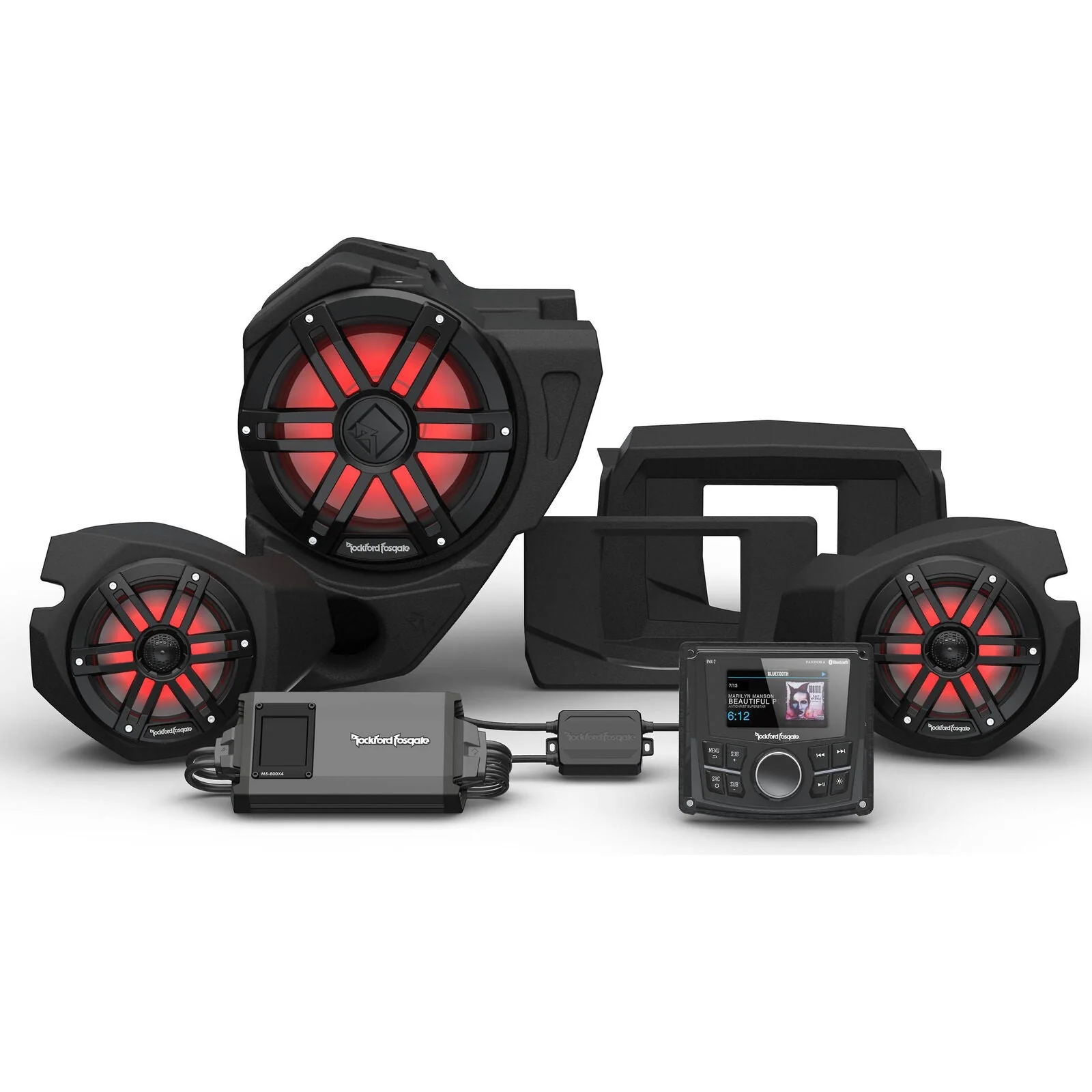

Rockford Polaris RZR Radio, Amp, 6.5" Color Optix Speakers & 10" Subwoofer Kit

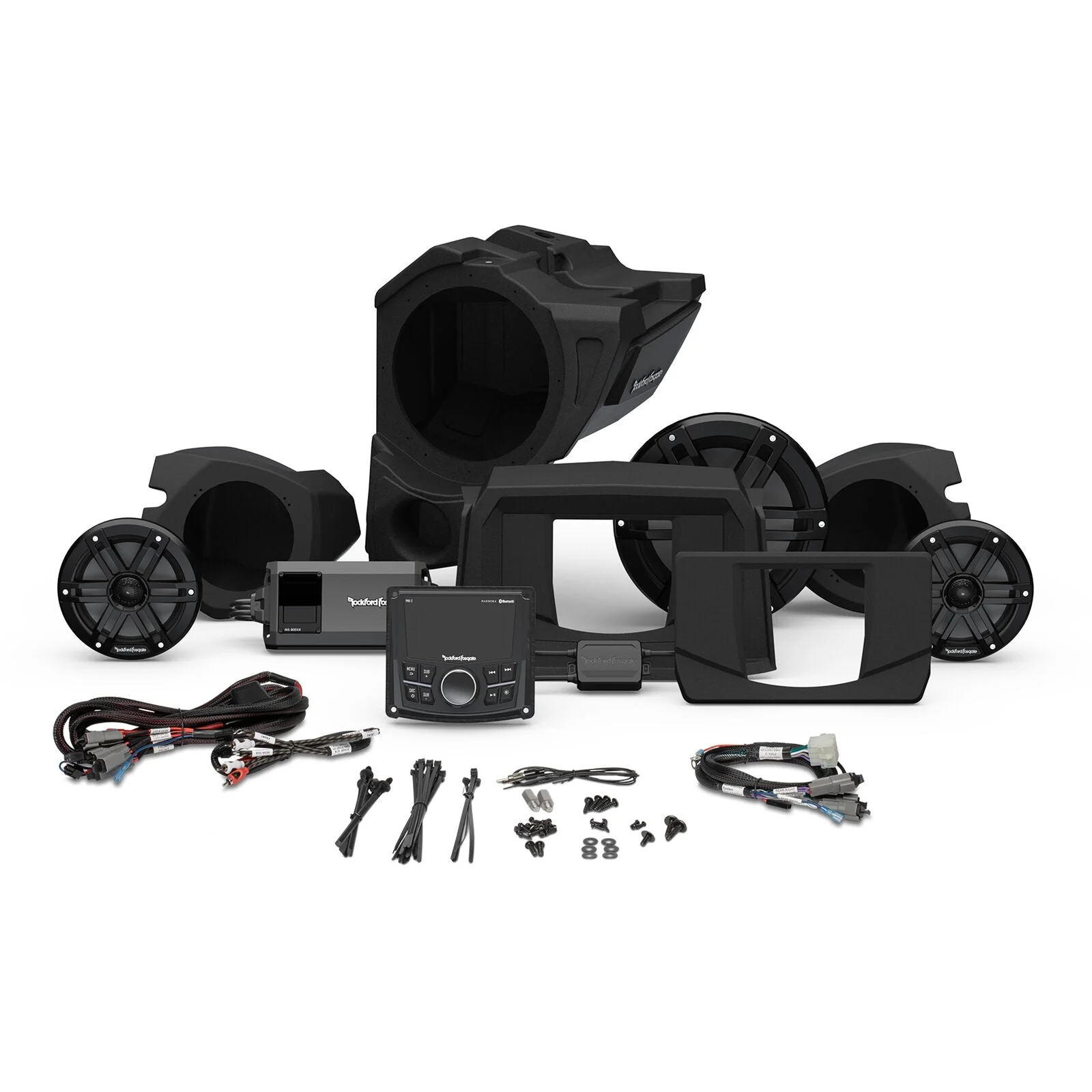

This Listing Includes:

(1) Radio - PMX-2

(1) Dash kit for PMX-2 - RZR14-DK

(2) Direct Fit Front Color Optix 6.5" Loaded Speaker Enclosures-RZR14-FSE

(2) 6.5" Color Optix Marine Speakers - M1-65B

(1) M5-800X4 Amplifier

(1) Direct Fit Front Color Optix 10" Ported Loaded Subwoofer Enclosure-RZR14-FWE

(1) 10" DVC 2 Color Optix Subwoofer-M1D2-10B

(1) 8 AWG Amp Installation Kit-RZR14-K8

(1) Color Optix Light Controller with Optional App Interface-PMX-RGB

This Rockford Fosgate Stage 3 kit gets you ready for massive bass in your face while running the trails. System allows you to add front Color Optix speakers and subwoofer on select RZR models. Kit is equipped with a PMX-2 digital media receiver, upper/lower dash kit (installation location depends on RZR model,) front speaker enclosures, M1 6.5" Color Optix speakers, 800-watt Element Ready amplifier, front subwoofer enclosure, M1 10" Color Optix subwoofer, 8-gauge wiring harness, and Color Optix controller. Kit supplied with all necessary mounting and installation hardware requiring minimal time and tools.

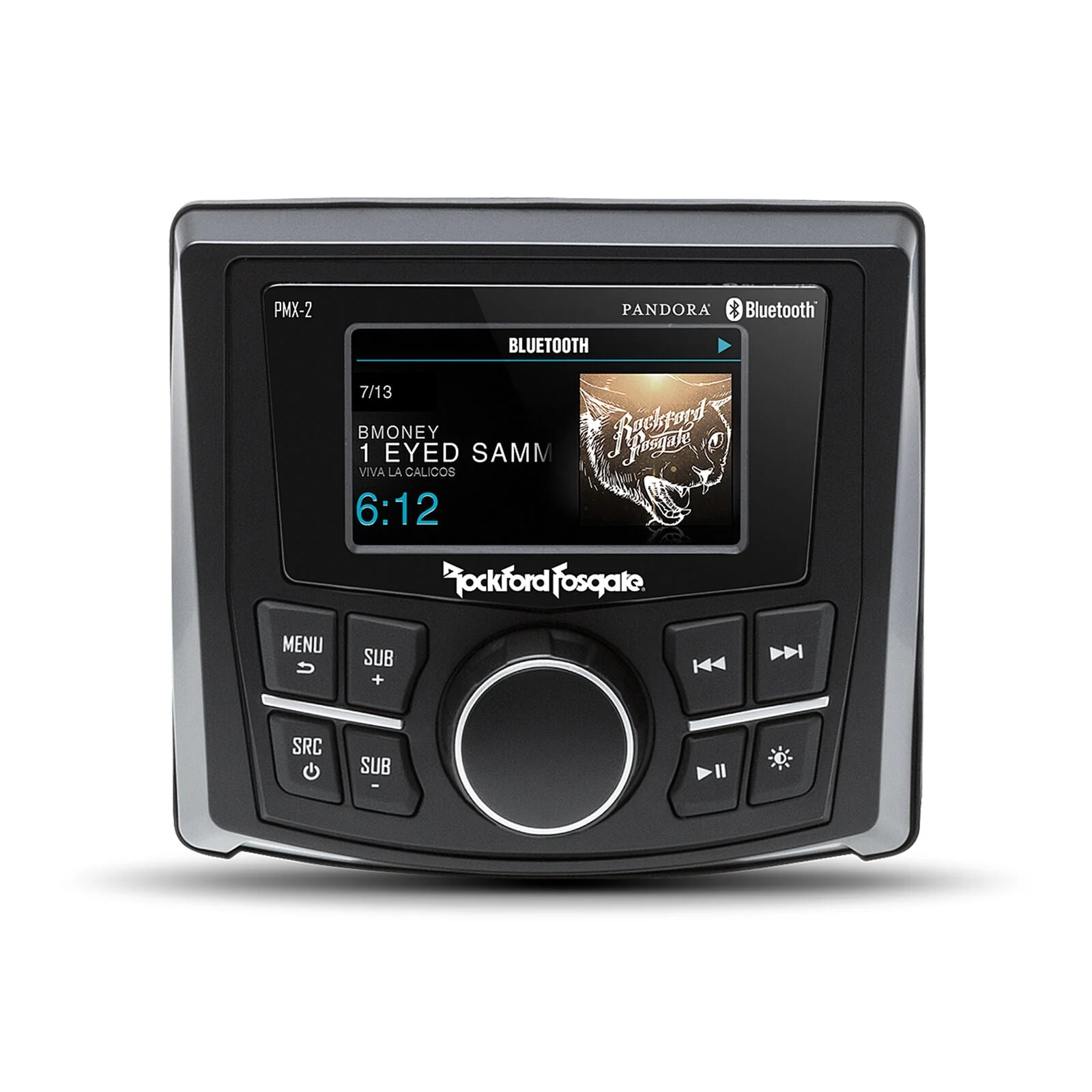

PMX-2 Features:

• 7-Band Graphic EQ


• 2.7" full color display w/ auto dimming backlightning


• AM/FM/WB Tuner


• Pandora Internet Radio


• A2DP and AVRCP Bluetooth Wireless Streaming


• AUX and USB Inputs with USB Charging


• On Board Punch EQ Control


• Independent Subwoofer Level Control


• iPod playback with on-screen display

RZR14-DK Features:

• Texture and color matched to vehicle interior


• Direct bolt into vehicle using OEM mounting holes.


• No drilling or cutting required

RZR14-FSE Features:

• Texture and color matched to vehicle interior


• Direct bolt into vehicle using OEM mounting holes.


• No drilling or cutting required


• Lightweight design up to 40% lighter than previous generation

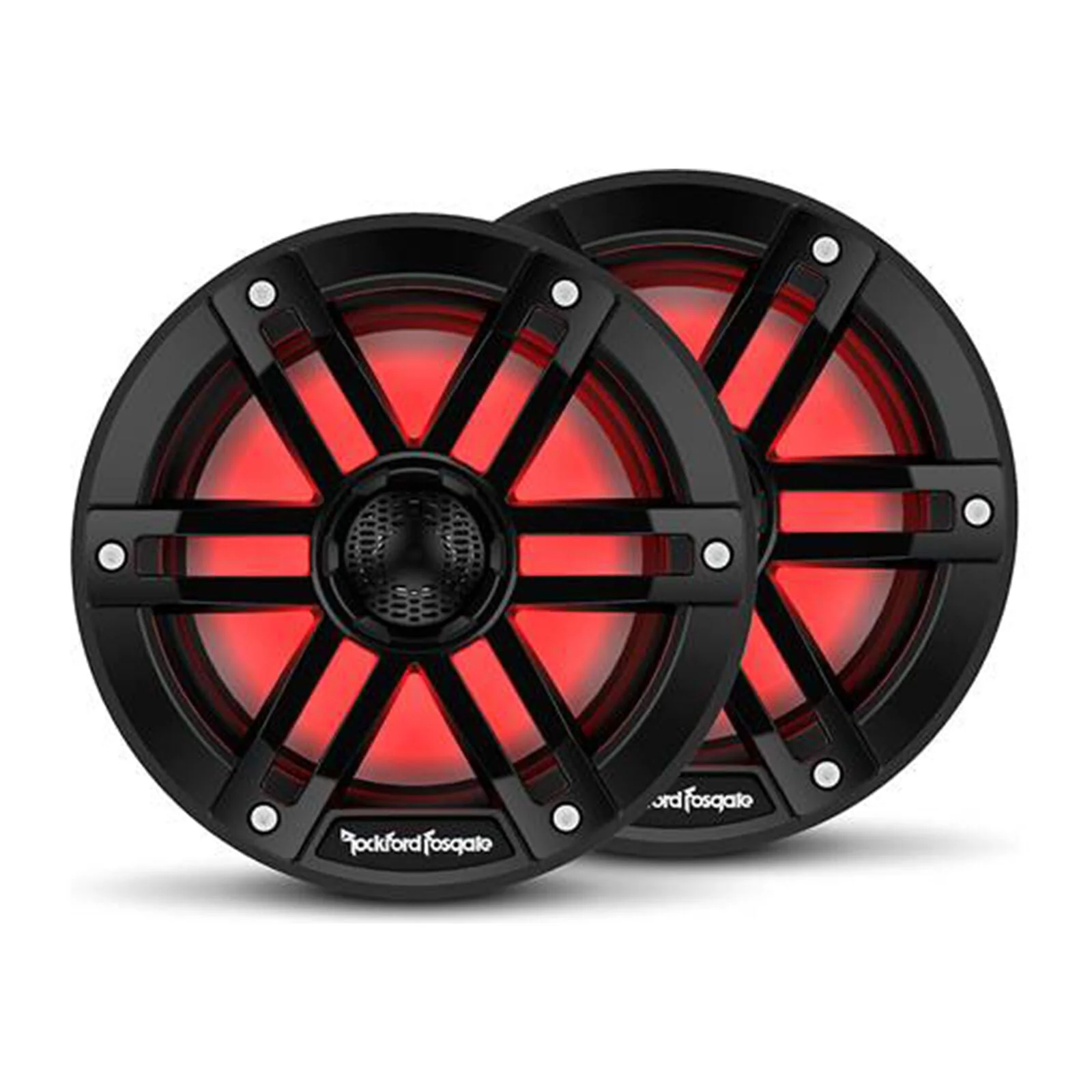

M1-65B Features:

• Grill Integrated 1" (25 mm) LCP Balanced Dome Tweeter


• 1" (25mm) High Temp Kapton Woofer Voice Coil Former


• Sealed motor design


• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment


• Zinc Nickel-plated Marine grade brass connection terminals


• Proprietary Dual Function Input Terminals

M1-65B Specifications:

• Speaker Type: 2-Way Coaxial


• Midrange Size(Nominal Diameter): 6.5"


• Tweeter Size (Nominal Diameter): 1" (25.4 mm)


• Nominal Impedance(Ohms): 4-Ohms


• Power Handling: 75 Watts RMS, 300 Watts PEAK

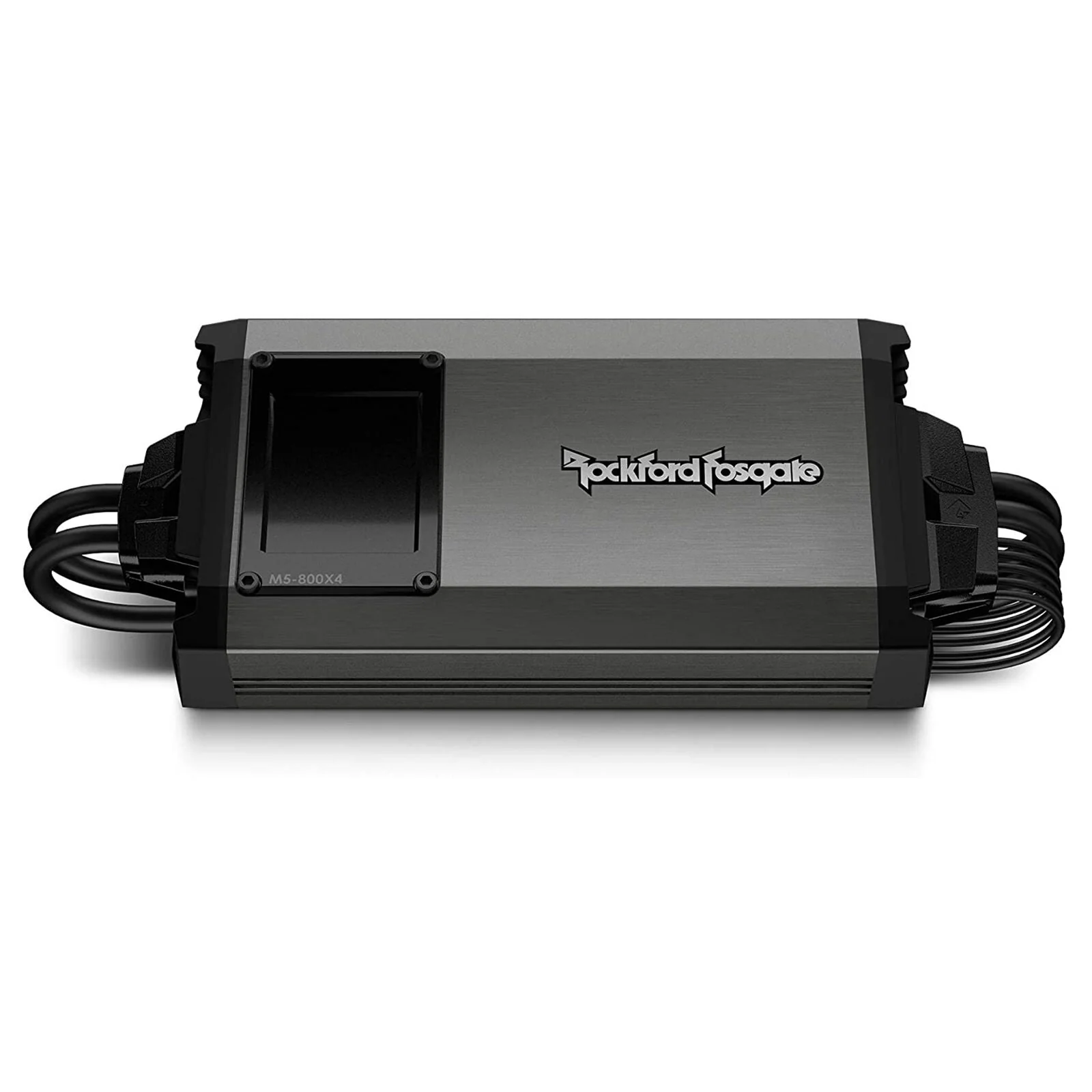

M5-800X4 Amplifier Specifications:

• Rated Power (RMS Continuous Power


• 100 Watts x 4 @ 4


• 100 Watts x 4 @ 2


• 200 Watts x 2 @ 4 Bridged/Mono less than1.0% THD+N


• Dynamic Power


• (PVC/PowerCube)


• 125 Watts x 4 @ 4


• 200 Watts x 4 @ 2


• 400 Watts x 2 @ 4 Bridged/Mono


• Frequency Response:10 Hz - 50 kHz


• Input Sensitivity:150mVrms - 12Vrms

M1D2-10B Specifications:

• Size: 10"


• Impedance: Dual 2 Ohm 1-Ohm or 4-Ohm Switchable


• Power: 300W RMS 1200W MAX


• Frequency Response: 20 Hz - 750 Hz


• Voice Coil Diameter: 2.0" (50mm)

PMX-RGB Features:

• Controller illuminates up to 8 Color Optix speakers and/or subwoofers


• RF Connect App Compatible


• RF Connect Capacity: Unlimited number of PMX-RGB
