• Single Bank 6 Yinlong LTO Cell Lug Style Bus Bars – High-performance aluminum bus bars for lithium battery systems
• Material – 6061 aluminum for superior conductivity and durability
• Capacitance Active Balancer – Supports active energy transfer equalization, max balance current up to 5.5A
• Voltage Range – 1.8V - 4.5V with standby power consumption under 0.1mA
• Note – Batteries and mounting screws are not included (Screw hole size: 8.5mm)

Single 6 Yinlong LTO Cell Bank Lug Bus Bars w/ BMS 4-6S Balancer

This Listing Includes:

• (1) Single Bank 6 Lug Style Aluminum Bus Bar Set

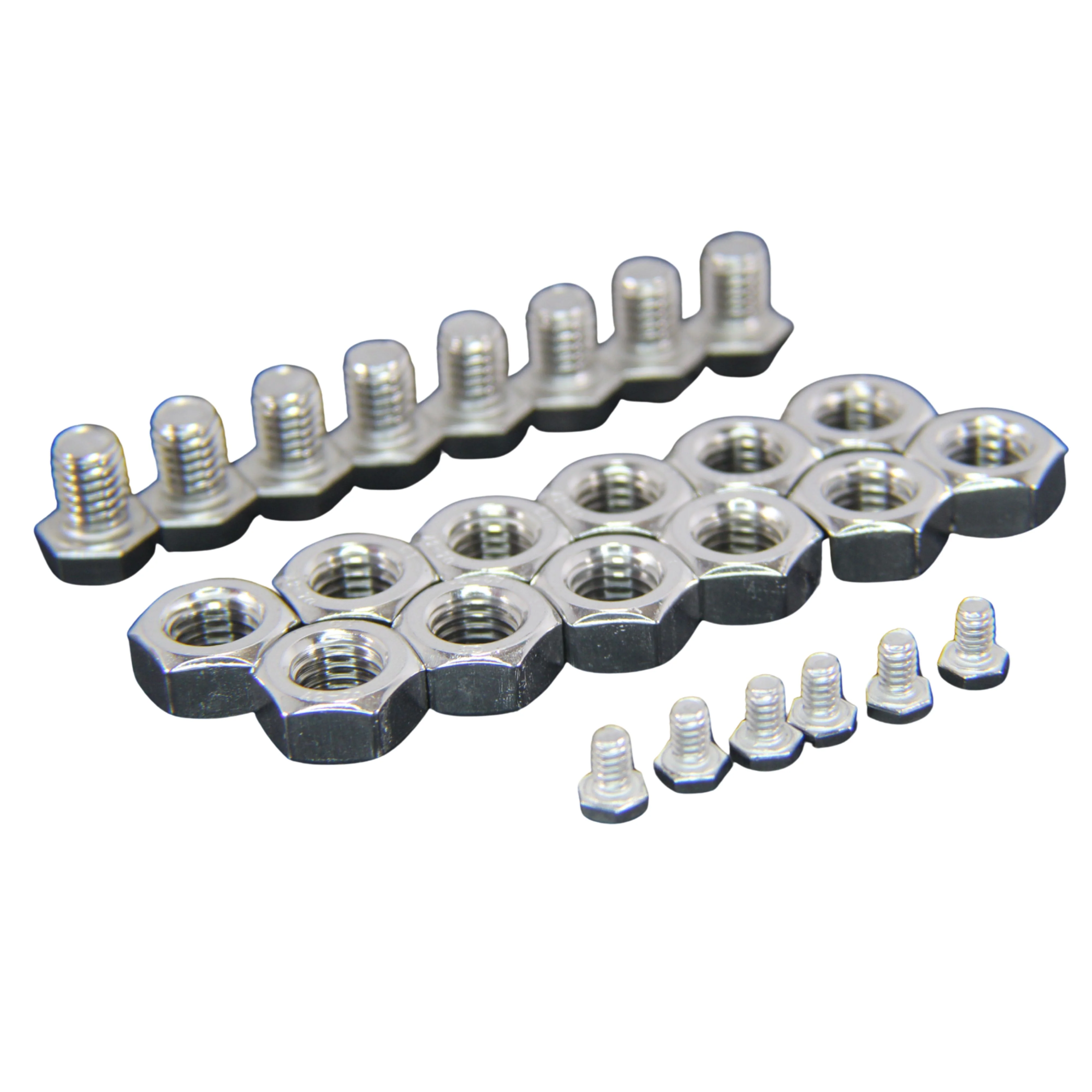

• (1) Set of Stainless Steel Hardware (cell nuts, bolts, balancer bolts)

• (1) Capacitance Active Balancer

• (1) Heltec BMS 4-6S Balancer ABS Protective Case (Red)

The Single Bank 6 Yinlong LTO Cell Lug Style Bus Bars provide a high-performance solution for lithium battery systems, offering optimal energy transfer and secure connections. Made from high-quality 6061 aluminum, these bus bars ensure durability and superior conductivity. The included capacitance active balancer and Heltec BMS 4-6S protective case enhance battery efficiency and safety, making this an essential setup for reliable energy distribution.

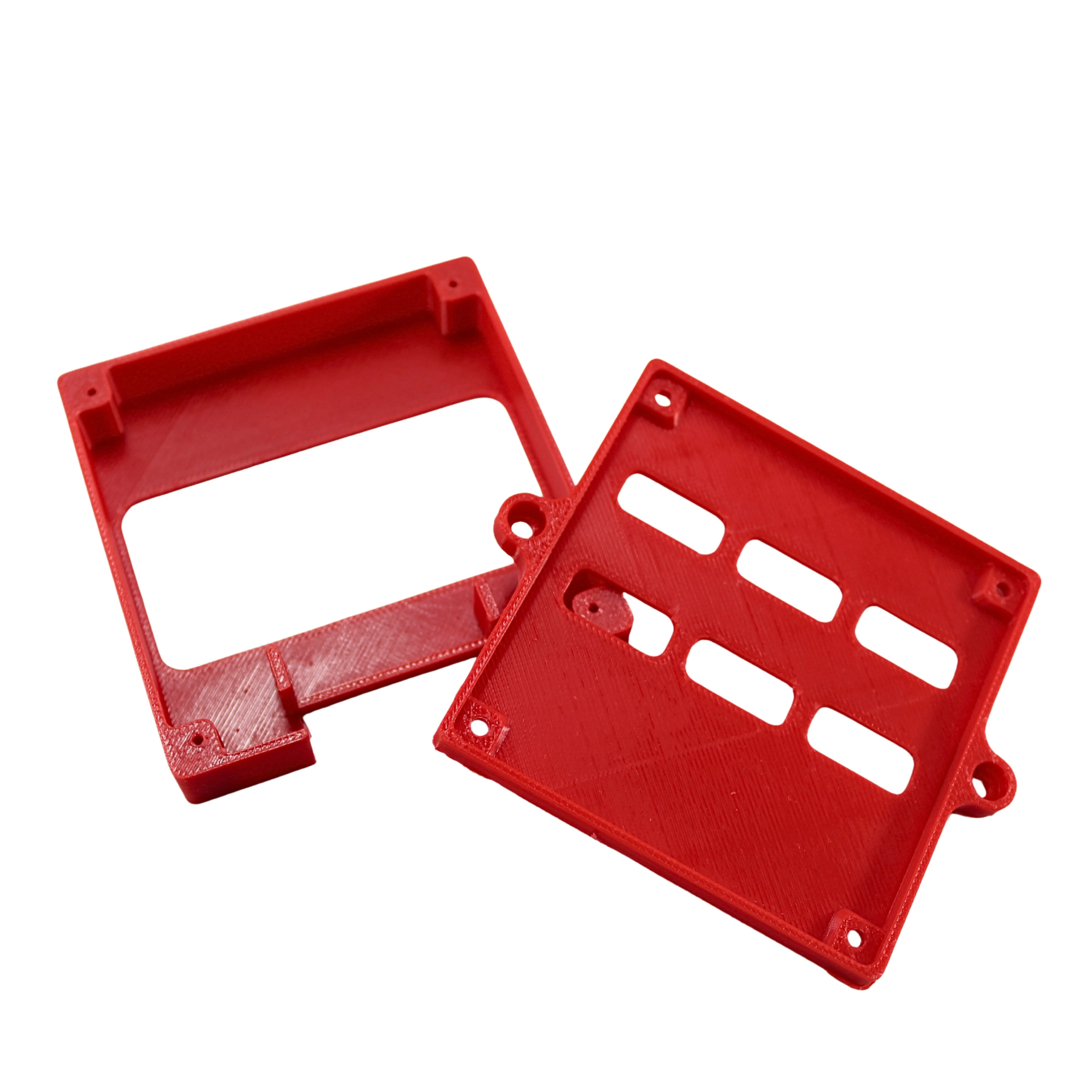

Heltec BMS 4-6S Balancer ABS Protective Case Features

• Perfect fit for Heltec BMS 4-6S balancer

• Lightweight and durable construction

• Red color for added style

• Includes 4 screws for secure mounting

Heltec BMS 4-6S Balancer ABS Protective Case Measurements

• Length: 3"

• Width: 3.5"

• Height: 0.75"

• Weight: 0.038 lb (0.6 oz)

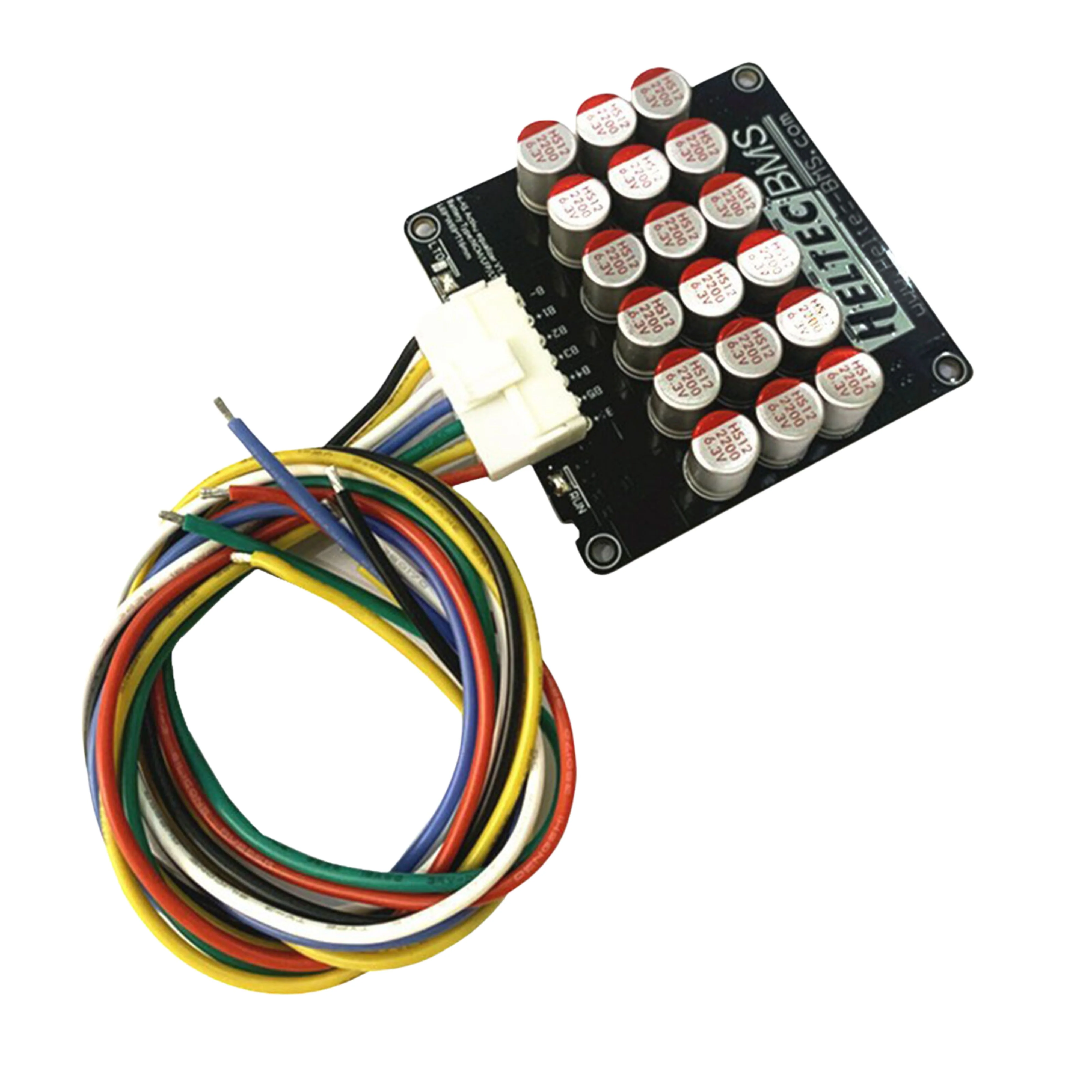

Capacitance Active Balancer Features

• Working voltage: 1.8V - 4.5V

• Compatible with ternary lithium, lithium iron phosphate, and lithium titanate batteries

• Supports active energy transfer equalization

• Equalizing current: 0.1V differential voltage at 1A, up to a max of 5.5A

• Quiescent current: 12mA, suitable for battery capacities from 60Ah to 300Ah

• Sleep mode: Voltage automatically stops balancing below 3.0V, with standby power consumption under 0.1mA

• High-efficiency design: Features ultra-low resistance MOSFETs and a 2OZ copper PCB for enhanced performance

Single Bank 6 Lug Style Aluminum Bus Bar Set Features

• Durable Construction - Crafted from high-quality 6061 aluminum for superior conductivity and longevity

• Optimized for Yinlong Cells - Compatible with Yinlong 35Ah, 40Ah, and 45Ah lithium cells

• Complete Hardware Included - Comes with stainless steel cell nuts, bolts, and balancer bolts for easy assembly

• High Current Flow - Engineered for extreme power applications with excellent electrical conductivity

• Convenient Design - Single bank bussing accepts 4 lugs on each end for flexible and secure connections

Note:

• Batteries are not included

• Mounting screws not included (Screw hole size: 8.5 mm)
