• Dual Voice Coil Flexibility: Offers versatile wiring options with 1-Ohm or 2-Ohm configurations, giving you the flexibility to tailor the subwoofer’s performance to your amplifier and system.
• Built for Serious Bassheads: With a massive magnet, heavy-duty voice coil, and precision engineering, this subwoofer can handle up to 2000 Watts RMS for an extraordinary bass experience.
• Durable and Long-Lasting: Designed to withstand the rigors of competition and the demands of high-powered audio systems, ensuring lasting performance.
• Easy Installation: Thoughtfully designed for a smooth and straightforward installation, so you can start enjoying high-performance bass immediately.

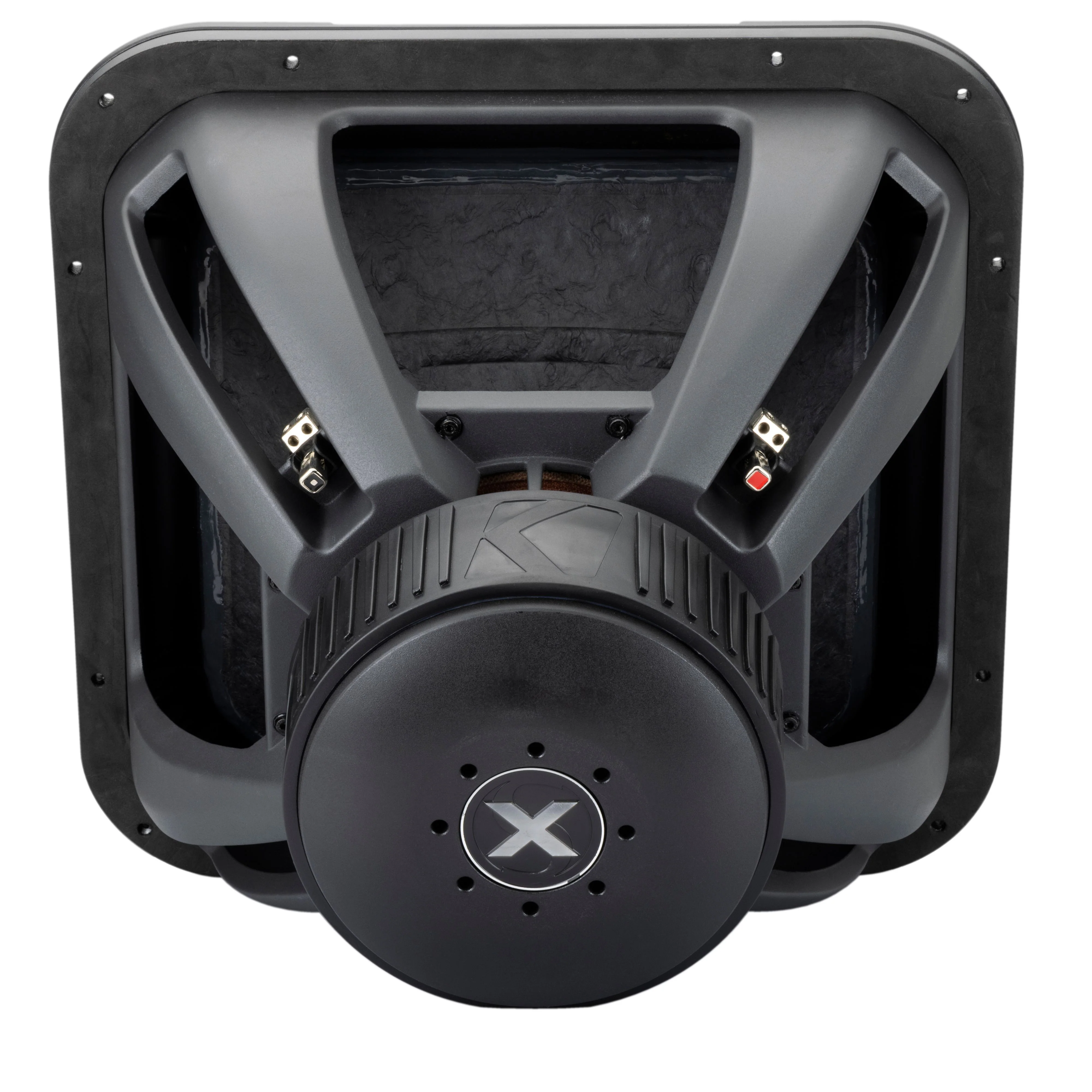

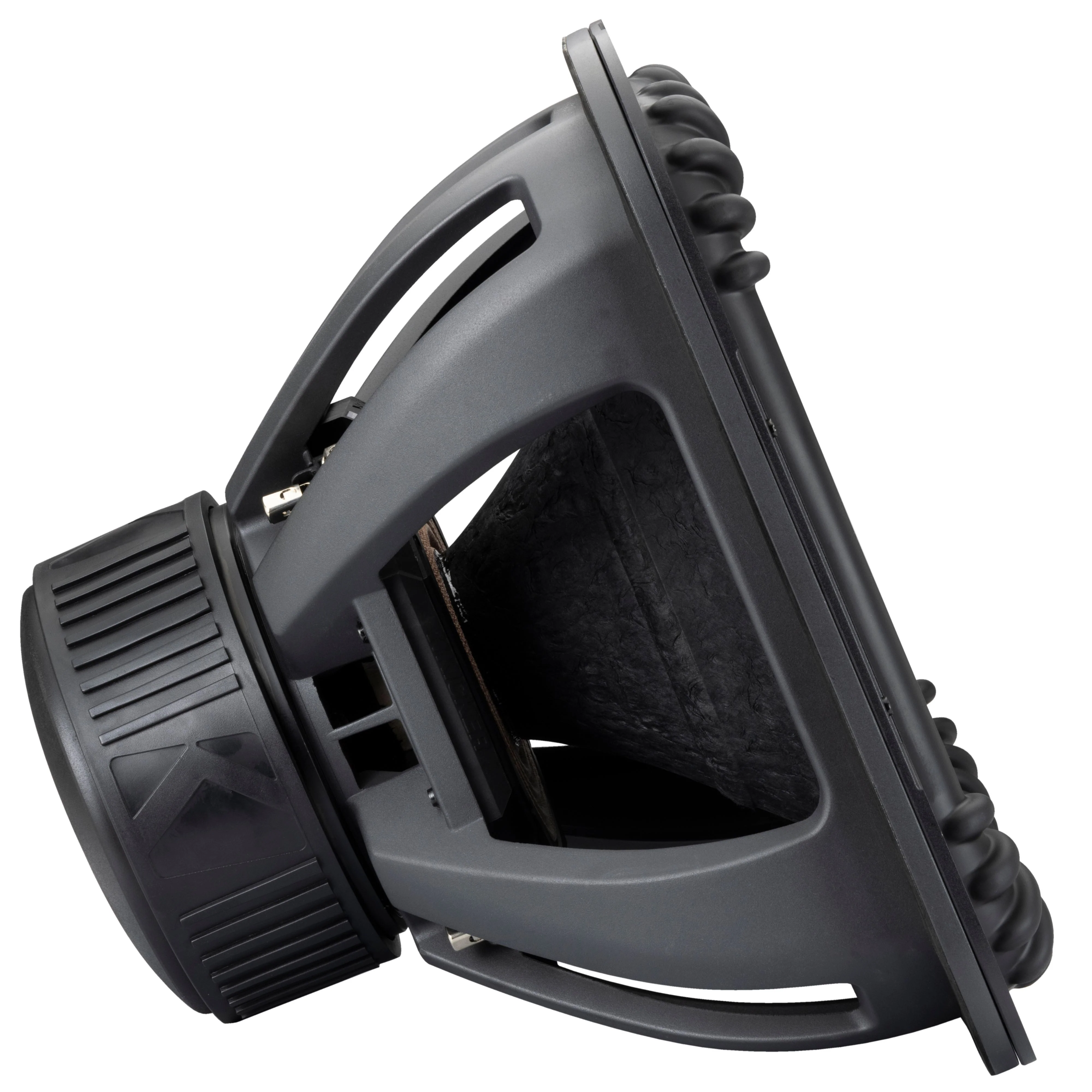

Kicker 18 Inch Dual 1-Ohm 1000 Watts RMS Ferrite Competition Subwoofer w/ 3" Voice Coil

This Listing Includes:

• (1) Kicker 18 Inch Dual 1-Ohm 1000 Watts RMS Ferrite Competition Subwoofer w/ 3" Voice Coil

Experience unrivaled bass performance with the Kicker 18 Inch Dual 1-Ohm Competition Subwoofer. The L7X series reimagines the massive power handling and motor of KICKER's legendary L7 SoloX subwoofers, incorporating cutting-edge engineering, premium materials, and innovative design concepts. If you’re serious about SPL and deep, low-end bass, this subwoofer is the ultimate choice. With award-winning pedigree, the Kicker L7X ensures you’ll achieve impressive, competition-level output. Remember, achieving peak performance requires not just a powerful subwoofer, but the right amplifier to unleash its full potential. Pair this subwoofer with Kicker’s high-powered Warhorse amplifiers to dominate the competition and enjoy unparalleled sound quality.

Specifications

• Woofer Size: 18 in (46 cm)


• Recommended Amplifier Power: 1000–2000 Watts RMS


• Frequency Response: 18–100 Hz


• Magnet Diameter: 8 11/16 in (22 cm)


• Total Magnet Weight: 406 oz (11.5 kg)


• Voice Coil Diameter: 3 in (75 mm)


• Voice Coil Winding Width: 2.5 in (62.5 mm)


• Top Plate Thickness: 0.5 in (12 mm)


• Rated Impedance: 1 Ohm


• Xmax (Linear Excursion): 1.25 in (31.25 mm)


• Mounting Cutout: 16.5 in (42 cm)


• Mounting Depth: 13-3/16 in (33.5 cm)

Wiring Configuration

Dual 1-Ohm Voice Coils:

• Series Wiring: 2-Ohm Load


• Parallel Wiring: 0.5-Ohm Load

Dual 2-Ohm Voice Coils:

• Series Wiring: 4-Ohm Load


• Parallel Wiring: 1-Ohm Load

Make sure your source unit or amplifier is rated at the correct ohm load for operation.

Enclosure Recommendations

• Recommended Vented Box Volume:7.5 cubic feet (214.5 L)


• Port Opening (in x in / cm x cm):6.5 x 19.5 in (16.5 x 49.5 cm)


• Port Length (in / cm):27.75 in (70.5 cm)


• Tuning Frequency:28 Hz


• Woofer Displacement:0.36 cubic feet (10.19 L)
