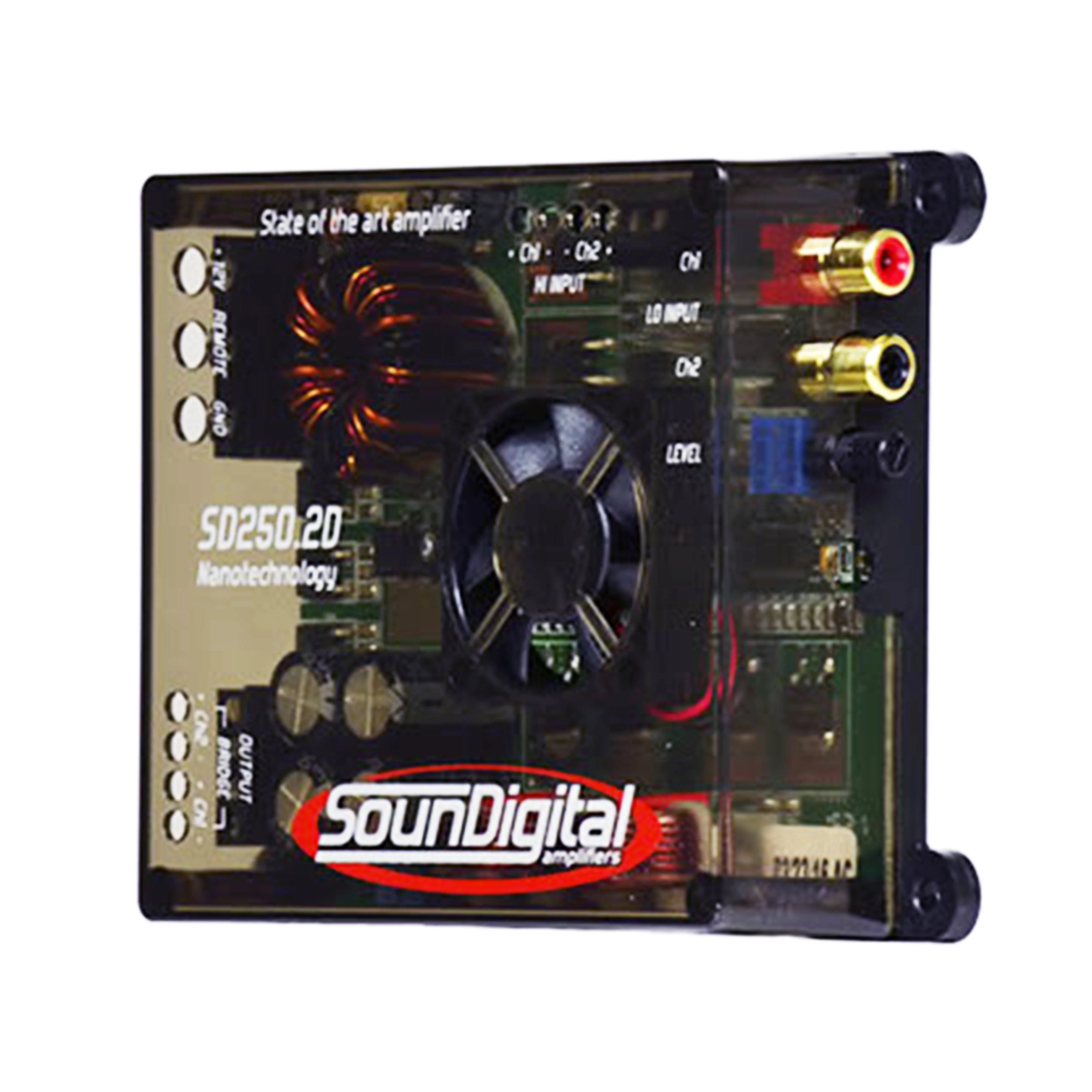

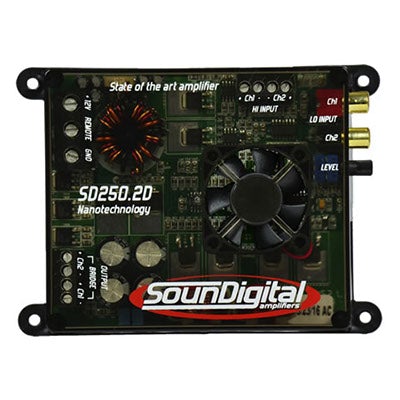

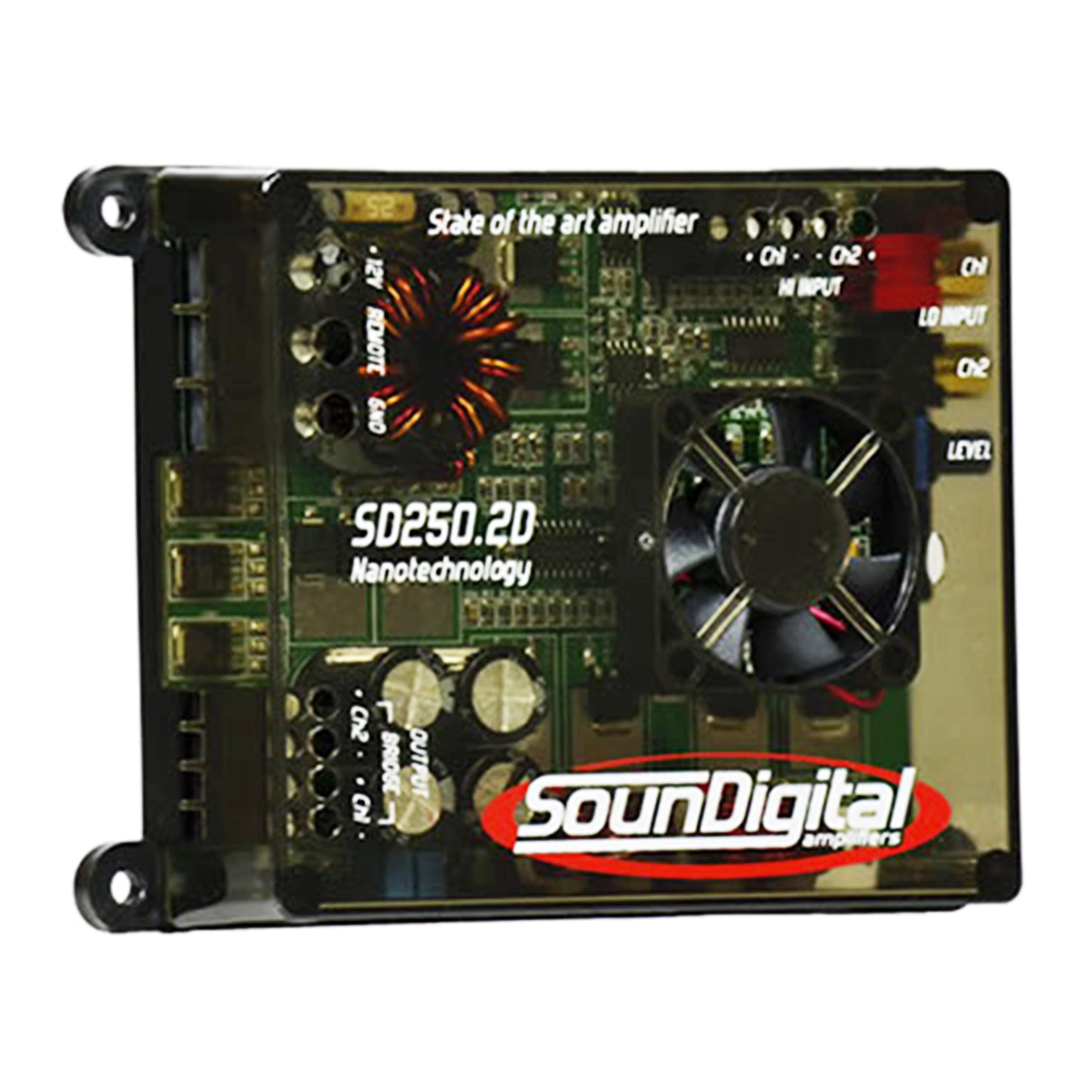

SoundDigital 2 Channel NANO Amplifier Class D Clear 250 Watts RMS SD250.2D



The Soundigital SD250.2D NANO amplifier has 2 channels with 125 W RMS each. This model is suitable for use in woofers, drivers, super tweeters, and subwoofers in this power range. The SD250.2D is a class D amplifier, that is, it has a digital architecture. This ensures greater energy savings and less heat.



This Listing Includes:

(1) Amplifier



Features:

- Class D Technology

- Can be used in TRI-MODE connection

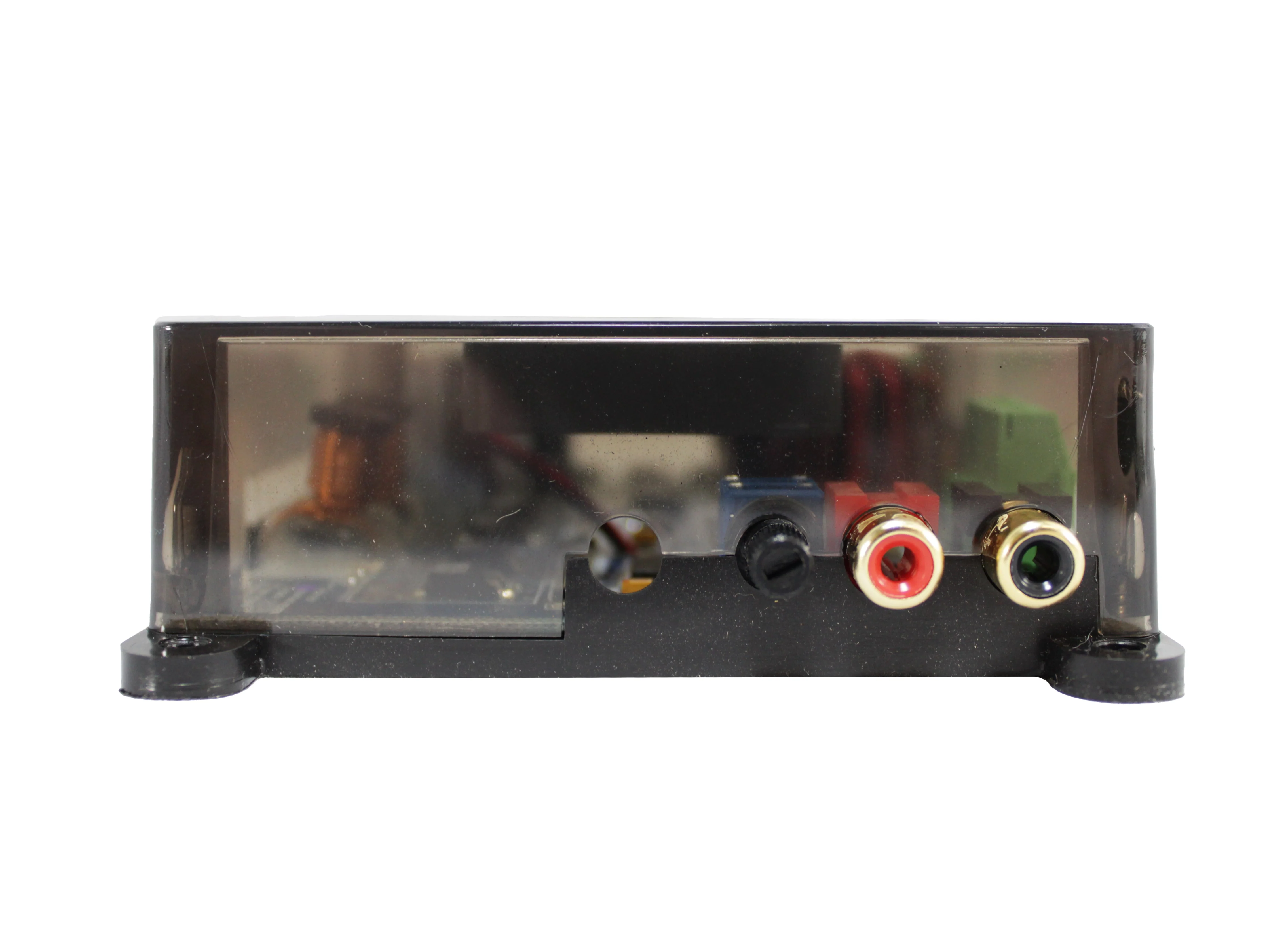

- RCA Inputs and "High" Type



Specifications:

Power 2 x 125 watts RMS at 2 ohms @ 12.6V

Power 2 x 85 Watts RMS at 4 ohms @ 12.6V

Power 1 x 250 watts @ 4 ohms in bridge @ 12.6V

Power 1 x 300 watts @ 4 ohms in bridge @ 14.4V

Maximum power: PMPO 3000W

Efficiency: 95%

Frequency response: 5Hz to 20KHz

Input sensitivity: 0.5V to 6V

Supply voltage: 12.6V (10V to 16V)

Damping Factor: 400

Harmonic Distortion: 0.01 % THD+N @ 60W

Inputs Resting consumption: Less Than 0.1A

Maximum consumption (resistive load): 22A

Maximum consumption (musical signal): 11A

Minimum capacity of the battery: 30 A

Recommended fuse/circuit breaker: 30 A

Size of recommended power cable: 6mm

Size of recommended speaker cable: 1.5mm



Dimensions:

Length: 115 mm / 4.5"

Width: 100 mm / 3.9"

Height: 35 mm / 1.4"
