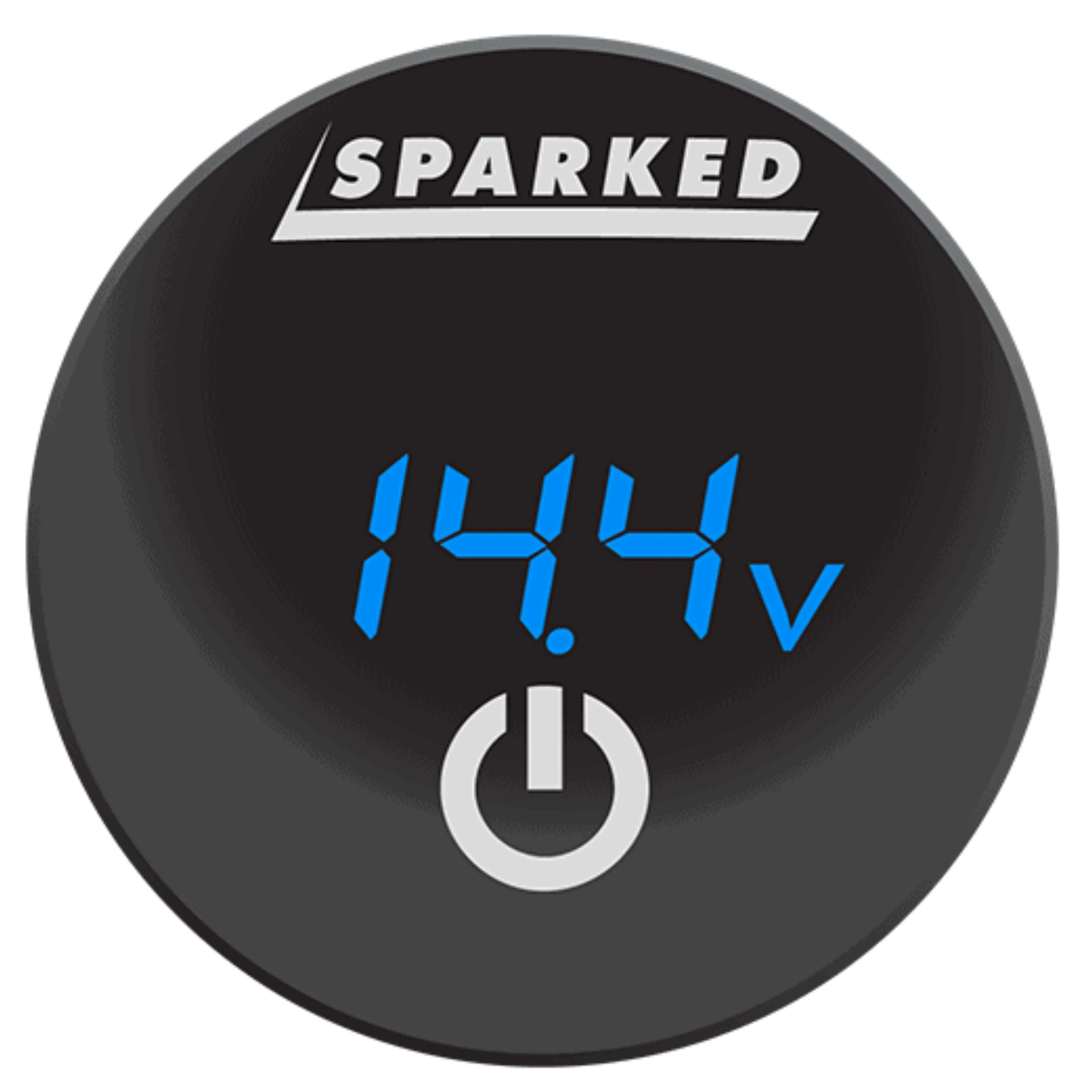

• LED Voltmeter Battery Capacity Monitor
• 5-30v DC operation range
• Anti-reverse, anti-short circuit protection

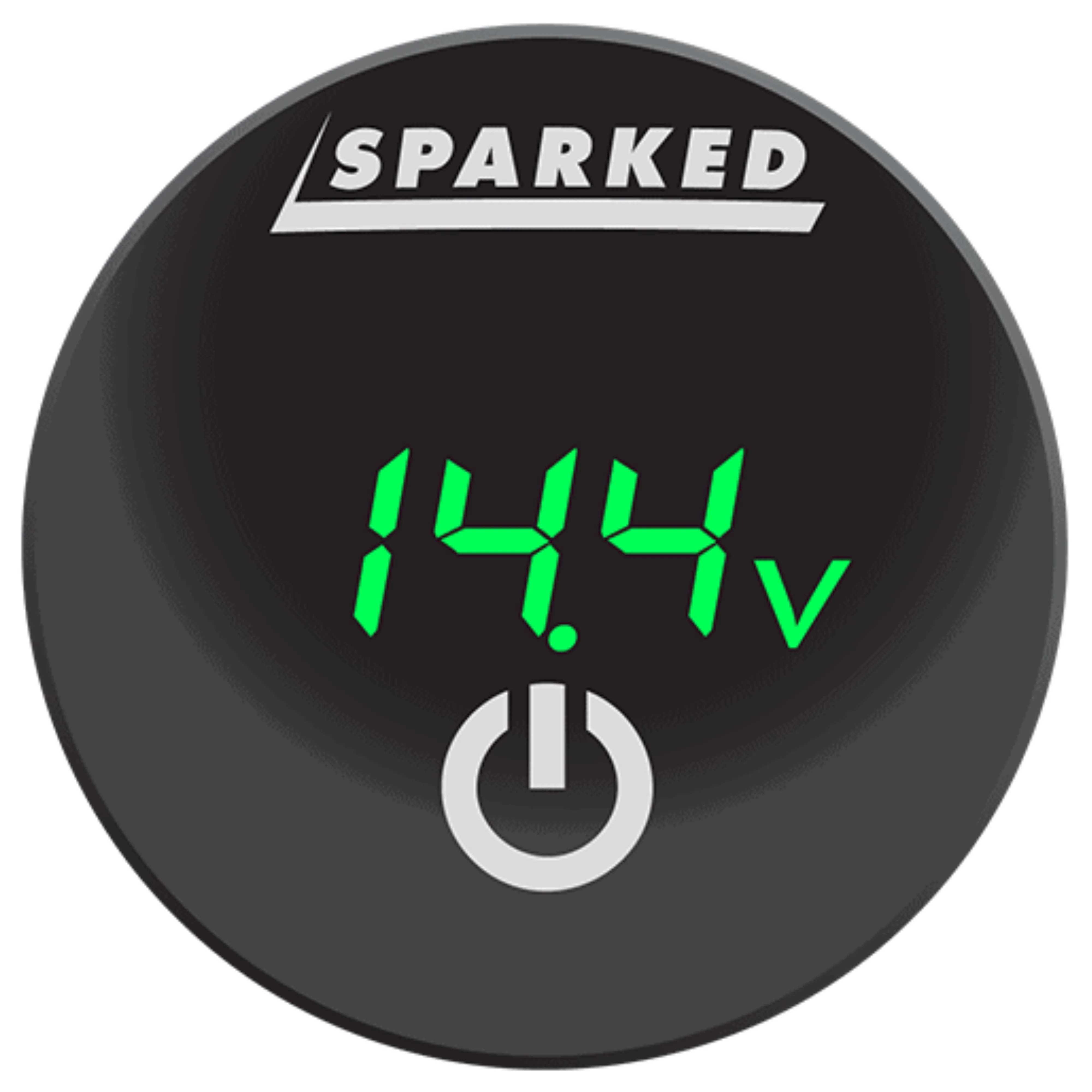

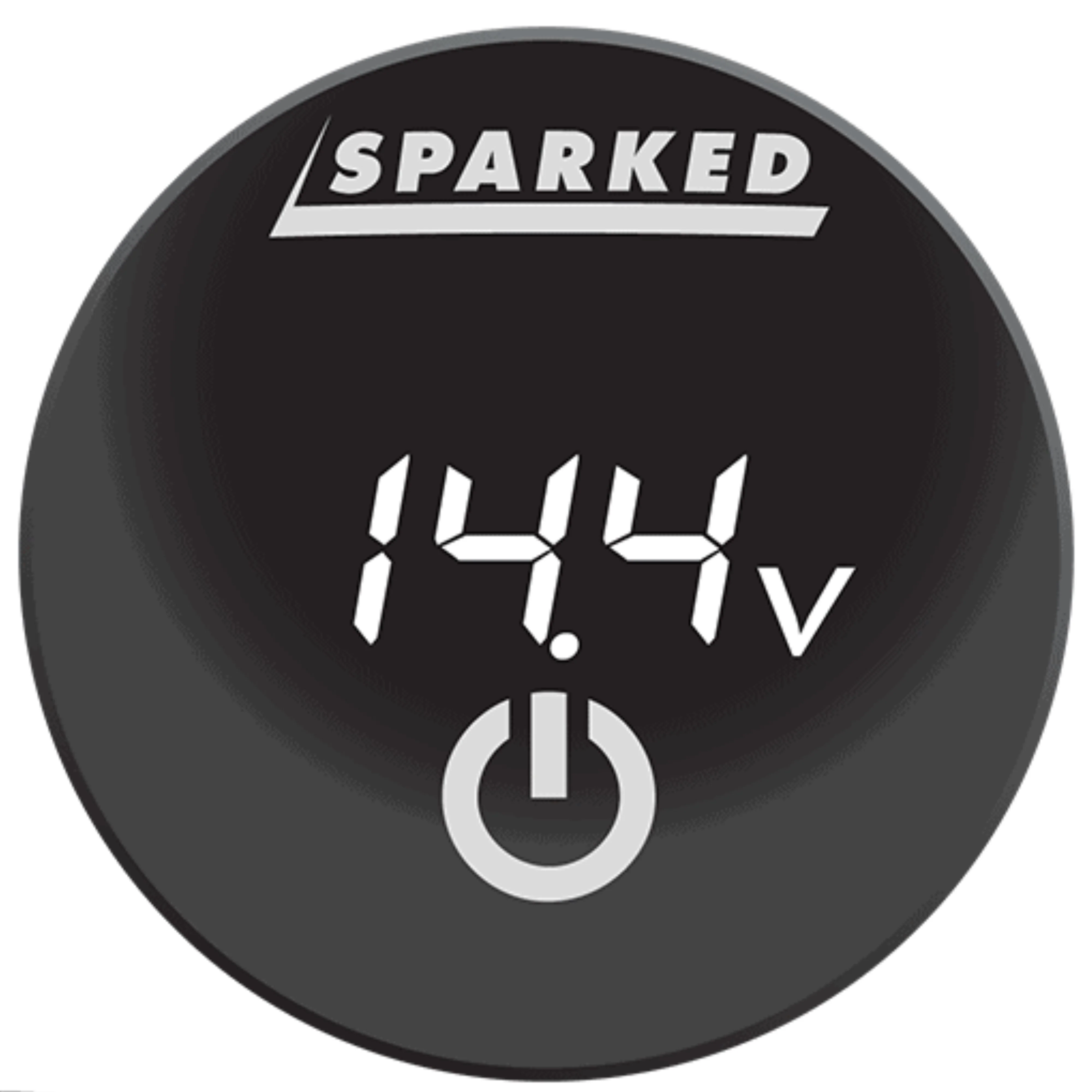

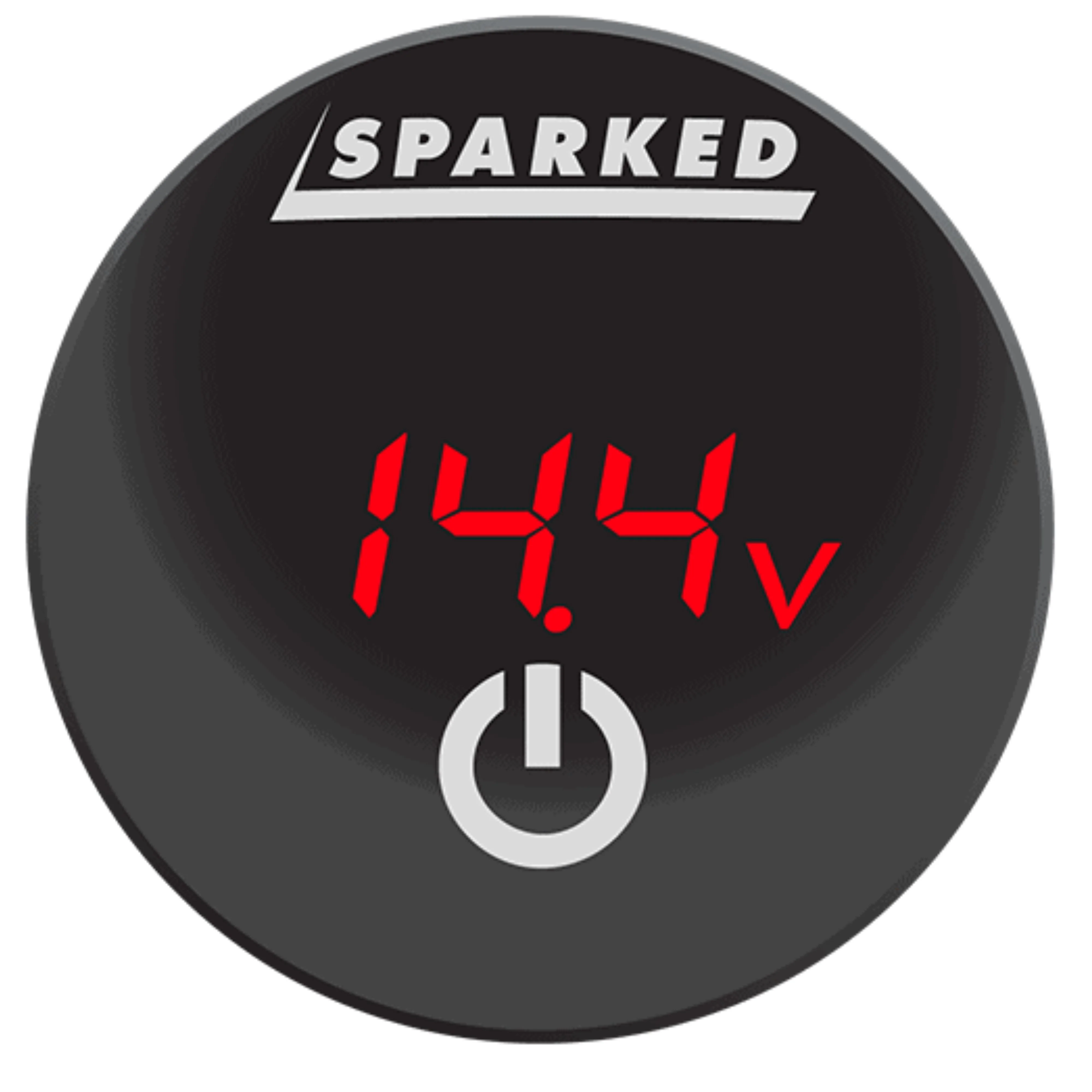

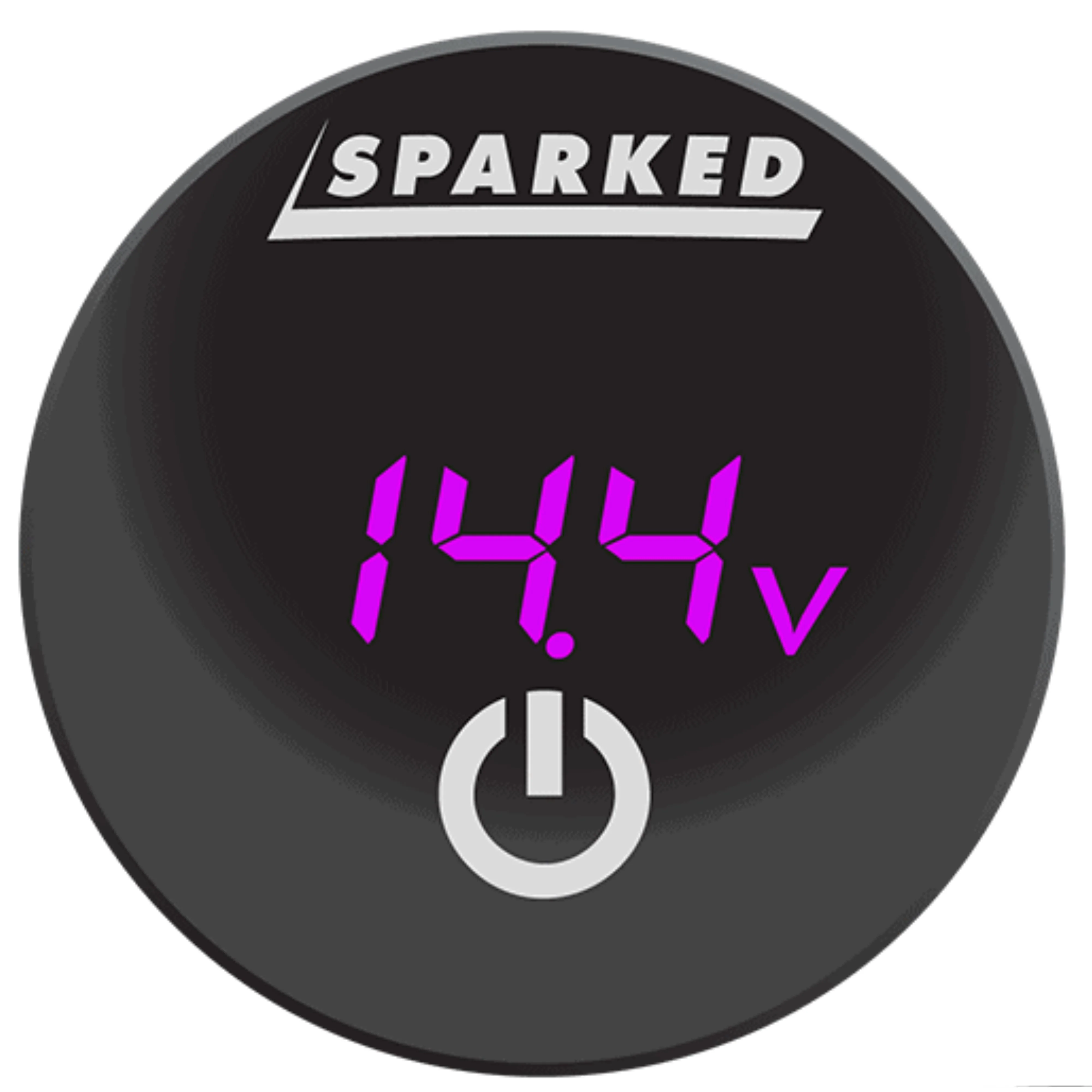

• Colors: Blue, Green, Purple, Red, or White
• ABS and nylon housing. Impact resistant and IP67 rated for water submersion up to 1 meter

Sparked Innovations LED Voltmeter Battery Capacity Monitor Gauge w/ Touch Switch

This Listing Includes:

(1) LED Voltmeter Battery Capacity Monitor

Universally use this 12VDC Voltmeter with LED display to monitor any 12volt application from marine to automotive dash panels. It’s similar in size to an automotive cigarette lighter mounting hole. IP67 waterproof rating allows it to be used on motorcycles or boats to monitor battery voltage. Circular housing makes it easy to mount. Toggle between charge level and voltage with a quick touch and turn off the meter with a long press. Comes with two insulated female quick-disconnect terminals. Battery charge level display range 0-100%.

Specifications:

• 5-30v DC operation range


• 3 digit digital display


• Colors: Blue, Green, Purple, Red, or White


• Anti-reverse, anti-short circuit protection


• ABS and nylon housing. Impact-resistant and IP67 rated for water submersion up to 1 meter


• Operating temp -25~80C


• Accuracy class 0.1


• Mounting hole diameter – 29.2mm


• Overall diameter – 36.5mm


• Mounting depth – 31.5mm including terminals


• Digit height – 8mm


• Waterproof Rating: IP67
