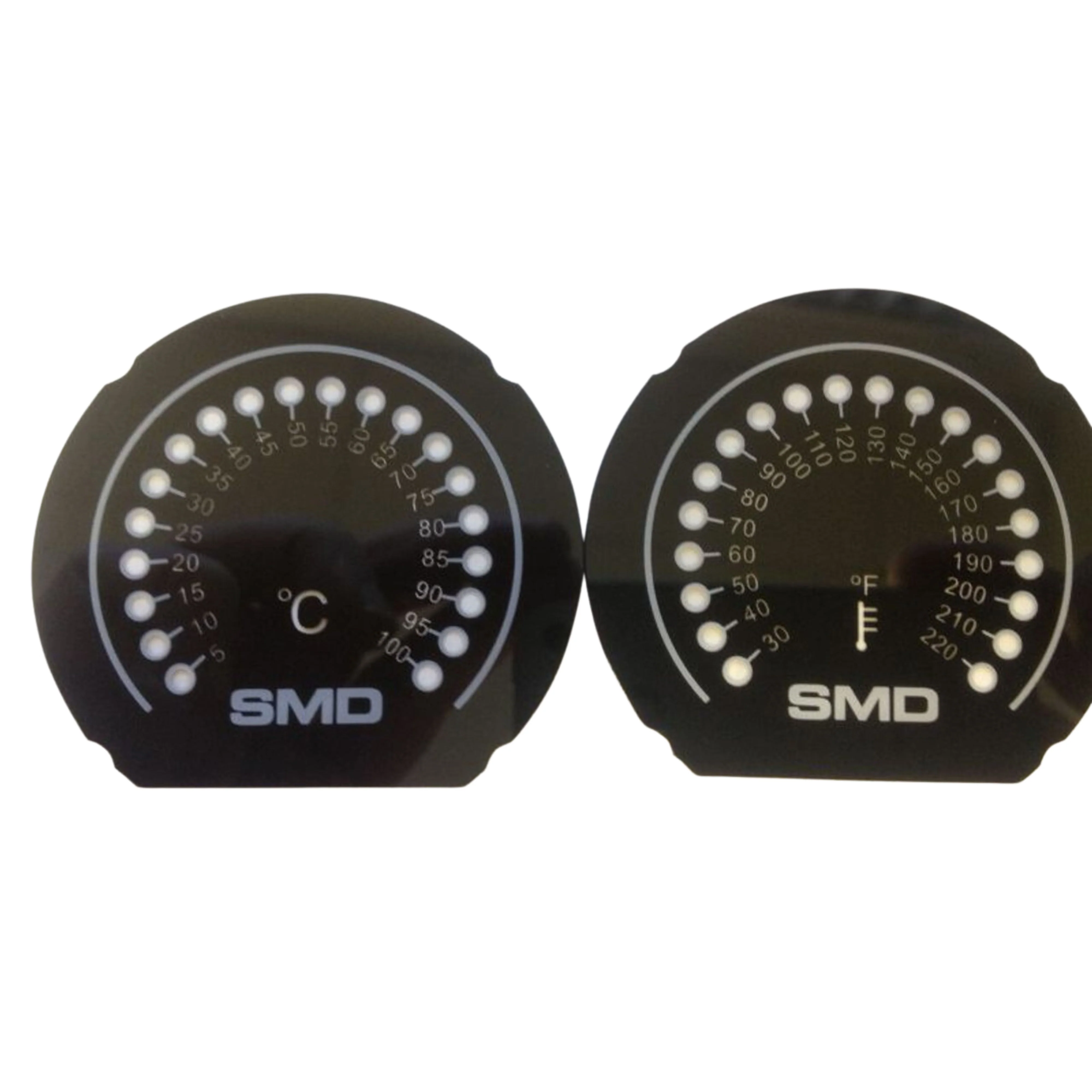

• Versatile Temperature Meter: The Steve Meade Designs Temp Meter features a programmable fan output and switchable Celsius or Fahrenheit faceplates for customized monitoring.
• High-Quality Components: Built with a mil-spec FR4 circuit board, regulated power supply, and 20 bright surface mount LEDs, ensuring consistent performance and visibility.
• Wide Operating Range: Suitable for modified electrical systems with an operating voltage range of 8VDC to 22VDC and a display range of 30 - 220°F/°C.
• Programmable Fan Control: Includes a 3-speed fan drive system with a PWM control and a remote wired sensor with 18 feet of cable, allowing precise temperature management.
• Compact and Durable Design: Measuring 2.75" x 2.75" x 0.6" in depth, this temperature meter is compact yet durable, with a maximum fan load capacity of 5 Amps DC.

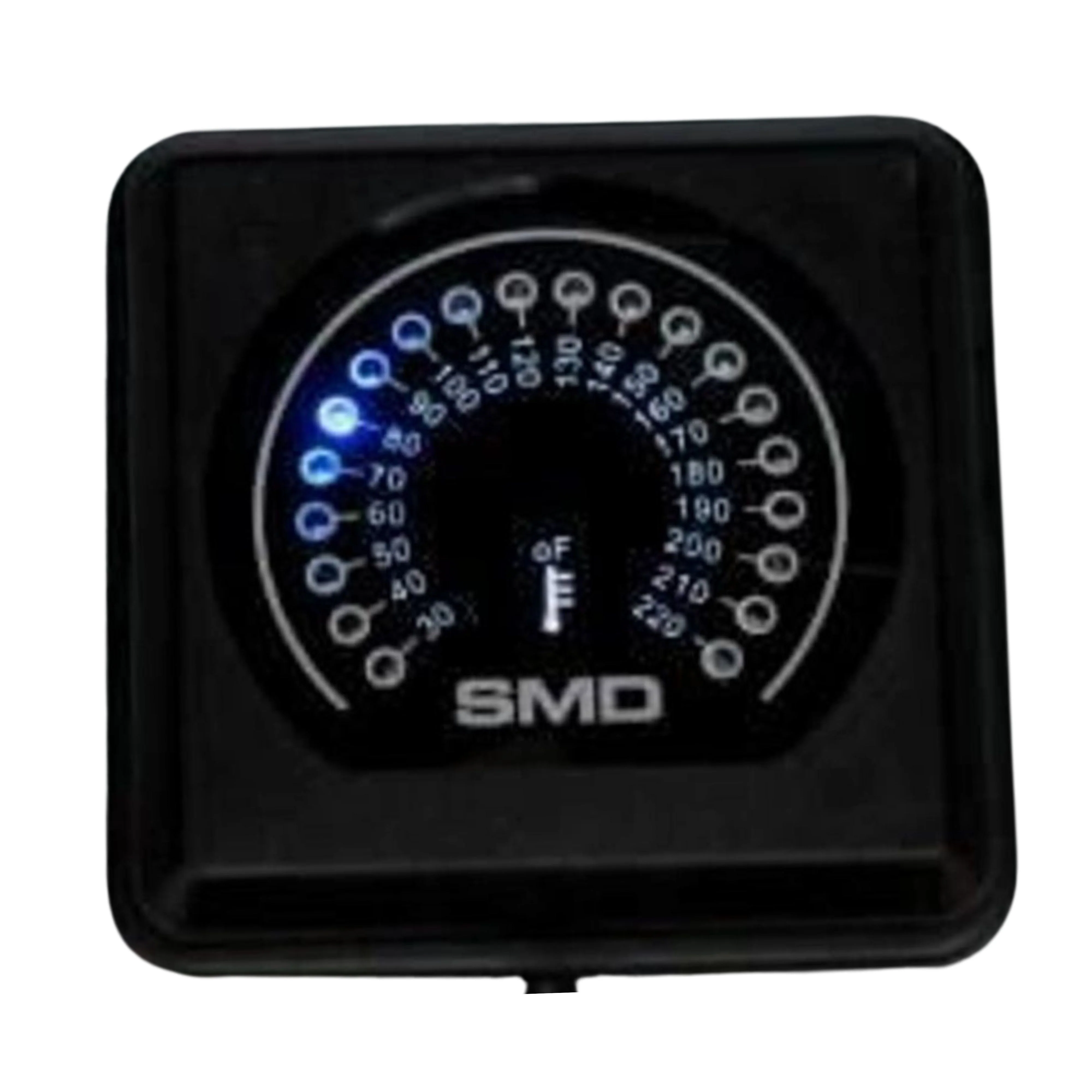

Steve Meade Designs Temp Meter w/ Programable Fan Output & Switchable Faceplates

This listing includes:

• (1) Temperature Meter w/ Programable Fan Output

The Steve Meade Designs Temp Meter with Programmable Fan Output and Switchable Faceplates is a versatile and reliable tool for monitoring and controlling temperatures in your vehicle. Featuring a mil-spec FR4 circuit board, regulated power supply, and 20 bright surface mount LEDs, this temperature meter ensures consistent performance and visibility. It operates within a wide voltage range of 8VDC to 22VDC and displays temperatures from 30 to 220F/C. The programmable fan control includes a 3-speed fan drive system with PWM control and a remote wired sensor with 18 feet of cable for precise temperature management. Compact and durable, this meter measures 2.75" x 2.75" x 0.6" in depth and supports a maximum fan load of 5 Amps DC, making it a perfect addition to any vehicle's modified electrical system.

Specifications:

• Mil spec FR4 circuit board


• Regulated power supply


• Constant LED current and brightness regardless of battery voltage (won’t dim with your beat)


• 20 bright surface mount LEDs


• Wide operating voltage range for vehicles with modified electrical systems

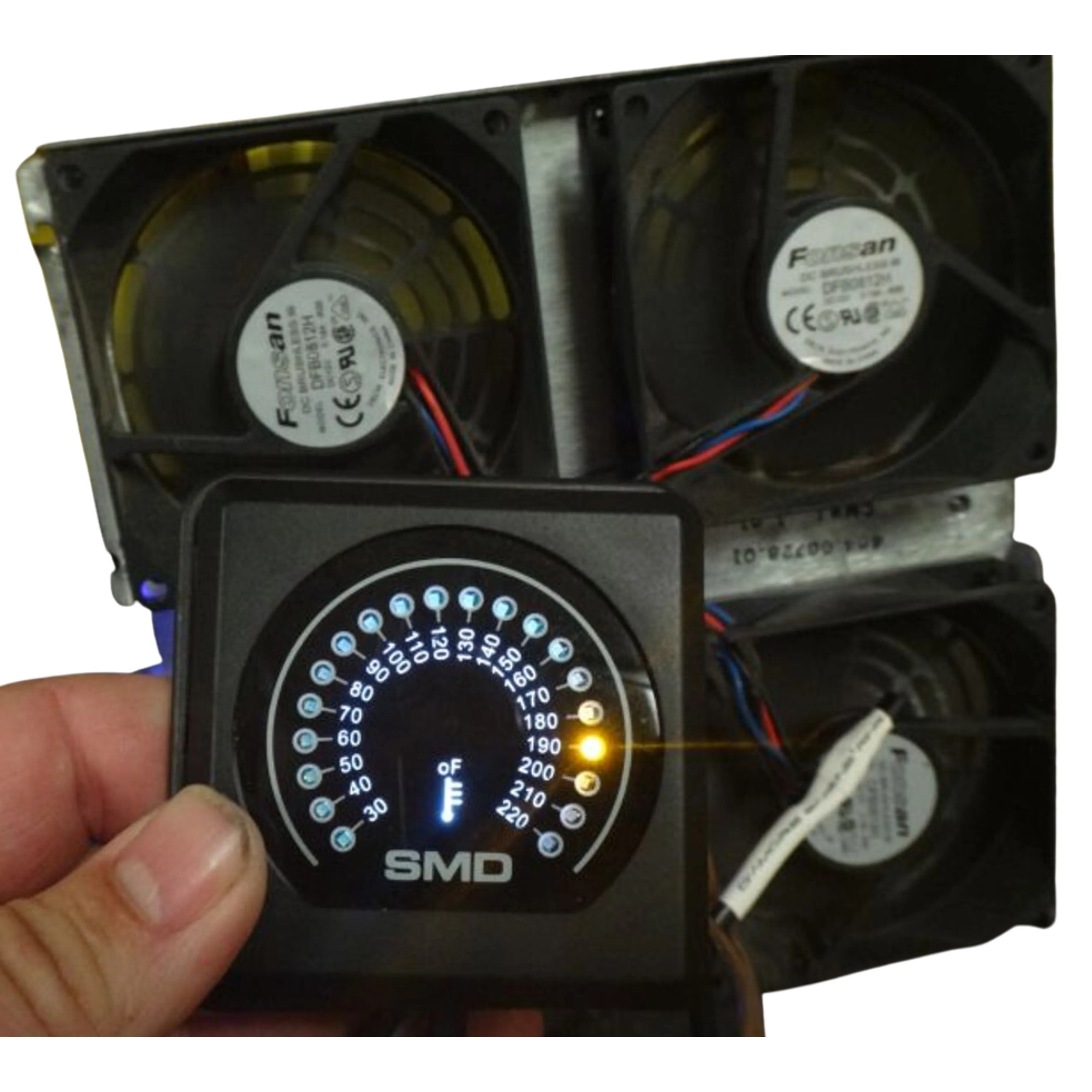

• 3 speed fan drive system (PWM)

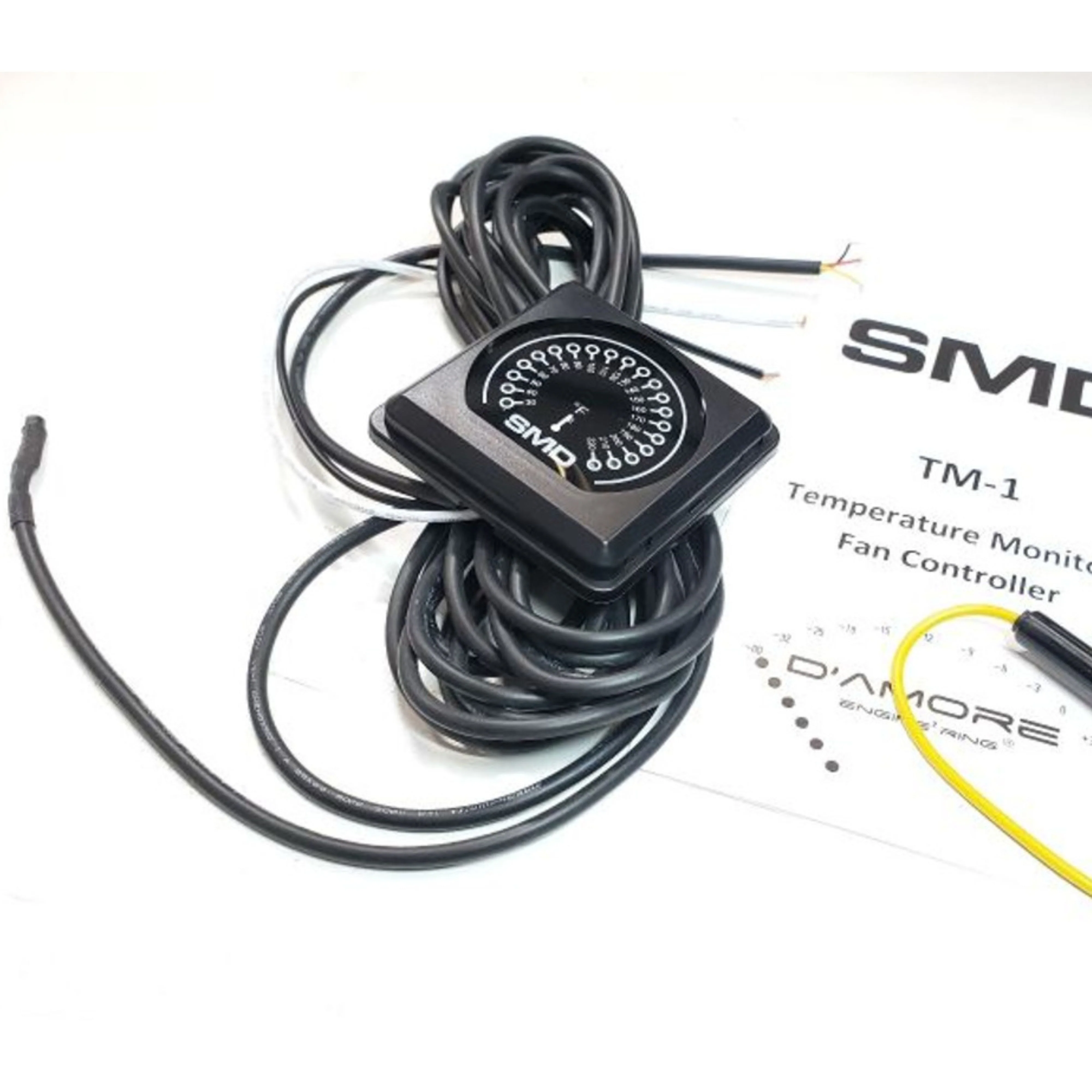

• Remote wired sensor with 18 feet of cable


• Operating voltage range for power supply: 8vdc-22vdc


• Display Range: 30 - 220 F/ C


• Fan Set Point Range: 40 - 200 F/ C


• Accuracy: +/- 5 Degrees (due to display type)


• Maximum Fan Load: 5 Amps DC


• 2.75" x 2.75" x 0.6" depth
