• Features a large magnet ID shorting ring (faraday ring) to reduce distortion
• The motor is bolted together for enhanced long-term durability
• RMS Power = 750 watts
• Black Aluminum 2.5” voice coil former for superior heat dissipation
• Dimensions: 13"x13"x10"

This Listing Includes:

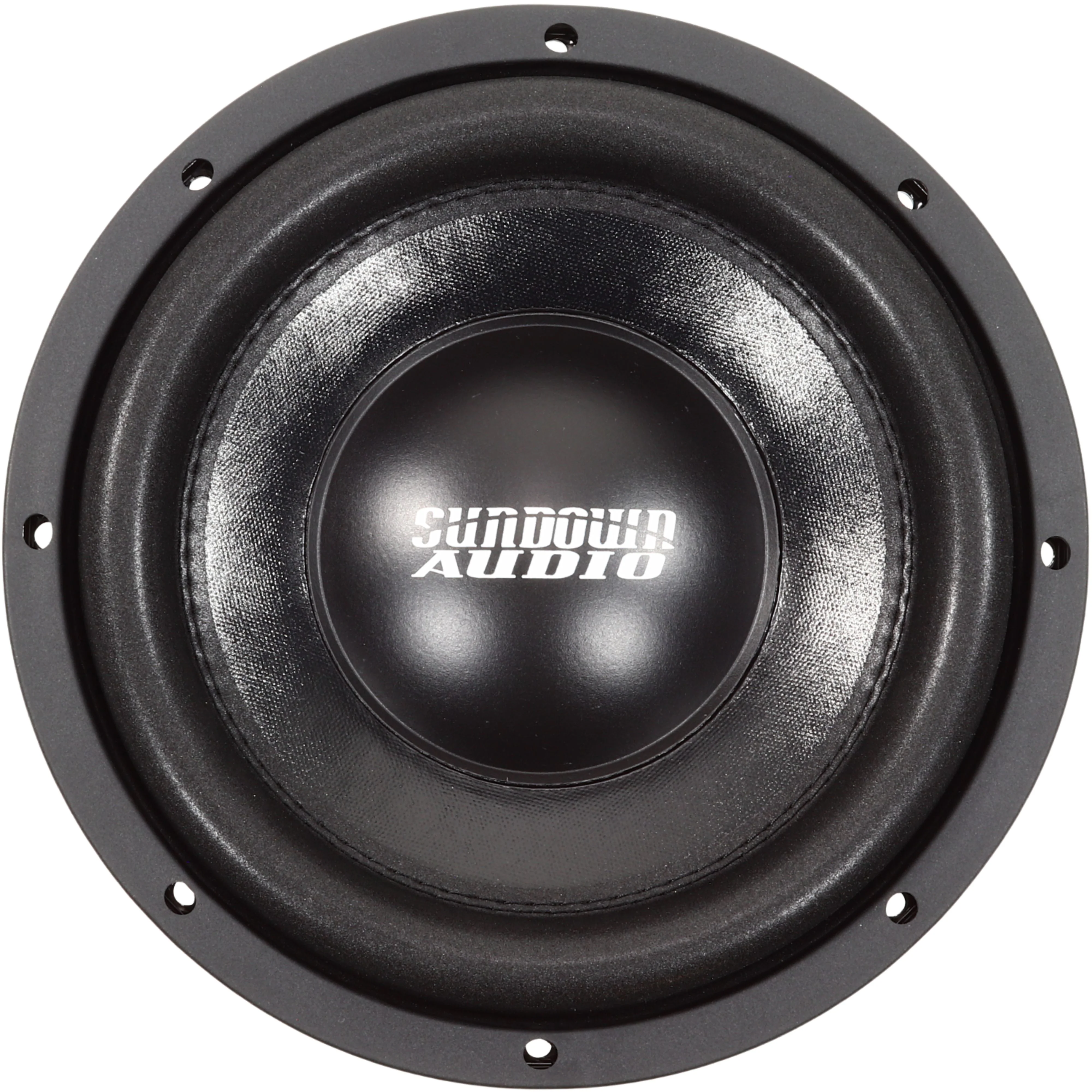

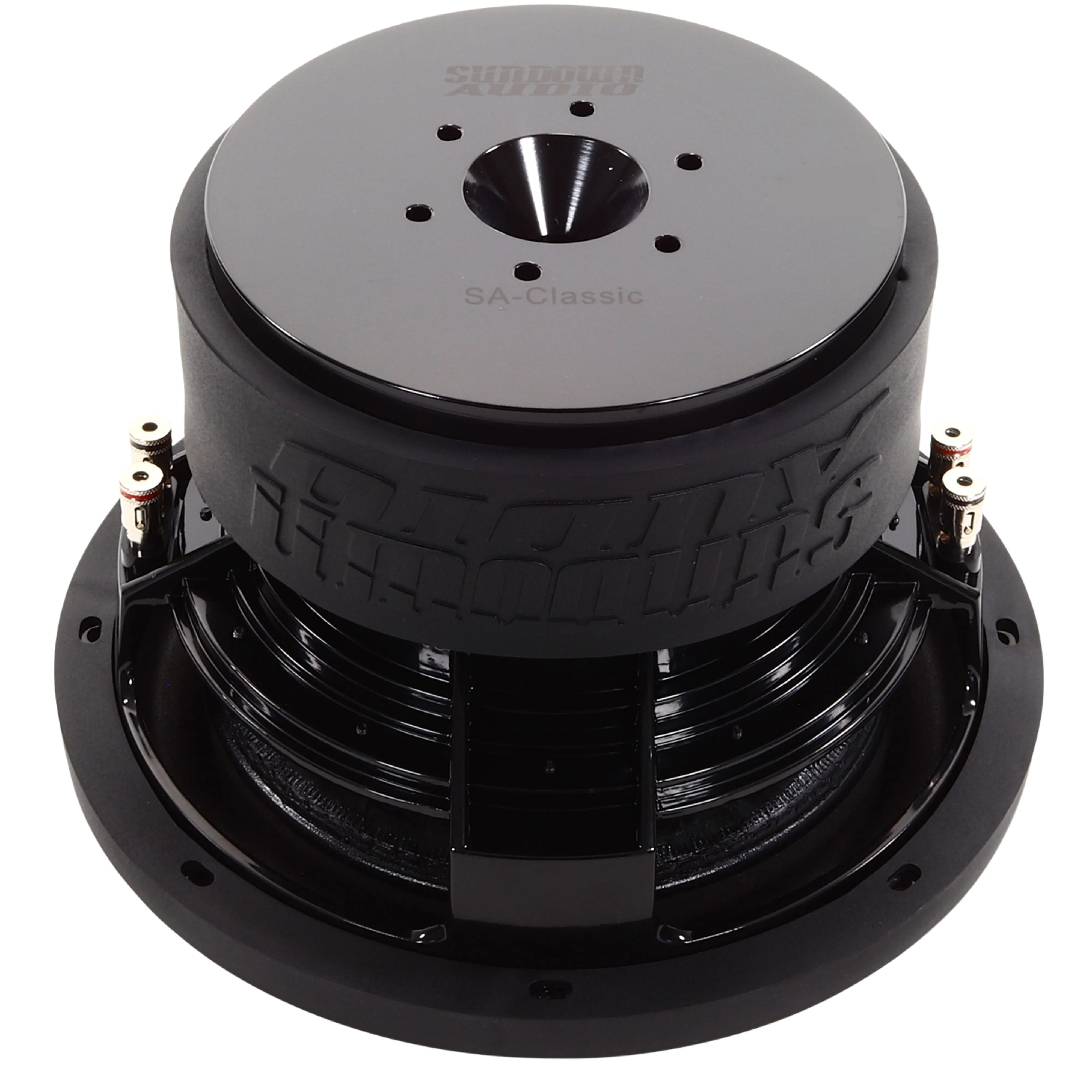

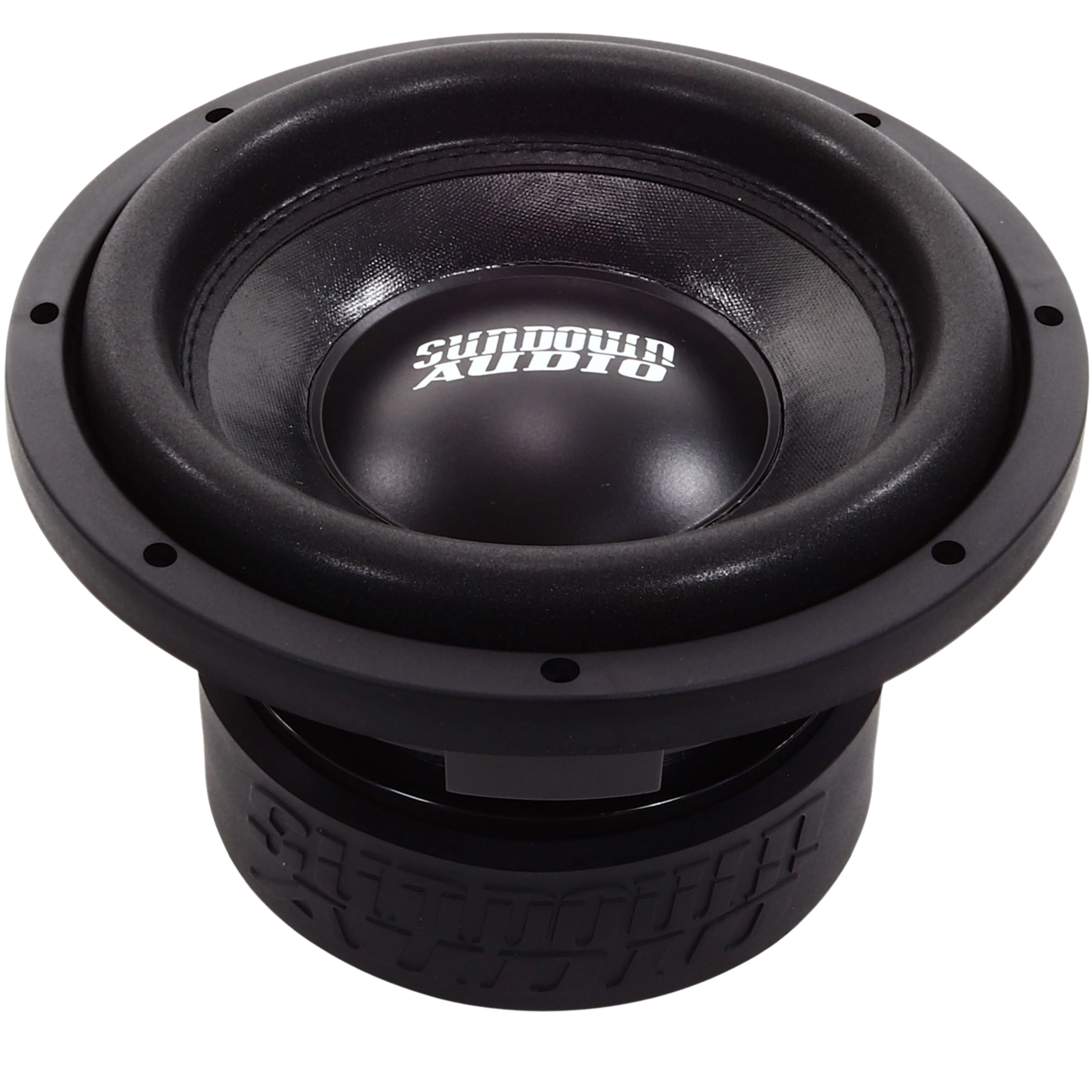

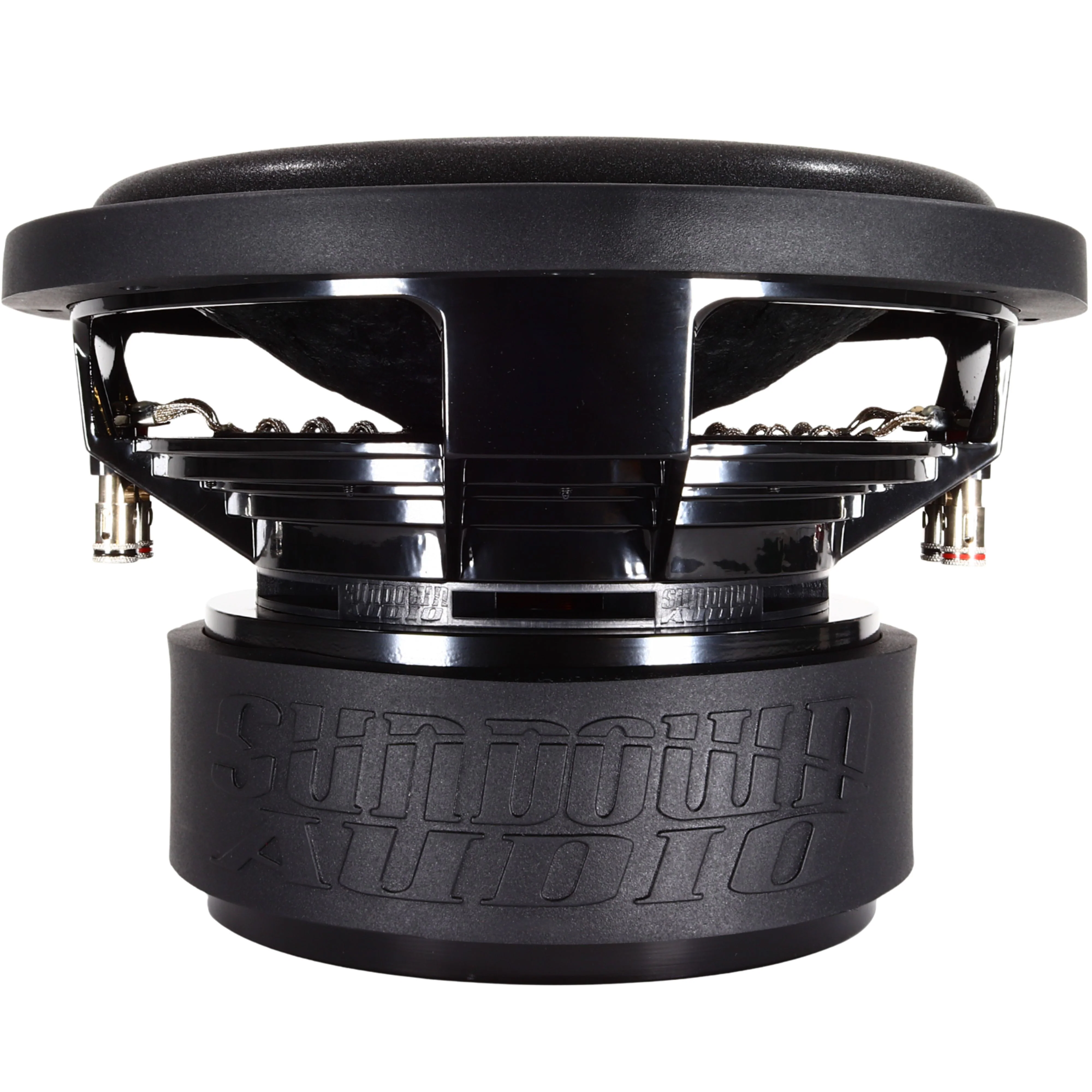

• (1) Sundown 1500W Peak Dual 2 ohm VC Classic SA Series 10" Subwoofer CLASSIC-10-D2

The SA series has continually evolved over the years thanks to extensive testing and feedback from our customers but still stays true to its legendary design heritage.

FEA optimized motor & coil design capable of 19mm of one-way Klippel verified excursion and just over 33mm of x-mech. This motor & coil setup was then mated up to an extremely robust double-layer Nomex spider with fully tied-on "XL" tinsel leads (84-Strands of Conductor), an SPL competition grade paper cone, and a strong foam surround.

Features:

• Xmax = 19mm one-way by 70% BL


• RMS Power = 750-watts


• Vented magnetic gap


• Optimized high-velocity pole vent


• Innovative high-velocity vented frame spacer ring


• Black Aluminum 2.5" voice coil former for superior heat dissipation


• High Temperature copper voice coil wire


• Large aluminum faraday ring (Magnet ID)


• Spring Loaded Terminals


• Stitched-On "XL" Tinsel Leads to prevent fatigue and failure


• High strength cast aluminum frame


• Optimized for small ported, sealed, & band-pass enclosures


• These features combine to create the optimized coil ventilation system

Specifications:

• RE(Ohms)                4.29


• FS(Hz)                      35.4


• VAS(L)                      10.13


• Qes                            0.52


• Qms                           5.41


• Qts                             0.48


• Le(mH)                      3.41


• BL(NA)                       20.4


• Mms(Grams)            230


• Cms(uM/N)               87.8


• Sens(dB @ 1w/1m)  81

Dimensions: 13"x13"x10"
