• High-Efficiency 10 Inch Pro Audio Midrange: Designed for loud, clean midrange output with strong vocal projection and midbass presence in high-output car audio systems
• 120 Watts RMS Power Handling: Handles continuous power reliably for aggressive daily systems and multi-speaker door or pod setups
• 4 Ohm Impedance: Ideal for common amplifier configurations and easy system integration without complex wiring
• Phase Plug Design: Improves high-frequency response, reduces distortion, and enhances cooling at elevated volume levels
• Wide Frequency Range: Covers 20Hz to 10kHz for flexible use as a midbass or upper-midrange driver
• High Sensitivity Output: Rated at 96.18 dB @ 1W/1m for strong output with minimal amplifier power

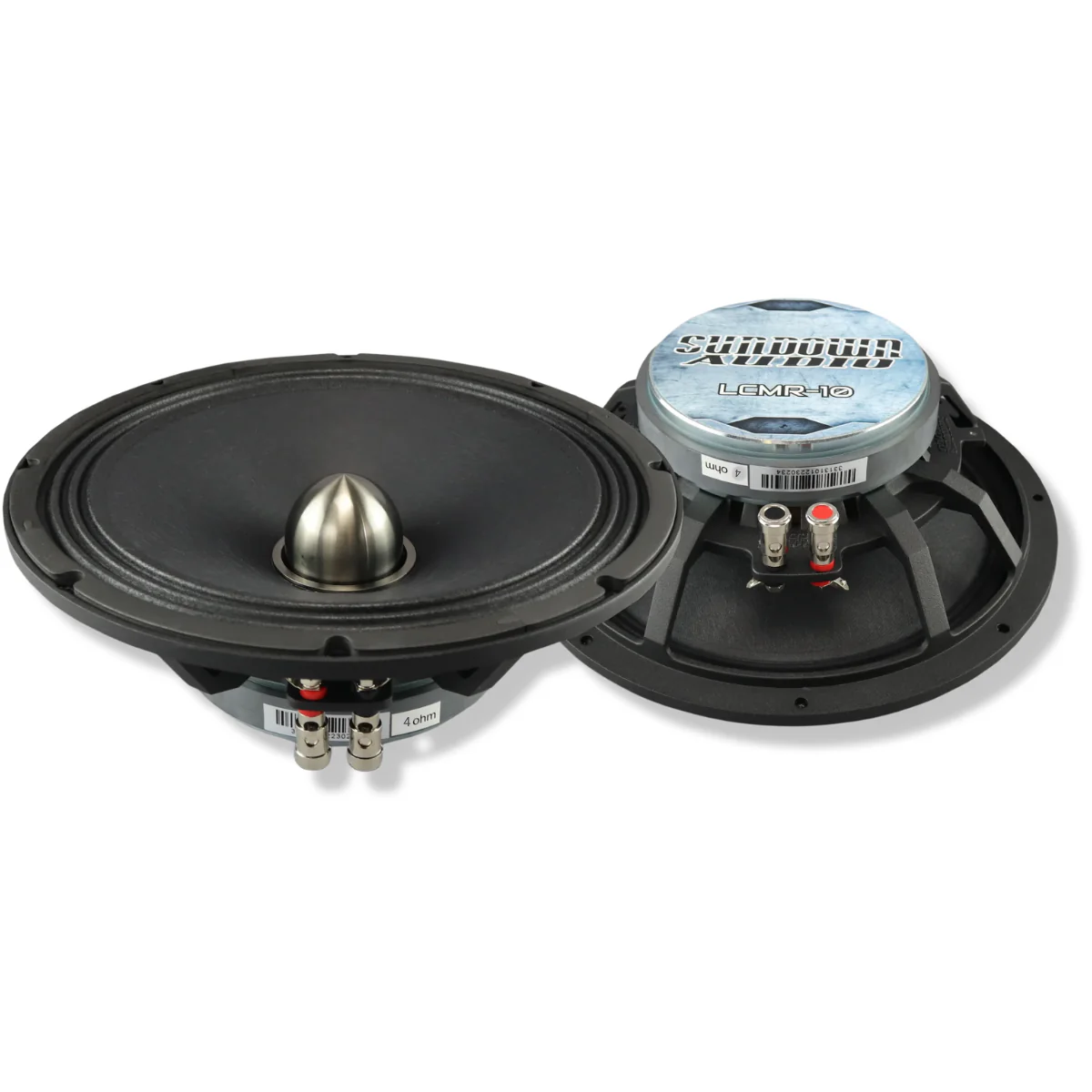

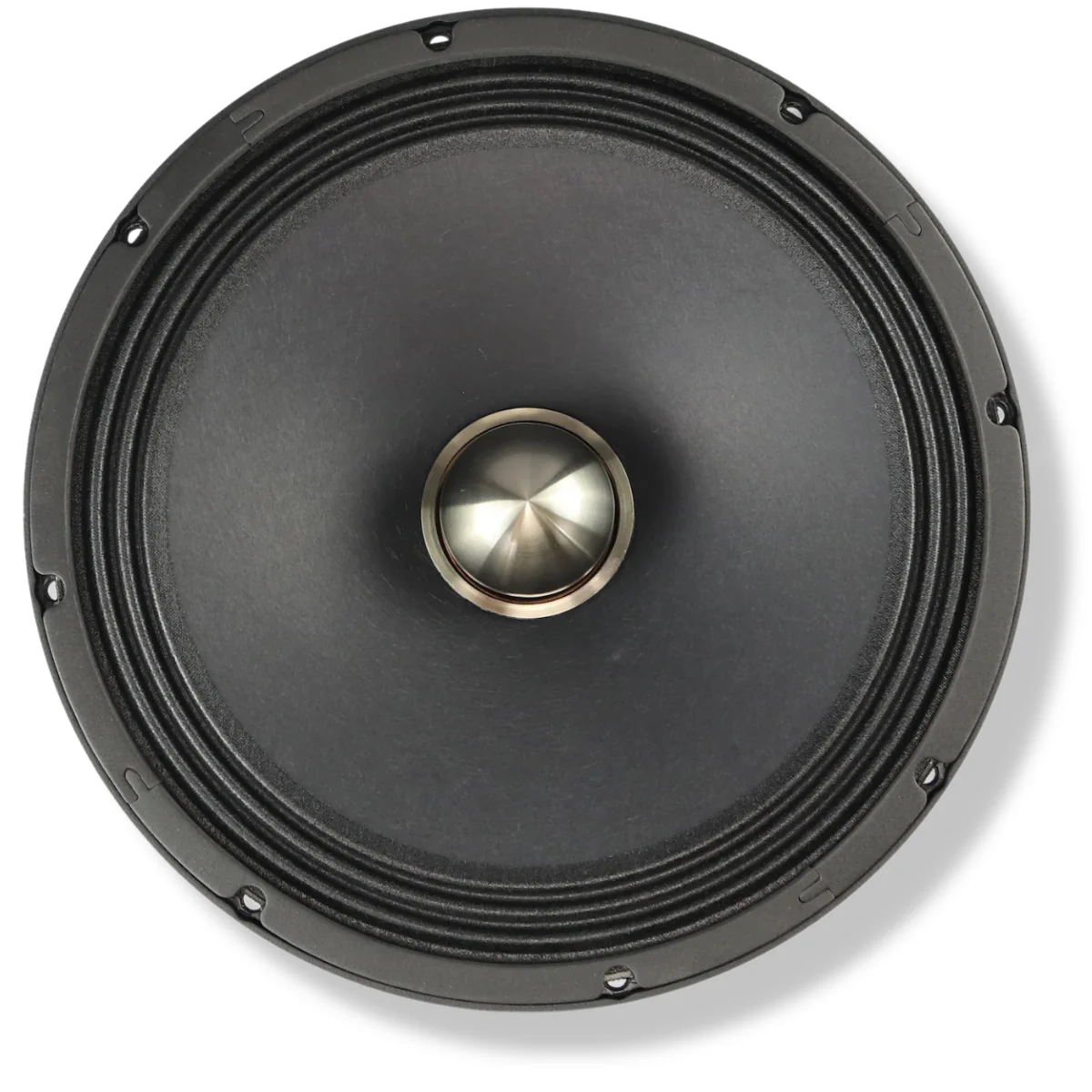

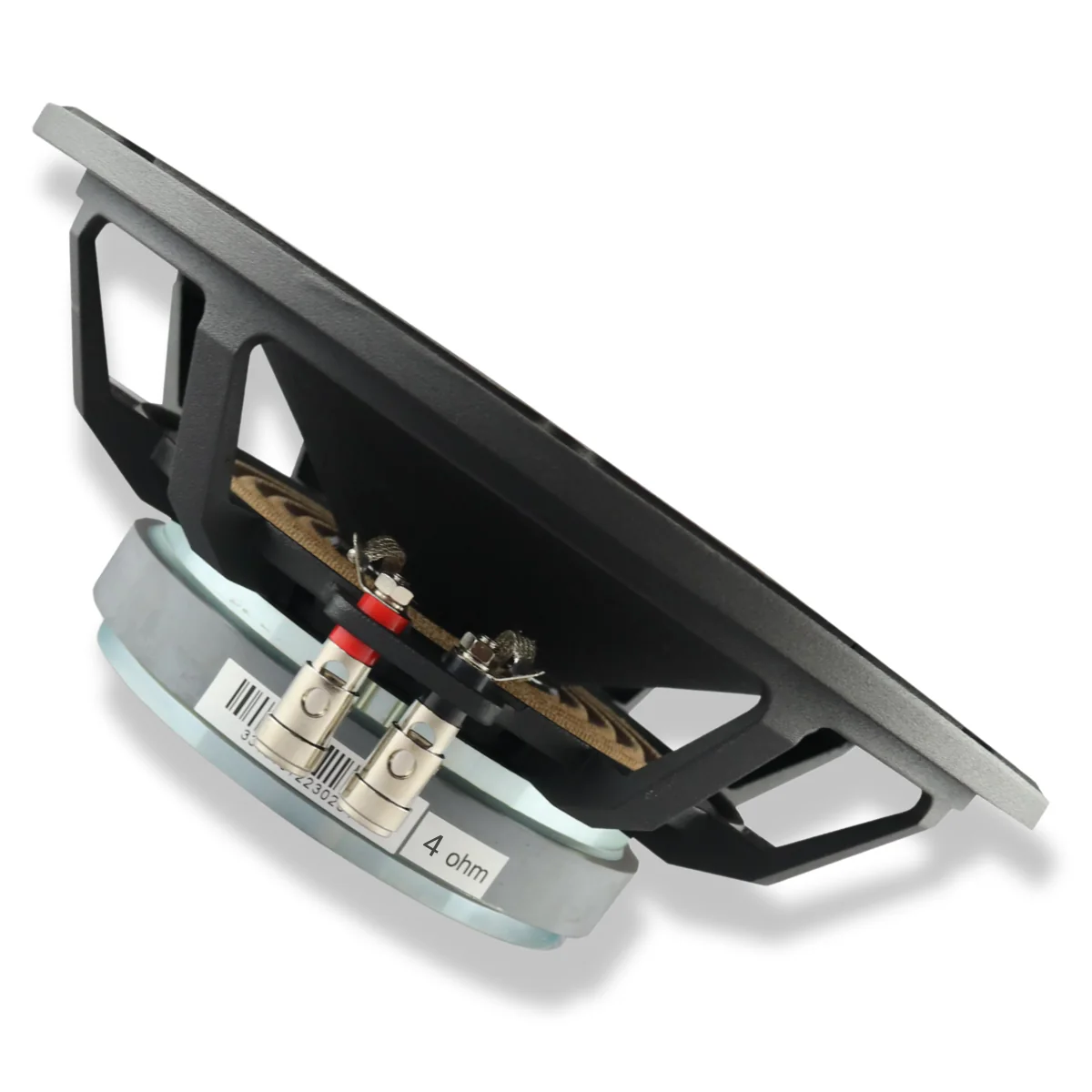

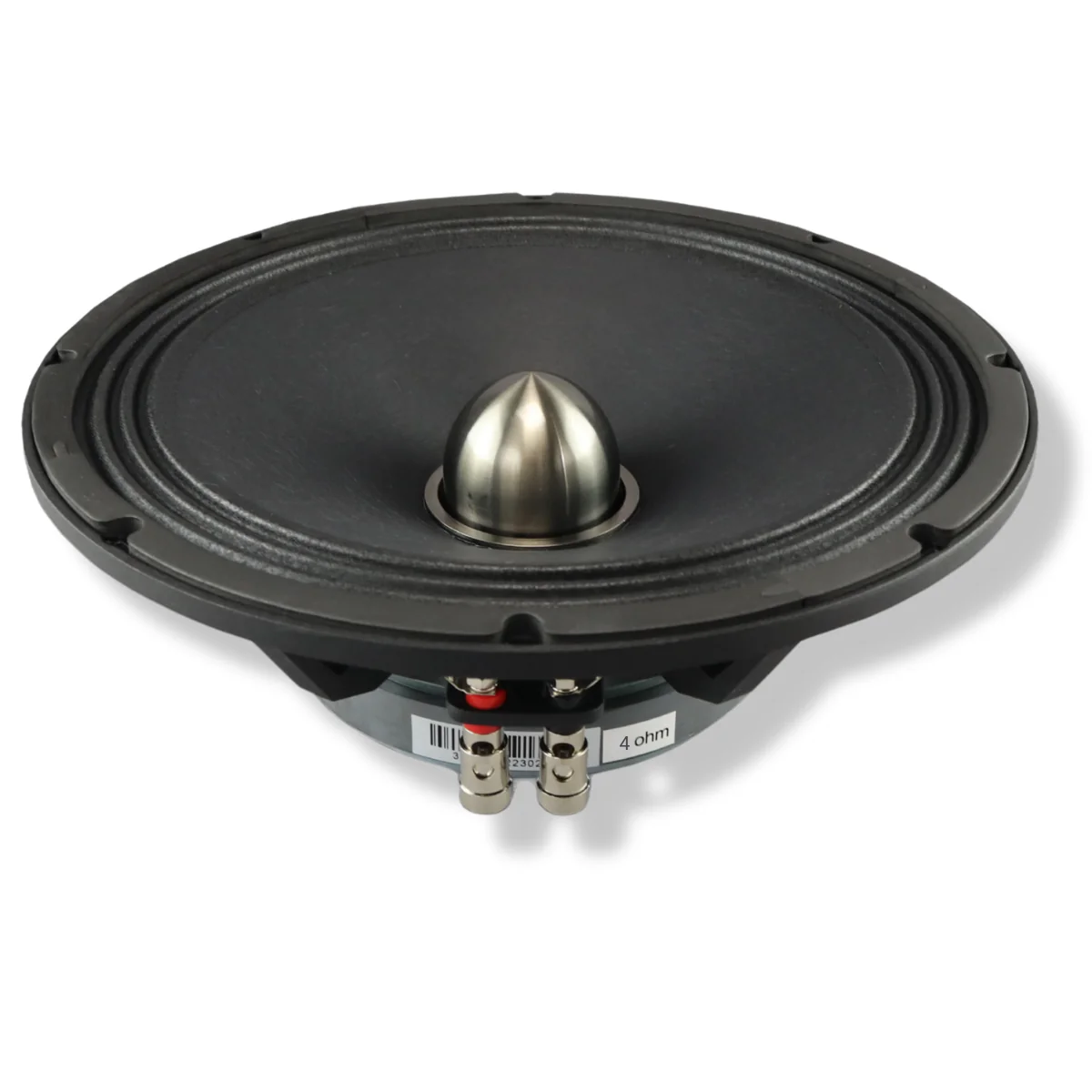

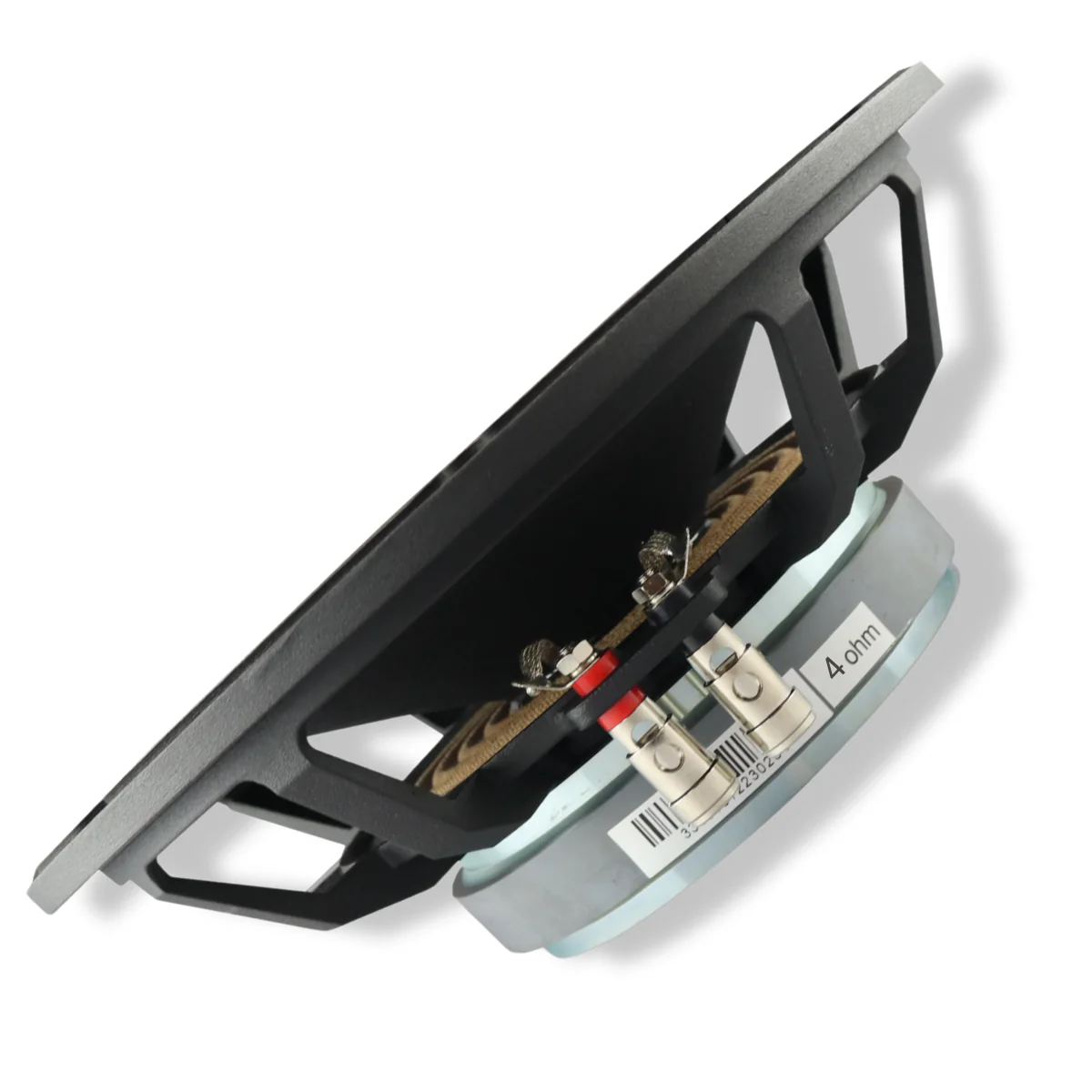

Sundown Audio 10" 4 Ohm 120 Watt RMS Pro Audio Midrange Speaker LCMR-10

This Listing Includes

• (1) Sundown Audio Pro 10" Midrange Speaker LCMR-10

The Sundown Audio LCMR-10 is a high-efficiency 10-inch pro audio midrange speaker designed for loud, clean, and controlled midrange output in high-output car audio systems. Built for doors, pods, and custom enclosures, the LCMR-10 delivers strong vocal presence and midbass impact with excellent sensitivity and power handling.

Featuring a rigid cone design with an integrated phase plug, the LCMR-10 improves heat dissipation and high-frequency extension while maintaining clarity at high volume levels. With a wide usable frequency range and nearly 96 dB sensitivity, this speaker gets loud fast while staying controlled and musical.

Available in 4-ohm or 8-ohm configurations, the LCMR-10 is ideal for multi-speaker arrays, competition builds, and aggressive daily systems where output and efficiency matter.

Features

• High-Efficiency 10-Inch Pro Audio Midrange: Designed for loud, clear midrange output with strong vocal presence and midbass impact in high-output car audio systems


• 120 Watts RMS Power Handling: Handles sustained power cleanly, making it ideal for aggressive daily systems and multi-speaker arrays


• 4 Ohm Impedance: Perfect for common amplifier configurations and easy integration into most car audio builds


• Phase Plug Design: Enhances high-frequency response, improves heat dissipation, and maintains clarity at elevated volume levels


• Wide Frequency Range: Plays from 20Hz to 10kHz, allowing flexible crossover points for midbass and upper midrange duties


• High Sensitivity Output: Rated at 96.18 dB @ 1W/1m for excellent output with minimal amplifier power


• Shallow Mounting Depth: Compact 3.25" depth fits door panels, pods, and custom enclosures with limited mounting space


• Optimized for Pro Audio Systems: Ideal for doors, pillars, and pod-based builds where efficiency and projection matter


• Sold Individually: Price is per speaker for custom system sizing

Specifications

• Speaker Size: 10 Inch


• Speaker Type: Pro Audio Midrange


• Power Handling (RMS): 120 Watts


• Impedance: 4 Ohm


• Frequency Range: 20Hz - 10kHz


• Sensitivity: 96.18 dB @ 1W/1m >2 dB


• Phase Plug: Yes


• Sold As: Single Speaker

T/S Specifications

• Re (Ohms): 3.3


• Fs (Hz): 69.45


• Vas (L): 49.14


• Qes: 0.44


• Qms: 13.22


• Qts: 0.42


• BL (N/A): 6.3


• Cms (MM/N): 0.24

Dimensions:

• Outside Diameter: 10.23"


• Cutout Diameter: 9.17"


• Mounting Depth: 3.25"
