• High-Efficiency 10 Inch Pro Audio Midrange: Designed for loud, clean midrange projection with strong vocal clarity in high-output and competition-style car audio systems
• 120 Watts RMS Power Handling: Handles continuous power reliably, making it ideal for multi-speaker arrays and high-SPL applications
• 8 Ohm Impedance Design: Perfect for series and parallel wiring in larger speaker arrays, offering greater amplifier flexibility and system control
• Phase Plug Technology: Improves high-frequency response, reduces distortion, and enhances cooling during sustained high-volume playback
• Wide Frequency Range Coverage: Plays from 20Hz to 10kHz, supporting both midbass impact and upper-midrange clarity
• High Sensitivity Performance: Rated at 96.18 dB @ 1W/1m for strong output with minimal amplifier power
• Shallow Mounting Depth: Compact 3.25 inch depth fits door panels, pods, and custom enclosures with limited clearance

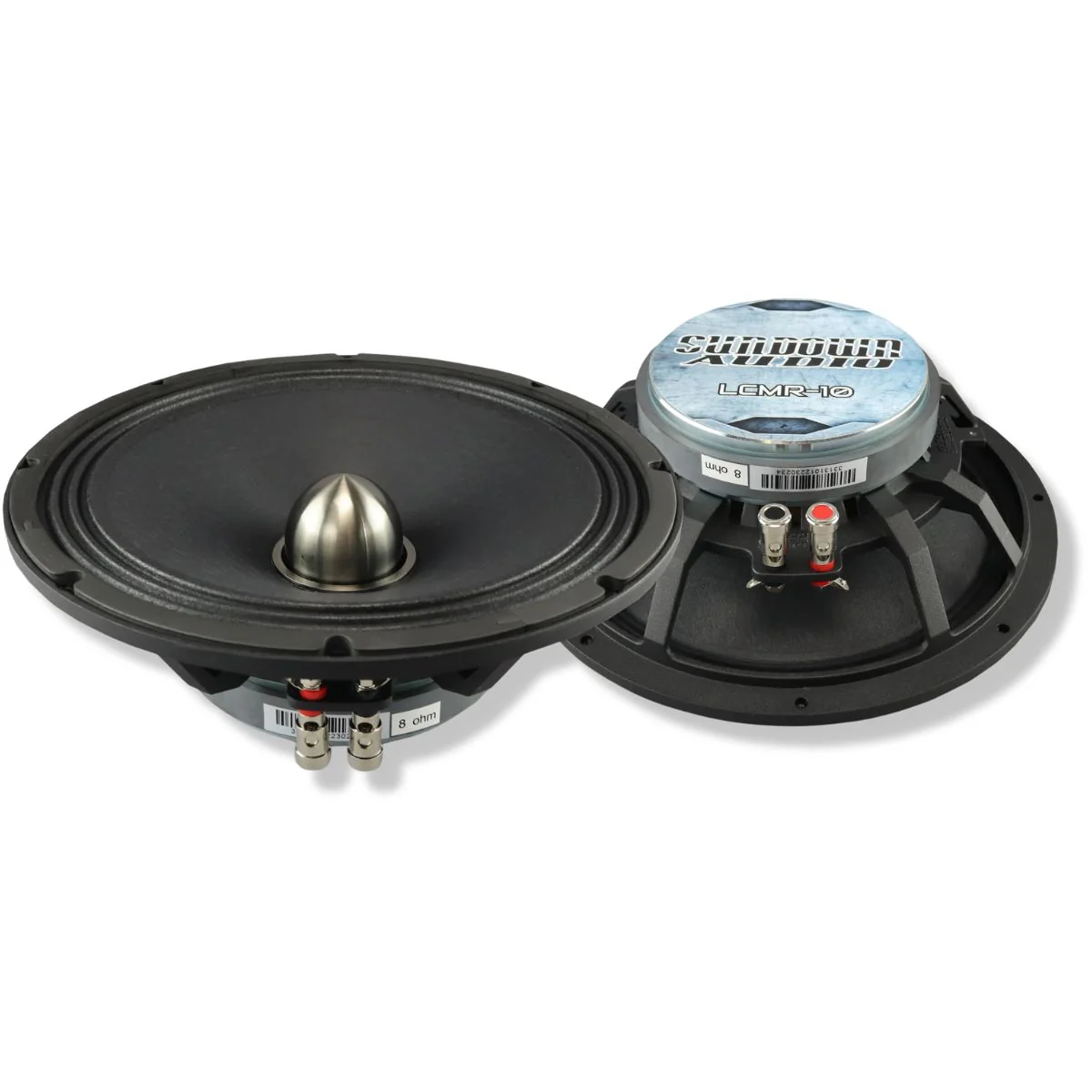

Sundown Audio 10" 8 Ohm 120 Watt RMS Pro Audio Midrange Speaker LCMR-10-8-V2

This Listing Includes

• (1) Sundown Audio Pro 10" Midrange Speaker LCMR-10-8-V2

The Sundown Audio LCMR-10 is a high-efficiency 10-inch pro audio midrange speaker designed for loud, clean, and controlled midrange output in high-output car audio systems. Built for doors, pods, and custom enclosures, the LCMR-10 delivers strong vocal presence and midbass impact with excellent sensitivity and power handling.

Featuring a rigid cone design with an integrated phase plug, the LCMR-10 improves heat dissipation and high-frequency extension while maintaining clarity at high volume levels. With a wide usable frequency range and nearly 96 dB sensitivity, this speaker gets loud fast while staying controlled and musical.

Available in 4-ohm or 8-ohm configurations, the LCMR-10 is ideal for multi-speaker arrays, competition builds, and aggressive daily systems where output and efficiency matter.

Features

• High-Efficiency 10-Inch Pro Audio Midrange: Engineered for loud, clean midrange projection with strong vocal clarity in high-output and competition-style systems


• 120 Watts RMS Power Handling: Designed to handle continuous power reliably in multi-speaker and high-SPL applications


• 8 Ohm Impedance: Ideal for large speaker arrays, series/parallel wiring, and maximizing amplifier flexibility in advanced system designs


• Phase Plug Design: Improves high-frequency extension, reduces distortion, and enhances cooling during sustained high-volume operation


• Wide Frequency Range: Covers 20Hz to 10kHz, supporting both midbass and upper midrange duties in pro-audio layouts


• High Sensitivity Performance: Rated at 96.18 dB @ 1W/1m for high output with minimal amplifier strain


• Shallow Mounting Profile: 3.25†mounting depth allows installation in doors, pods, and custom panels with limited clearance


• Built for Pro Audio Systems: Excellent choice for doors, A-pillars, dash pods, and competition-focused builds


• Sold Individually: Single-speaker pricing allows precise system scaling

Specifications

• Speaker Size: 10 Inch


• Speaker Type: Pro Audio Midrange


• Power Handling (RMS): 120 Watts


• Impedance: 8 Ohm


• Frequency Range: 20Hz – 10kHz


• Sensitivity: 96.18 dB @ 1W/1m 2 dB


• Phase Plug: Yes


• Sold As: Single Speaker

T/S Specifications

• Re (Ohms): 3.3


• Fs (Hz): 69.45


• Vas (L): 49.14


• Qes: 0.44


• Qms: 13.22


• Qts: 0.42


• BL (N/A): 6.3


• Cms (MM/N): 0.24

Dimensions:

• Outside Diameter: 10.23â€


• Cutout Diameter: 9.17â€


• Mounting Depth: 3.25â€
