• Dual shorting-ring system
• Neodymium pole-cap magnet

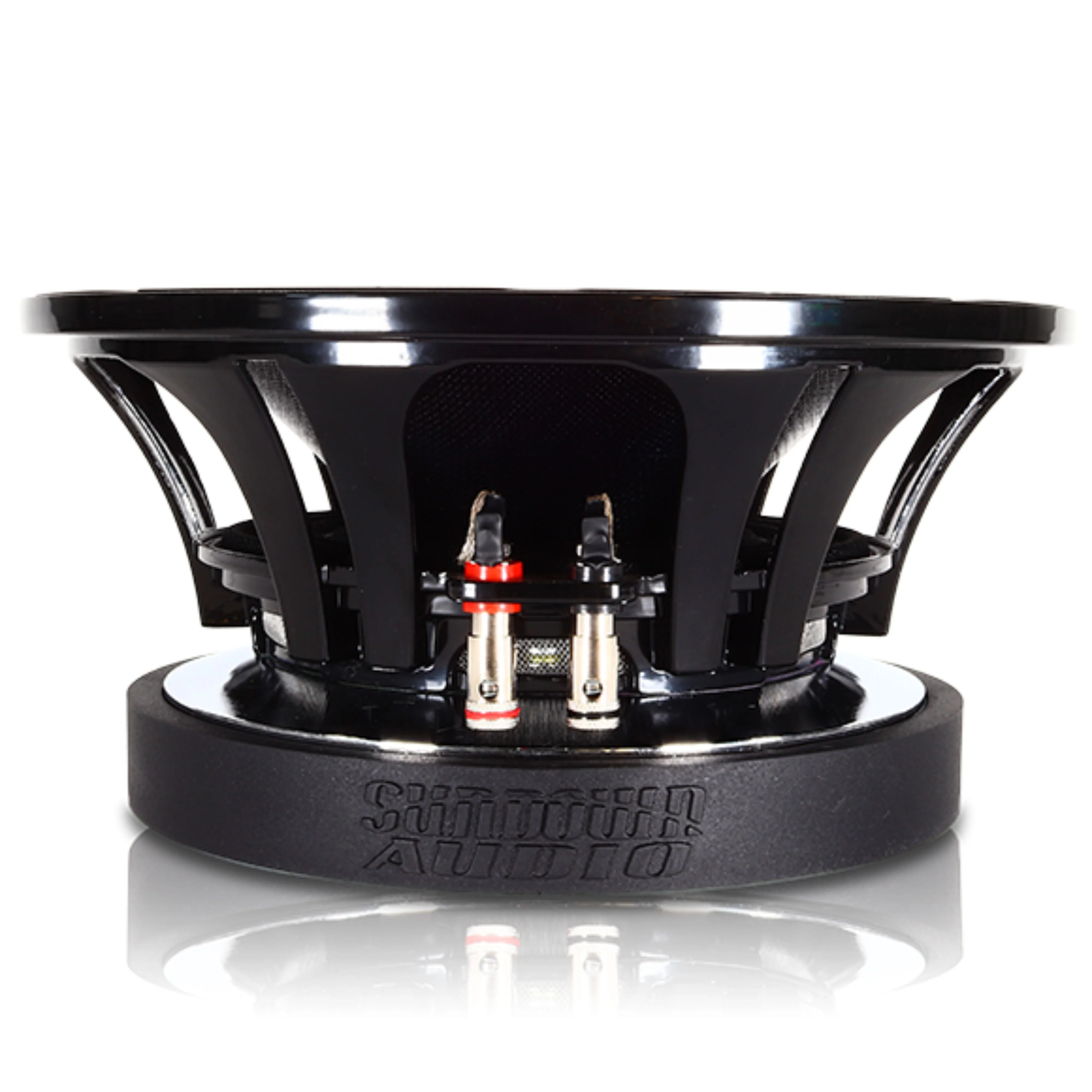

• Sturdy cast-aluminum frame
• Twelve gaps vents and a chamfered, large-diameter pole vent

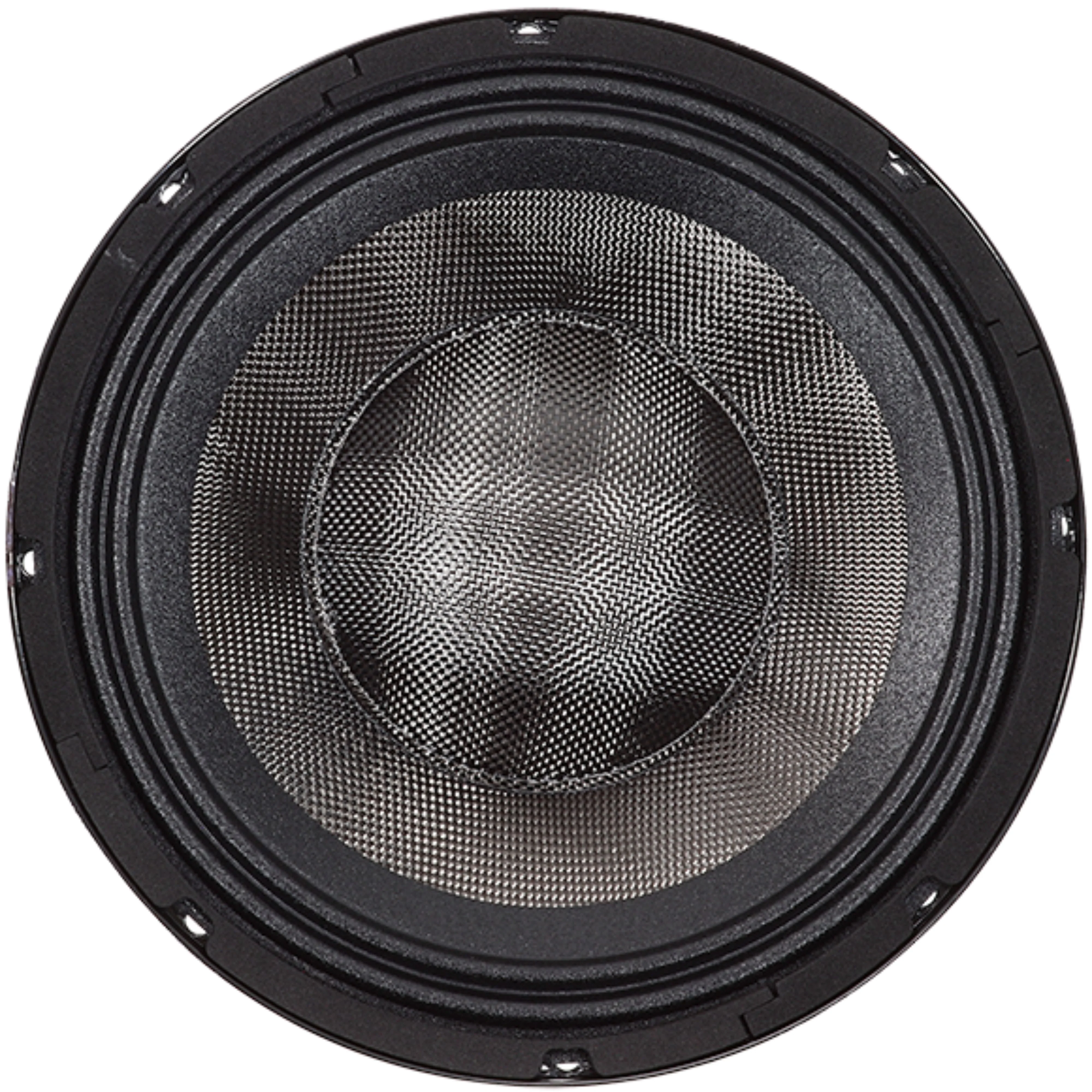

• Non-resonant carbon-fiber cone & dust-cap

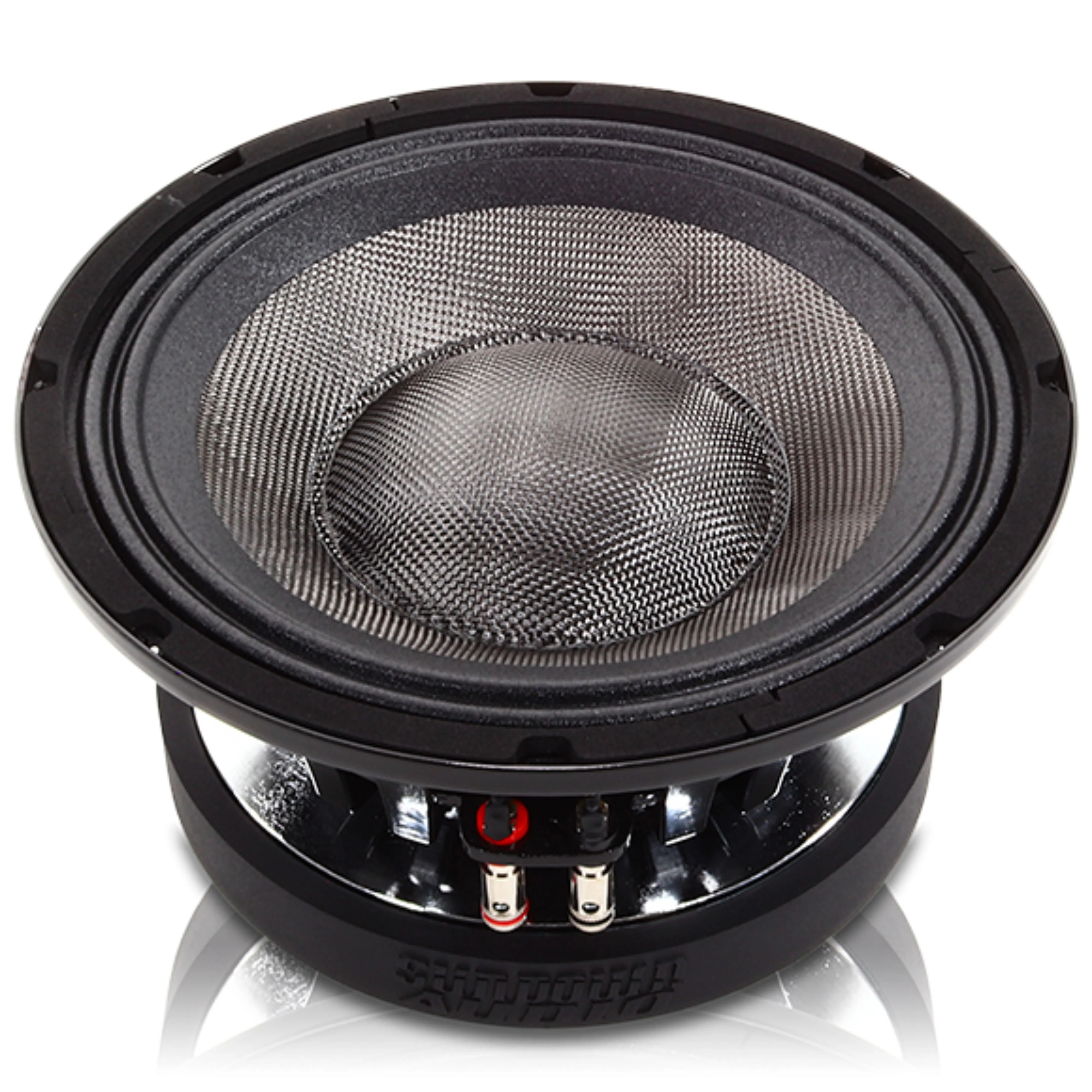

Sundown Audio 10" Mid-Range Pro Audio Speaker 1000W Peak 4 Ohm (Single) VEX-10-4

The Sundown Audio VEX series is our top-of-the-line high efficiency mid-range series. The first entry, the VEX-10, was designed to make a splash featuring a 500-watts RMS power rating thanks to its enormous 3†coil (with a full 20mm winding length) and highly efficient airflow system consisting of twelve gaps vents and a chamfered, large-diameter pole vent. The long coil also affords the VEX-10 a full 9mm of linear x-max one-way so it can play lower than many other high-efficiency drivers without distortion. The inductance is kept in check by a dual shorting-ring system (magnet ID & pole cap) which drops the LE spec to less than 25% of the RE value. This allows the high-frequency extension to reach all the way up to 4,000 Hz where it then falls of naturally and smoothly on its own thanks to the extremely strong and non-resonant carbon-fiber cone & dust-cap assembly. We still achieved a 96.6dB sensitivity by combining a large diameter, high- strength ferrite motor with a neodymium pole-cap magnet! The whole package is held together with a sturdy cast-aluminum frame that features extensive spider cavity venting to further increase thermal power handling.

This Listing Includes

(1) 10" Mid-Range Pro Audio Speaker 1000W Peak 4 Ohm

Features

• Power Handling: 500 Watts RMS


• Impedance: 4-ohm SVC


• Vented cast frame


• 3 inch voice coil


• X-Max 9mm


• Excellent for Mid-bass


• Mounting Depth : Aproximately  4.79 inches


• Rear Vented

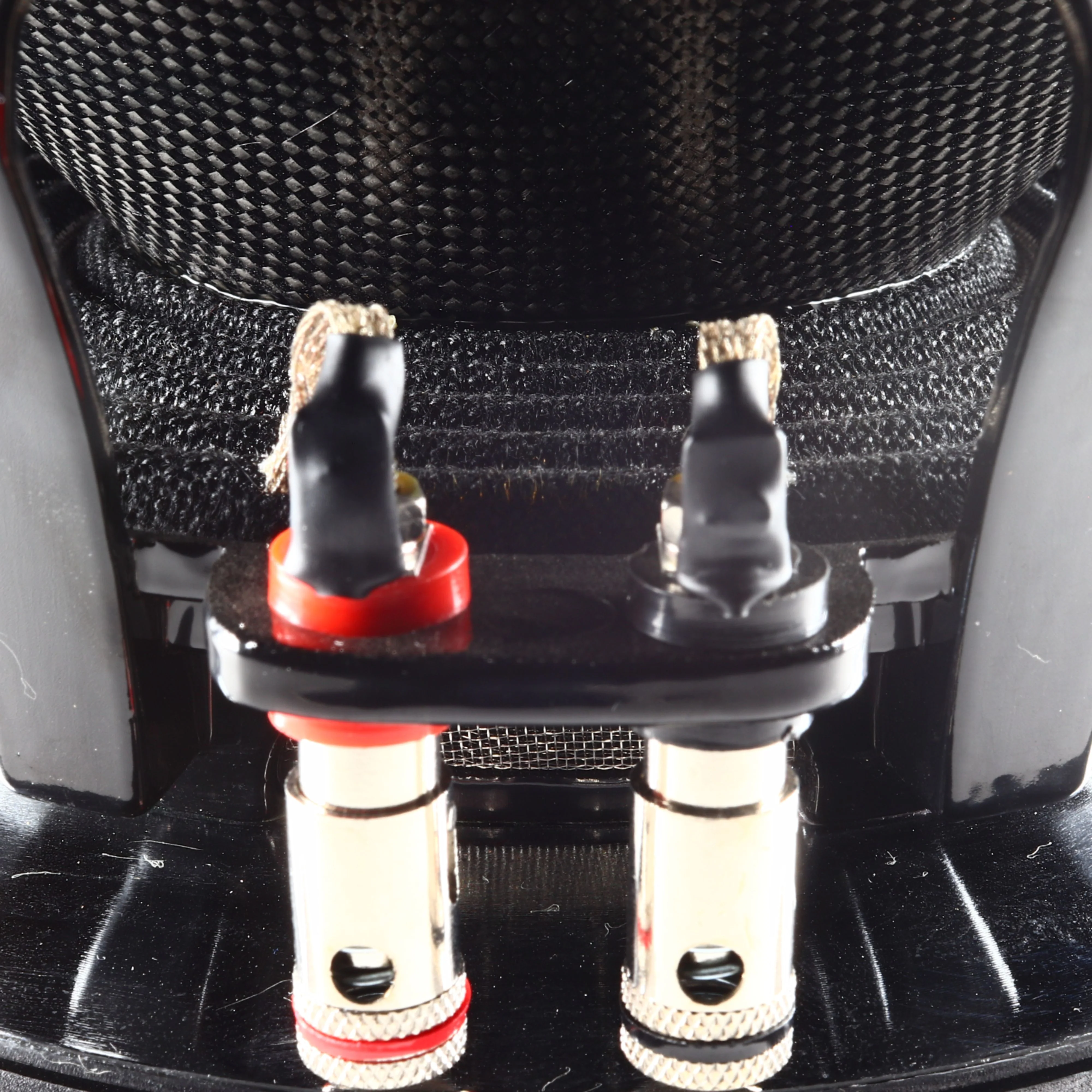

• Spring Loaded Terminals

Specifications

• RE (Ohms): 3.950


• FS (Hz): 60.393


• VAS (L): 22.517


• Qes: 0.165


• Qms: 3.859


• Qts: 0.159


• BL (NA): 22.878


• Mms (Grams): 57.726


• Cms (uM/N): 120.309


• Sens (dB @ 1w/1m): 96.6
