• New “Mini-XL” lead containing 63-strands of conductor to prevent fatigue and failure
• Black Aluminum 2.5" voice coil
• High strength stamped steel frame
• RMS Power = 750-watts
• Dimensions: 15"x15"x12"

This Listing Includes:

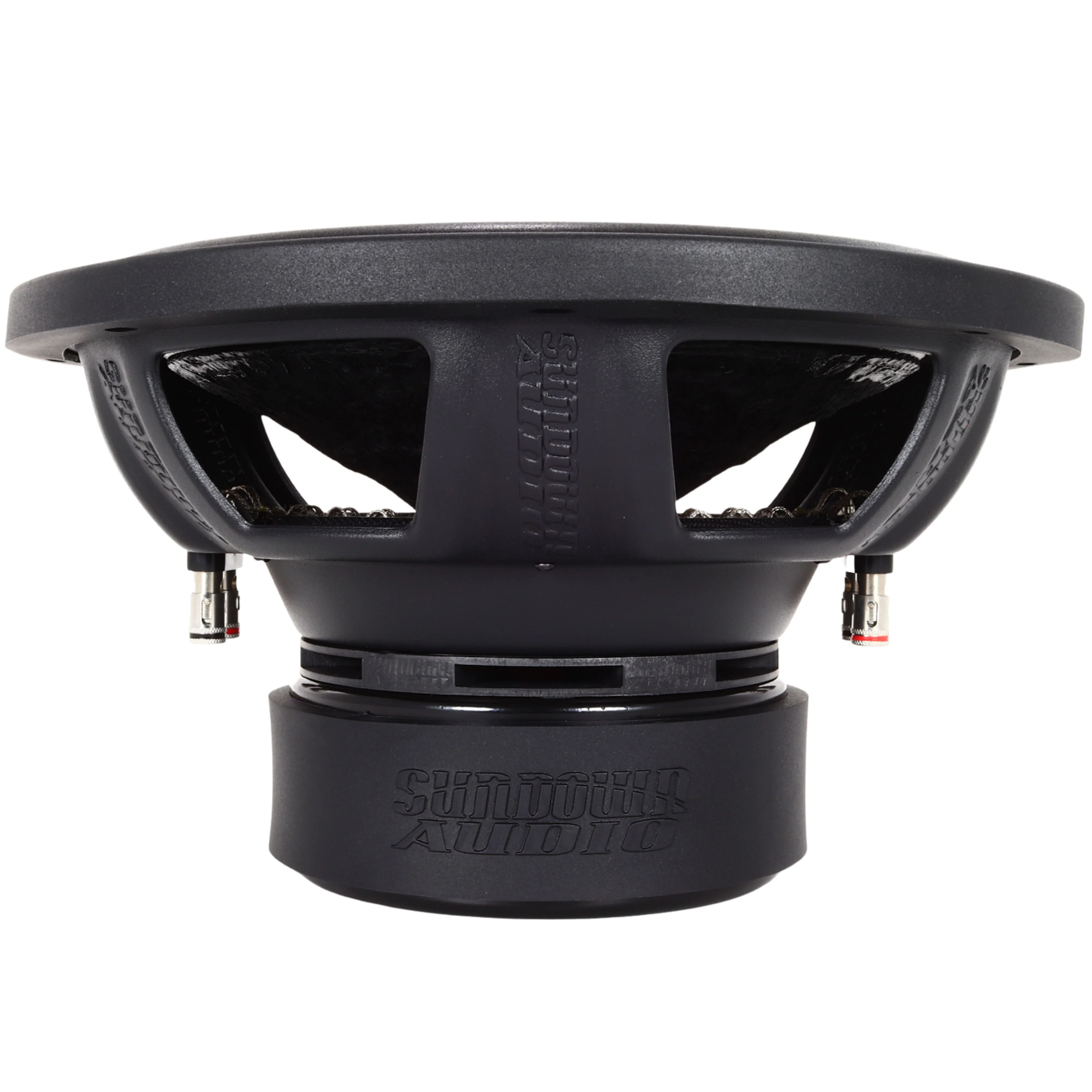

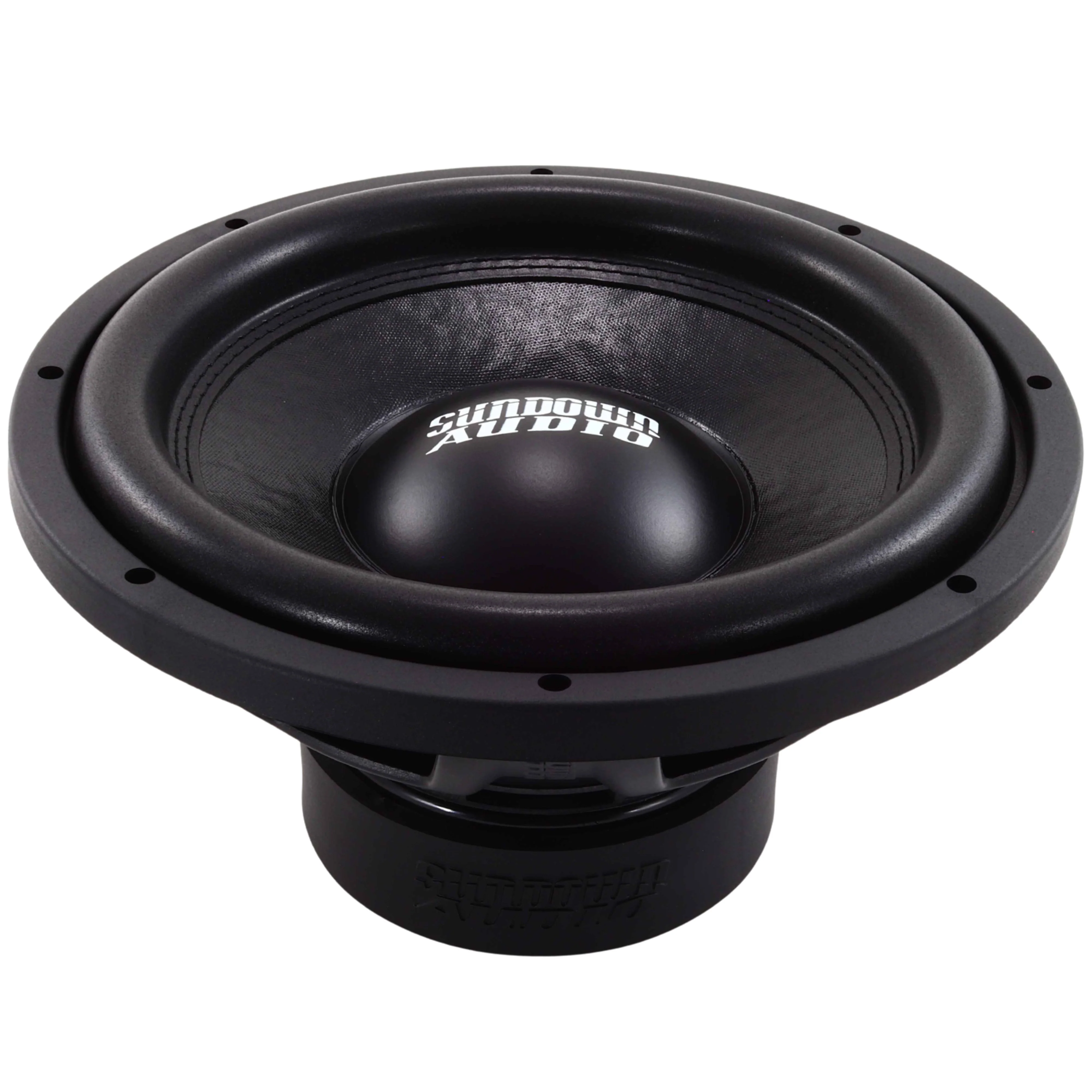

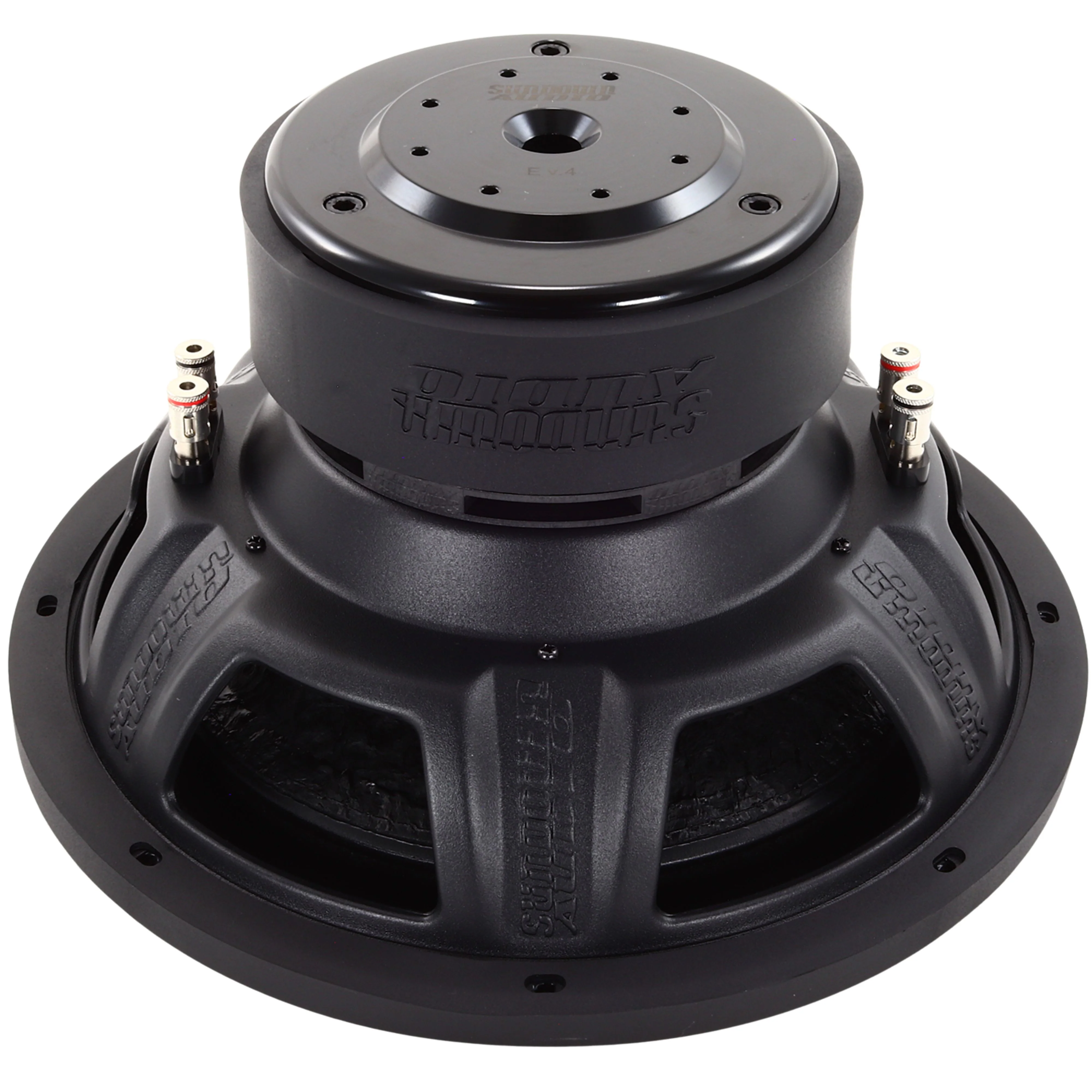

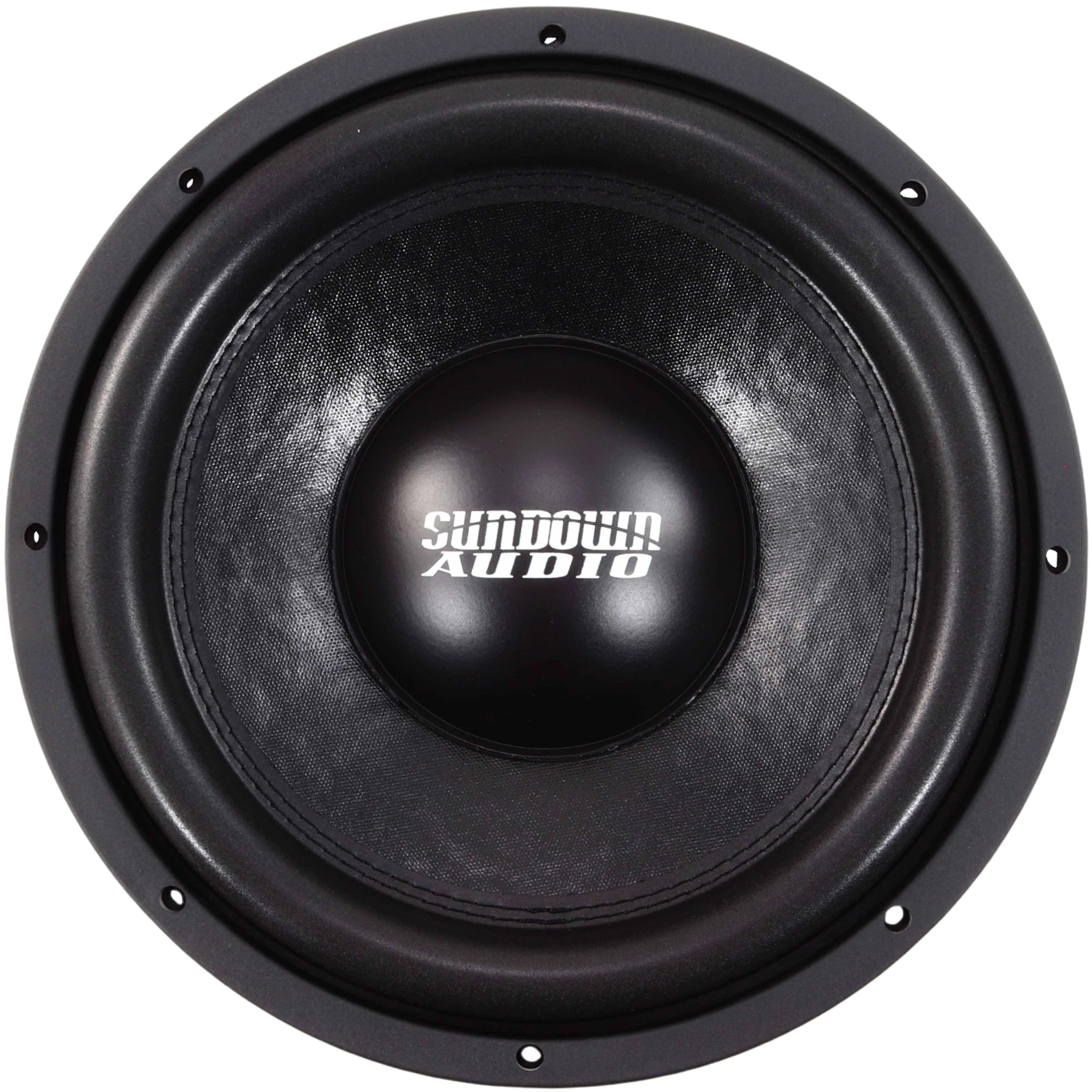

(1) Sundown Audio 1500W Peak Dual 2 Ohm VC E Series V.4 12" Subwoofer E-V.4-12-D2

The v.4 update is a minor refresh from the v.3 featuring a new custom-tooled, stronger stamped steel frame and a upgrade to our directional forced-air cooling spacer.

A double stacked magnet structure and an extremely long voice coil allow us to achieve a class-leading linear x-max of 14mm one-way in addition to high mechanical clearances

The tinsel leads have been upgraded to a new "Mini-XL" lead containing 63-strands of conductor to help prevent potential failure due to amplifier clipping. If you are looking for a great subwoofer option and do not want to break the bank the Sundown E-Series woofers are for you & these are the best E series made to date.

Features:

• Xmax = 14mm one-way by 70% BL


• RMS Power = 750-watts


• Vented magnetic gap


• Vented pole piece with optimized geometry


• Black Aluminum 2.5" voice coil former for superior heat dissipation


• High Temperature 4-Layer copper voice coil wire


• Spring Loaded Terminal


• Stitched-On "Mini-XL" Tinsel Leads to prevent fatigue and failure


• Bolted-on Spider Pack


• Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures


• High strength stamped steel frame


• Optimized for ported enclosures

Specifications:

• RE (Ohms)                 4.03


• FS(Hz)                        28.48


• VAS(L)                        53.059


• Qes                              0.509


• Qms                             5.249


• Qts                               0.464


• BL(NA)                        17.576


• Mms(Grams)              217.987


• Cms(mm/N)               143.258


• Sens(dB @ 1w/1m)   85.7

Dimensions: 15"x15"x12"
