• HIGH POWER 2000W RMS PERFORMANCE, Engineered to handle serious power with clean output and low distortion, delivering deep, controlled bass for demanding car audio systems
• EXTREME 35MM XMAX EXCURSION, Massive one way linear excursion capability allows deeper bass extension, higher output, and stronger low frequency impact in compact enclosures
• PATENTED MEGA FRAME WITH MEGA ROLL SURROUND, Custom tooled cast aluminum basket and oversized surround provide durability, stability, and increased cone movement for maximum performance
• ADVANCED COOLING AND MOTOR DESIGN, Quad stack 200mm magnet, high velocity pole venting, and frame integrated airflow keep temperatures controlled during heavy use
• OPTIMIZED FOR PORTED ENCLOSURES, Designed for strong low frequency response in recommended ported boxes, making it ideal for daily drivers and high output bass builds

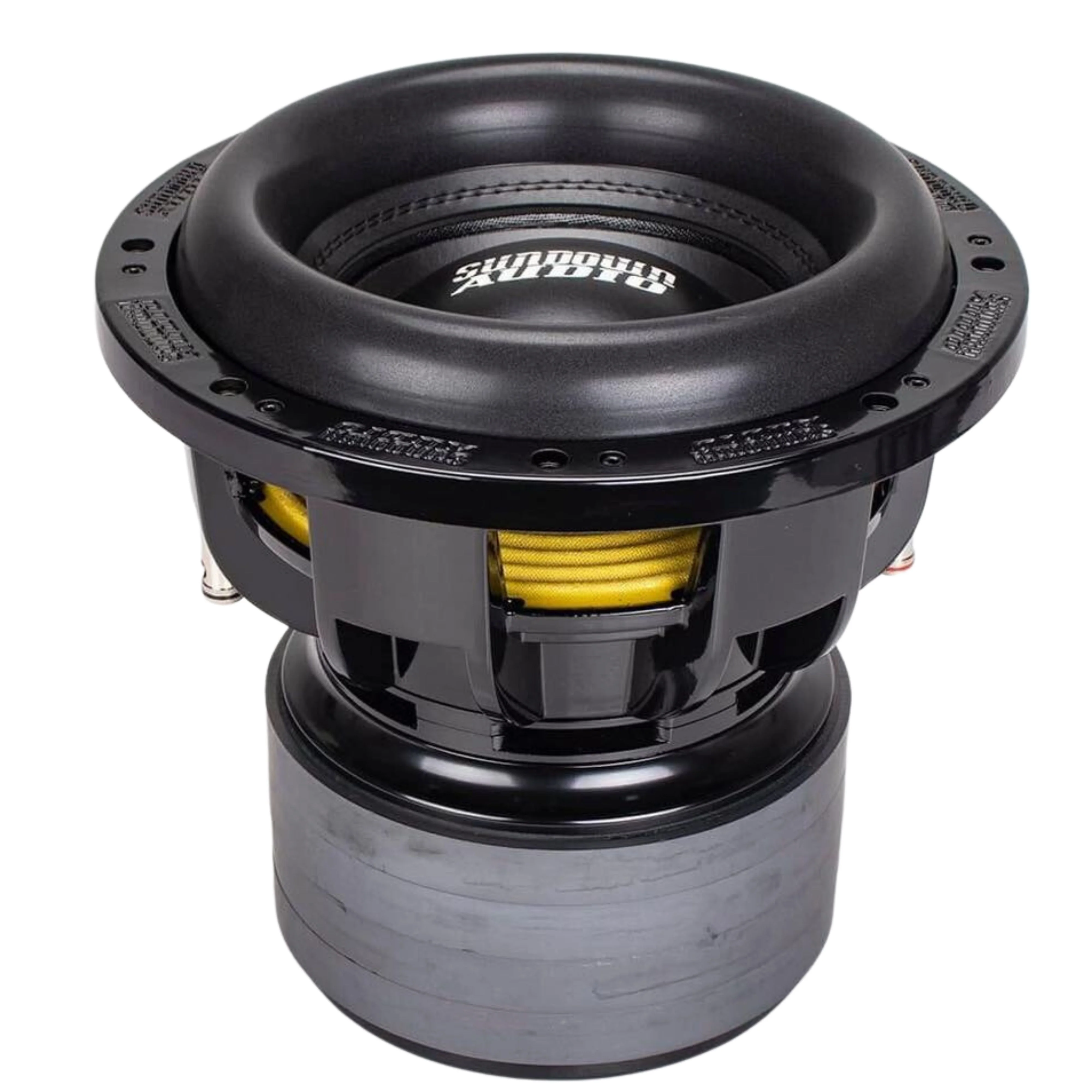

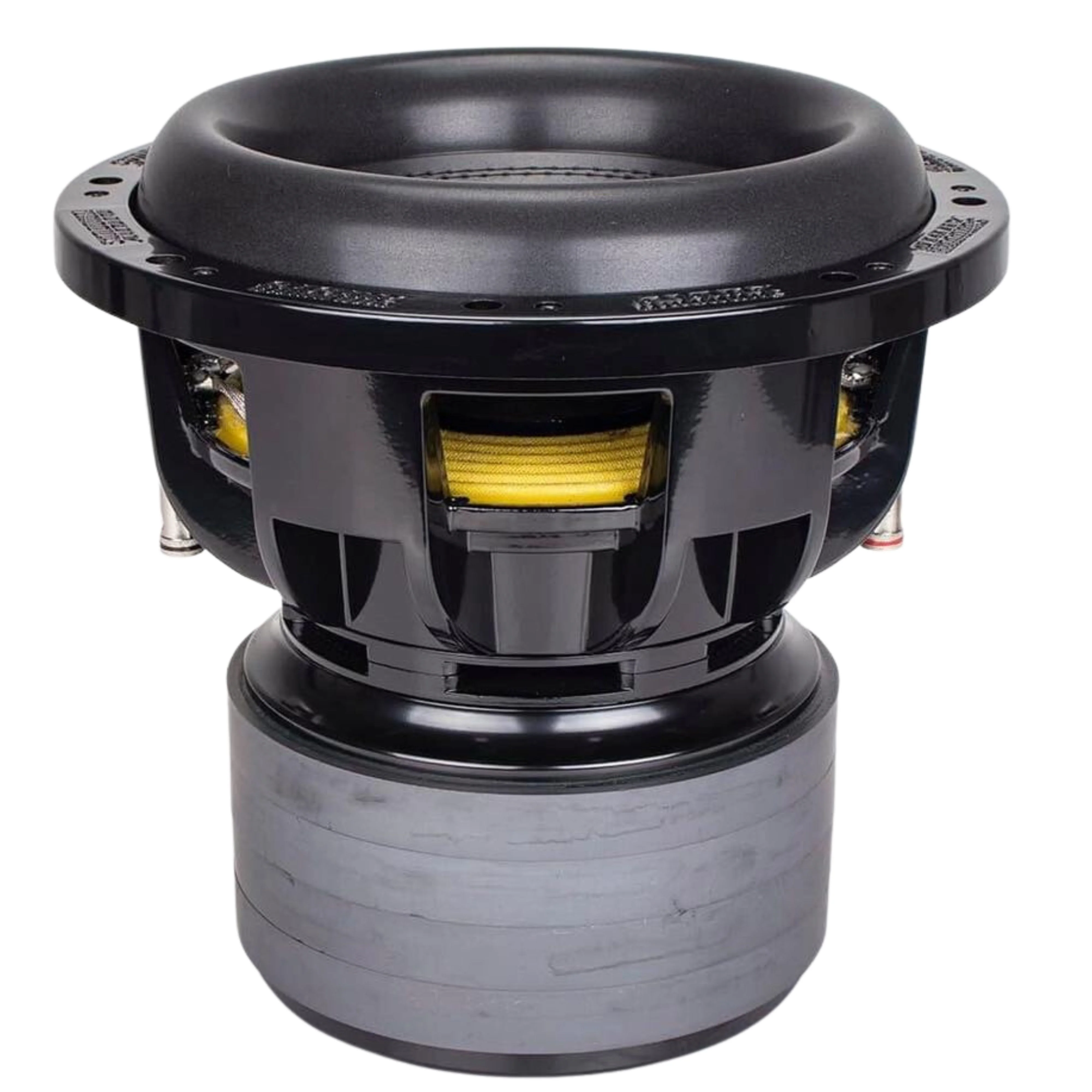

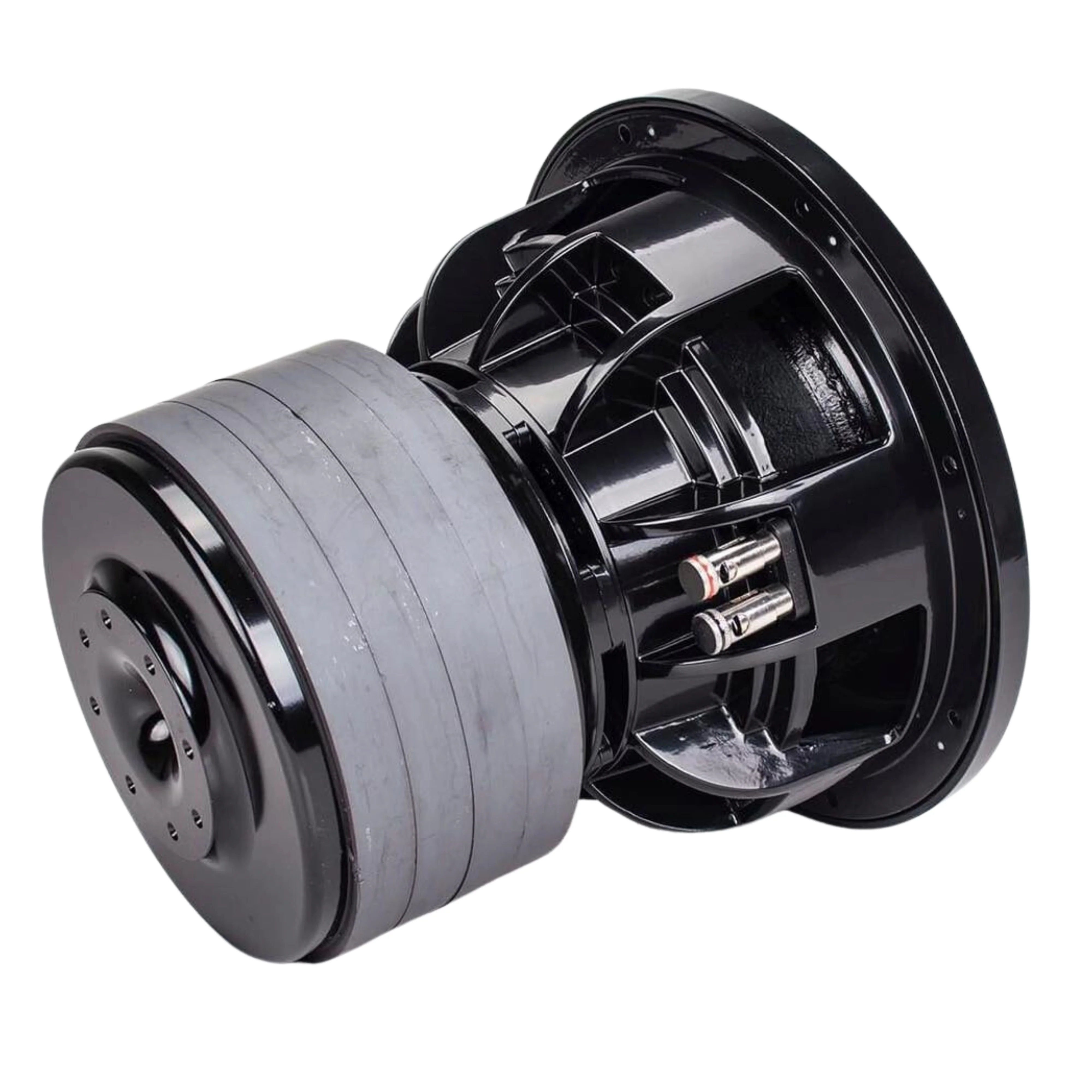

Sundown Audio 12" 1-Ohm 2000 Watts RMS M Series Subwoofer - M12D1

This Listing Includes:

• (1) Sundown Audio M12D1 12 Inch Subwoofer Dual 1 Ohm

The Sundown Audio M12D1 from the M Series delivers extreme low frequency performance with industry leading excursion and low distortion, all at an exceptional value. Built on Sundown’s patented Mega platform frame and featuring the signature Mega Roll surround, this 12 inch subwoofer is engineered for powerful output in compact ported enclosures while maintaining excellent sound quality.

At the heart of the M12D1 is a massive quad stack 200mm motor structure paired with a 3 inch 4 layer aluminum voice coil wound on a thick aluminum former. This advanced coil design allows an impressive 35mm one way linear excursion while maintaining thermal stability and durability under heavy power.

The M Series also incorporates Sundown’s proprietary PG linear suspension and an internal aluminum shorting ring to reduce inductive distortion and improve overall clarity. Combined with high velocity pole venting, backplate gap venting, and frame integrated cooling, the M12D1 maintains consistent performance even during demanding bass sessions.

Designed for serious bass enthusiasts who want deep extension, strong output, and reliability, the Sundown M12D1 sets a new benchmark for performance per dollar in the Mega series lineup.

Specifications:

• Nominal Diameter: 12 inch (304.8 mm)


• Nominal Impedance: Dual 1 Ohm


• RMS Power Handling: 2000 Watts


• Peak Power Handling: 4000 Watts


• Sensitivity: 84.387 dB (1w/1m)


• Voice Coil: 3 inch 4 layer aluminum round wire on aluminum former


• Basket: Patented custom cast aluminum Mega frame


• Magnet Structure: Quad stack 200mm diameter, 88mm height


• Top Plate Thickness: 20mm


• Cooling: Vented pole, vented backplate gap, frame integrated ventilation


• Shorting Ring: Aluminum inner diameter shorting ring


• Xmax: 35mm one way

Thiele Small Parameters:

• Re: 2.22 Ohms


• Fs: 31.931 Hz


• Vas: 39.313 L


• Qes: 0.696


• Qms: 4.654


• Qts: 0.606


• Le: 1.946 mH


• BL: 17.484 NA


• Mms: 477.932 g


• Cms: 51.979 uM/N

Recommended Enclosures:

• Ported Box: 2.5 cubic feet


• Recommended Port Area: 40 square inches


• Recommended Tuning: 32 Hz


• 4th Order Bandpass


• Sealed Side: 1.0 cubic foot


• Ported Side: 3.0 cubic feet


• Port Area: 60 square inches


• Port Length: 8 inches

Dimensions:

• Mounting Depth: 10.88 inches


• Cutout Diameter: 11.09 inches


• Overall Diameter: 12.67 inches


• Displacement: 0.21 cubic feet
