• HIGH POWER 2000W RMS PERFORMANCE, Built to handle serious power with clean output and low distortion for demanding car audio systems
• EXTREME 35MM XMAX EXCURSION, Massive linear excursion delivers deeper bass extension and higher output for strong low frequency impact
• PATENTED MEGA FRAME WITH MEGA ROLL SURROUND, Custom cast aluminum basket and oversized surround increase durability and cone control
• ADVANCED COOLING AND MOTOR DESIGN, Quad stack 200mm motor with high velocity venting keeps temperatures stable under heavy use
• OPTIMIZED FOR PORTED ENCLOSURES, Designed for strong low frequency response in recommended ported boxes for daily and SPL builds

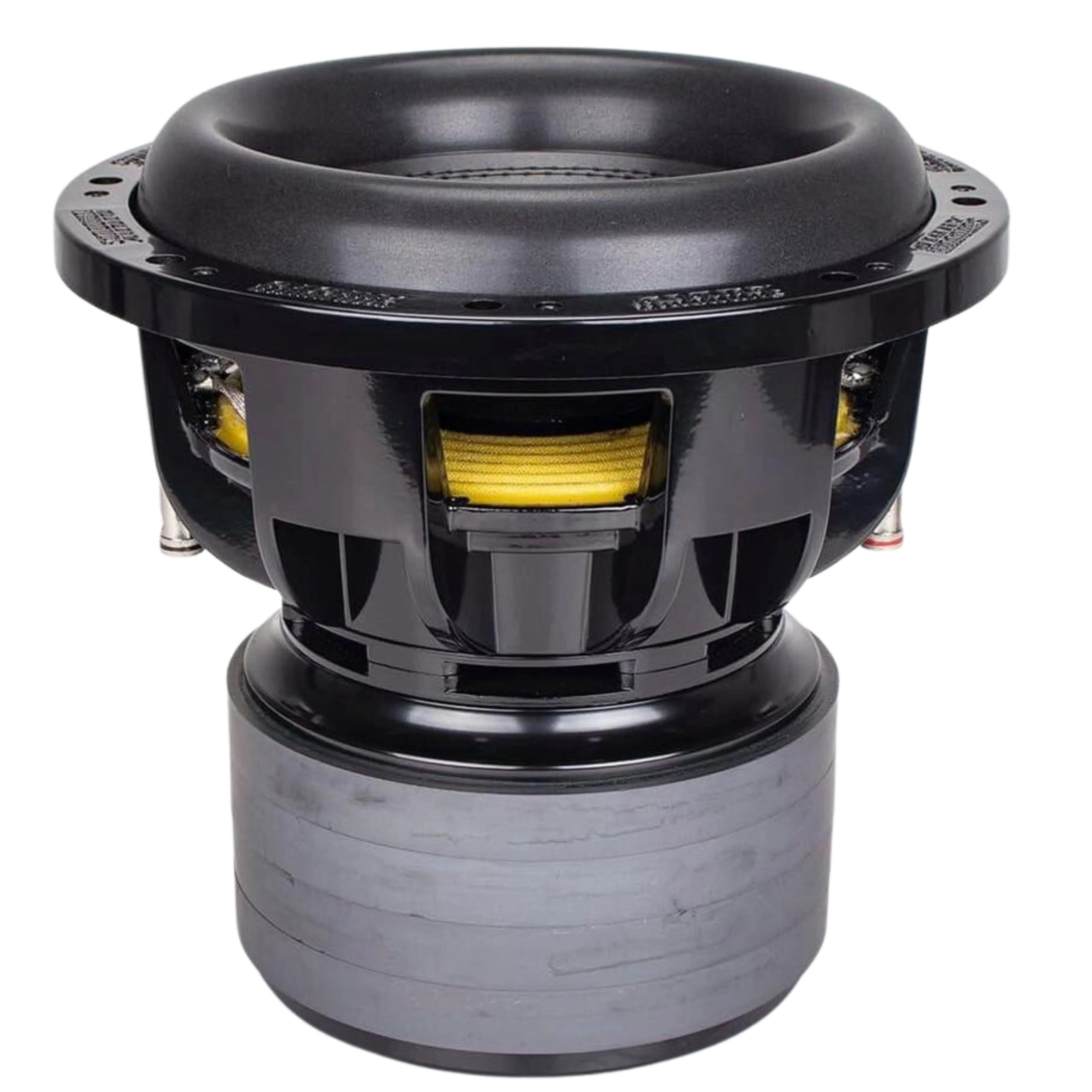

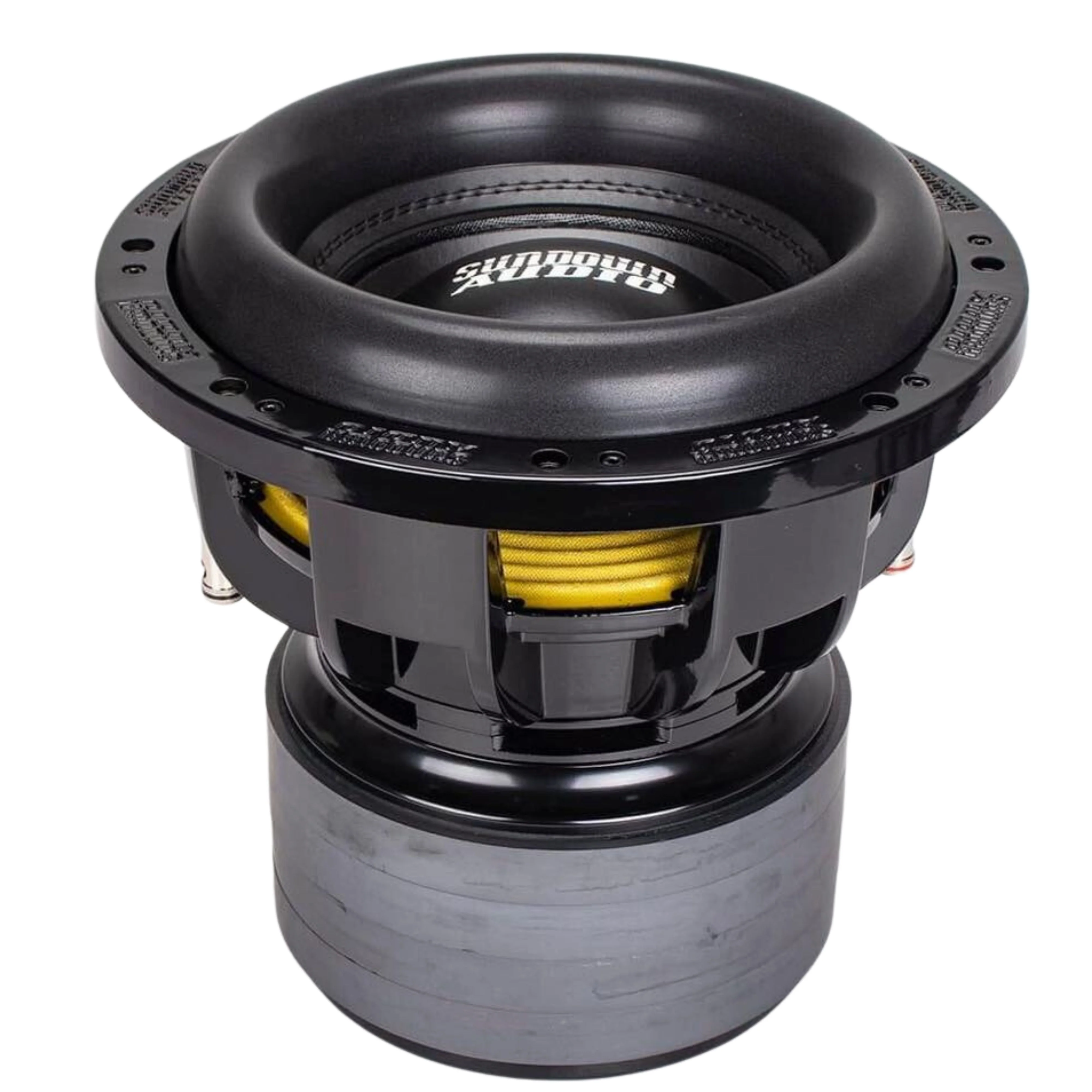

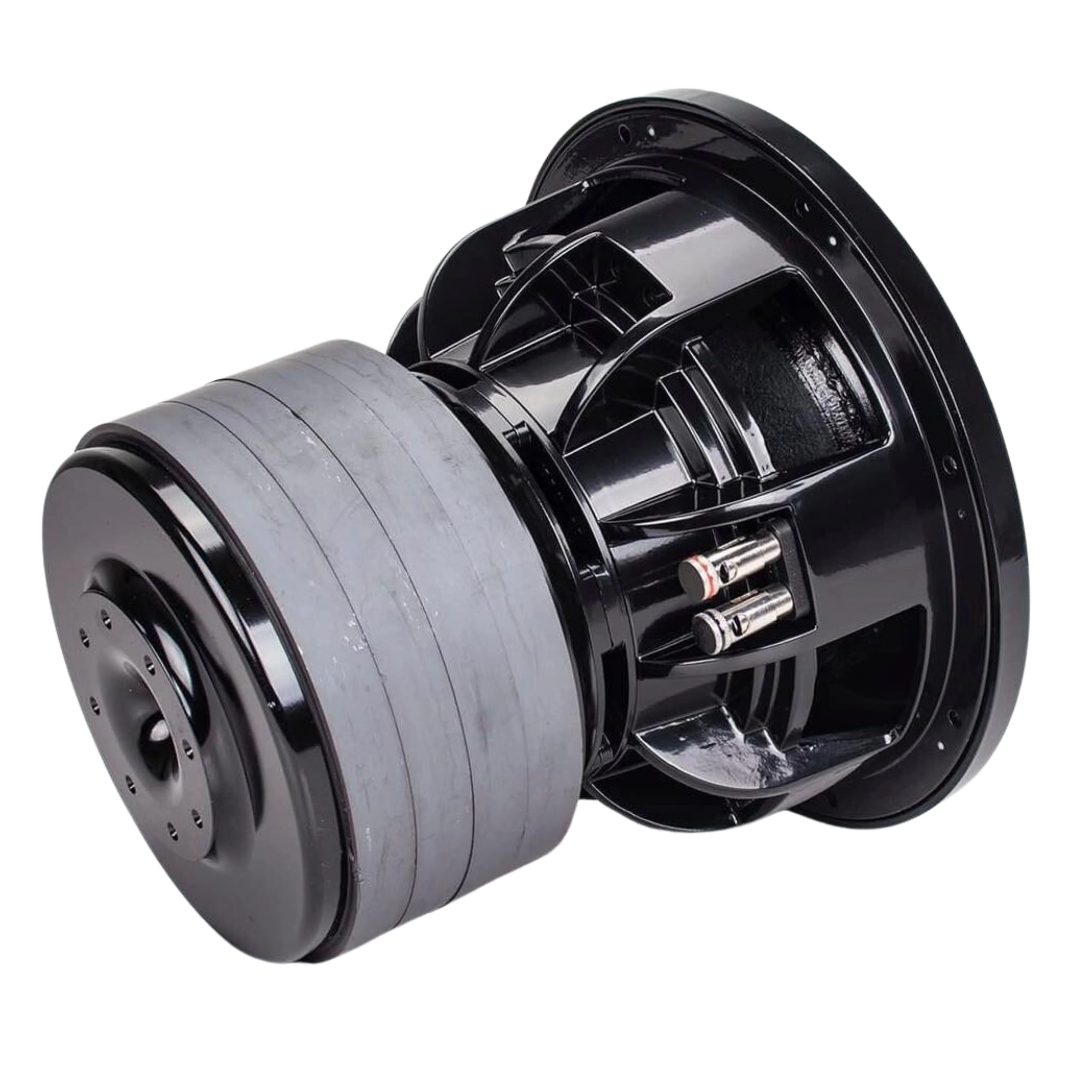

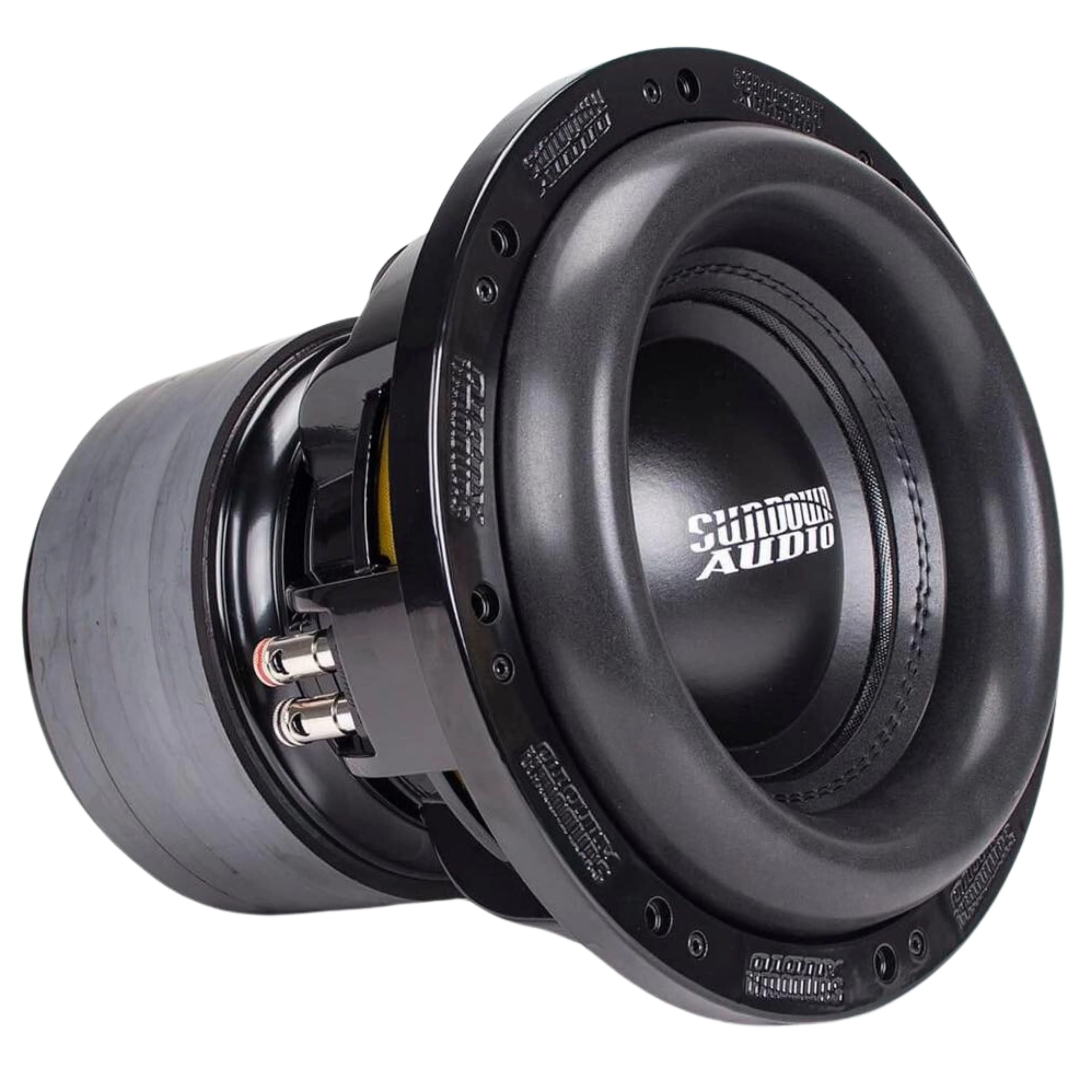

Sundown Audio 15" 2-Ohm 2000 Watts RMS M Series Subwoofer - M15D2

This Listings Includes:

• (1) Sundown Audio Series M Subwoofer 15 inch, 2000 Watts RMS, 2-Ohm

The Sundown Audio M15D2 from the M Series delivers extreme low frequency performance with massive excursion and low distortion, all at an exceptional value. Built on Sundown’s patented Mega platform cast aluminum frame and featuring the signature Mega Roll surround, this 15 inch subwoofer is engineered for powerful output in ported enclosures while maintaining excellent sound quality and durability.

At the core of the M15D2 is a quad stack 200mm motor structure paired with a 3 inch 4 layer aluminum voice coil wound on a thick aluminum former. This advanced coil design allows an impressive 35mm one way linear excursion while maintaining thermal stability during high power operation.

The M Series incorporates Sundown’s proprietary PG linear suspension and an internal aluminum shorting ring to reduce inductive distortion and improve clarity. Combined with high velocity pole venting, backplate gap venting, and frame integrated cooling, the M15D2 maintains consistent performance even under demanding bass conditions.

Designed for serious bass enthusiasts who want deep extension, strong output, and reliability, the Sundown M15D2 continues the Mega series tradition of delivering extreme performance per dollar.

Specifications:

• Nominal Diameter: 15 inch (381 mm)


• Nominal Impedance: Dual 2 Ohm


• RMS Power Handling: 2000 Watts


• Peak Power Handling: 4000 Watts


• Sensitivity: 83.3097 dB (1w/1m)


• Voice Coil: 3 inch 4 layer aluminum round wire on aluminum former


• Basket: Patented custom cast aluminum Mega frame


• Magnet Structure: Quad stack 200mm diameter, 88mm height


• Top Plate Thickness: 20mm


• Cooling: Vented pole, vented backplate gap, frame integrated ventilation


• Shorting Ring: Aluminum inner diameter shorting ring


• Xmax: 35mm one way

Thiele Small Parameters:

• Re: 4.11 Ohms


• Fs: 28.567 Hz


• Vas: 43.385 L


• Qes: 0.705


• Qms: 5.233


• Qts: 0.622


• Le: 3.645 mH


• BL: 23.7995 NA


• Mms: 541.082 g


• Cms: 57.363 uM/N

Recommended Enclosures:

• Ported Box: 4.25 cubic feet


• Recommended Port Area: 68 square inches


• Recommended Tuning: 32 Hz


• 4th Order Bandpass


• Sealed Side: 2.0 cubic feet


• Ported Side: 6.0 cubic feet


• Port Area: 120 square inches


• Port Length: 8 inches

Dimensions:

• Mounting Depth: 12.06 inches


• Cutout Diameter: 13.93 inches


• Overall Diameter: 15.51 inches


• Displacement: 0.23 cubic feet
